Mitsubishi ESKA SK40 1.0 mm High-Brightness End-Glow POF
Mitsubishi ESKA SK40 1.0mm high-brightness end-glow PMMA POF, 150 dB/km at 650nm, 1500m roll, for car headliner star and shooting-star effects.
The Mitsubishi ESKA SK40 is a 1.0 mm high-brightness step-index PMMA end-glow fiber from the SK decorative series, wound on a 1,500 m spool. The 1.0 mm SK40 grade is chosen for bright car-headliner star and shooting-star effects and feature lighting. As always, the 6000 K, AC 165–265 V and IP68 figures in the listing belong to the LED illuminator, not the fiber.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features

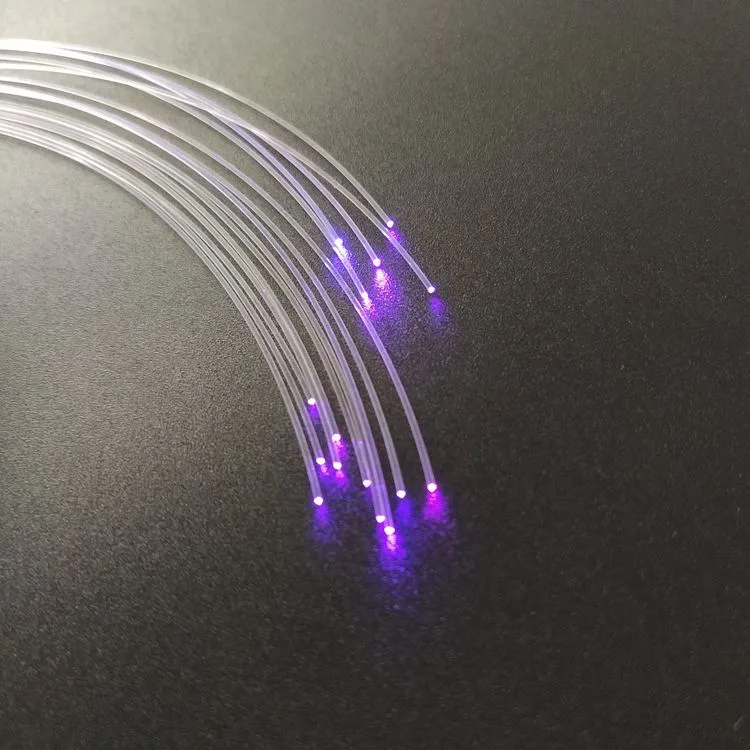

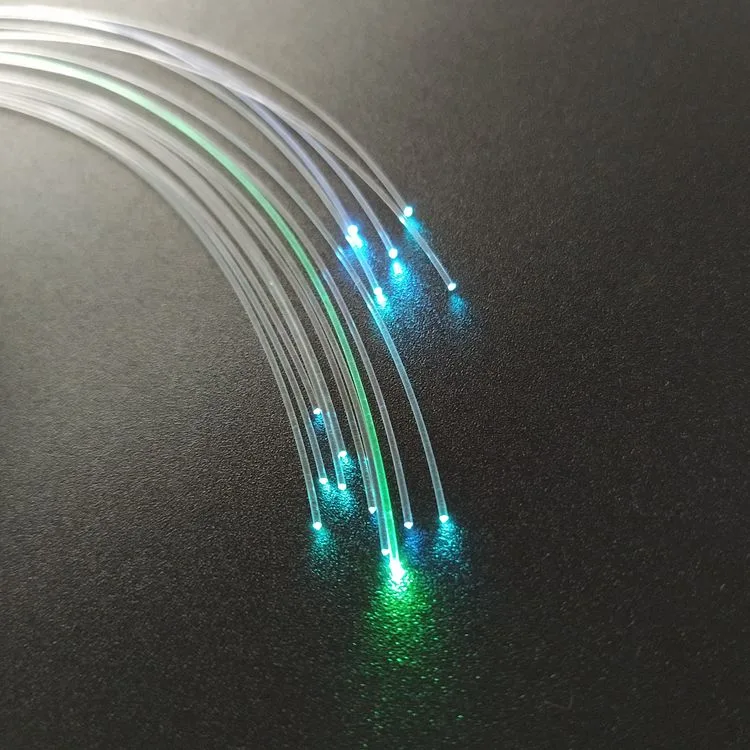

- 1.0 mm high-brightness SK40 end-glow grade.
- Supplier SK table: 150 dB/km at 650 nm, –55 ~ +70 °C.

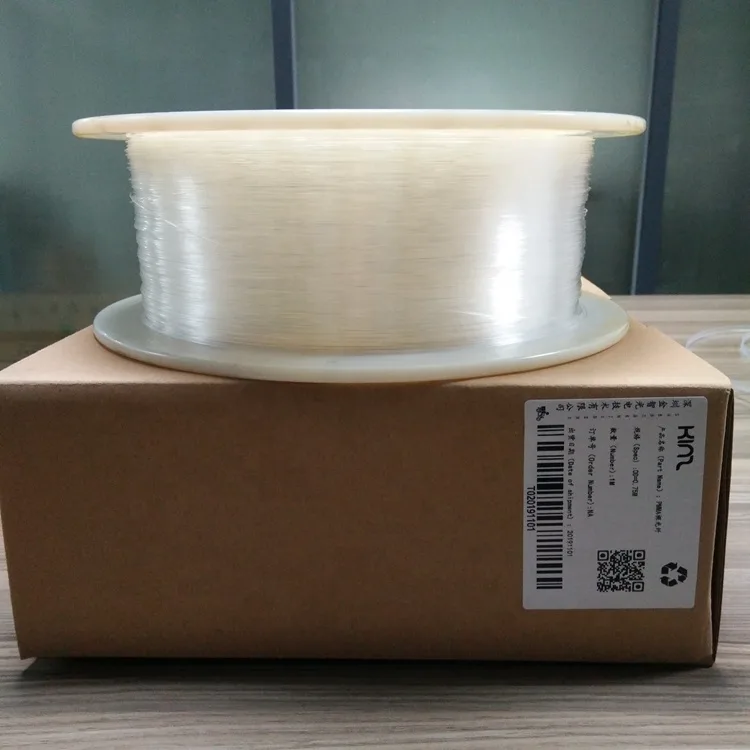

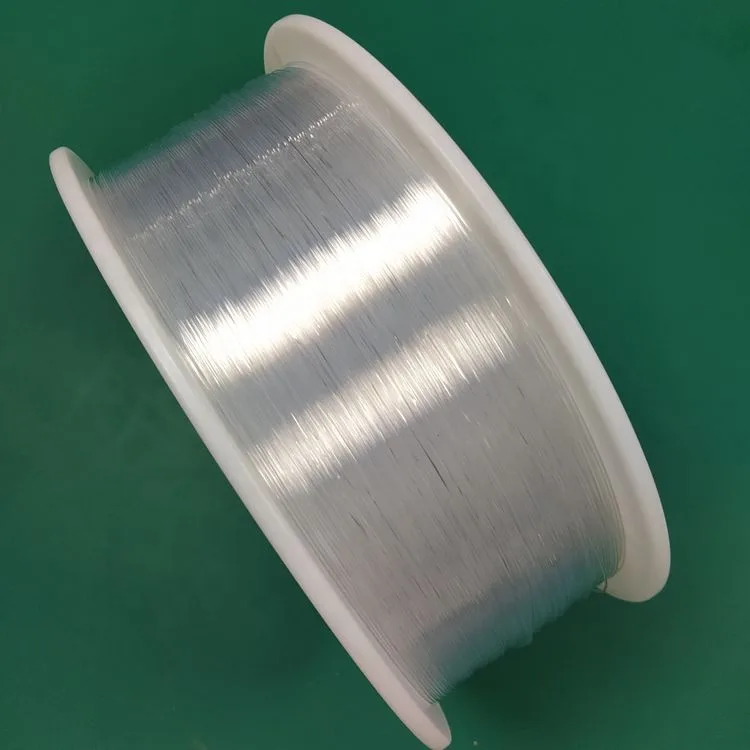

- 1,500 m roll, 1.50 kg net fiber weight.
- PMMA core / fluorinated cladding, NA 0.5.

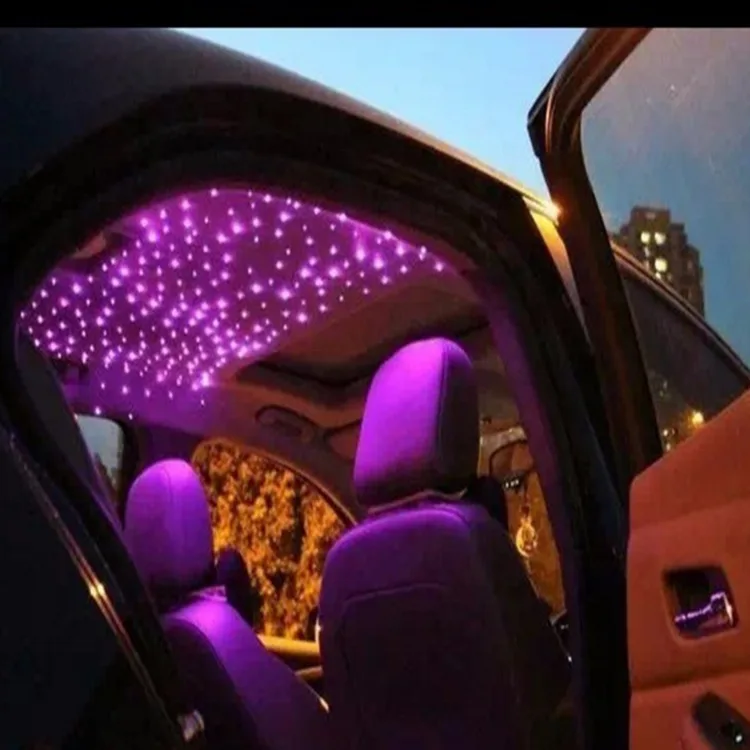

- Suited to car headliner star fields and shooting-star animation.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

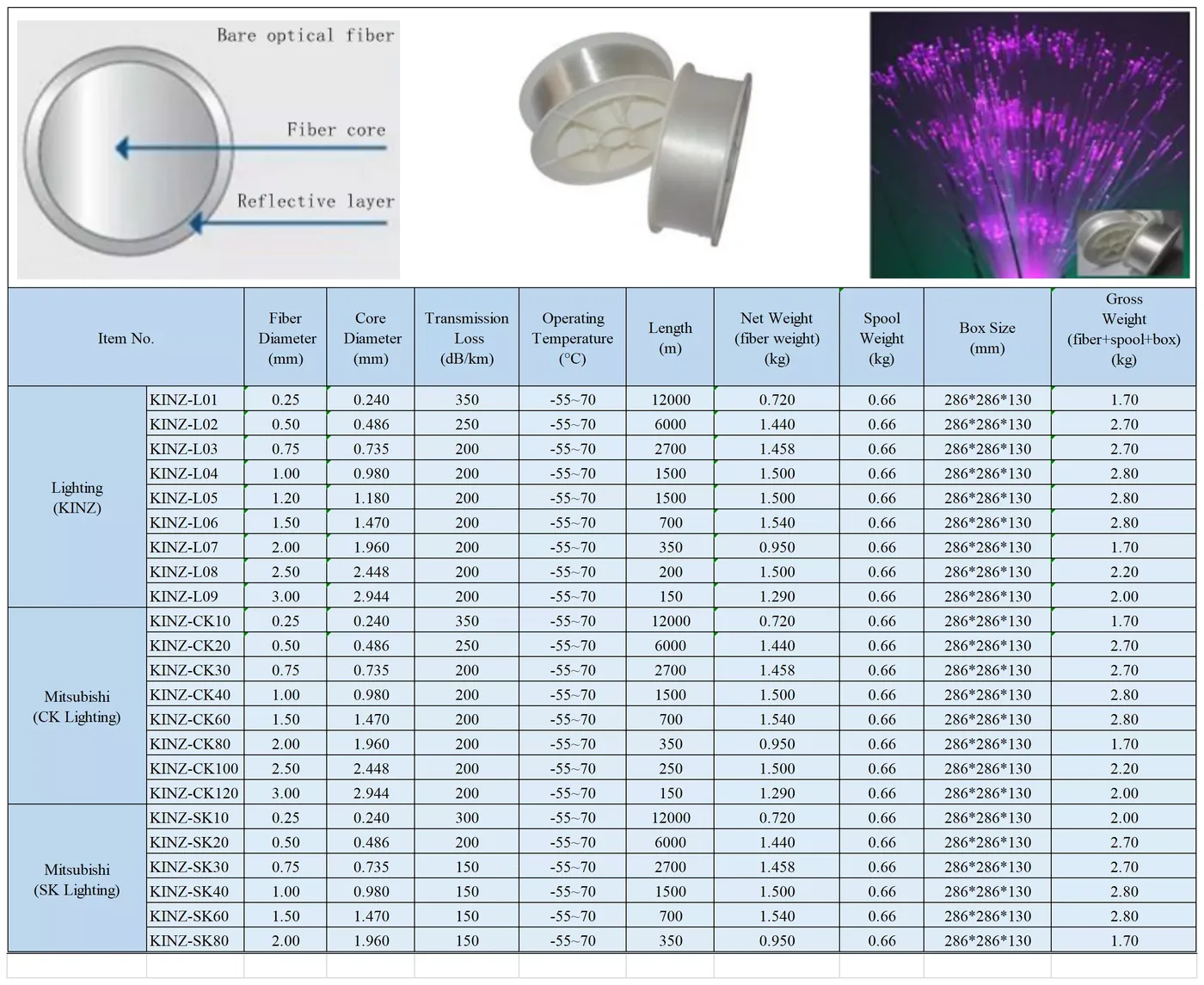

| Fiber grade | SK40 (Mitsubishi ESKA SK lighting series) | – | Supplier SK family table. |
| Fiber diameter | 1.00 | mm | SK family table row SK40. |
| Core diameter | 0.980 | mm | SK family table. |
| Transmission loss | 150 | dB/km | At 650 nm, SK family table. |
| Numerical aperture (NA) | 0.5 | – | Family typical. |
| Core material | PMMA | – | Family structure data. |
| Core refractive index | 1.49 | – | Supplier sheet. |
| Cladding material | Fluorinated polymer | – | Family structure data. |
| Cladding refractive index | 1.363 | – | Supplier product-feature sheet. |
| Operating temperature | -55 ~ +70 | C | SK family table. |
| Winding length | 1500 | m/roll | SK family table row SK40. |
| Net fiber weight | 1.500 | kg | SK family table. |
| Gross weight (fiber+spool+box) | 2.80 | kg | SK family table. |
| Effect | End glow / sparkle | – | High-brightness decorative POF. |
Applications

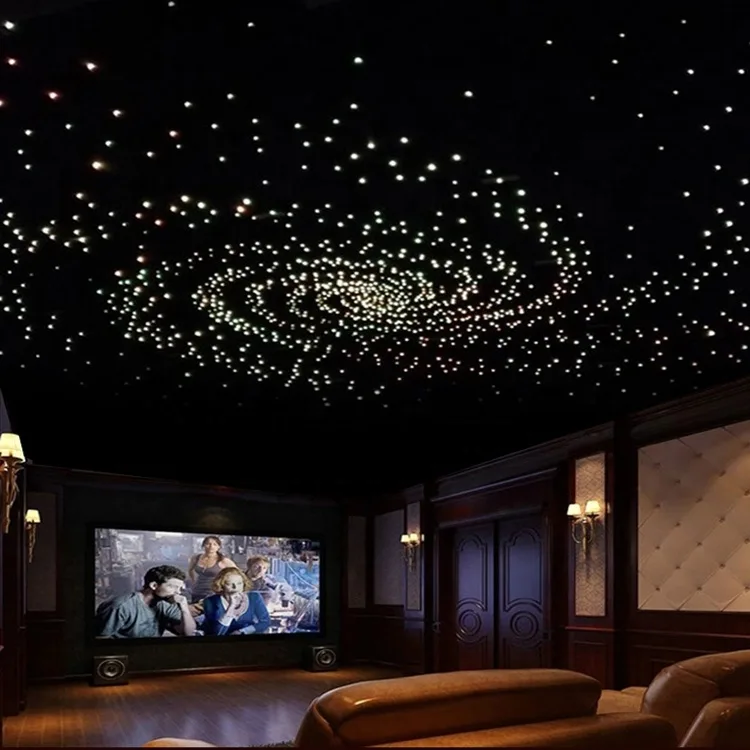

Car headliner star and shooting-star effects, home theater and KTV ceilings, fiber curtains, and RGB decorative end-point lighting. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the length and illuminator port; we supply by spool or cut to order. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
What does SK40 mean?
SK40 is the Mitsubishi ESKA SK decorative grade for 1.0 mm fiber: 0.980 mm core, 150 dB/km at 650 nm, 1,500 m roll per the supplier family table.
Is SK40 brighter than SK10?
SK40 is 1.0 mm at 150 dB/km; SK10 is 0.25 mm at 300 dB/km. The thicker SK40 passes more light per strand for brighter points.
Does it include the LED engine?
No, this is the bare fiber. Pair it with a compatible RGB or white LED fiber illuminator.
Why Choose Us
We supply the SK decorative grades by the actual diameter and loss in the supplier table, keep light-engine specs out of the fiber, and quote the bare fiber for star-headliner builds. Browse the POF category, the FAQ page or the home page.
