0.75mm PMMA Multi-String 15mm PVC Fiber Bundle for Star Ceiling
0.75mm PMMA multi-string 15mm PVC fiber bundle for star ceilings, end-glow sparkle, 0.25dB/m, customizable, pairs with an RGB LED engine.
The 0.75 mm PMMA multi-string 15 mm PVC fiber optic bundle groups many thin end-glow fibers into one 15 mm jacketed cable, used to build star-ceiling (Sternenhimmel) and sky-effect lighting.
Product Overview
Each strand is a 0.75 mm PMMA (polymer) optical fiber gathered into a multi-string PVC bundle about 15 mm across. One small LED engine feeds the bundle and projects light out to every fiber tip, creating scattered star points across a ceiling or wall. PMMA fiber carries no heat or electricity out to the tips, is flexible and easy to cut, and can be arranged into any star pattern. Supplier data lists typical attenuation around 0.25 dB/m for this bundle.
Key Features
- 0.75 mm single fibers gathered into a 15 mm multi-string PVC bundle.
- End-glow / sparkle star-tip effect for star ceilings.
- Flexible, cuttable PMMA; safe cool light at the tips.
- Typical attenuation about 0.25 dB/m per supplier listing.
- One engine drives the whole bundle; RGB color-changeable.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Fiber Type | Multi-string end-glow PMMA bundle (star / sparkle) | – | PVC-jacketed multi-fiber bundle for star ceilings. |
| Single Fiber Diameter | 0.75 | mm | Per supplier listing. |
| Bundle Outer Diameter | 15 | mm | Bundle assembled into a 15mm cable. |
| Jacket | PVC | – | Multi-string PVC bundle cable. |
| Typical Attenuation | 0.25 | dB/m | Per supplier listing. |
| Fiber Material | PMMA | – | Polymer optical fiber. |
| Effect | End-glow / sparkle | – | Star-ceiling effect. |
Applications
- Home cinema, bedroom and hotel star ceilings (Sternenhimmel).

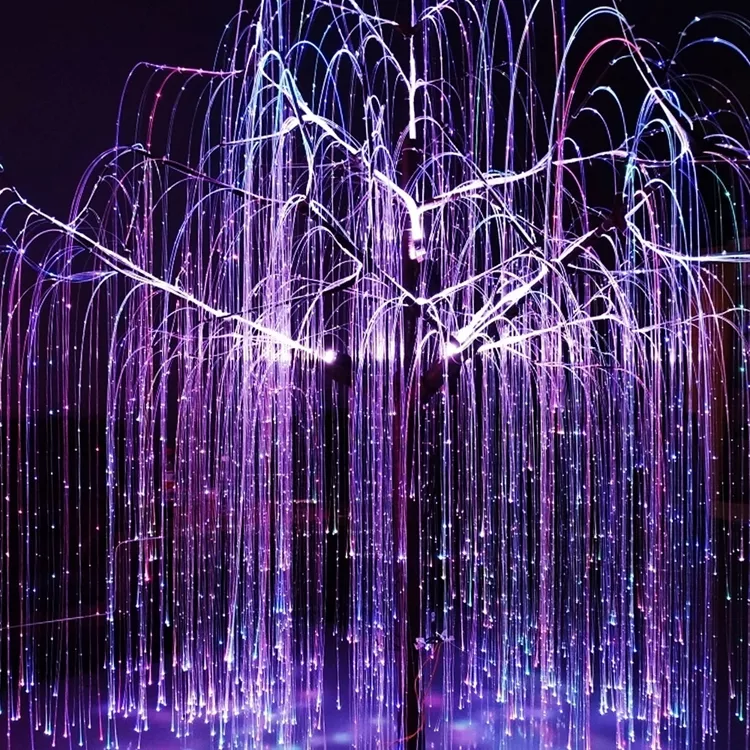

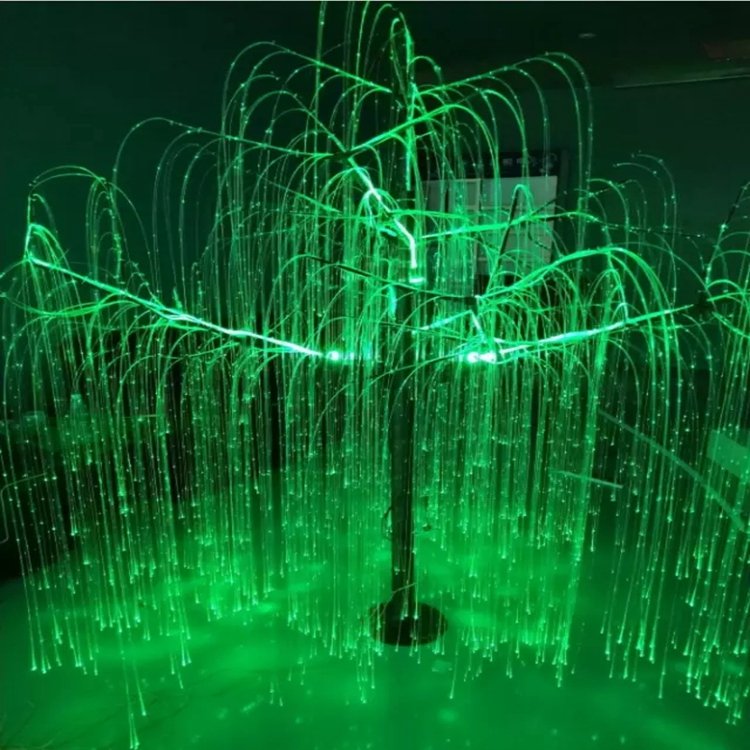

- Fiber chandeliers, curtains and falling-water displays.
- Decorative sky and galaxy effects in bars, KTV and themed rooms.
See our full fiber optic lighting range for matching RGB LED engines, side-glow rolls and end-glow kits.
Ordering & Customization
We supply the multi-string bundle by length, with the star density and bundle size customized to your ceiling area. To quote, confirm ceiling area, strand count, length, engine color/control and quantity. Contact our sales team with your room dimensions.
FAQ

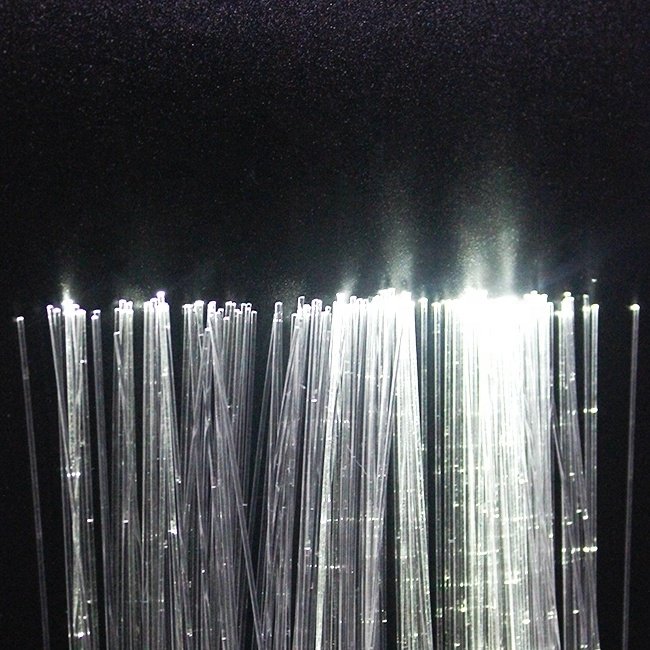

How is the star effect made? Each 0.75 mm fiber tip glows as a separate star point; trimming and polishing the tips improves brightness.
Does it come with the light engine? It can be ordered as bundle-only or matched with an RGB LED engine and remote — specify on enquiry.

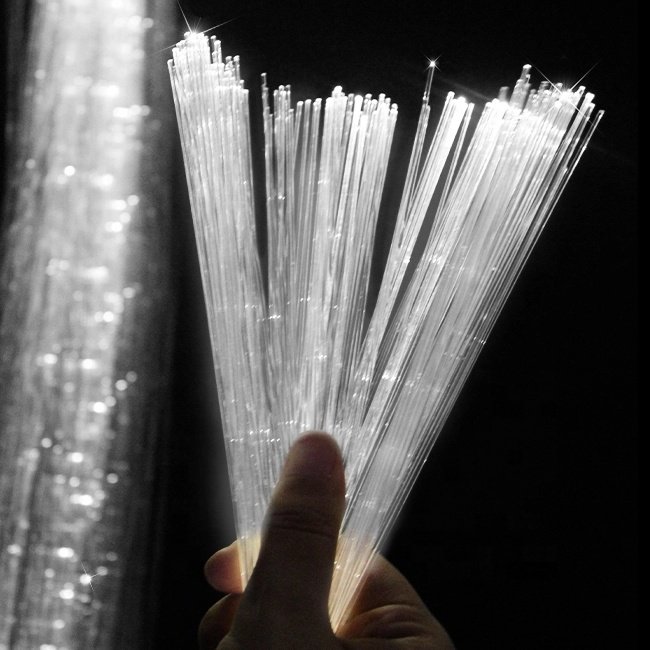

Can the bundle be split to a pattern? Yes, the individual strands can be fanned out across a ceiling tile and re-gathered at the engine end.
Why Choose Us
TOCP Fibercable supplies end-glow and side-glow PMMA fiber bundles plus LED engines for star ceilings and hospitality projects, with supplier parameters checked before quoting. Read our FAQ page or visit the home page.
