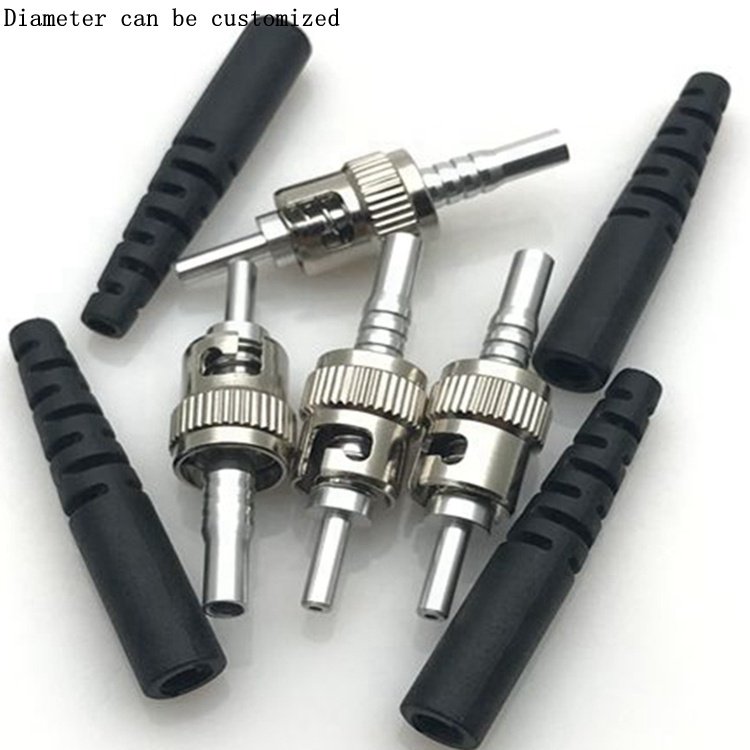

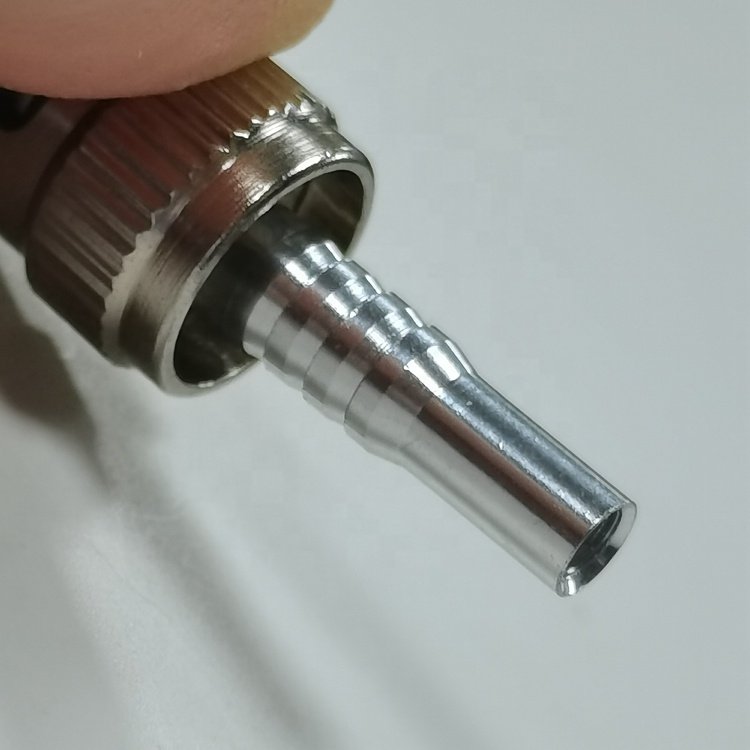

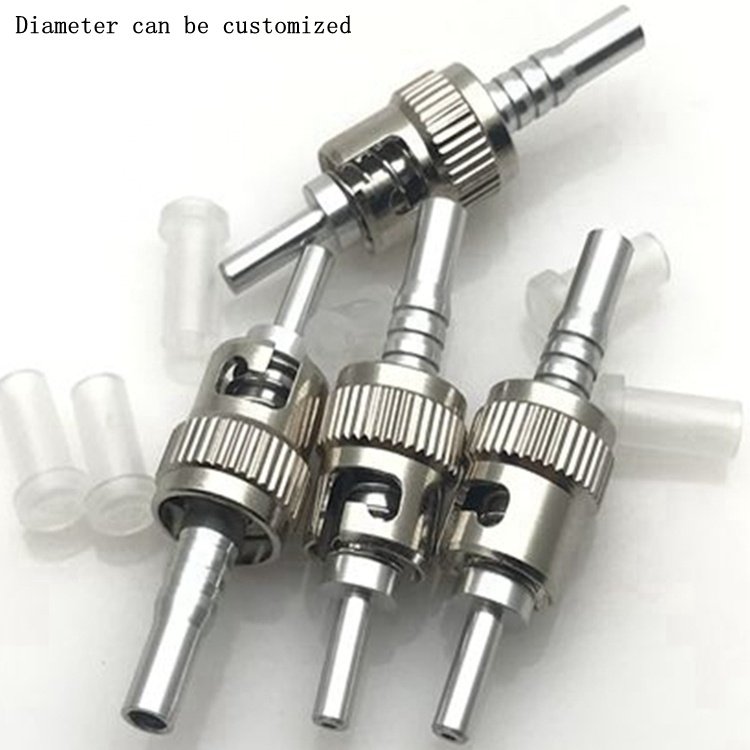

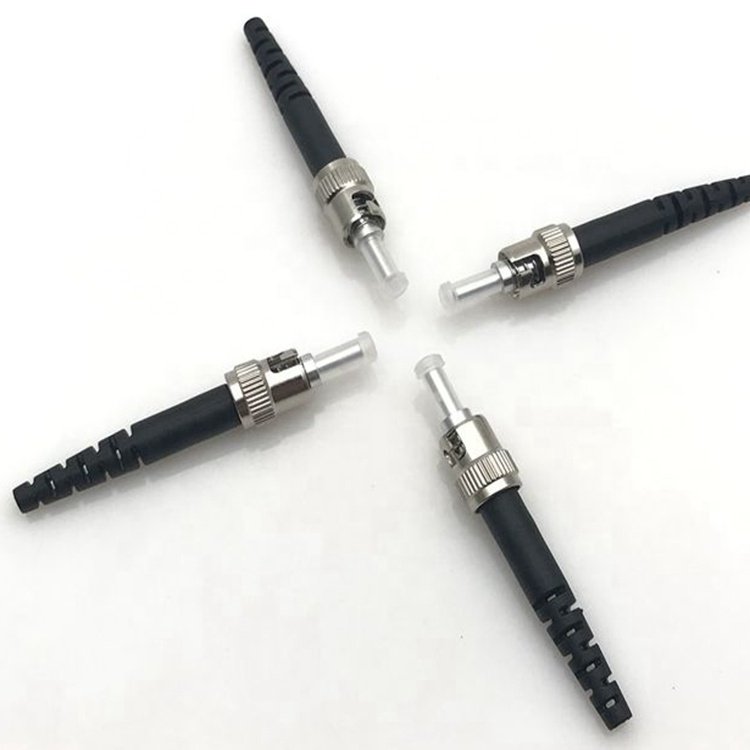

ST (BFOC) POF Connector, 1.0 mm, Custom
ST (BFOC) metal POF connector for 1.0mm fiber, customizable, low insertion loss, IEC 61754, for electrical machines and industrial POF links.
The ST (BFOC) POF connector for 1.0 mm fiber is a customizable metal bayonet connector for electrical machines and industrial POF links.
Product Overview
This 1.0 mm POF ST connector complies with IEC 61754 and is supplied assembled or as parts. It shares the ST family in our connector module category.
Key Features
- ST (BFOC) bayonet, 1.0 mm POF bore.
- IL <=0.20 dB typical; RL >=50 dB; 1000 mates.
- -20 to +70 C operation.
- Assembled or kit; custom termination.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | ST (BFOC), bayonet | – | docx; IEC 61754 |
| Fiber diameter | 1.0 | mm | POF |
| Insertion loss typical | <=0.20 | dB | docx |
| Insertion loss maximum | <=0.30 | dB | docx |
| Return loss | >=50.0 | dB | docx |
| Durability | 1000 | insertions | docx |
| Operating temperature | -20 to +70 | deg C | docx |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
