ST (BFOC) Fiber Optic Connector, 1.0 mm POF, Metal
ST (BFOC) metal fiber optic connector for 1.0mm POF, insertion loss <=0.20dB typical, 1000 mates, IEC 61754, for electrical machines.

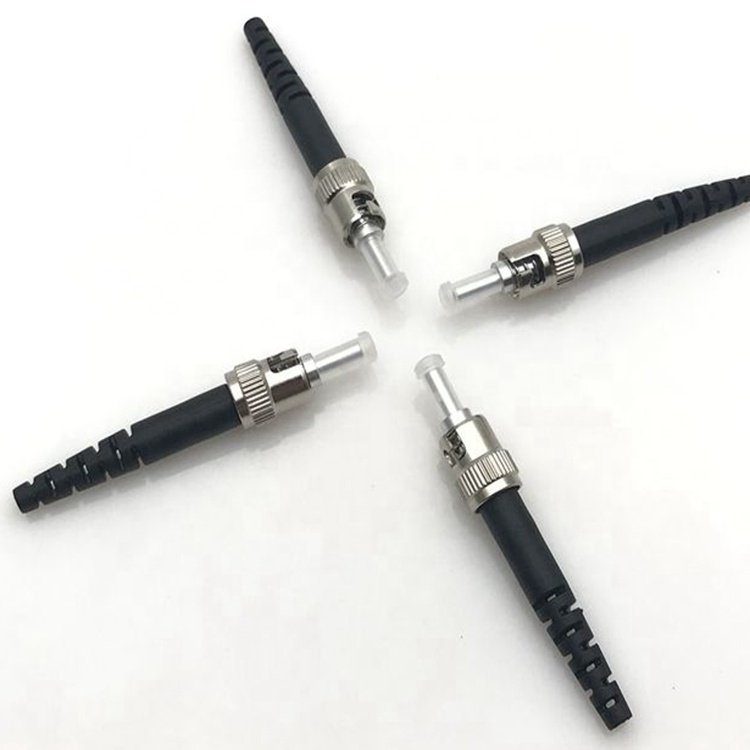

The ST (BFOC) fiber optic connector for 1.0 mm POF is a metal bayonet connector used on electrical machines and industrial fiber links, with a black ribbed strain-relief boot.
Product Overview

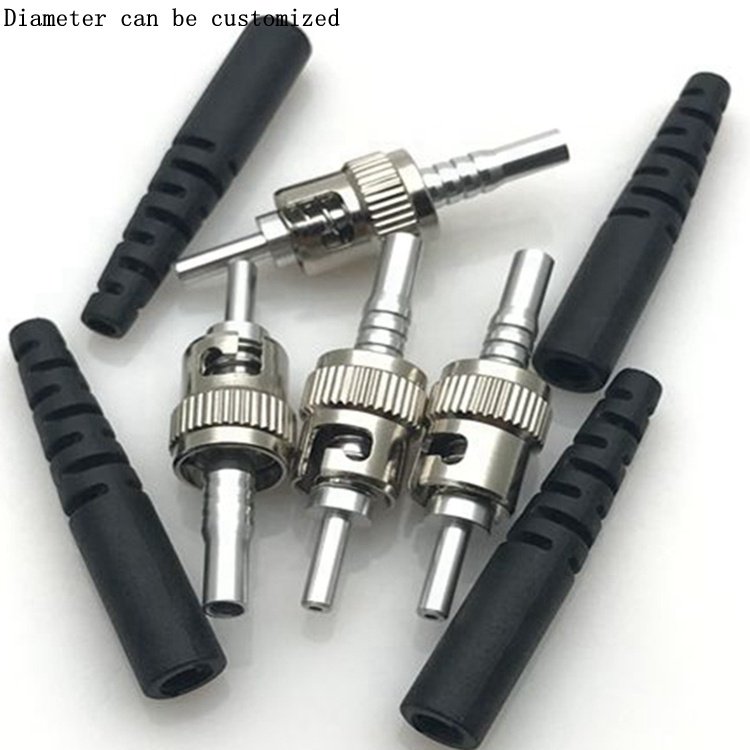

The ST/BFOC interface complies with IEC 61754 and IEC 874-10. This version is bored for 1.0 mm POF and offered assembled or as a kit. It is part of our fiber optic connector module range.
Key Features
- ST (BFOC) bayonet, metal body.

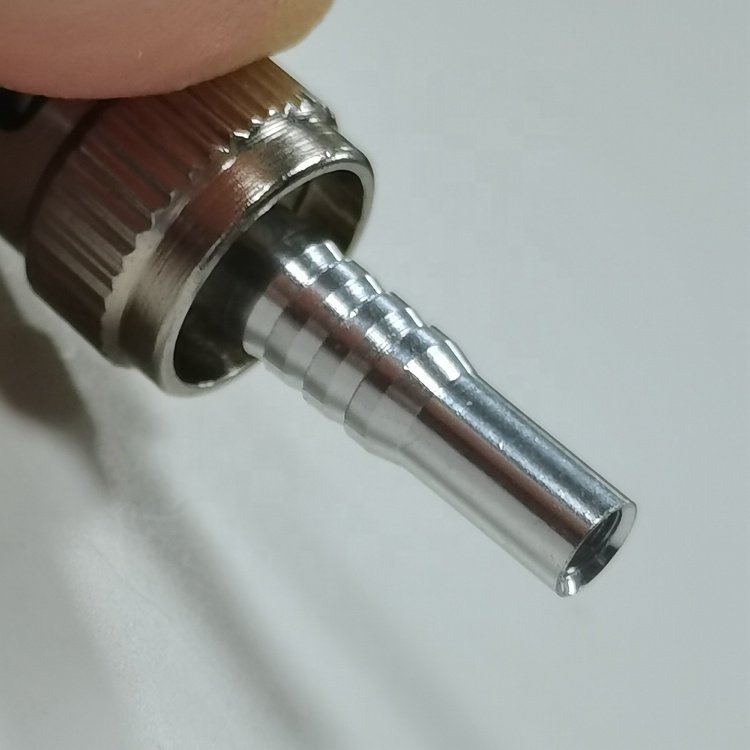

- 1.0 mm POF bore.
- Insertion loss <=0.20 dB typical, <=0.30 max; return loss >=50 dB.
- 1000 mating cycles; -20 to +70 C operation.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | ST (BFOC), bayonet | – | docx; IEC 61754 / IEC 874-10 |
| Fiber diameter | 1.0 | mm | POF |
| Insertion loss typical | <=0.20 | dB | docx technical specs |
| Insertion loss maximum | <=0.30 | dB | docx |
| Return loss | >=50.0 | dB | docx |
| Durability | 1000 | insertions | docx |
| Operating temperature | -20 to +70 | deg C | docx |
| Test wavelength | 1310 / 1550 | nm | docx (generic glass reference) |
Applications
- Industrial automation and control-bus optical links.
- Sensing and short-range data links where copper picks up noise.
- Equipment-to-device optical interconnections in cabinets and on machines.
Browse our full fiber optic connector module category for related parts.
Ordering and Customization
Tell us the fiber core/cladding, required length or quantity, and whether you need the part loose, as a kit, or pre-assembled. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Can you supply this pre-assembled to my fiber length? Yes – we can supply the part loose, as a kit, or pre-assembled to your specified fiber and length. Contact us with the fiber and length.
Do you certify these connectors? Supplier listings state ISO9001/RoHS manufacturing certifications, but we do not claim system-level or compatibility certification; confirm the interface against your equipment.
Why Choose Us
We supply industrial POF and H-PCF connectors, adapters and assemblies with supplier parameters checked before quoting, and we flag the bore, fiber and interface values that need confirmation rather than overstating compatibility. Start from the fiber optic connector module category or the home page.
