PMMA Fiber Optic Sensor Jumper, 650nm, Metal Ferrule
Black single-core PMMA fiber optic sensor jumper with metal cylindrical ferrule probe end, 650nm, 1m standard customizable, for fiber sensor probes.
This fiber optic sensor jumper is a black single-core PMMA POF cable with a metal cylindrical ferrule probe end, built for fiber-optic sensor probes and short-range industrial sensing links.
Product Overview

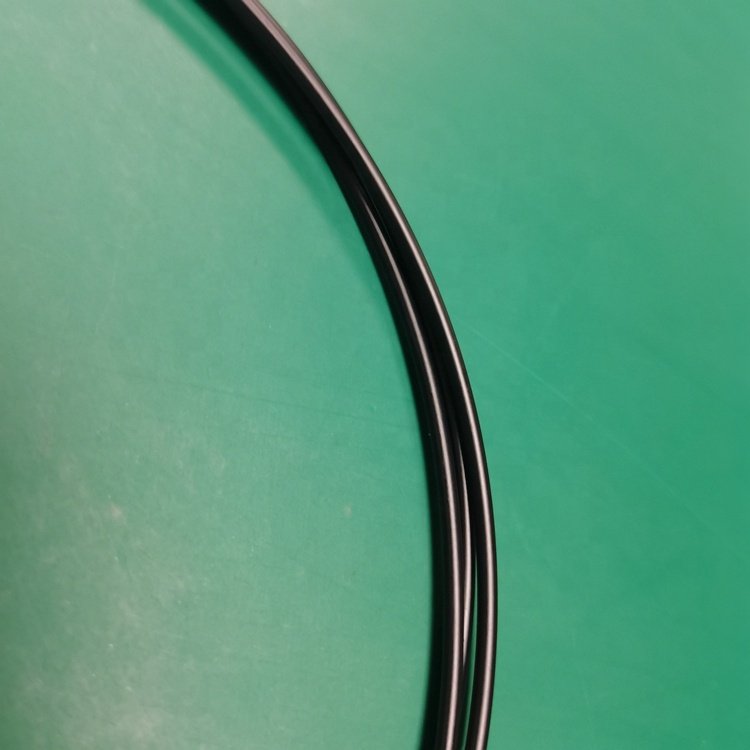

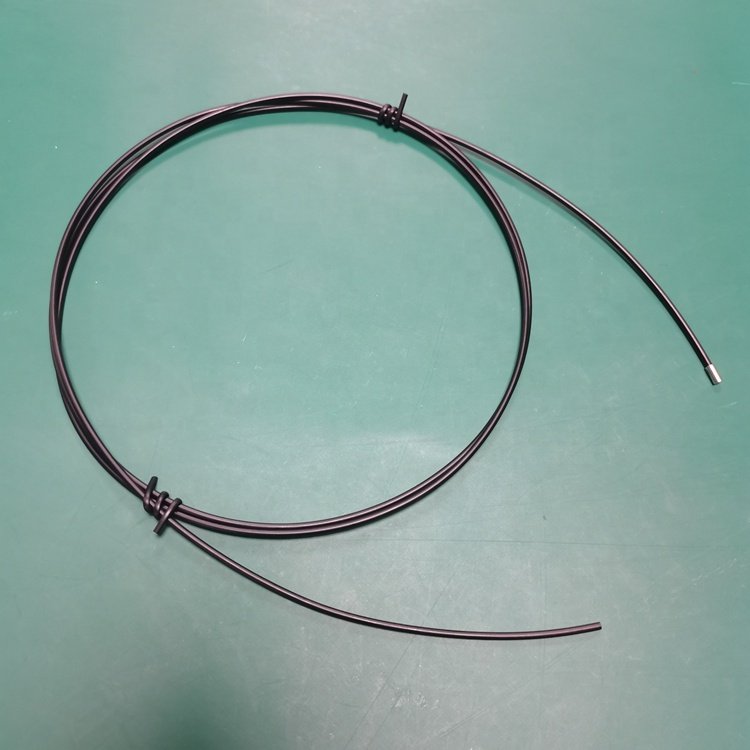

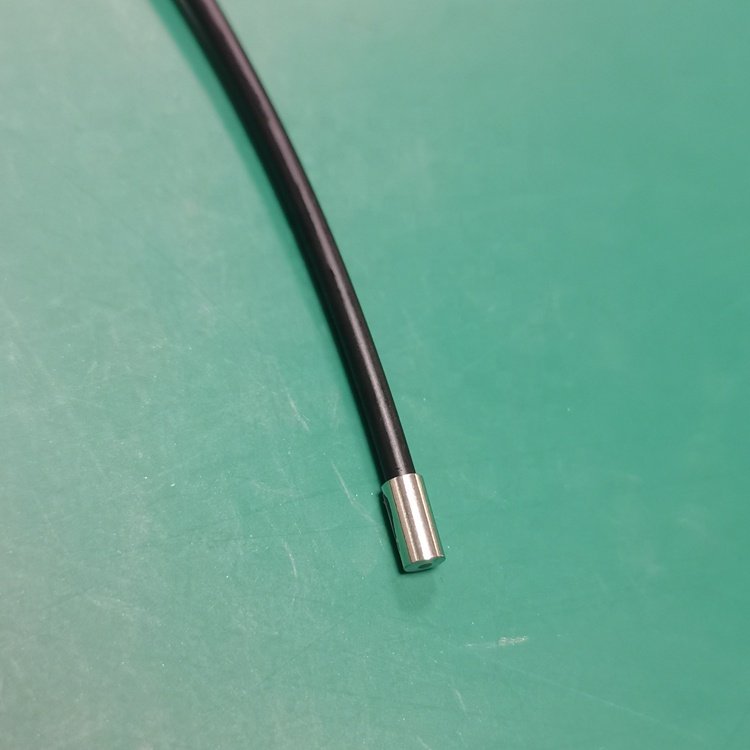

The jumper uses a single 650 nm PMMA POF core in a black jacket, with a polished metal cylindrical ferrule at the sensing end (visible in the photos). Standard length is 1 m, customizable. It is ground in PC/UPC/APC polish and used where a fiber-optic sensor needs a remote probe end. See the full range on our POF fiber optical cable category page.
Key Features
- Single-core black PMMA POF sensor jumper with metal ferrule probe end.
- Transmission wavelength 650 nm; PC/UPC/APC polish.
- Standard 1 m; customizable length.
- Operating temperature -20 to +70 °C.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-CC10 | – | supplier docx |
| Fiber count | 1 | core | supplier docx |
| Fiber material | PMMA POF | – | supplier docx |
| Transmission wavelength | 650 | nm | supplier docx |
| Cable color | black | – | supplier docx |
| End termination | metal cylindrical ferrule probe | – | visible in product photos |
| Standard length | 1 (customizable) | m | supplier docx |
| Operating temperature | -20 to +70 | °C | supplier docx |
| Return loss | PC ≥45 / UPC ≥50 / APC ≥60 | dB | supplier docx |
Applications
- Fiber-optic sensor probes and industrial sensing heads.
- Cable TV, LAN/WAN, network and broadband short POF links, FTTX.
Browse the rest of the POF cable range for other sensor, loop and patch-cord assemblies.
Ordering & Customization
Please confirm the probe ferrule size/length, cable length, polish (PC/UPC/APC) and the connector at the instrument end. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What is the metal ferrule end for?
The polished metal cylindrical ferrule is the sensing/launch end of the fiber, typically mounted into a fiber-optic sensor head. Confirm the outer diameter and thread against your sensor.
What is at the other end?
The photos show a bare black cable end at one side; please specify the instrument-side connector (e.g. SMA, LC, SC) at order time.
Why Choose Us
We supply this sensor jumper by the visible single-core black PMMA cable and metal ferrule probe end, keep the 650 nm wavelength and return-loss grading clear, and do not assume the instrument-side connector. Start from the home page or the POF category to explore related products.
