LC-LC Black Fiber Optic Patch Cord, Ceramic Ferrule
Black LC-to-LC fiber optic patch cord with blue LC/UPC connectors and ceramic ferrule, 1m standard customizable, low insertion loss <0.2dB, for FTTH.

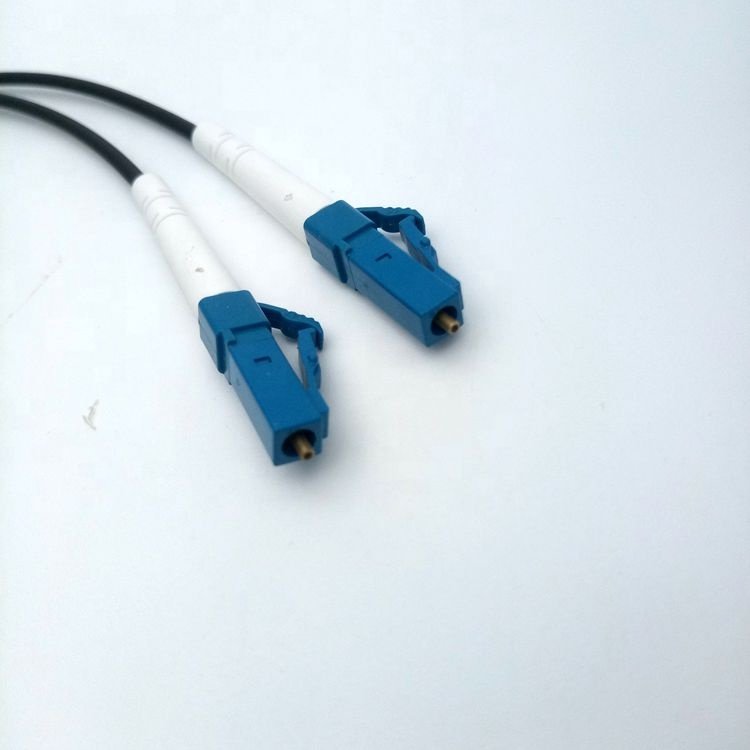

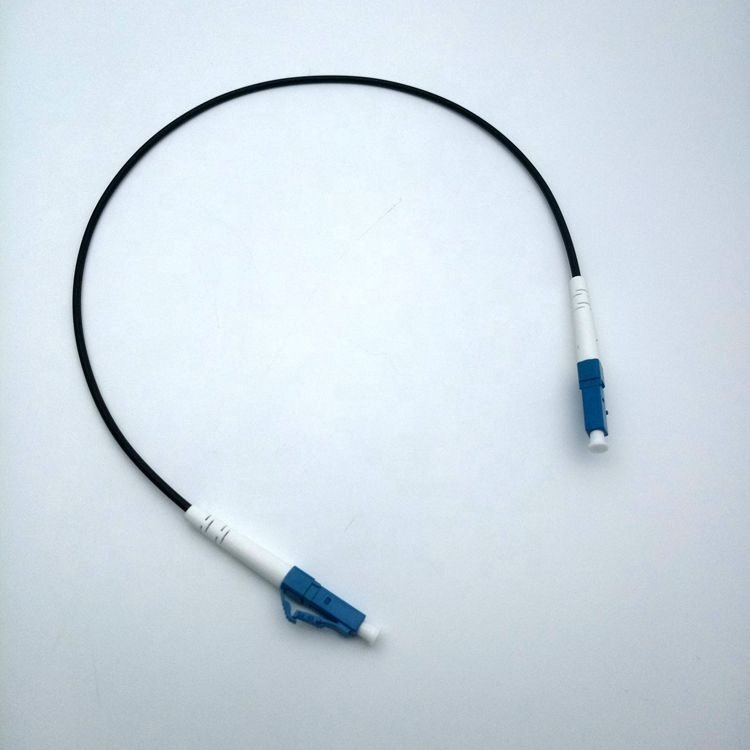

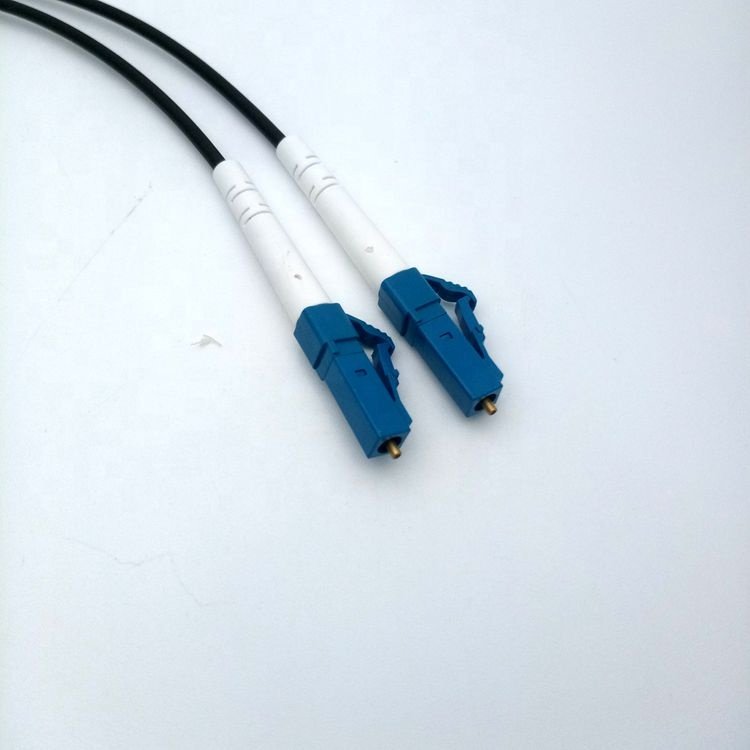

This LC-to-LC black fiber optic patch cord has blue LC/UPC connectors with ceramic ferrules on both ends and a black 1 m jacket, built for low-loss patching in FTTH, FTTX, LAN and test equipment links.
Product Overview

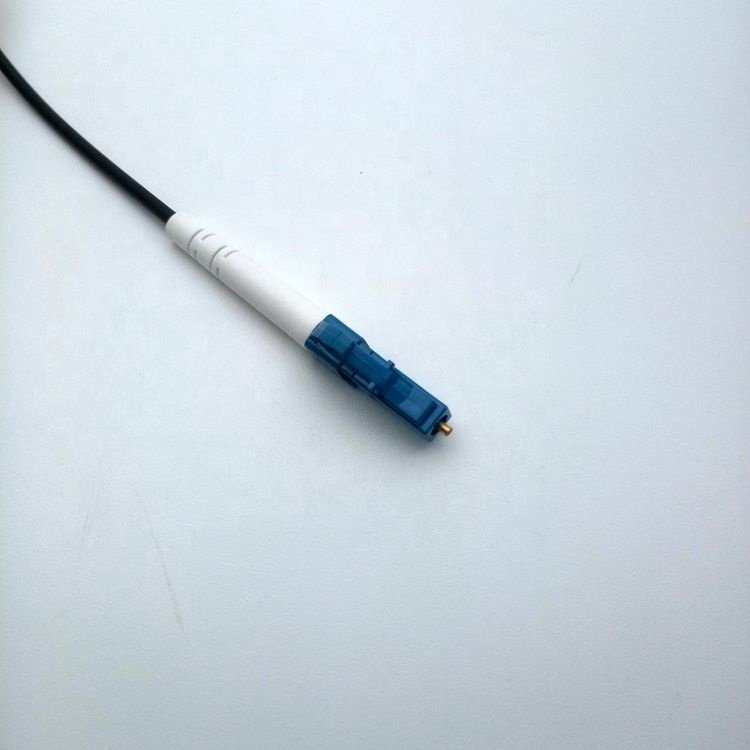

The cord uses a black outer jacket with blue LC connectors (white boot), 2.5 mm-style ceramic ferrule polishing. Standard length is 1 m, with core count, length and connector style (SC, FC, ST, LC) customizable. It is ground on high-precision polishers and tested for low insertion loss and high return loss. See the full range on our POF fiber optical cable category page.
Key Features
- LC-to-LC UPC (blue) with ceramic ferrule, black jacket.
- Insertion loss <0.2 dB; return loss SM UPC ≥55 dB, APC ≥60 dB, MM UPC ≥35 dB.
- Standard 1 m; customizable core count, length and connector style.
- Operating temperature -20 to +70 °C; bending radius 3.8 cm.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-LC01 | – | supplier docx |
| Connector type | LC-LC (UPC blue); SC/FC/ST also available | – | supplier docx |
| Ferrule material | ceramic | – | supplier docx |
| Fiber material | PMMA POF | – | supplier docx |
| Cable color | black | – | supplier docx |
| Standard length | 1 (customizable) | m | supplier docx |
| Bending radius | 3.8 | cm | supplier docx |
| Operating temperature | -20 to +70 | °C | supplier docx |
| Insertion loss | <0.2 | dB | supplier docx |
| Return loss | SM UPC ≥55 / APC ≥60 / MM UPC ≥35 | dB | supplier docx |
| Bandwidth | 200 @850nm / 500 @1300nm | MHz·km | supplier docx |
Applications
- Fiber communication systems, fiber access networks and FTTX/FTTH/FTTP.
- Fiber optic CATV, LAN and test equipment patching.
Browse the rest of the POF cable range for other SC, FC, ST and SMA jumpers.
Ordering & Customization
Please confirm the connector combination (LC-LC vs LC-SC etc.), fiber mode (single-mode/multimode/POF), polishing (UPC/APC) and length. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What do the blue LC connectors mean?
Blue LC indicates UPC (ultra physical contact) polish. Green LC would indicate APC. Return loss is graded accordingly: SM UPC ≥55 dB, APC ≥60 dB.
Can you make other connector combinations?
Yes. The supplier lists SC, FC, ST and LC jumpers in FC-FC, FC-SC, LC-LC, FC-ST, SC-SC, SC-ST and other combinations, with core count and length customizable.
Why Choose Us
We supply this LC-LC black patch cord by its visible blue LC connectors and ceramic ferrule, keep the loss and return-loss grading clear, and list alternative connector combinations as options rather than assumptions. Start from the home page or the POF category to explore related products.
