Red SMA905 Probe PMMA POF Fiber Jumper Patch Cord, 1.0 mm / 2.2 mm
Red SMA905 probe-style PMMA POF fiber jumper, 1.0mm core, 2.2mm black PE jacket, 650nm, 0.3dB/m, customizable 0.1-40m.
Red SMA905 probe-style PMMA POF fiber jumper patch cord with a 1.0 mm core in a 2.2 mm black PE jacket
Product Overview
Built on a 1.0 mm PMMA POF in a 2.2 mm black PE jacket with SMA905 metal connectors, this patch cord transmits red light at 650 nm with about 0.3 dB/m loss. It belongs to our patch cord range.
Key Features
- 1.0 mm PMMA POF in 2.2 mm black PE jacket.
- SMA905 metal connector for repeatable coupling.
- 650 nm red visible for easy alignment.
- 0.1-40 m length, customizable.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector type | SMA905 | – | Metal ferrule |
| Transmission medium | PMMA POF 1.0 mm | – | Special optical fiber |
| Jacket outer diameter | 2.2 | mm | Black PE |
| Wavelength | 650 | nm | 650 +/- 15 nm |
| Attenuation | 0.3 | dB/m | At 650 nm |
| Length | 0.1-40 | m | Common 1,2,3,5,10,20,40 m; customizable |
| Operating temperature | -55 to +85 | deg C | Source |
| Conductors | 1 | – | Simplex |
Applications
Sensing, industrial light delivery, and visible-red alignment where a probe-style SMA905 termination is needed.
Ordering and Customization
Tell us the required length and connector combination. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ

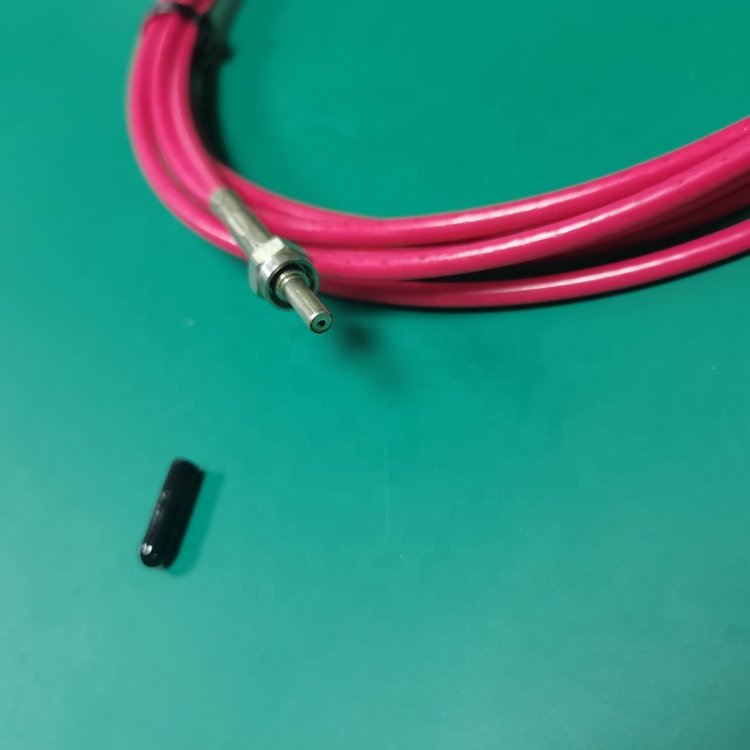

What is a probe-style SMA end?
The probe ferrule presents the fiber end for close coupling to a sensor or light port.
Why Choose Us
We supply SMA905 PMMA POF patch cords to the 1.0 mm / 2.2 mm construction with black PE jacket. Start from the patch cord category or the home page.
