MR-J3ENCBL5M-A1-HPU J3 Encoder Cable, 5 m HPU
MR-J3ENCBL5M-A1-HPU Mitsubishi MR-J3 encoder cable, 5 m high-flex (-HPU), green jacket with 2x D-sub connectors for servo encoder feedback.

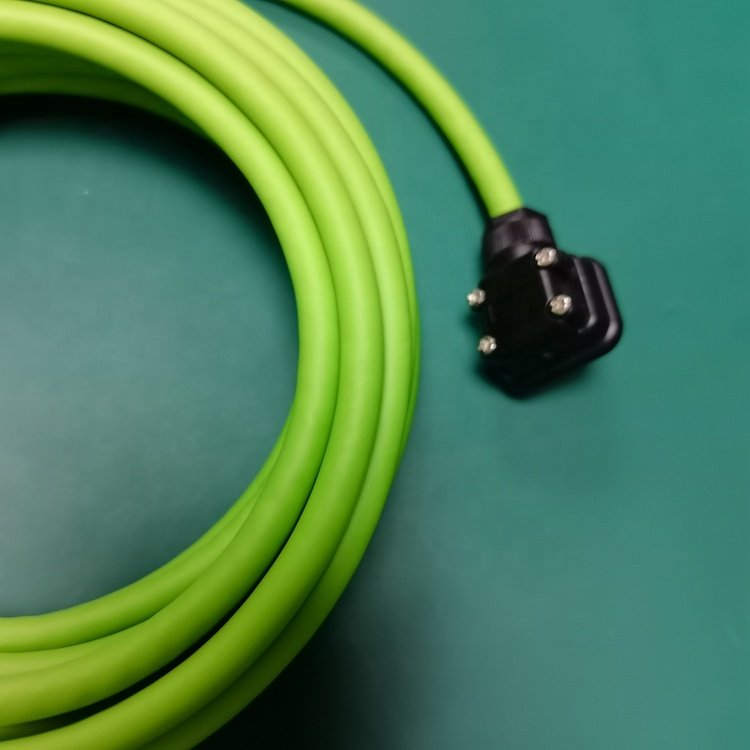

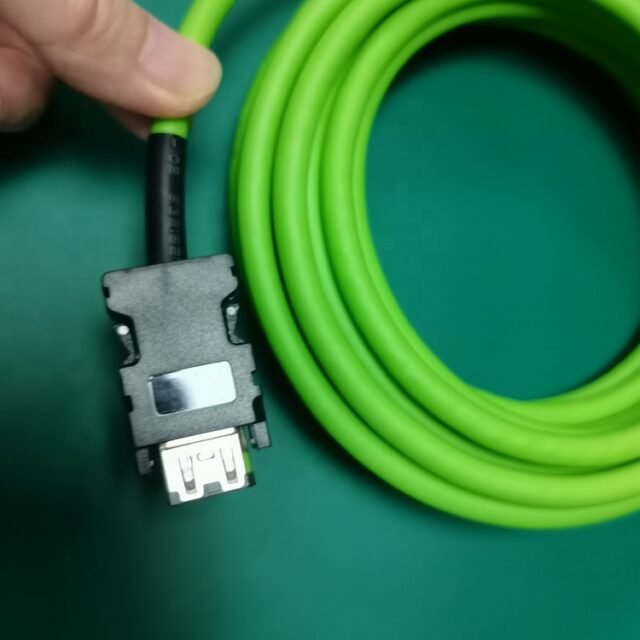

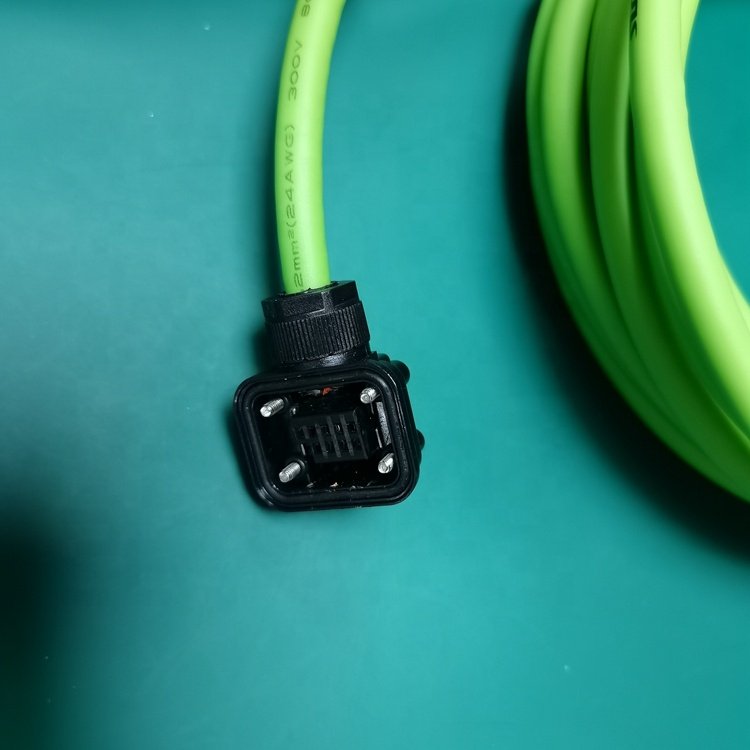

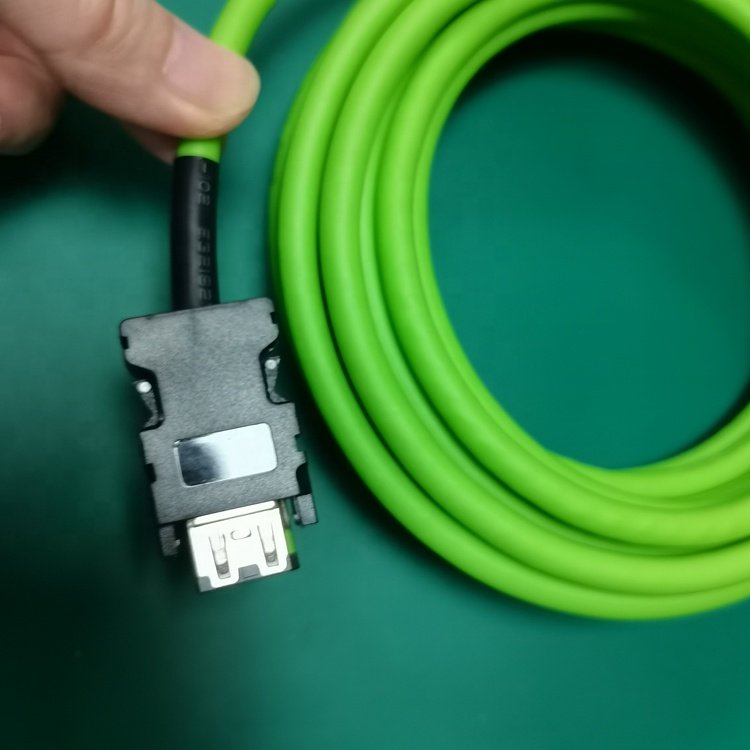

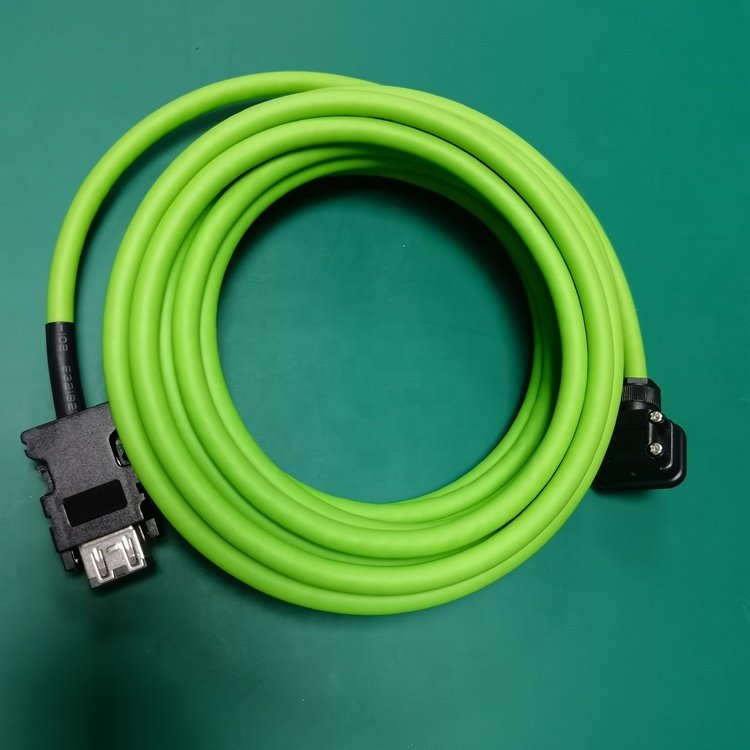

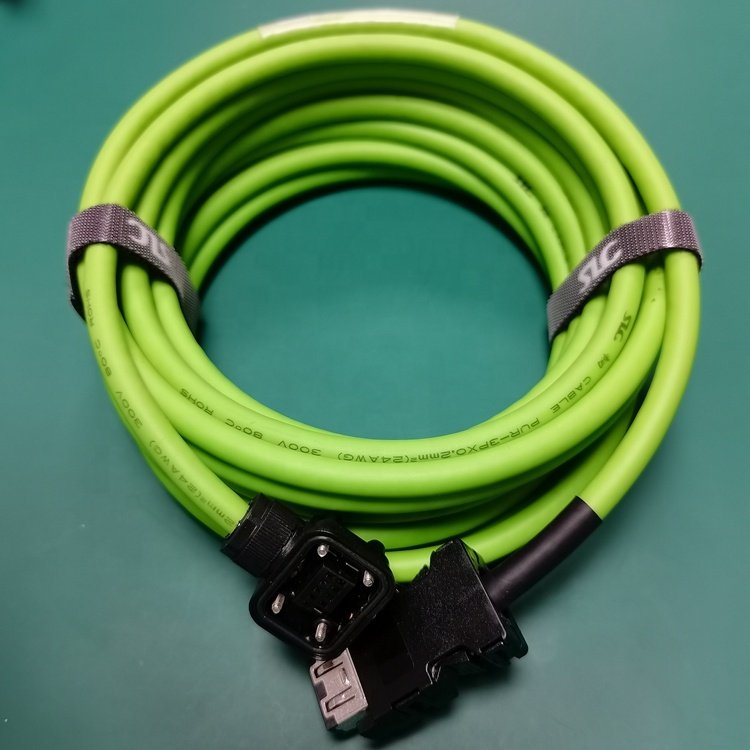

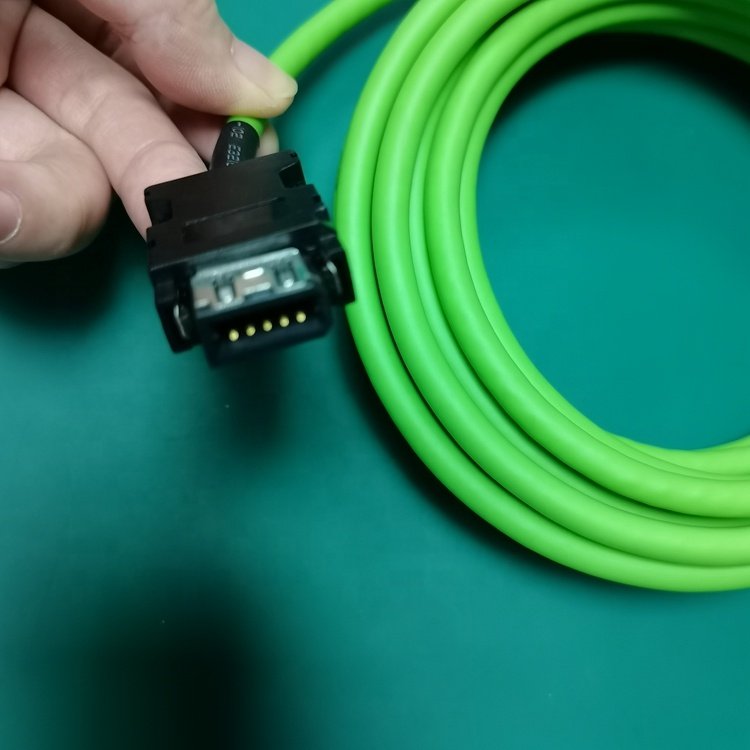

The MR-J3ENCBL5M-A1-HPU is a Mitsubishi MR-J3 servo encoder cable, 5 m long, A1 coding, high-flex HPU green jacket with two D-sub-style connectors for encoder feedback.
Overview
This is an electrical encoder feedback cable, not a fiber optic cord. The green jacket and paired D-sub plugs are characteristic of Mitsubishi MR-J3 encoder wiring; the HPU suffix marks the high-flex version for the moving motor side. It is part of our servo wiring harness range.
Features
- MR-J3ENCBL5M-A1-HPU, 5 m encoder cable.
- Green high-flex HPU jacket; two D-sub connectors.
- For MR-J3 servo amplifier encoder feedback.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Part number | MR-J3ENCBL5M-A1-HPU | – | Mitsubishi MR-J3 encoder cable |
| Cable type | Servo encoder feedback cable (electrical) | – | Not fiber |
| Length | 5 | m | Suffix 5M |
| Connector variant | A1 | – | A1 coding |
| Jacket variant | HPU high-flex | – | Movable motor-side |
| Connectors | 2 x D-sub style (plug/jack) | – | Visible green-jacketed photos |
| Jacket color | Green | – | Per photos |
| Operating temperature | -55 to +85 | C | Supplier listing |
Applications
- Mitsubishi MR-J3 series servo motor encoder feedback.
- Replacement encoder cables on moving axes.
Ordering
Specify amplifier and motor model, length, and -L vs -HPU. Contact sales. See FAQ or home page.
FAQ
Is this a fiber encoder cable? No; it is an electrical D-sub encoder cable. Mitsubishi SSCNET optical links use separate fiber cables.
