MR-BKCNS1-5M-L Mitsubishi Servo Brake Cable, 5 m Standard
MR-BKCNS1-5M-L Mitsubishi servo motor brake cable, 5 m standard (-L) jacket, M23 power plug to bare leads, for MR-BK brake circuits.

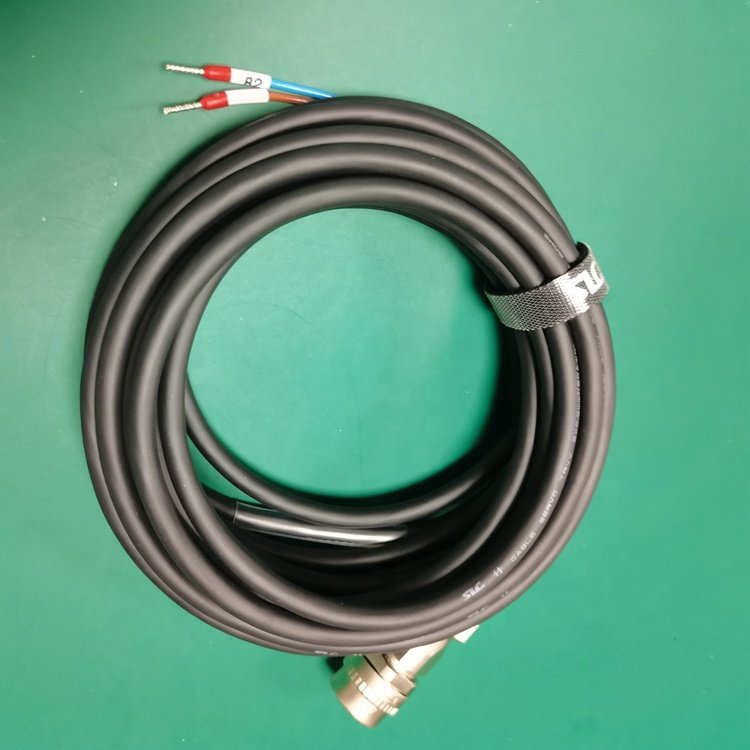

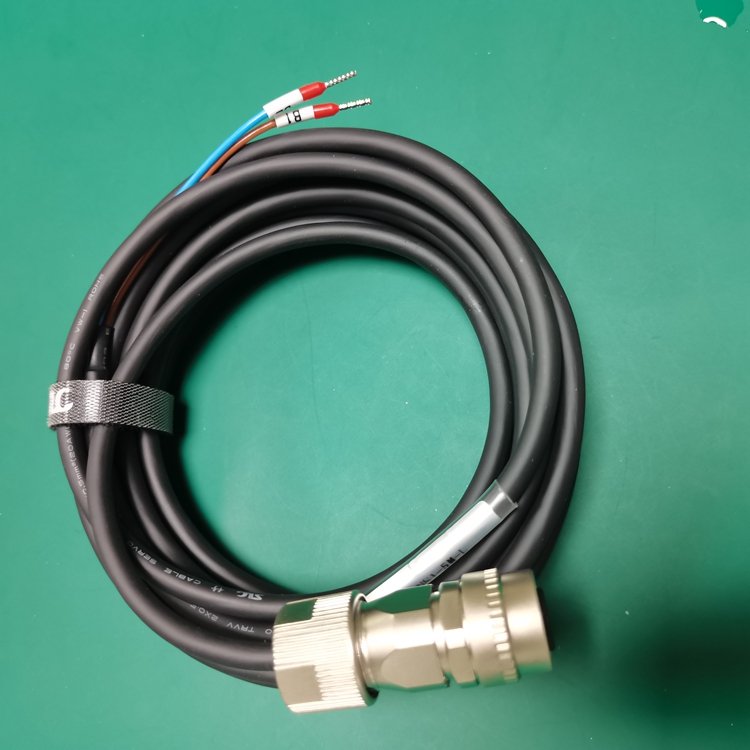

The MR-BKCNS1-5M-L is a Mitsubishi servo-motor brake wiring harness, 5 m long with the standard (fixed-end, -L) jacket, fitted with an M23-style circular power plug on one end and tinned ferruled brake leads on the other.
Overview
This cable carries the holding-brake circuit of a Mitsubishi MR-series servo motor. It is an electrical wiring harness, not a fiber-optic patch cord; the braided black jacket and metal circular connector are visible in the product photos. The 5M in the part number denotes a 5 m standard-length cable and the trailing -L denotes the standard-bend variant.
It is part of our industrial wiring harness and fiber cable range for Mitsubishi servo and automation systems.
Features
- Genuine Mitsubishi-style MR-BKCNS1-5M-L brake cable, 5 m standard length.
- M23 circular power plug on the drive end; tinned ferruled leads at the motor end.
- Black flexible jacket, bundled with a braided tie for installation.
- Built for MR-BK servo brake holding circuits; length customizable on request.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Part number | MR-BKCNS1-5M-L | – | Mitsubishi servo brake cable; folder/docx type field |
| Cable type | Servo motor brake wiring harness | – | Electrical brake cable, not a fiber optic cable |
| Length | 5 | m | Part-number suffix 5M; docx lists 1 m reference with customization |
| Jacket variant | -L (standard bend) | – | Suffix L = standard fixed-end cable; HPU would be high-flex |

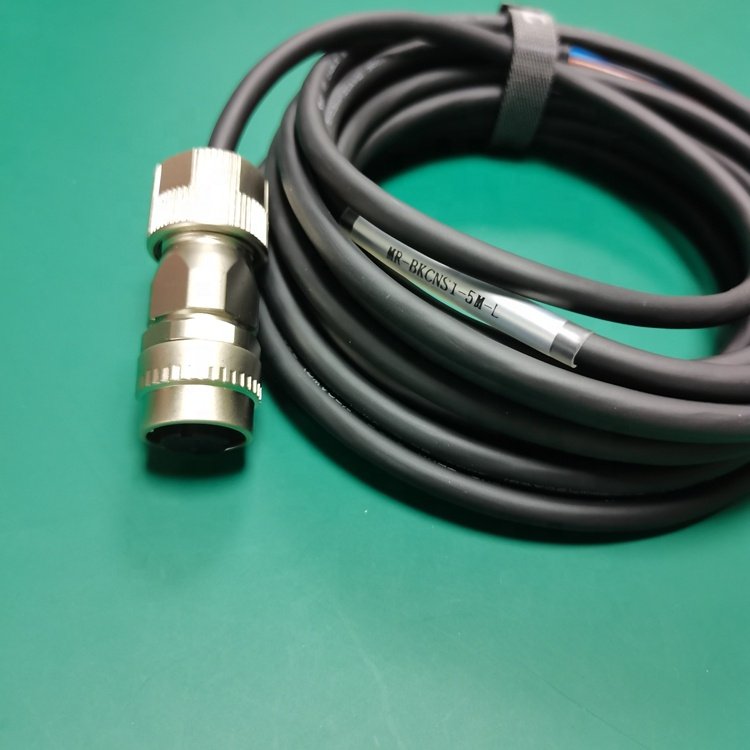

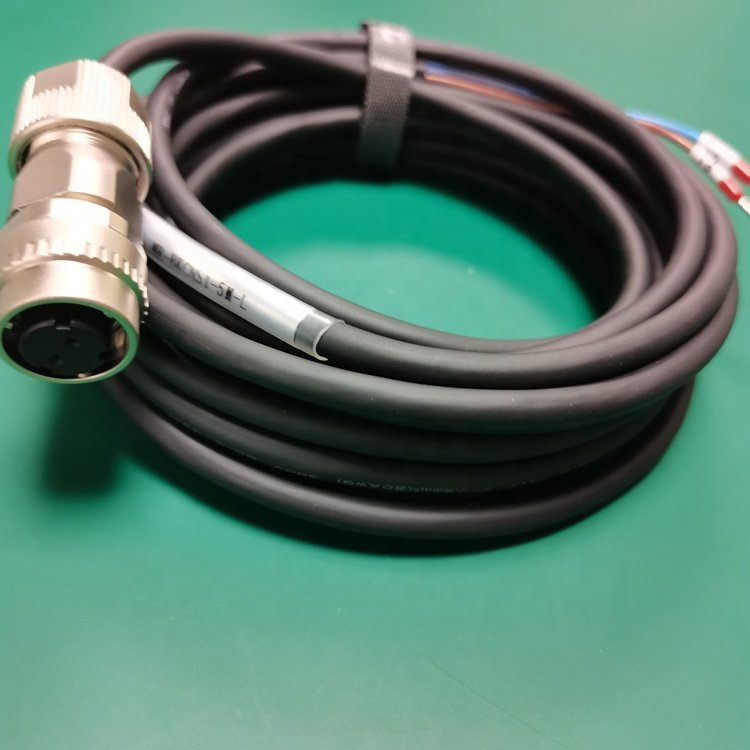

| Connector | M23-style circular power plug one end | – | Visible in product photos |

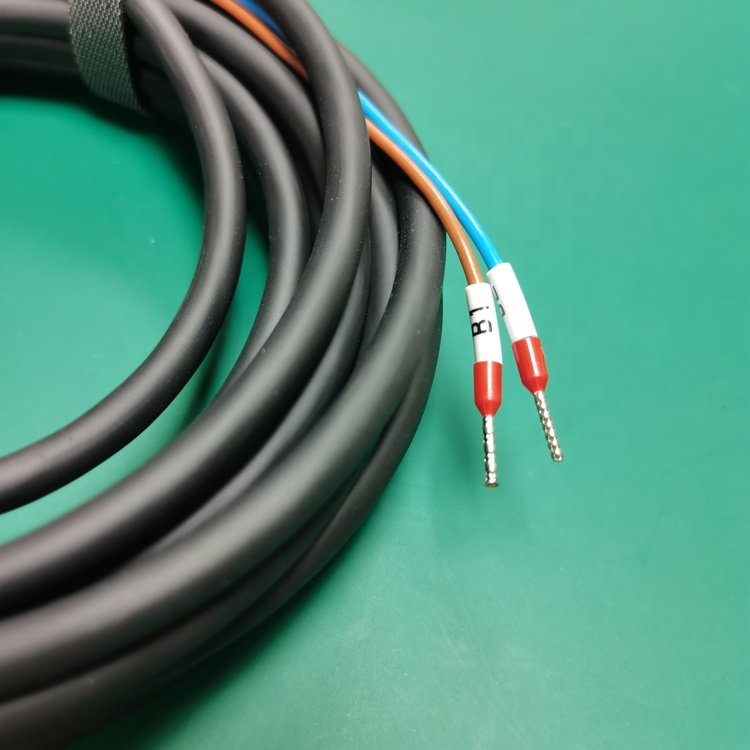

| Opposite end | Bare tinned leads with ferrules | – | Red/blue/brown leads visible in photos |
| Jacket color | Black | – | Per product photos and docx |
| Operating temperature | -55 to +85 | C | Supplier listing; not on Mitsubishi datasheet |
Applications
- Mitsubishi MR-series servo motor brake (holding brake) wiring.
- Replacing worn or damaged brake leads in servo amplifier cabinets.
- Industrial automation and CNC machine servo installations.
Ordering
Tell us your servo amplifier and motor model, the required length, and whether you need the standard -L or the high-flex HPU variant. Request a quote at sales@fevelectronics.com. More background is in the FAQ for H-PCF and POF assemblies; return to the home page.
FAQ
Is this a fiber optic cable? No. The MR-BKCNS1-5M-L is an electrical brake wiring harness for servo motors; we list it alongside our fiber products because it is used in the same Mitsubishi servo cabinets.
What does -L mean? In Mitsubishi servo cable naming, -L is the standard (fixed-machine) bend-radius jacket; HPU is the high-flex version for moving/motor-side runs. Confirm the suffix against your motor.
