LC-SC Yellow Single-Mode Fiber Optic Jumper
Yellow LC-to-SC single-mode fiber optic patch cord, green SC/APC and blue LC/UPC connectors, 9/125um SMF, 10m standard, customizable 3-500m, for telecom.

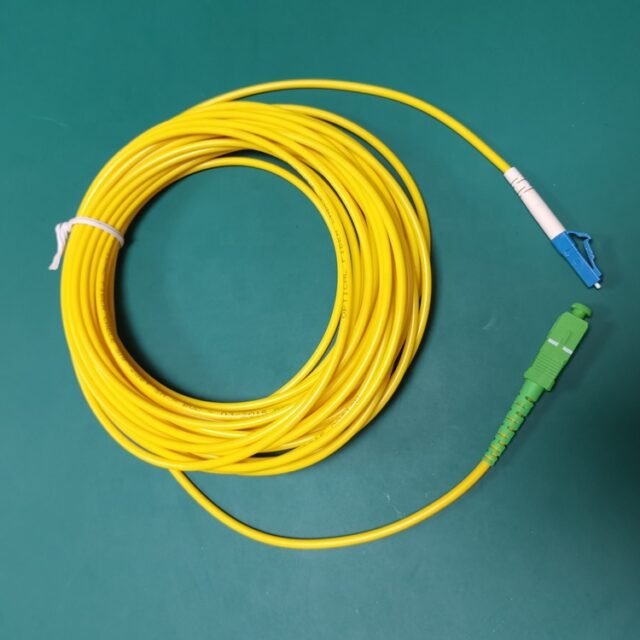

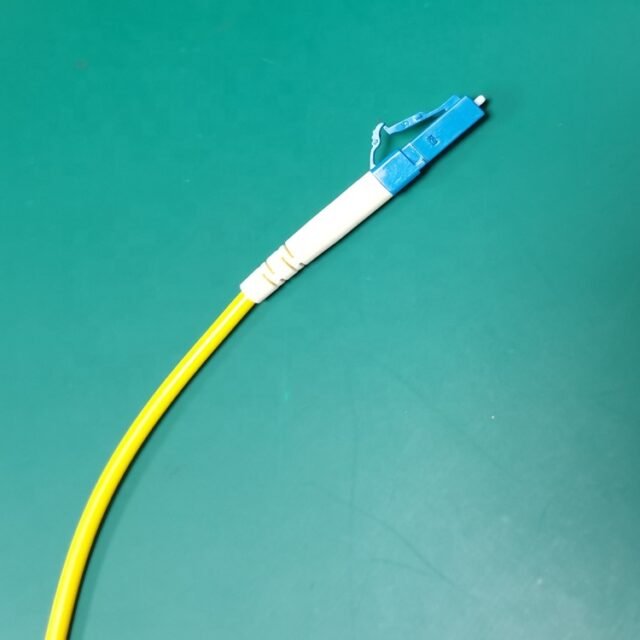

This LC-to-SC yellow single-mode fiber optic jumper has a green SC/APC connector on one end and a blue LC/UPC connector on the other, in a standard yellow 9/125 µm single-mode jacket.
Product Overview
The jumper is a simplex single-mode patch cord with SC/APC (green) on one end and LC/UPC (blue) on the other, using the standard yellow 3.0 mm outer jacket. Standard length is 10 m, with any length from 3 to 500 m customizable. See the full range on our POF fiber optical cable category page.
Key Features
- LC/UPC (blue) to SC/APC (green) single-mode simplex jumper.
- Yellow 9/125 µm single-mode fiber (per product photos).
- Standard 10 m; customizable 3-500 m.
- Operating temperature -55 to +85 °C.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-B005 | – | supplier docx |
| Connector A | LC/UPC (blue) | – | per product photo |
| Connector B | SC/APC (green) | – | per product photo |
| Fiber type | single-mode 9/125 | µm | per yellow jacket and connector colors |
| Jacket color | yellow | – | single-mode standard |
| Standard length | 10 (customizable 3-500) | m | supplier docx |
| Operating temperature | -55 to +85 | °C | supplier docx |
Applications
- Telecom, data center and FTTH links between LC and SC ports.
- Industrial servo and automation systems where single-mode fiber jumpers are specified.
Browse the rest of the POF cable range for other LC-LC, SC-SC and POF servo jumpers.
Ordering & Customization
Please confirm the connector polishing (UPC vs APC), fiber mode (single-mode vs multimode/POF), length and whether you need simplex or duplex. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Is this a plastic optical fiber or glass fiber jumper?
The product photos show a standard yellow single-mode glass fiber jumper with green SC/APC and blue LC/UPC connectors. The supplier docx also references PMMA servo POF jumpers; confirm the exact fiber type for your application at order time.
What do the green and blue connector colors mean?
Green SC is APC (angled physical contact, 8-degree polish); blue LC is UPC (ultra physical contact). Mixing APC and UPC on one cord is a specific APC/UPC hybrid configuration; confirm the mating ports on your equipment.
Why Choose Us
We supply this LC-SC yellow jumper by the visible connector colors (green SC/APC, blue LC/UPC) and standard single-mode yellow jacket, and flag the docx PMMA/servo POF reference as a conflict. Start from the home page or the POF category to explore related products.
