HEBR 4503-4513 1-to-3 POF Fiber Splitter Cable

HEBR 4503-4513 passive 1x3 POF splitter cable, blue connectors, low insertion loss, 10000 mating cycles, for POF sensor and data distribution.

Category: Industrial Fiber Optic Cable

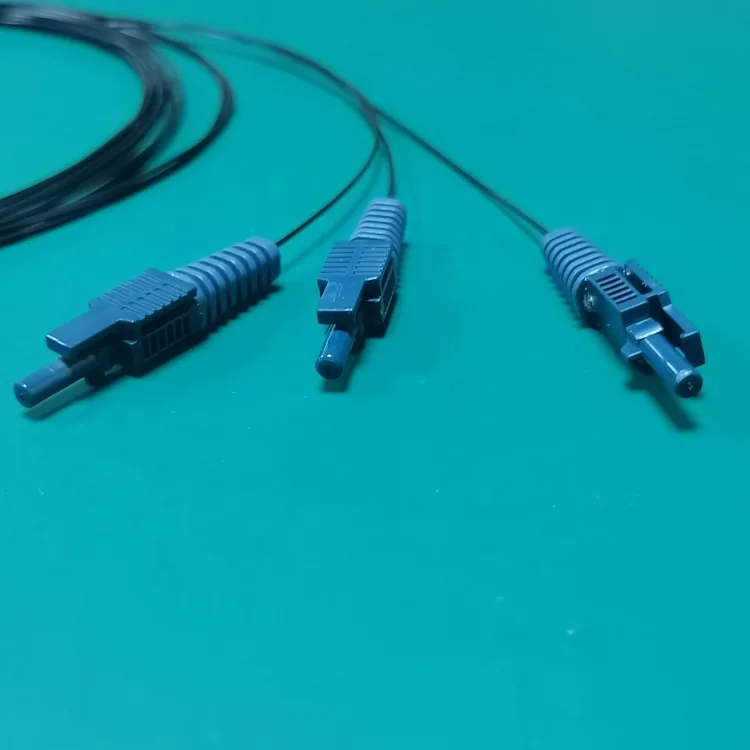

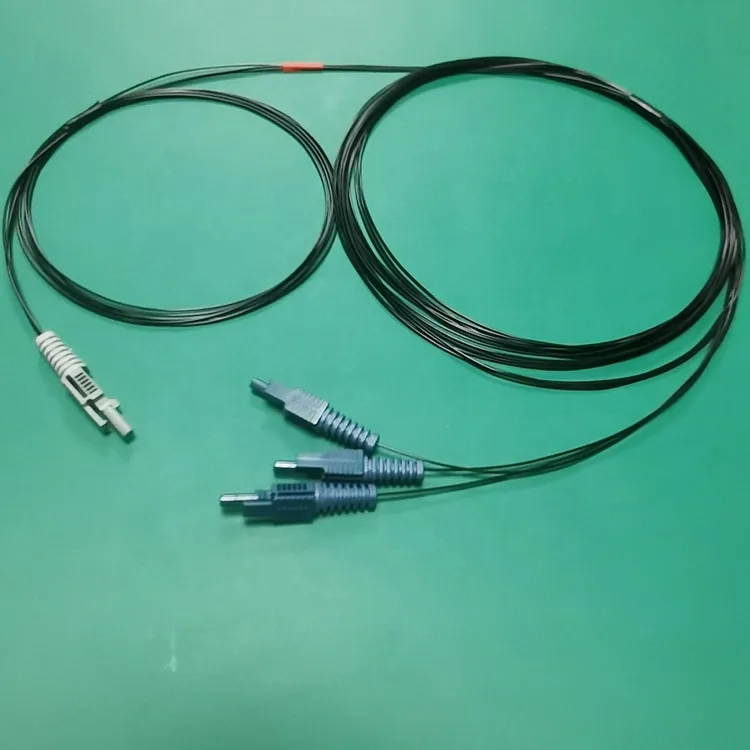

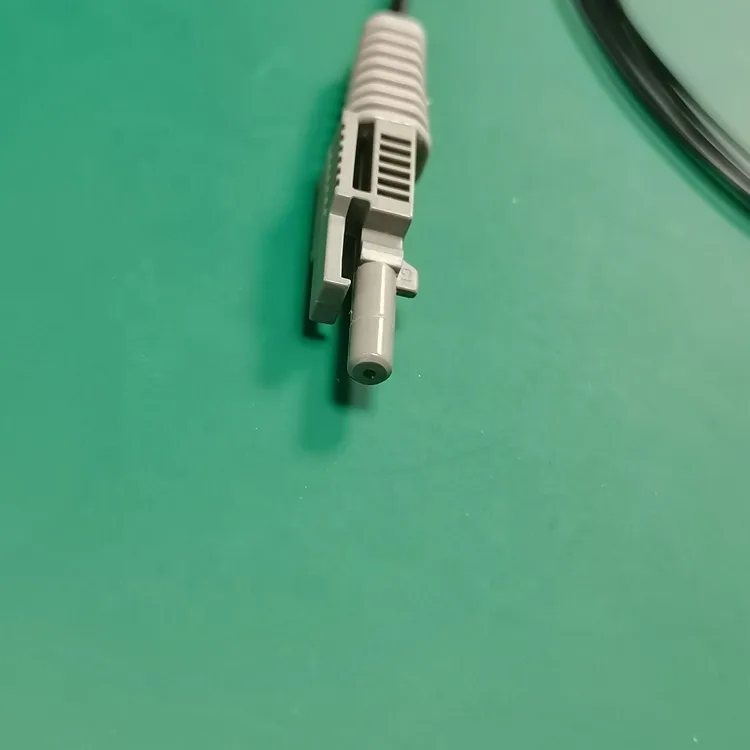

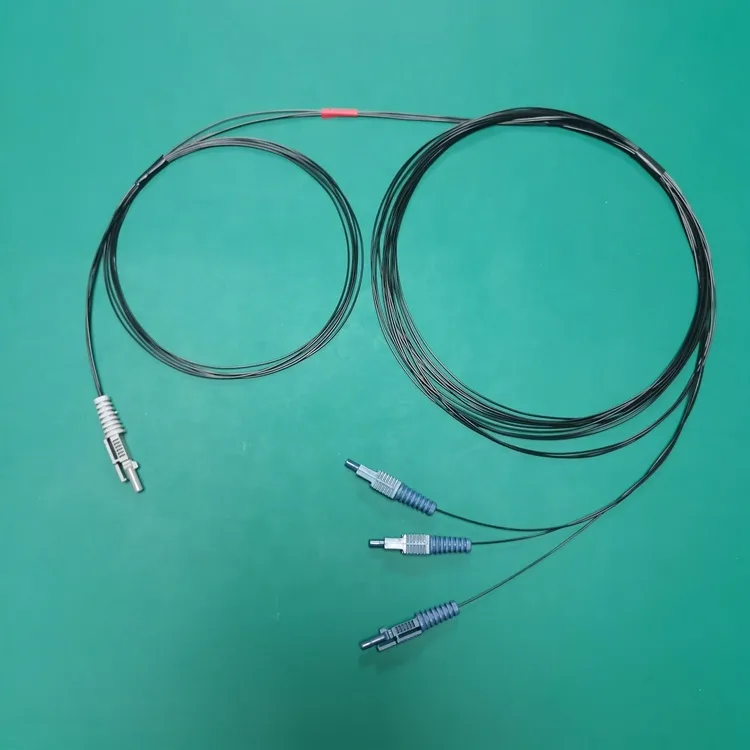

The HEBR 4503-4513 1-to-3 POF splitter cable is a passive plastic optical fiber assembly that divides one input into three output legs with molded blue connectors. It is used to distribute one optical signal to three POF sensor or data points without power.

Product Overview

This product is part of our POF fiber optical cable range. Values below are taken from the supplier datasheet and listing; where only supplier quick-details are available, they are flagged as supplier-stated and not independently measured.

Key Features

Passive 1×3 split on POF with blue connector ends.
Low insertion loss and good repeatability per listing.
10000 mating cycles; −55° to +80°C.
Black cable, IP-rated per listing.

Specifications

Parameters (per supplier datasheet / listing; supplier-stated values noted)
Parameter	Value	Unit	Notes / Conditions
Type	1×3 POF splitter cable	–	One input, three outputs.
Connectors	Blue POF connectors	–	Photos show blue molded ends.
Insertion loss	0.2 (supplier-stated)	dB	Listing value.
Durability	10000	mate cycles	Supplier listing.
Operating temperature	-55 to +80	C	Supplier listing.

Applications

Fiber sensor networks, fiber-access and data distribution, test equipment and local-area POF links. Browse the full POF fiber optical cable range.

Ordering & Customization

Confirm input/output connector style and fiber size. Contact us. More answers are on the FAQ page, and you can return to the home page.

FAQ

Is it active?

No. It is a passive optical splitter; it needs no power and divides light among three legs.

Why Choose Us

We supply passive POF splitters by split ratio and connector, with listing values kept traceable. See the POF range, FAQ or home page.
