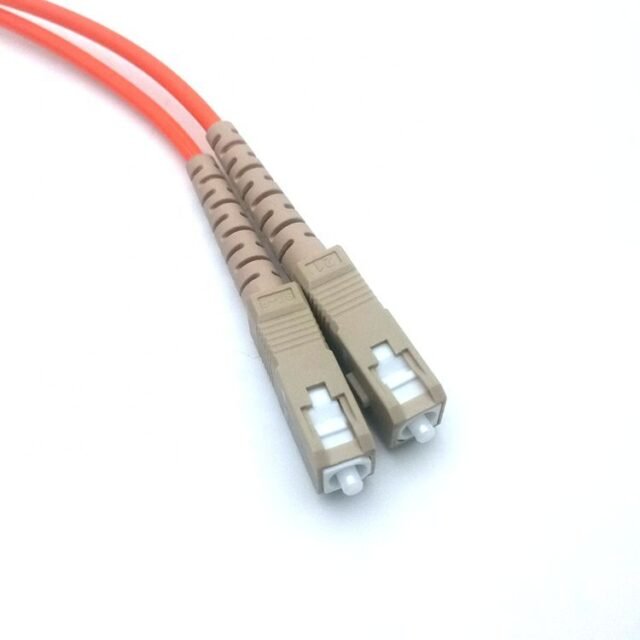

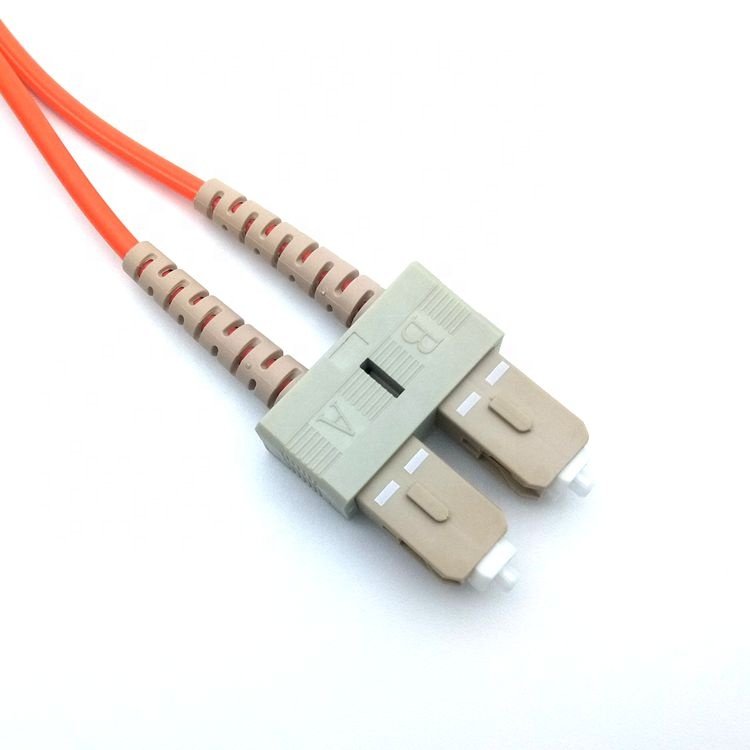

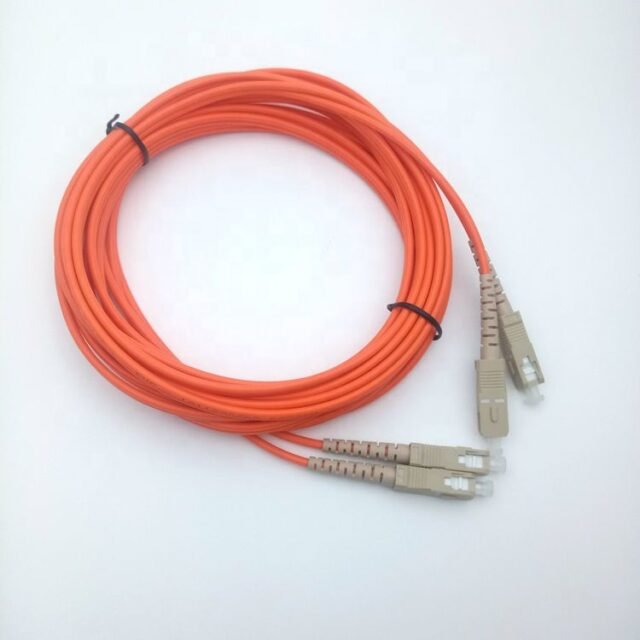

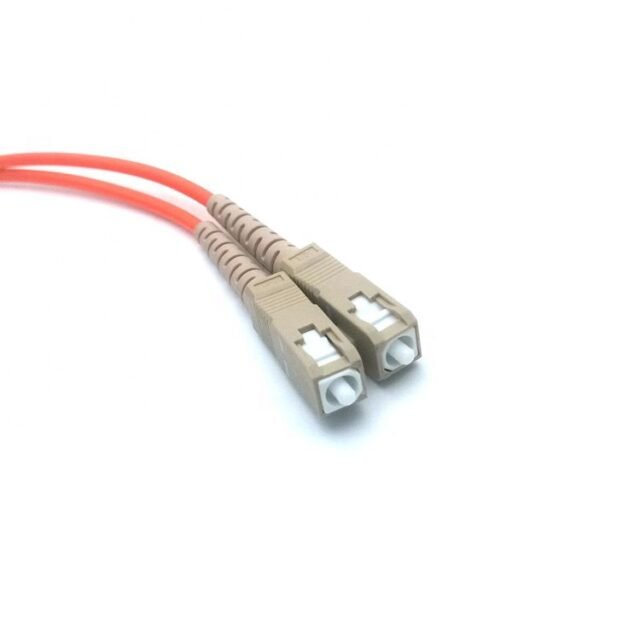

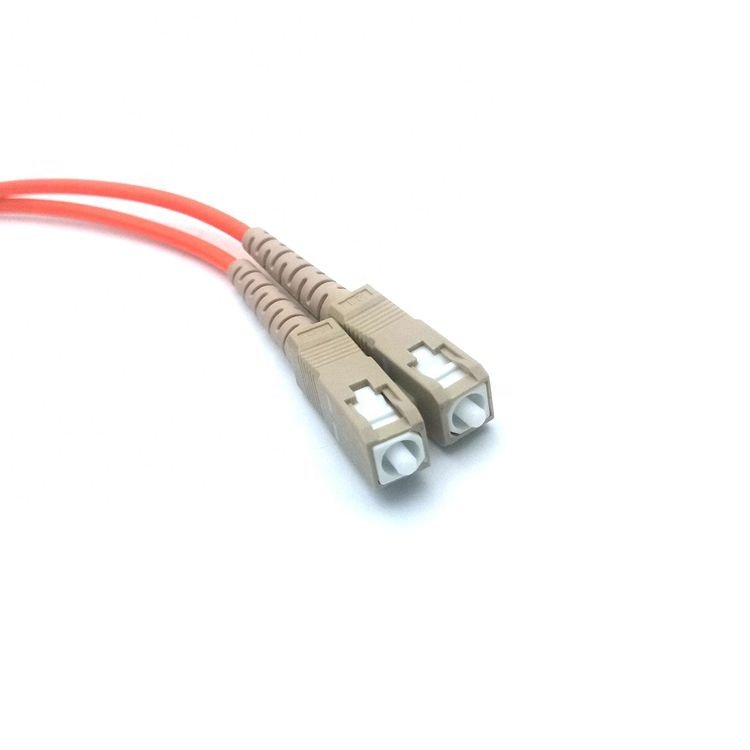

SC APC to LC UPC Duplex Single-Mode G.657A Fiber Patch Cord

SC APC to LC UPC duplex single-mode G.657A fiber patch cord, IL <=0.2dB, return loss >=50dB, FTTx/CATV, customizable.

Category: Industrial Fiber Optic Cable

SC APC to LC UPC duplex single-mode G.657A fiber optic patch cord, low insertion loss and >=50 dB return loss, customizable for FTTx and telecom links.

Product Overview

This is a duplex single-mode patch cord with SC APC on one end and LC UPC on the other, built on G.657A bend-insensitive single-mode fiber for FTTx, CATV and LAN. The APC end angled-polish minimizes back-reflection. It is part of our patch cord range.

Key Features

SC APC to LC UPC duplex hybrid assembly.
G.657A single-mode bend-insensitive fiber.
Insertion loss <=0.20 dB typ, return loss >=50 dB.
>=1000 mating cycles.

Specifications

Parameter	Value	Unit	Notes / Conditions
Connector types	SC APC / LC UPC	–	Duplex single-mode
Fiber type	Single-mode G.657A	–	Customizable
Test wavelength	1310 / 1550	nm	Single-mode window
Insertion loss	<=0.20 typ / <=0.30 max	dB	Per source
Return loss	>=50	dB	Per source
Durability	>=1000	mating cycles	Change <=0.20 dB
Operating temperature	-20 to +70	deg C	Storage -40 to +85
No. of fibers	2	–	Duplex
Use	FTTx / CATV / LAN	–	Source

Applications

FTTx drop, CATV networks, active device patching, LAN/WAN, system commissioning and telecom network links.

Ordering and Customization

Tell us the connector combination, length and fiber grade. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.

FAQ

APC or UPC?

APC (green, angled) gives the lowest return loss for analog/CATV; UPC is the general-purpose blue polish.
