Dual-Core Armored PMMA POF Cable, 1.0 mm Core, 4.4×6.0 mm OD
Armored dual-core PMMA POF cable, 1.0mm core x2, heavy gray PE/armored jacket 4.4x6.0mm, Kevlar strength members, <=0.2 dB/km for sensing and links.

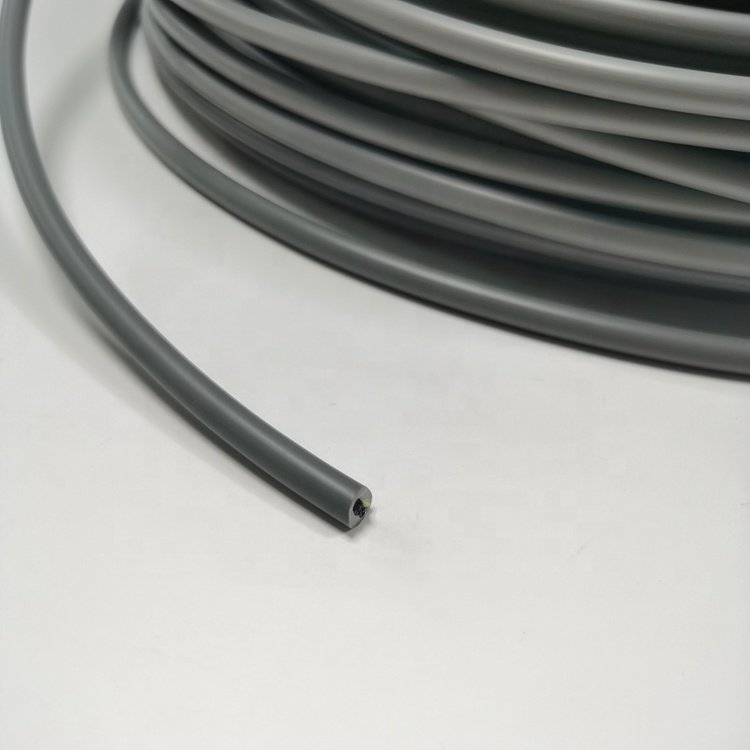

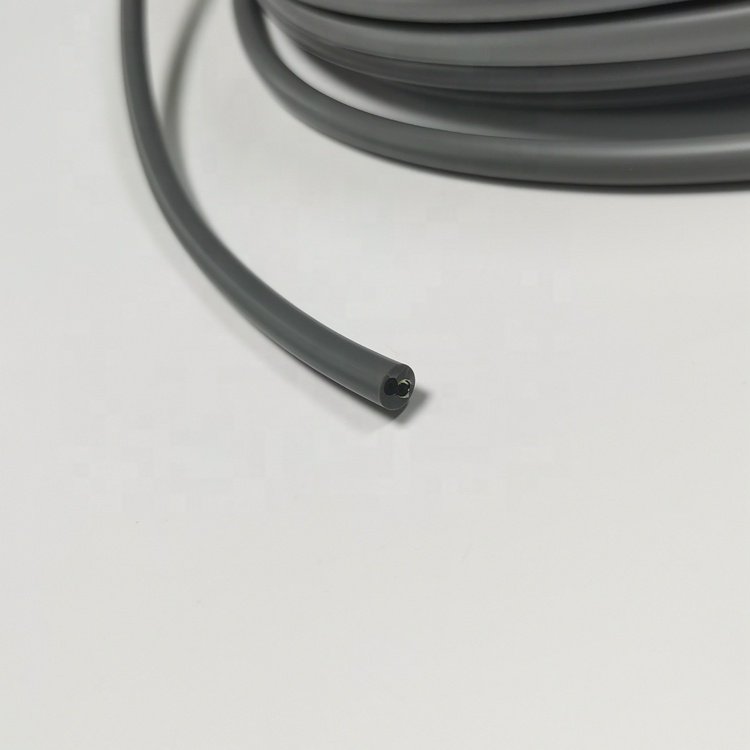

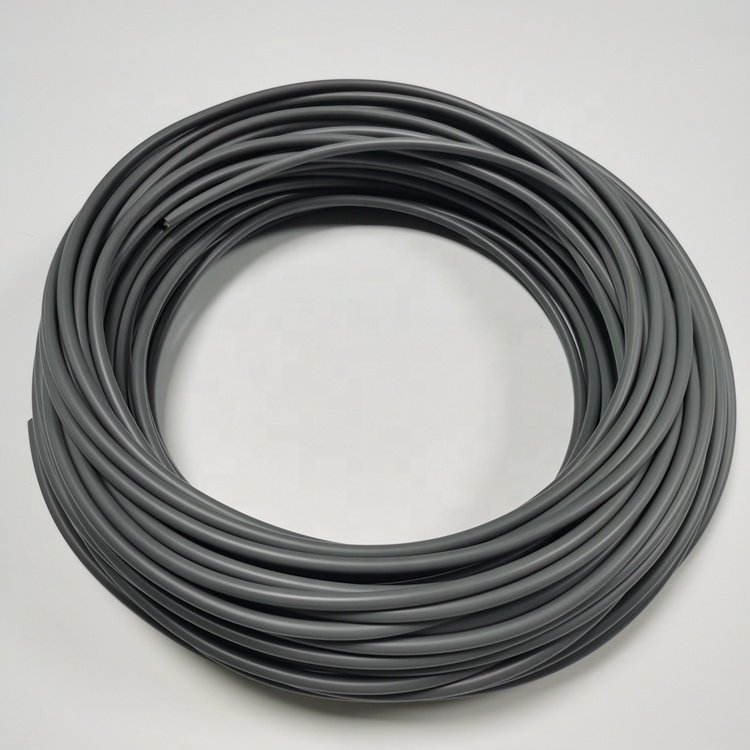

The armored dual-core PMMA POF cable carries two 1.0 mm PMMA plastic optical fibers side by side inside a heavy 4.4 x 6.0 mm gray jacket with Kevlar aramid strength members, for rugged short-range optical sensing and signal links.
Overview

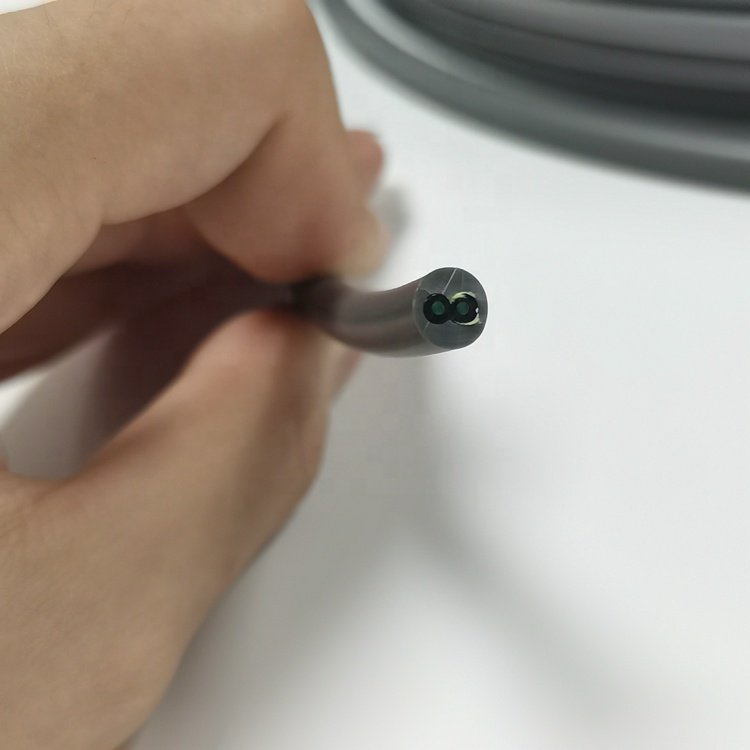

PMMA (polymethyl methacrylate) POF is a large-core step-index plastic fiber immune to electromagnetic noise. The cross-section photo shows two clear 1.0 mm fibers with yellow aramid strength members under a heavy gray jacket – the armored/rugged construction that suits industrial routing. Per the supplier family table, dual-core POF of this style is rated at ≤0.20 dB/km and supplied on 500 m rolls. It is part of our POF fiber optical cable range and our industrial wiring harness and fiber cable category.
Features
- Two 1.0 mm PMMA cores in one heavy jacket.
- 4.4 x 6.0 mm armored gray jacket with Kevlar strength members.
- ≤0.20 dB/km attenuation (supplier family rating).
- EMI-immune optical link for sensing and control.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Cable type | Dual-core armored PMMA POF cable | – | Two fibers side by side with heavy jacket |
| Core material | PMMA (polymethyl methacrylate) | – | Supplier family spec sheet |
| Core diameter | 1.0 | mm | Two cores per cable; docx + family table H18/H19 |
| Number of cores | 2 | – | Visible in cross-section photo |

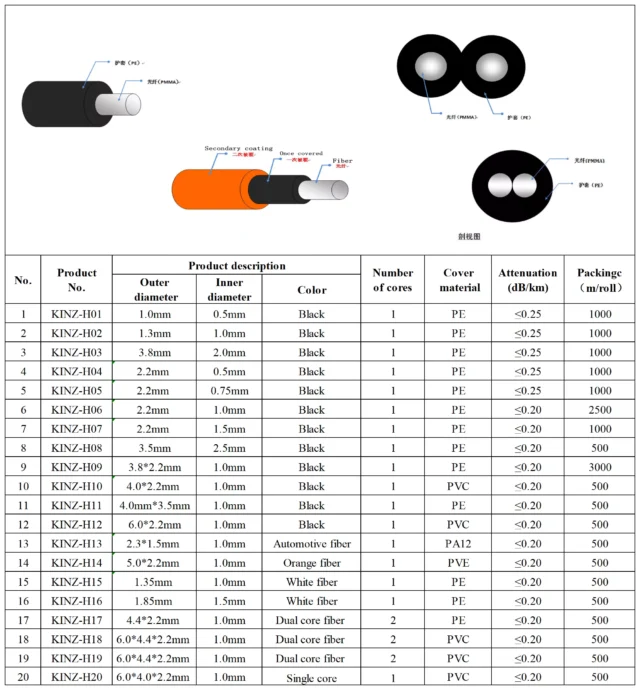

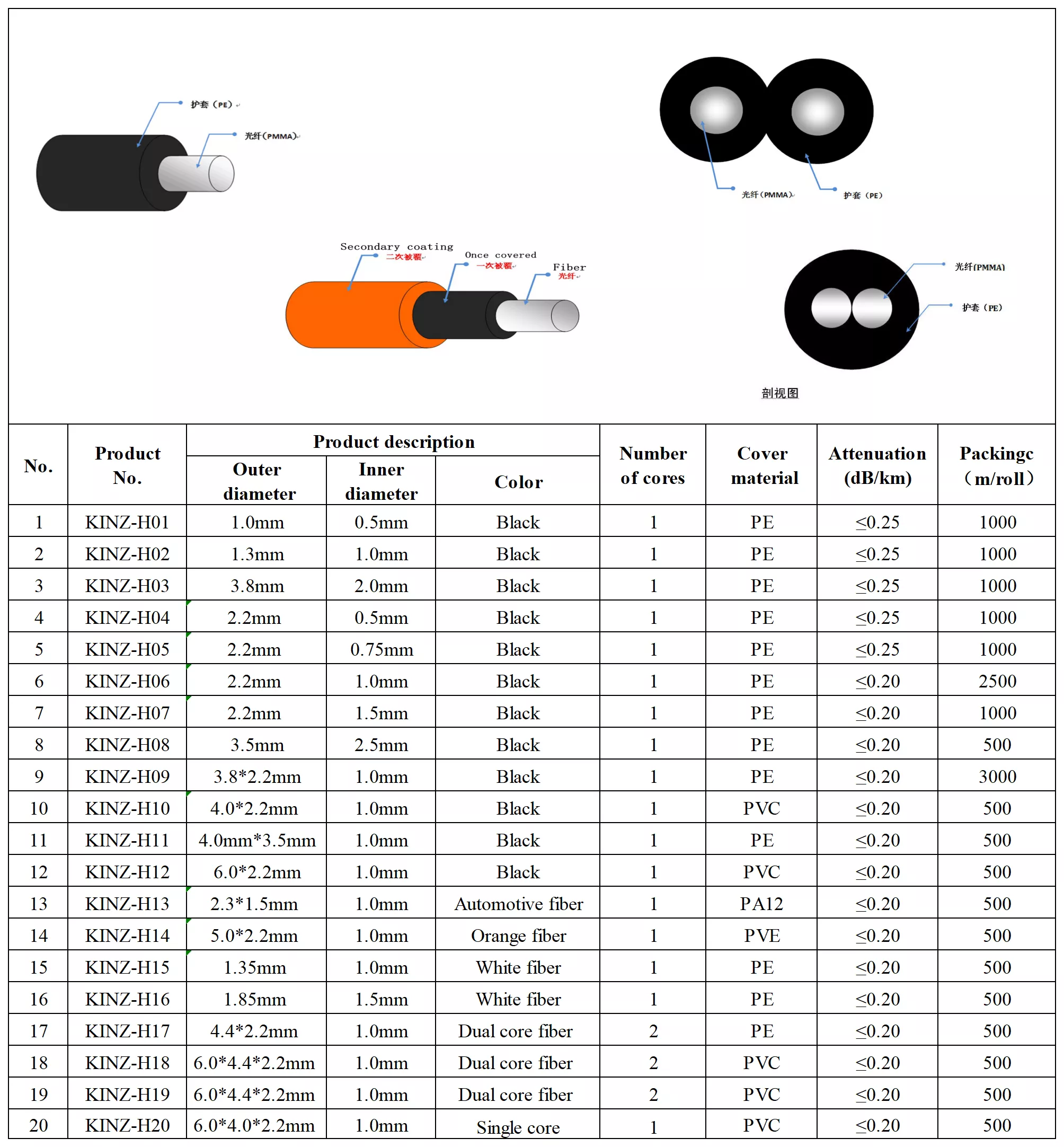

| Outer jacket dimensions | 4.4 x 6.0 | mm | Docx; family table 6.0*4.4*2.2mm dual-core |
| Jacket material | Heavy PE / armored PVC | – | Gray heavy jacket visible; supplier lists PE/PVC |
| Strength member | Kevlar aramid yarn | – | Yellow aramid visible in cross-section |
| Attenuation | <= 0.20 | dB/km | Supplier family table dual-core rows |
| Operating temperature | -55 to +80 | C | Supplier listing |
| Packing | 500 | m/roll | Supplier family table |
Applications
- Industrial sensing and control links in noisy environments.
- Short-distance POF data links where copper would pick up EMI.
- Rugged field routing with Kevlar reinforcement.
Ordering
We supply by the 500 m roll or cut to length. Confirm jacket material (PE/PVC), length and termination on enquiry. Request a quote. See the FAQ or home page.
FAQ
What does ‘armored’ mean here? A heavy reinforced jacket with Kevlar aramid strength members visible in the cross-section, for rugged mechanical protection; it is not a metal-tape armoured telecom cable.
Is this single mode or multimode? It is large-core step-index PMMA POF (1.0 mm), designed for visible/red LED and short-range links.
