2.5mm Deep Milky Side-glow PMMA Fiber Optic Light Cable
2.5mm deep milky white side-glow PMMA fiber, 100m/roll, min bend 18mm, -50 to +70C, IP65, 100000h, neon alternative, 60m per 80W LED.

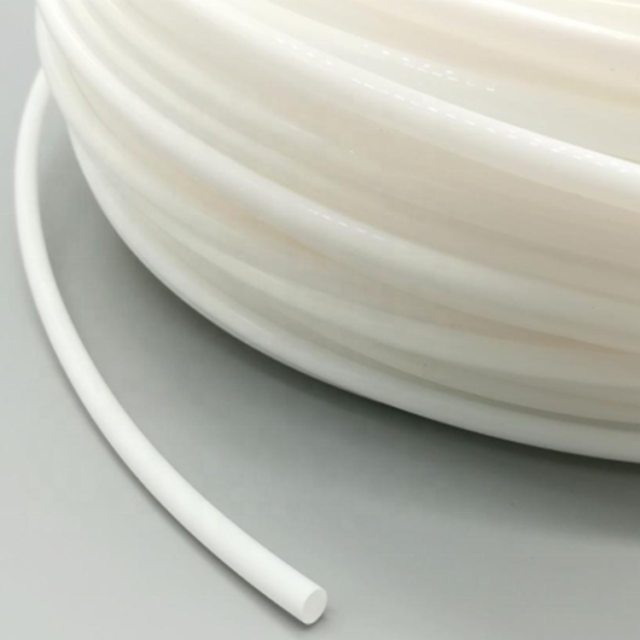

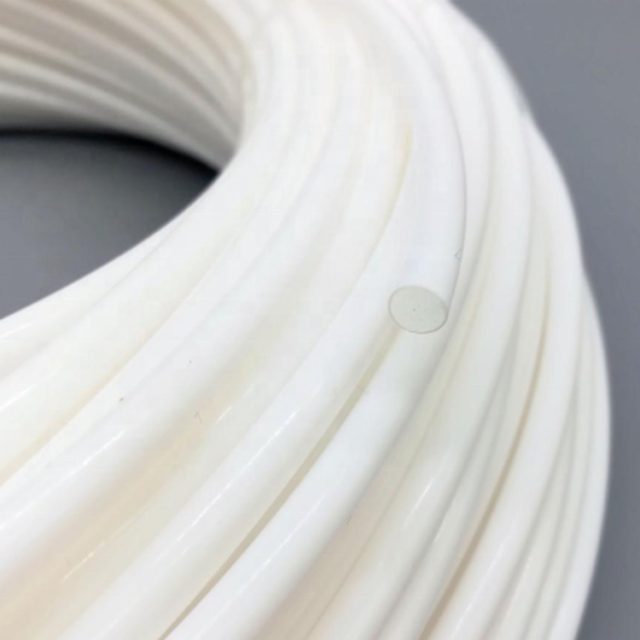

The 2.5 mm deep milky side-glow PMMA fiber emits light evenly along its body rather than only at the end. It is supplied on 100 m rolls (about 2.0 kg), has a minimum bend radius of 18 mm and is rated IP65 for interior and exterior neon-style lighting.
Overview
The 2.5 mm deep milky side-glow PMMA fiber emits light evenly along its body rather than only at the end. It is supplied on 100 m rolls (about 2.0 kg), has a minimum bend radius of 18 mm and is rated IP65 for interior and exterior neon-style lighting.
Features
- 2.5 mm deep milky white side-glow PMMA
- Even body emission along the whole length
- 100 m/roll, about 2.0 kg
- Minimum bend 18 mm, flexible
- -50 to +70 C, IP65, 100000 h life
- Up to 60 m driven by one 80 W LED engine
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Product type | Side-glow PMMA fiber | – | Body-emitting |
| Diameter | 2.5 | mm | Round solid |
| Fiber material | PMMA (MMA) | – | Deep milky white |
| Length | 100 | m/roll | – |
| Weight | 2.0 | kg/roll | – |
| Minimum bending | 18 | mm | Static bend radius |
| Working temperature | -50 to +70 | °C | Supplier |
| Ingress protection | IP65 | – | Jacketed |
| Lifetime | 100000 | hours | – |
| Max drive | 60 | m per 80W LED | Supplier claim |
| Input voltage (engine) | 110/220 | V | LED illuminator |
| Warranty | 1 | year | Supplier |
Applications

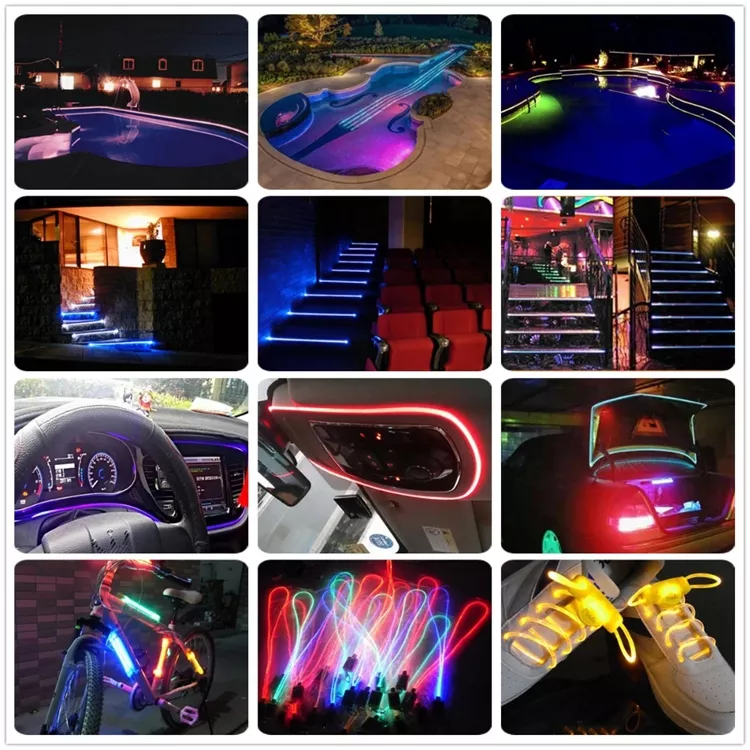

Side-glow cable is a safe, cool alternative to neon for hanging lamps, light curtains, waterfalls, star ceilings, pool edges and architectural accent lighting, with no heat or electricity in the cable itself.
How to Order
Tell us the run length and the LED engine wattage. Up to about 60 m can be lit from one 80 W engine; longer runs use more output ports. Diameters other than 2.5 mm are available.
FAQ
How is side-glow fiber different from end-glow?
End-glow fiber only lights at its tip (used for star points). Side-glow fiber emits light evenly along its whole body, so it is used where a continuous glowing line or neon replacement is wanted.
Why Choose JS TECH?
JS TECH (JINSHANG TECH) supplies industrial optical fiber and lighting assemblies for sourcing engineers. Browse the fiber optic lighting category, return to the home page, or review our FAQ on H-PCF and POF cable assemblies. For configuration, length, color or connector requests, contact our sales team with your requirements.
