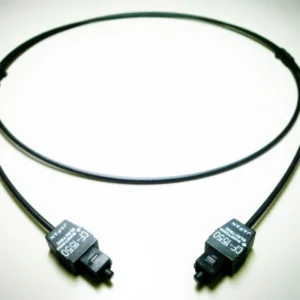

CF-1550 SUMITOMO Optical Fiber Cable Assembly CF1550 Patch Cord

Sumitomo CF-1550 compatible fiber cable, HCS/PCF 200/230µm, JIS F07 connector, for industrial automation PLC, up to 50m. OEM/ODM from Changzhou Jinshang.

SKU: CF-1550 Category: SUMITOMO OPTIC FIBER CABLE

General Details
Related Products

General Details

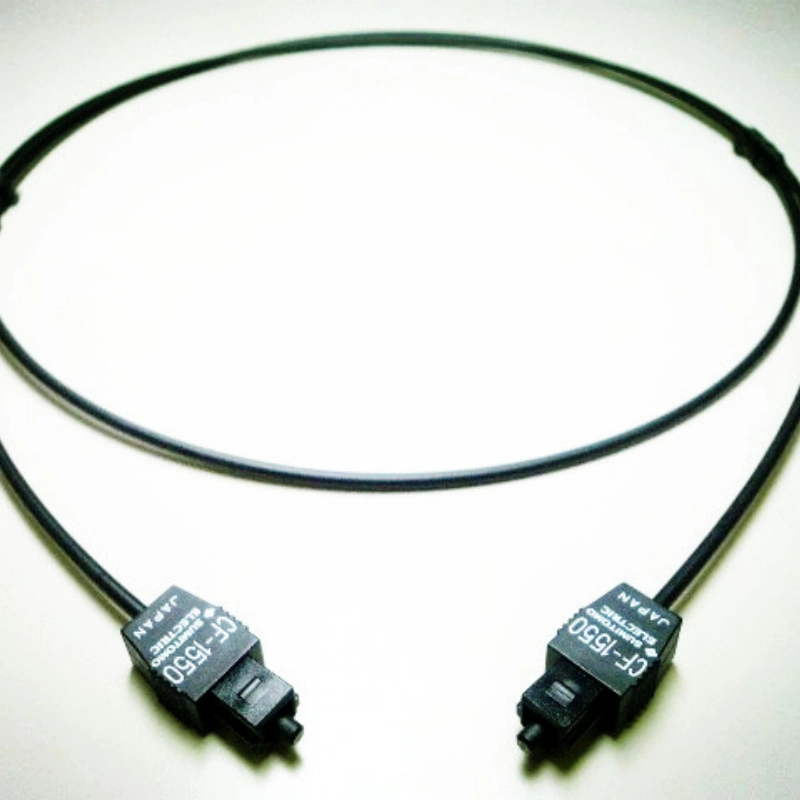

CF-1550 SUMITOMO Optical Fiber Cable Assembly CF1550 Patch Cord

Changzhou Jinshang Electronic Technology’s Sumitomo CF-1550 compatible fiber optic cable assembly is designed for industrial automation and PLC communication systems. This HCS/PCF fiber cable with JIS F07 connector provides reliable optical communication with excellent noise immunity. Direct replacement for original Sumitomo CF-1550 fiber cables.

Key Features

Sumitomo Compatible – Direct replacement for Sumitomo CF-1550 fiber cables
HCS/PCF Fiber – 200/230µm core diameter for stable transmission

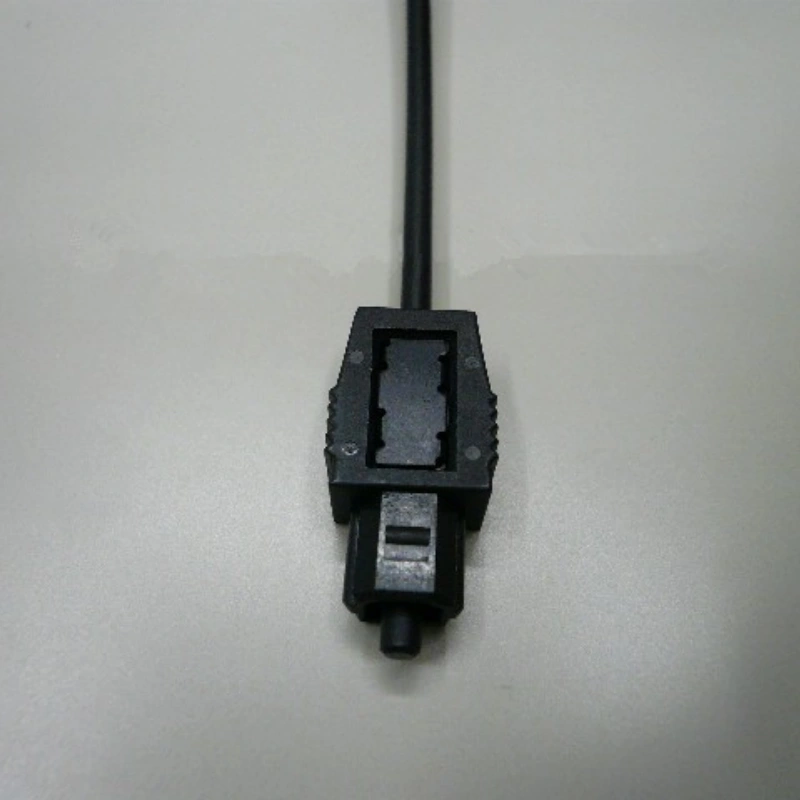

JIS F07 Connector – Standard JIS F07 connector for reliable connection
High Noise Immunity – Immune to electromagnetic and radio frequency interference
Vibration Resistant – Designed for industrial automation environments
Wide Temperature Range – Operating temperature: -40°C to +85°C
Custom Lengths – Available from 0.5m to 50m with custom options
OEM/ODM Available – Custom connectors, lengths, jacket colors, and branding

Technical Specifications

Parameter	Specification
Fiber Type	HCS / PCF (Hard Clad Silica / Plastic Clad Fiber)
Core Diameter	200µm core / 230µm cladding
Connector Type	JIS F07 (Sumitomo compatible)
Compatible Models	Sumitomo CF-1550
Transmission Distance	Up to 50 meters
Data Rate	Up to 50 Mbps
Wavelength	650nm (red visible light)
Operating Temperature	-40°C to +85°C
Bend Radius	Min. 10mm (dynamic), 20mm (static)
Jacket Material	PUR / PVC (optional)
Insertion Loss	≤1.5dB (per connector)
Customization	Length, connector type, jacket color, logo

Applications

Industrial Automation – PLC communication, sensor networks, control systems
CNC & Servo Systems – Servo drives, motion control, position feedback
Robotics – Robot controllers, automated production lines
Elevator Systems – Elevator control, communication, monitoring systems
Automotive – Vehicle communication, infotainment systems
Medical Equipment – Medical devices, diagnostic equipment
Building Automation – HVAC control, lighting systems, security networks

Why Choose Changzhou Jinshang?

With over 15 years of experience in POF/HPCF fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality Sumitomo-compatible fiber cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.

Contact us today for a free quote and sample!
