Black Soft Solid-Core Light-Guide POF, 14-20 mm OD
Black-skin soft solid-core PMMA light-guide POF rod, 14/17.3/18/20 mm OD, <=200 dB/km, -50 to 70 C, 100 m/roll, for pool and star-ceiling lighting.

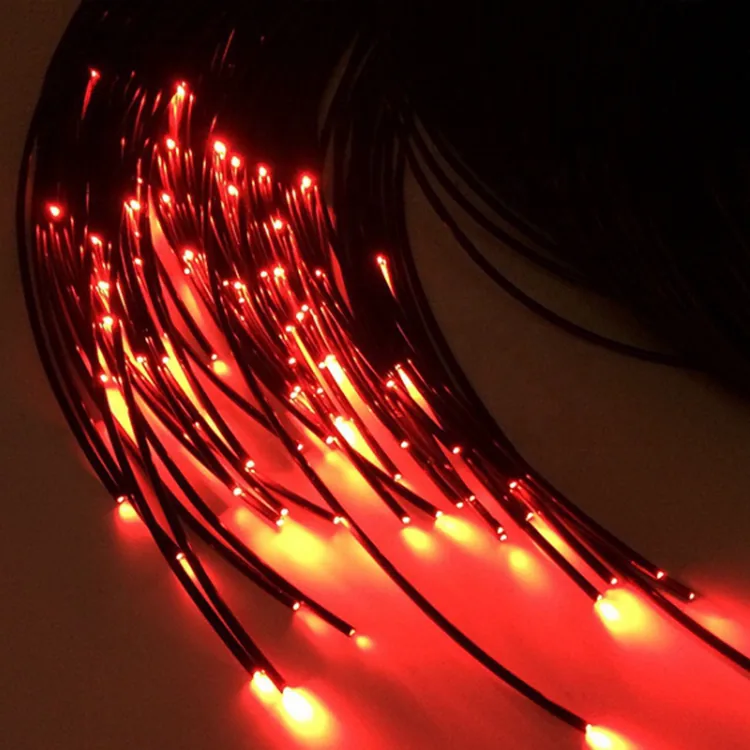

The black soft solid-core light-guide POF is a PMMA plastic optical fiber rod jacketed in black PVC, supplied in large outer diameters of 14, 17.3, 18 and 20 mm. It is an end-emitting light guide: light fed in at one end exits at the far end, while the black jacket suppresses side glow. It carries light only, not power, and is paired with an LED fiber illuminator on the source end.
Product Overview

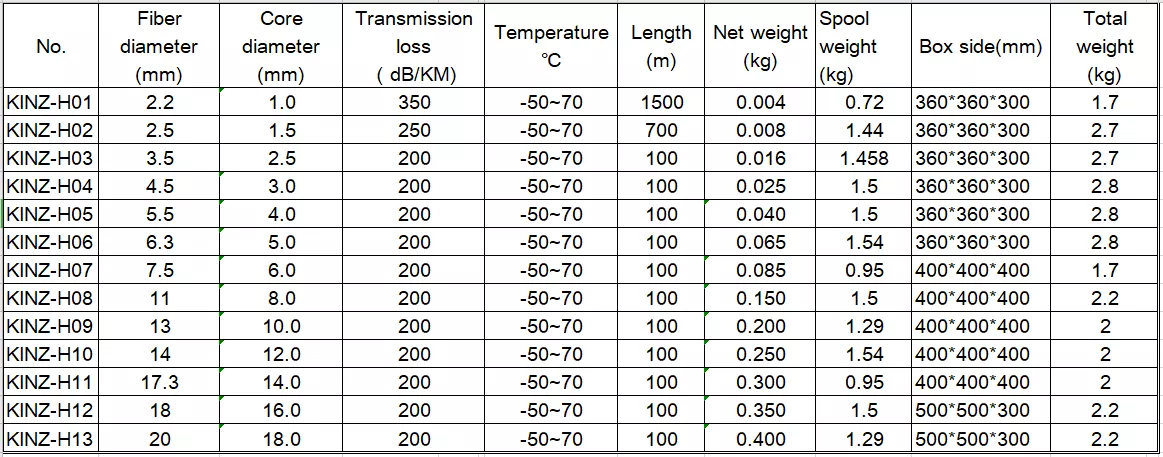

This is a black-skin soft light-guide material made of a transparent PMMA core with a fluorinated-polymer cladding and a black PVC jacket. The black jacket keeps the run invisible until the end point, which is why it is used for buried pool lighting, floor and stair markers, edge lighting and decorative star ceilings. The family ordering table lists outer diameters from 2.2 up to 20 mm; this listing covers the large-core options 14, 17.3, 18 and 20 mm. See the full range on our POF fiber optical cable category page.
Key Features
- Solid round PMMA core in a flexible black PVC jacket; end-glow (point emission) rather than side-glow.

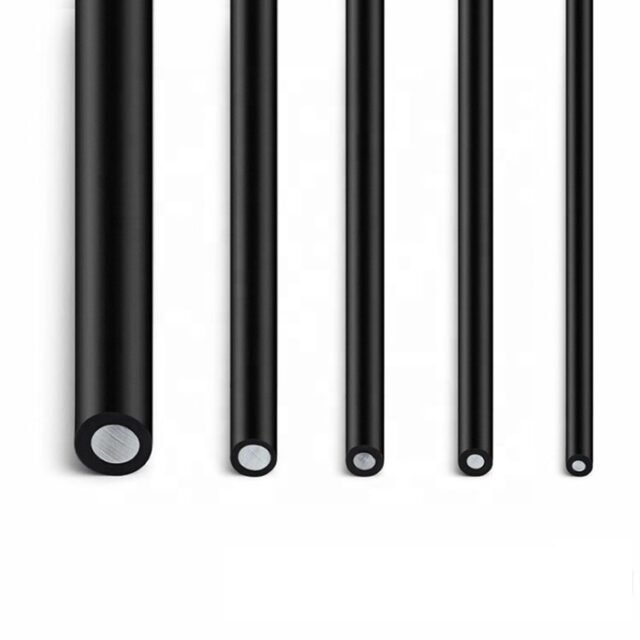

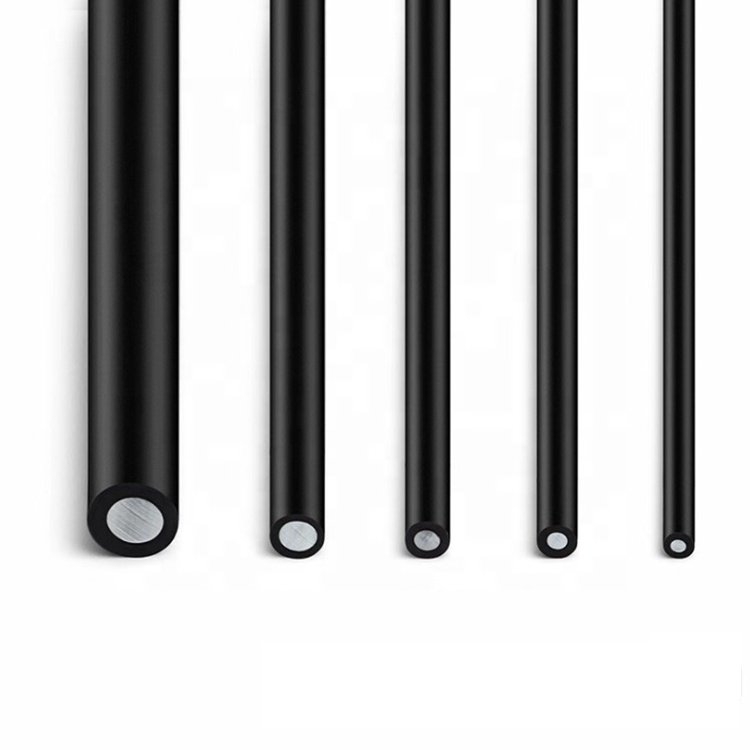

- Large diameters 14 / 17.3 / 18 / 20 mm OD with core 12 / 14 / 16 / 18 mm respectively.
- Family transmission loss ≤200 dB/km for the large-core rows; operating range -50 to +70 °C per the supplier family table.
- Supplied on 100 m rolls; cold light source, no UV/IR at the outlet, galvanically isolated.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Product type | Black-skin soft solid-core light-guide POF rod | – | PMMA core + fluoropolymer cladding + black PVC jacket |

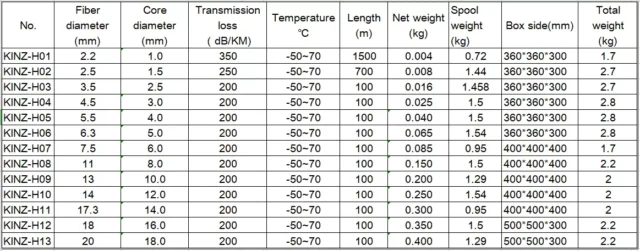

| Outer (jacket) diameters offered | 14 / 17.3 / 18 / 20 | mm | family table rows H10-H13; this listing covers the large-core options |
| Corresponding core diameters | 12 / 14 / 16 / 18 | mm | family table rows H10-H13 |
| Transmission loss (large-core rows) | ≤200 | dB/km | family ordering table rows H10-H13 |

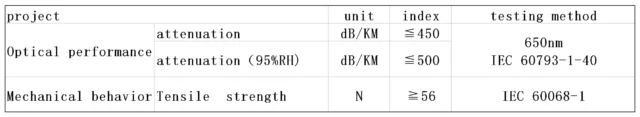

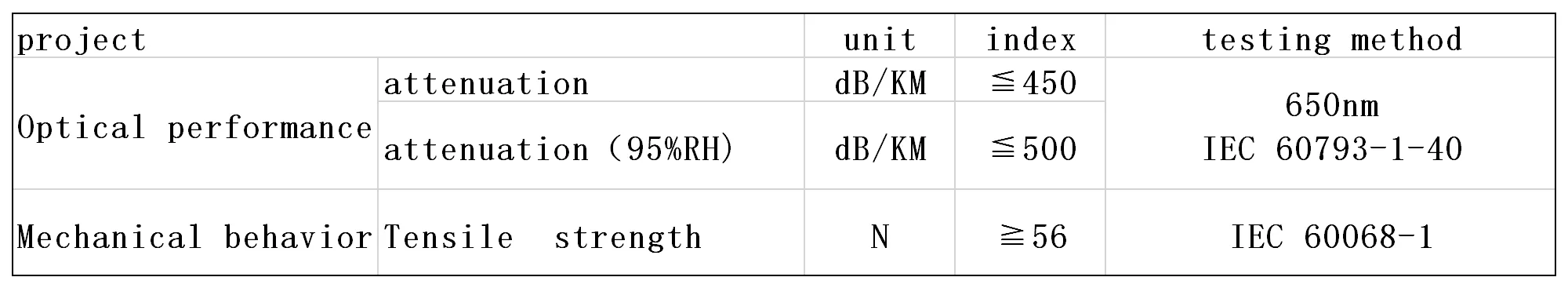

| Attenuation (650 nm, IEC 60793-1-40) | ≤450 | dB/km | supplier optical-performance test sheet; ≤500 dB/km at 95% RH |
| Tensile strength | ≥56 | N | IEC 60068-1 per supplier test sheet |
| Operating temperature | -50 to +70 | °C | family table; docx quick details also list -40 to +75 C (see needs_verification) |
| Length per roll | 100 | m/roll | family table for large-core rows |
| Core material | PMMA (polymethyl methacrylate) | – | supplier product description |
| Cladding material | Fluorinated polymer | – | supplier product description |
| Jacket material | Black PVC | – | supplier product description |
| Numerical aperture (NA) | 0.5 | – | supplier product description |

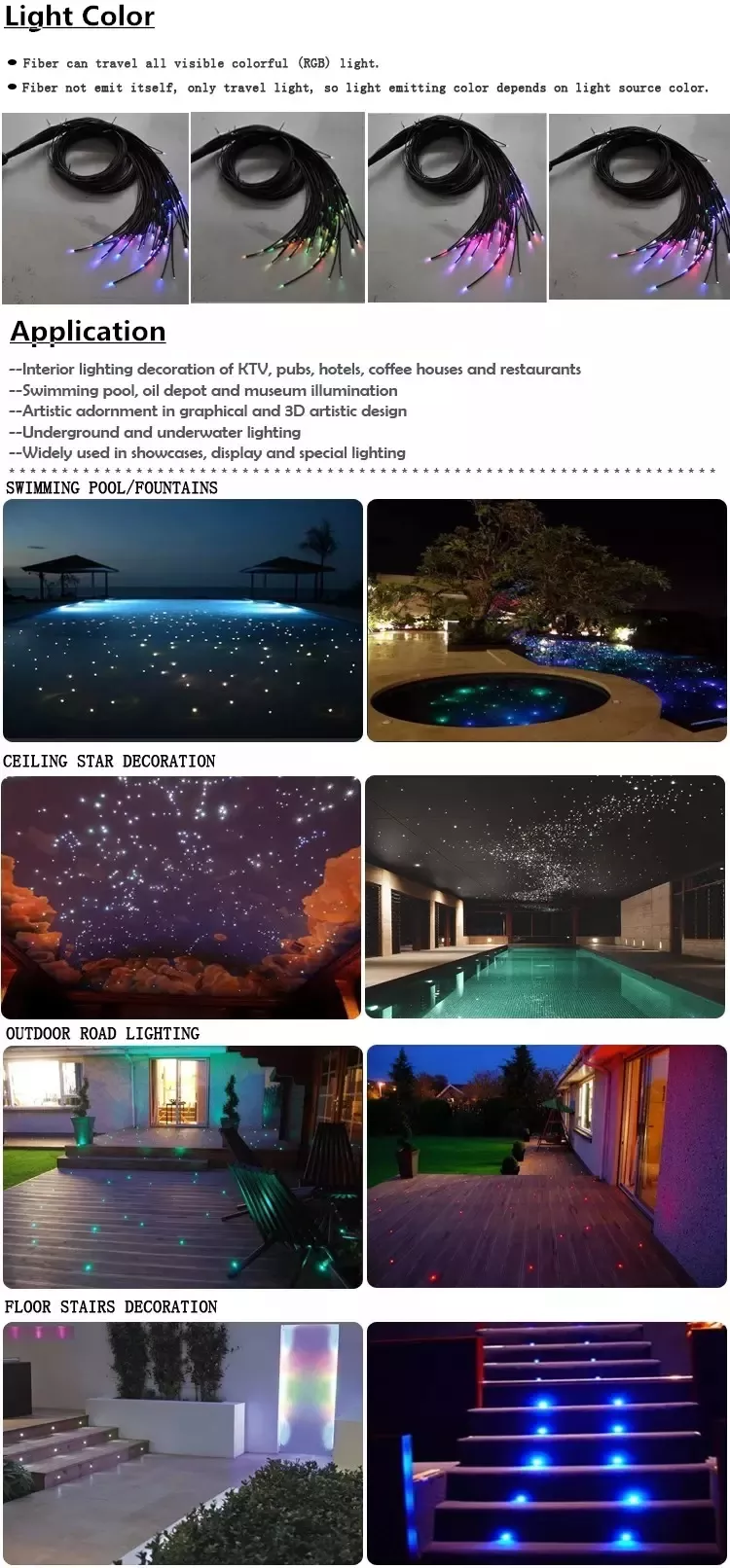

Applications

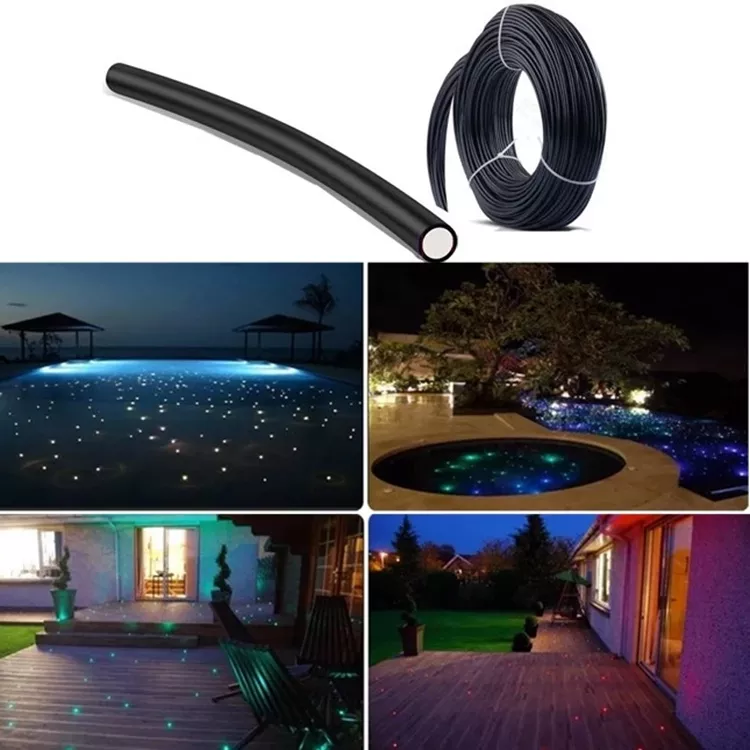

- Swimming pool, fountain and underwater / buried light-point lighting.

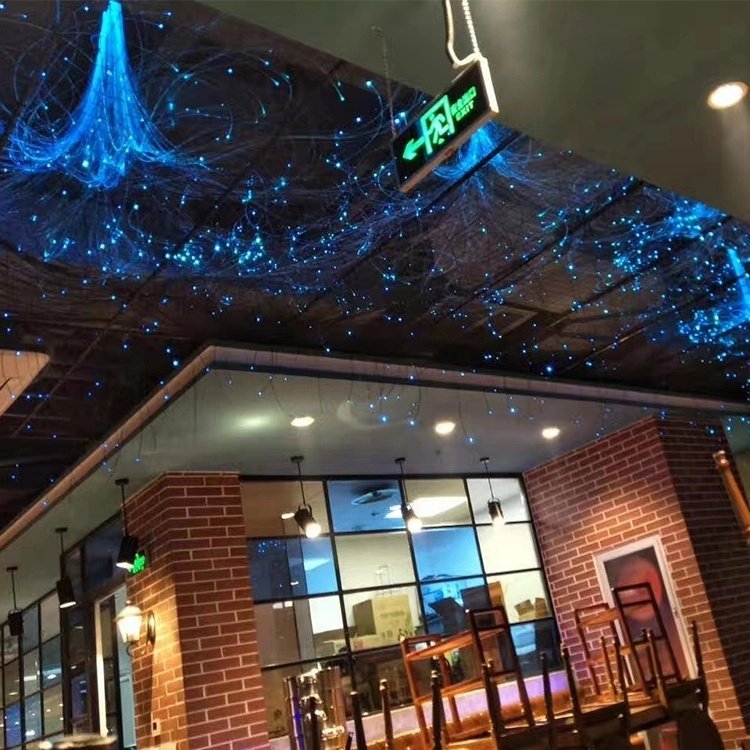

- Star ceilings, car headliners, KTV / hotel / restaurant decorative lighting.
- Edge lighting, floor and stair markers, showcase and display backlighting.
- Device light-guide indication in electronics, machinery, toys and medical equipment.

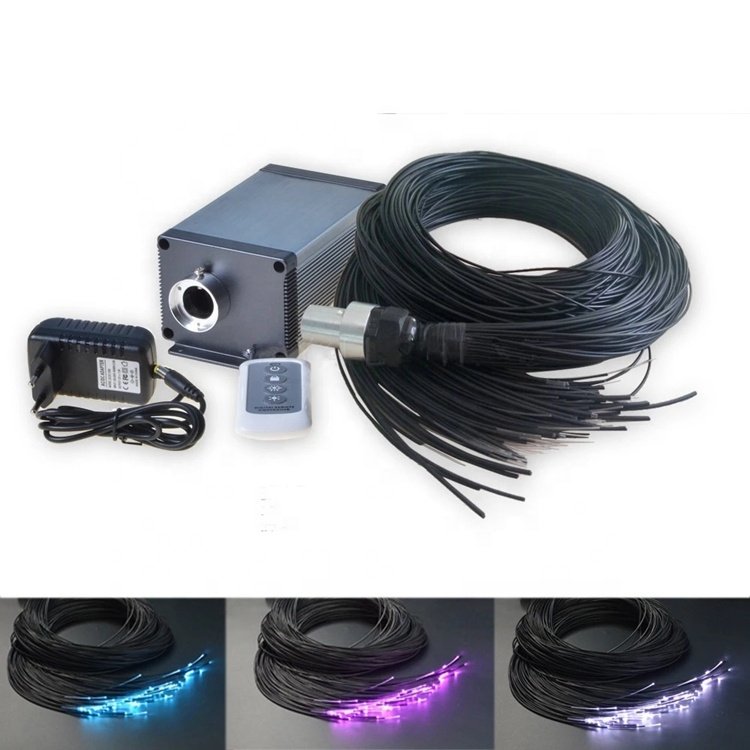

The fiber is always used with a matching LED illuminator on the source end. Browse the rest of the POF cable range for smaller diameters and bare-fiber options.
Ordering & Customization
Please confirm the outer diameter (14, 17.3, 18 or 20 mm), required length, and the illuminator connector / ferrule interface you intend to use. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Does the black glowing by itself?
No. The black PVC jacket suppresses side emission; the fiber only carries light from an LED illuminator fed at one end. The glowing color is determined by the light source, not by the fiber.
What does IP68 apply to?
The supplier listing mentions IP68, but a passive plastic light-guide rod itself has no enclosure rating. IP68 normally belongs to the illuminator fitting used underwater; confirm the light-engine rating for your pool installation.
Can I cut the 100 m roll to length?
Yes. Cut ends must be re-polished for good light output; tell us the length and end treatment you need.
Why Choose Us
We supply black light-guide POF by recognized diameter grade, keep the family ordering table and optical test sheet traceable, and distinguish the passive fiber from the LED illuminator it works with. Start from the home page or the POF category to explore related products.
Related products: You may also need Black-Skin End-Glow Light-Guide Fiber Bundle, 8-20 mm, PMMA End-Glow POF 0.75-3.0 mm Family for Star Ceiling Lights and 10 mm MMA Side Glow Fiber, IP68 Pool.
