Black-Skin End-Glow Light-Guide Fiber Bundle, 8-20 mm
Black PVC/PE skin PMMA end-glow light-guide bundles, 8/10/12mm for swimming pools and fountains, <=450 dB/km @650nm, >=56N tensile, 100m per reel.

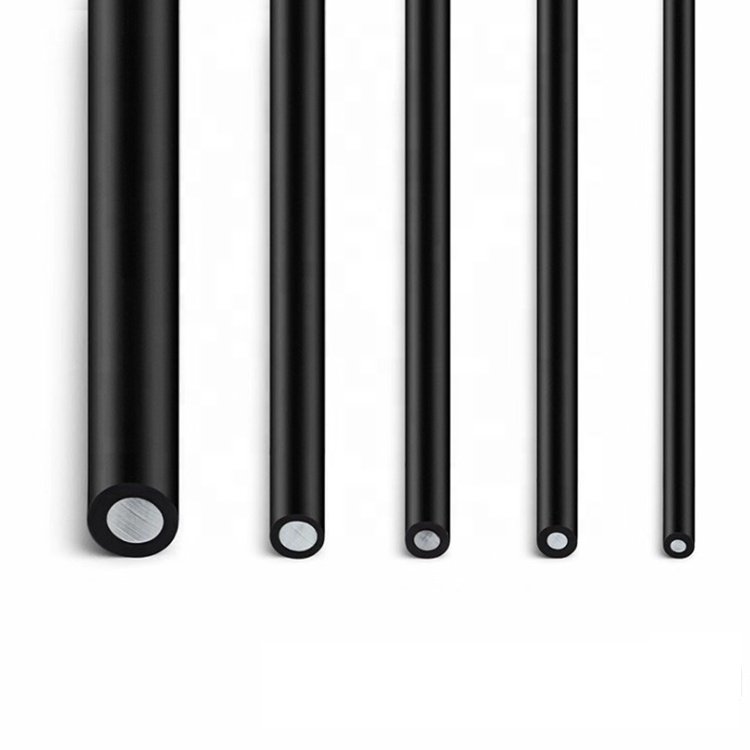

Black-skin end-glow light-guide fiber is a thick bundle of PMMA end-glow fibers wrapped in an opaque black PVC/PE skin. The black skin blocks all side glow so light escapes only at the polished end — exactly what swimming pools, fountains and decorative water features need. This listing covers the large 8/10/12 mm pool-grade bundles.
Product Overview

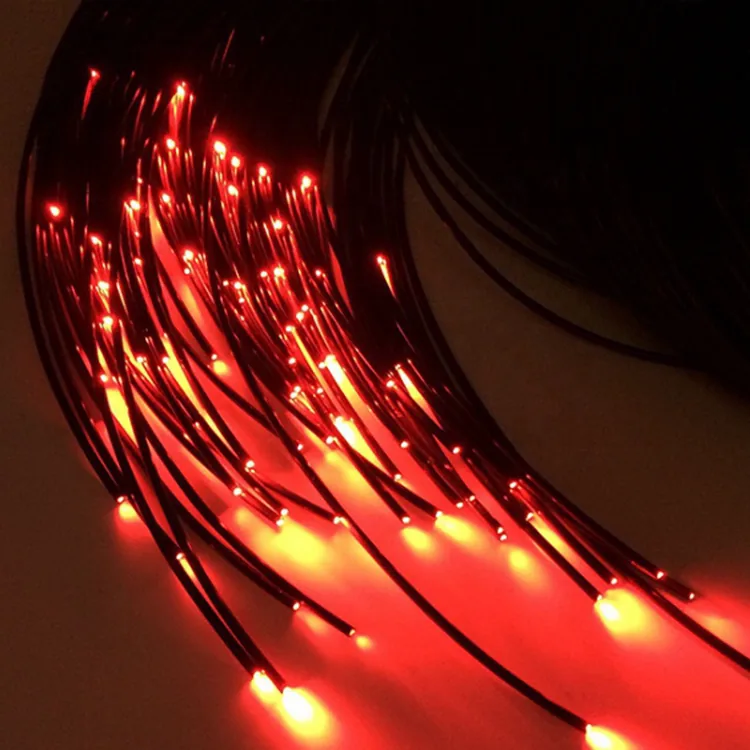

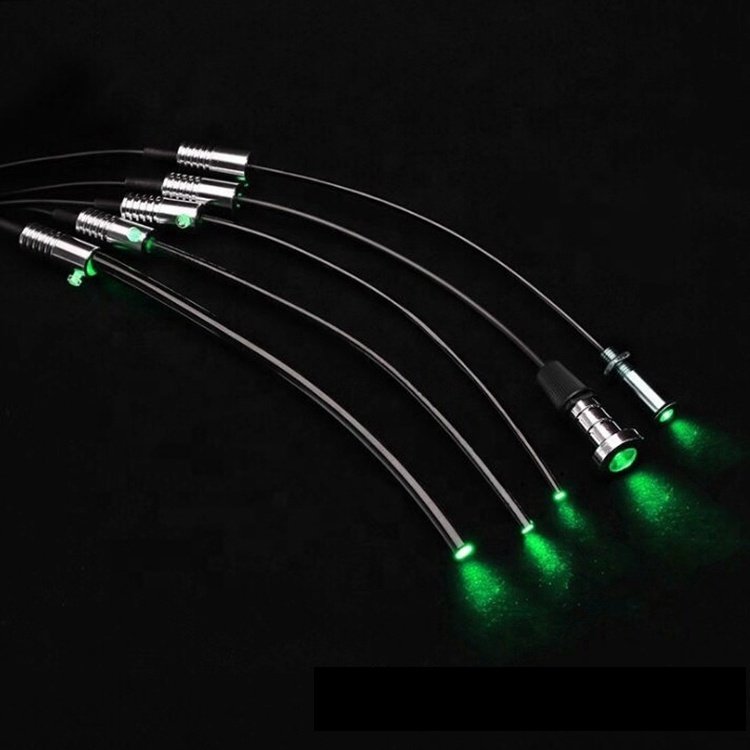

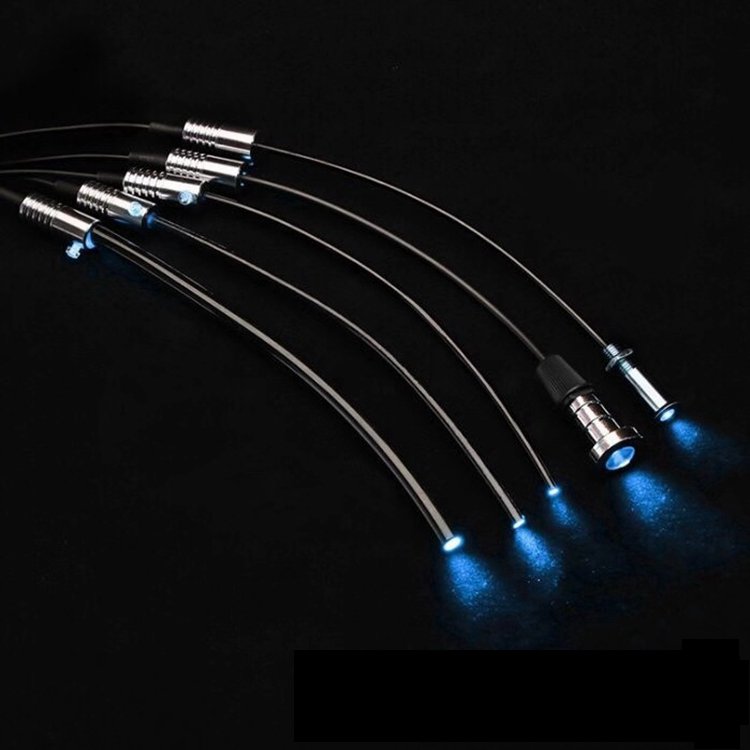

In a pool or fountain, bare fiber would glow along its whole length and look like a string of beads. The black skin solves this: the fiber body stays dark under water while the cut end produces a clean point of colored light fed by an LED illuminator on dry land. Because it carries only light, the submerged end is intrinsically safe.
The large-bundle family (rows H08/H09/H10) lists 8.0/10.0/12.0 mm sizes, 200 dB/km loss, -50 to +70 °C and 100 m per reel. The performance sheet adds IEC 60793-1-40 attenuation ≤450 dB/km @650 nm, ≤500 dB/km after humidity conditioning, and ≥56 N tensile (IEC 60068-1).
Key Features
- Opaque black PVC/PE skin suppresses side glow; only the cut end lights up.
- Large 8/10/12 mm bundles for pools and fountains.
- ≤450 dB/km @650 nm (IEC 60793-1-40); ≥56 N tensile.
- -50 to +70 °C; 100 m per reel.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Product type | Black-skin end-glow light-guide fiber bundle | – | Black PVC/PE outer skin; PMMA core; end-lit. |
| Available bundle OD range | 8.0 / 10.0 / 12.0 | mm | Family rows H08/H09/H10; large bundles for pools. |
| Corresponding core/fiber sizes | H08 8.0, H09 10.0, H10 12.0 | mm | Family table; 11/13/14 mm outer grades. |
| Core material | PMMA | – | Black PVC/PE skin over PMMA end-glow fiber. |
| Transmission loss | 200 | dB/km | Family large-bundle row. |
| Attenuation (IEC 60793-1-40) | ≤450 | dB/km @650nm | Optical performance sheet. |
| Attenuation at 95% RH | ≤500 | dB/km | Humidity-conditioned optical sheet. |
| Operating temperature | -50 to +70 | °C | Family large-bundle row. |
| Length per reel | 100 | m | Family H08-H10. |
| Tensile strength (IEC 60068-1) | ≥56 | N | Mechanical performance sheet. |
| Application | Swimming-pool / fountain light guide | – | Black skin hides side glow; only end glows. |

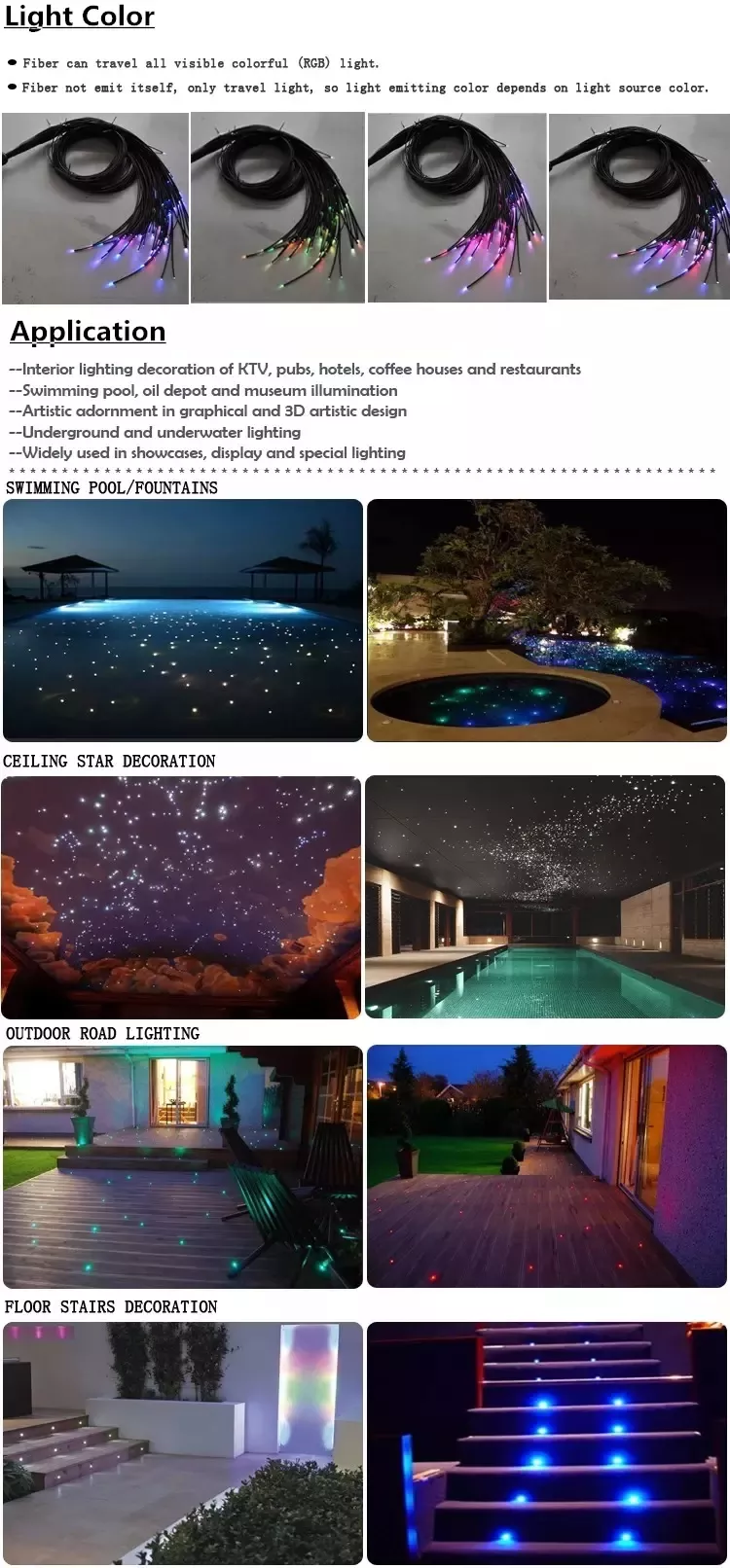

Applications
- Swimming-pool floor and wall light points.
- Fountains, water features and jacuzzis.
- Spa, sauna and wet-area decorative lighting.
- Wet-area installations where electricity cannot be run.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply black-skin end-glow bundles in small (2.2-4.5mm) and large (8-12mm) sizes, matched to pool-grade LED illuminators. Tell us bundle size, length and number of points. Contact sales.
FAQ
Why does this fiber have a black jacket while normal star fiber is clear? The black jacket is intentional. In water you want only the end to glow; a clear fiber would glow along its length. The black skin blocks side glow and keeps the submerged run invisible.
