Black PE POF Cable, 1.0 mm Core / 1.35 mm OD, FTTH & Indoor Links
Black PE tight-buffer POF cable, 1.0mm PMMA core with 1.35mm outer diameter, NA 0.5, <=0.25 dB/m, 1000m per drum for FTTH and indoor industrial links.
This is a slim black PE tight-buffer POF cable with a 1.0 mm PMMA core and a 1.35 mm outer diameter. Its compact size makes it suited to indoor ducting, FTTH-style short links and dense cabling where a thick 2.2 mm cable would be too large.
Product Overview

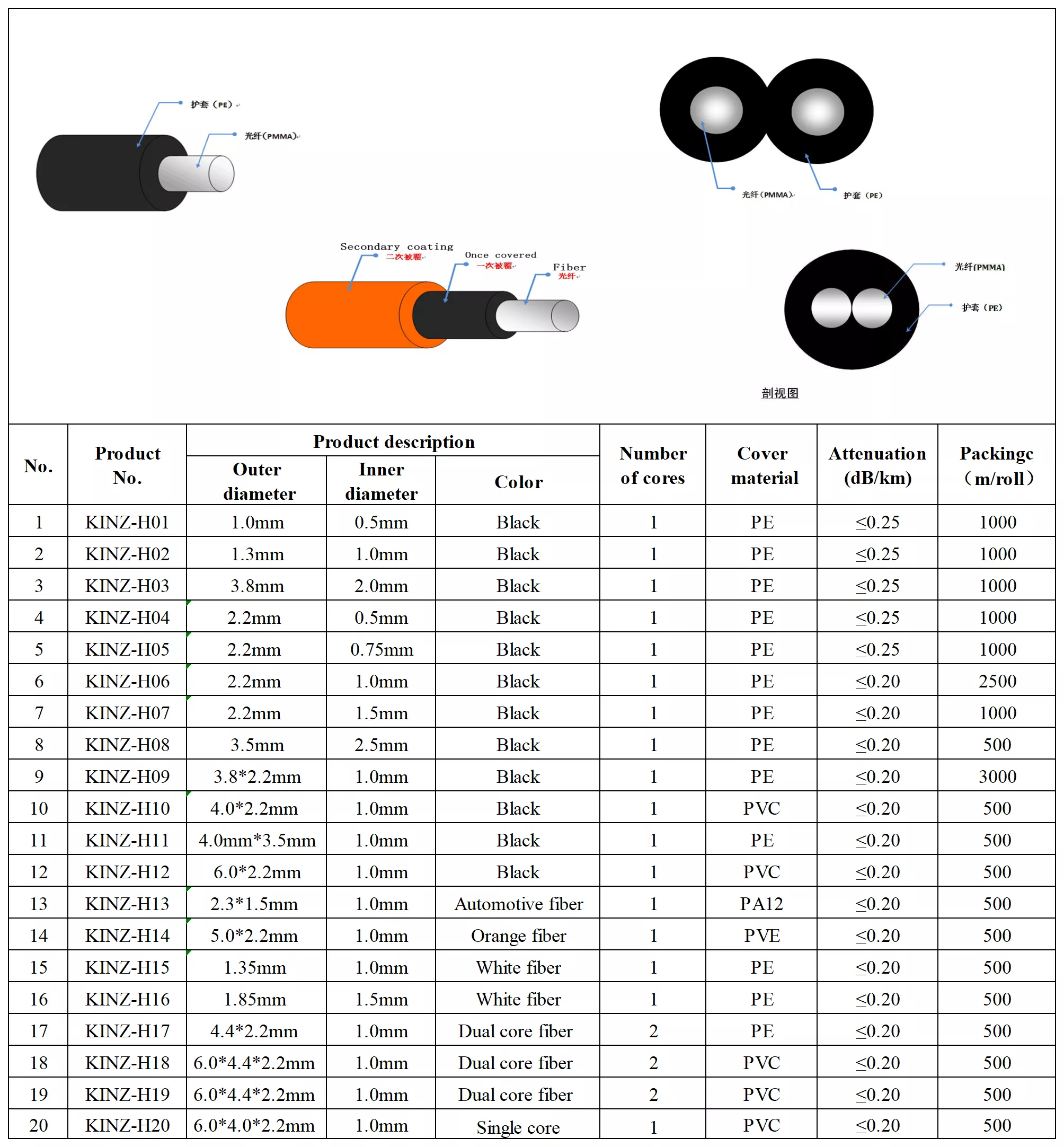

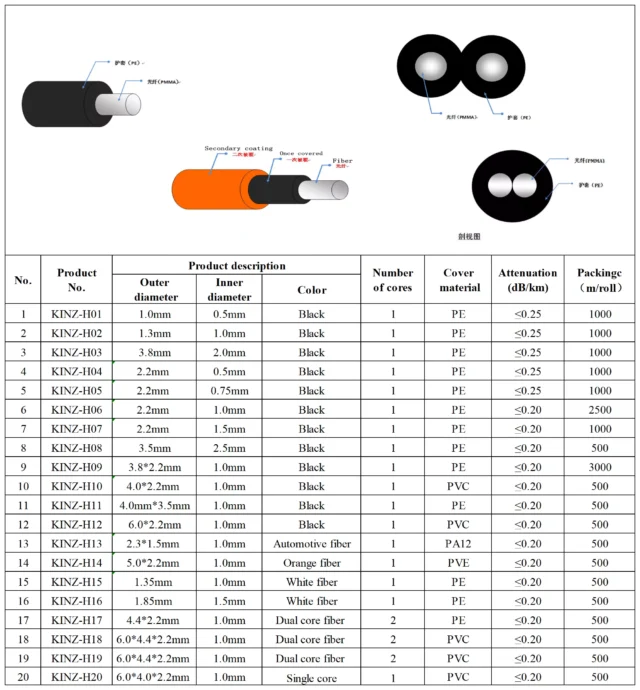

The 1.35 mm OD is a tight buffer: the PE jacket directly surrounds the 1.0 mm fiber with no strength member. This keeps the cable slim and flexible for patch-cord and short-link use. It maps approximately to family row H02 (1.3 outer / 1.0 core / ≤0.25 dB/m / 1000 m).
Optically it is the same step-index PMMA fiber as the other CC2-1000X2 family cables: core RI 1.49, cladding RI 1.41, NA 0.5.
Key Features
- Very slim 1.35 mm OD tight buffer around a 1.0 mm PMMA core.
- Black PE jacket; NA 0.5.
- ≤0.25 dB/m attenuation; 1000 m per drum.
- Easy to terminate with standard POF connectors.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Simplex jacketed PMMA POF cable | – | Single 1.0mm fiber in black PE jacket; H02 family. |
| Core diameter | 1.0 | mm | Family row H02. |
| Outer diameter | 1.35 | mm | Family row H02; tight buffer. |
| Core material | PMMA | – | Family material. |
| Jacket material | Black PE | – | Polyethylene tight buffer. |
| Core refractive index | 1.49 | – | Family. |
| Cladding refractive index | 1.41 | – | Family. |
| Numerical aperture (NA) | 0.5 | – | Family. |
| Attenuation | ≤0.25 | dB/m | Family H02. |
| Jacket color | Black | – | Supplier listing. |
| Length per drum | 1000 | m | Family H02. |
Applications
- FTTH / home-network short POF links.
- Indoor patch cords and dense duct runs.
- Industrial sensor and control connections.
- Point-to-point links where space is limited.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply this cable by the 1000 m drum and can terminate it with POF connectors on request. Contact sales.
FAQ
Is 1.35mm OD suitable for outdoor direct burial? No. This is a tight-buffer indoor cable. For outdoor or direct-burial runs use a stronger jacketed or armored POF; the 1.35mm version is intended for indoor ducts, patch panels and short links.
Why Choose Us
TOCP Fibercable supplies tight-buffer and PE-jacketed PMMA POF in several diameters. See the POF cable category, the home page, or the FAQ.
