Black PE Simplex POF 1.5 mm Core, 2.2 mm Jacket Signal Cable
Black PE jacketed simplex PMMA POF, 1.5mm core in a 2.2mm jacket, <=0.2 dB/km per supplier family, for lighting signal and sensing links.
This is a black polyethylene-jacketed simplex PMMA POF with a 1.5 mm core in a 2.2 mm round jacket, used for lighting signal and sensing links. Per the supplier H-family table, the 2.2 mm / 1.5 mm combination corresponds to row H07 (the source docx labels the part H05, but H05 is a 0.75 mm-core entry — a labeling conflict flagged below).
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features

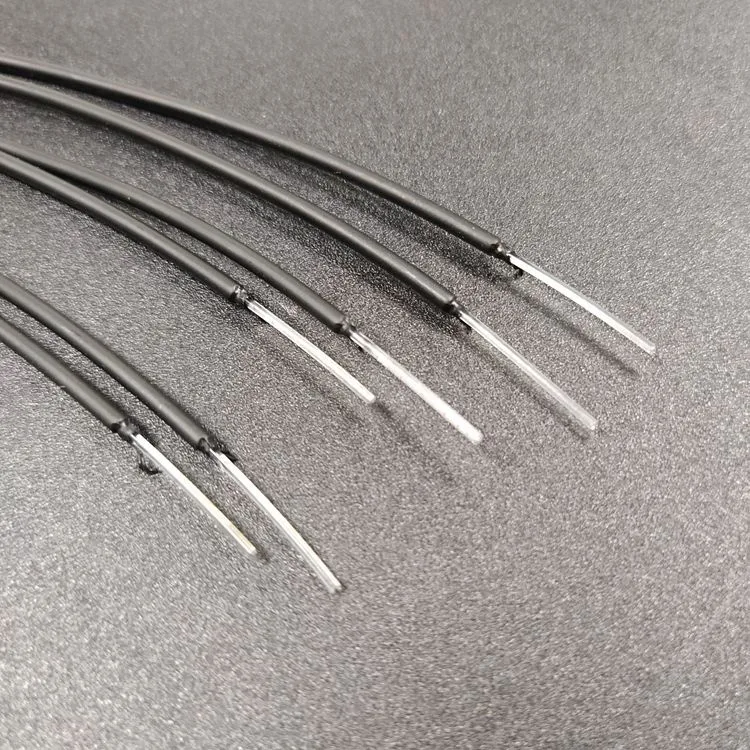

- 1.5 mm PMMA core inside a 2.2 mm black PE jacket.

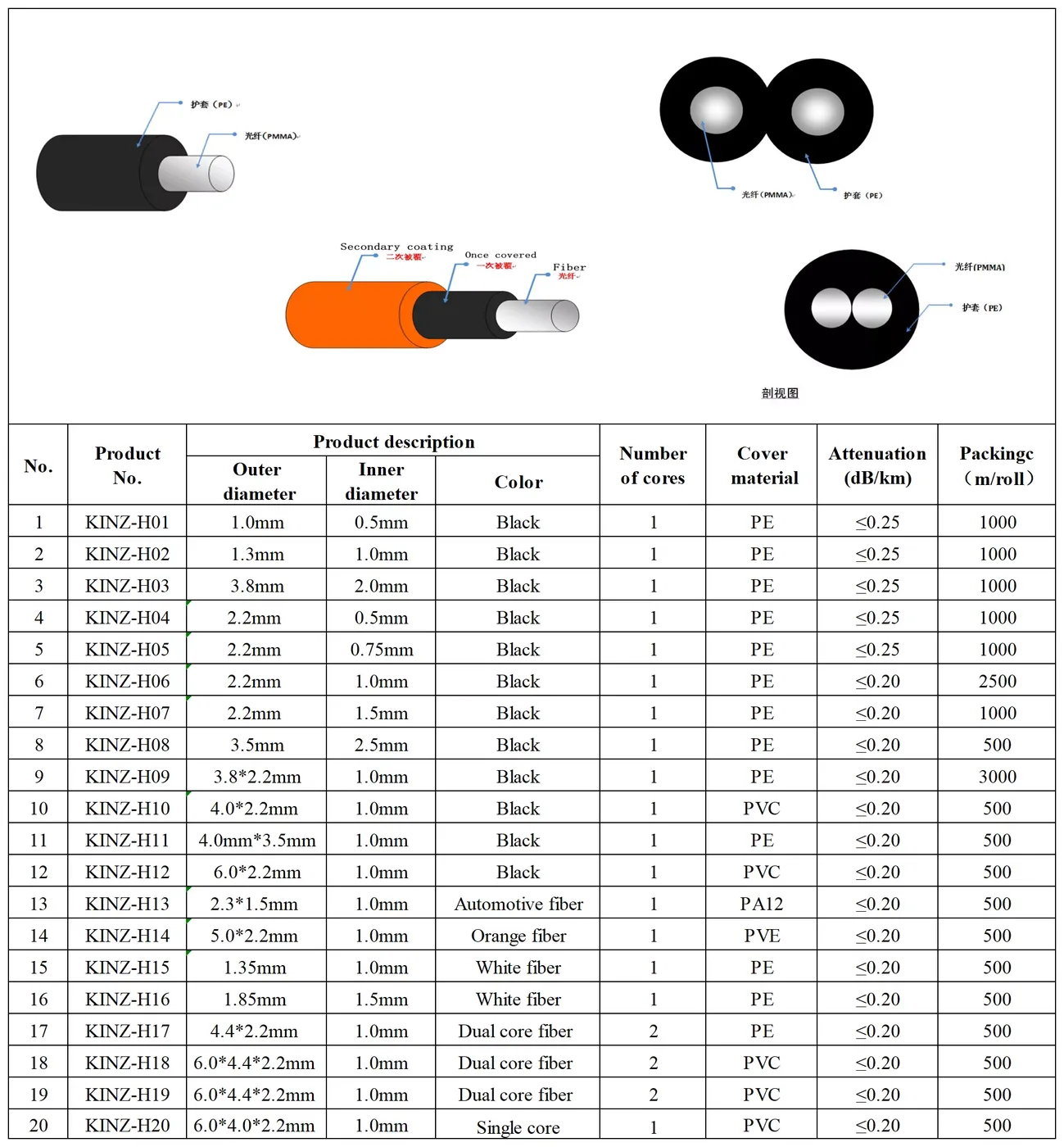

- Supplier H-family table: <=0.20 dB/km, 1000 m/roll.
- Rugged black PE jacket for signal and sensing runs.
- Galvanically isolated, EMI-immune light link.
- –55 ~ +80 °C per supplier.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Simplex step-index PMMA POF, black PE jacket | – | Supplier H family table. |
| Inner / core diameter | 1.5 | mm | Matches family row H07. |
| Outer jacket diameter | 2.2 | mm | Family row H07. |
| Number of cores | 1 | – | Simplex. |
| Jacket material | PE (polyethylene), black | – | Family table. |
| Attenuation | <= 0.20 | dB/km | Supplier H family table row H07. |

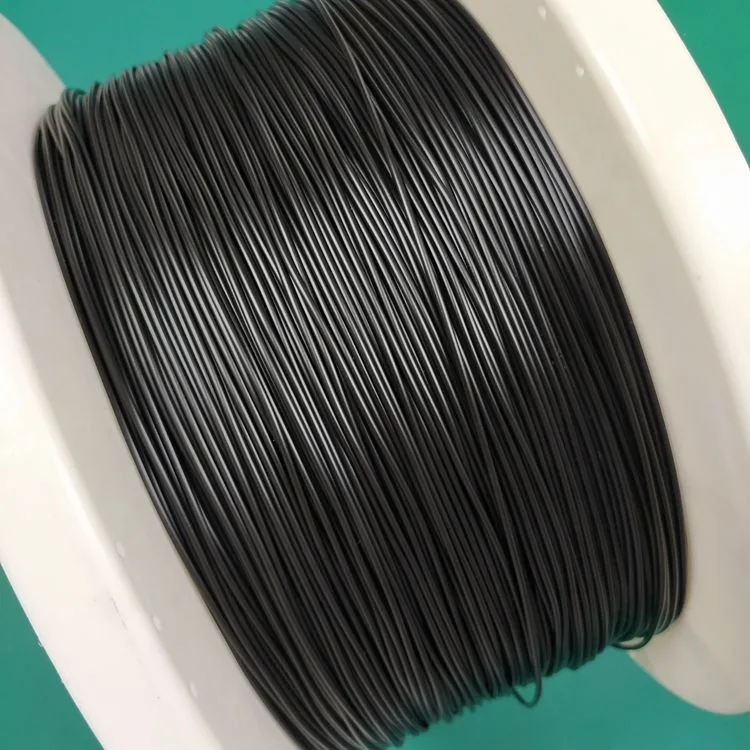

| Packing | 1000 | m/roll | Supplier H family table row H07. |

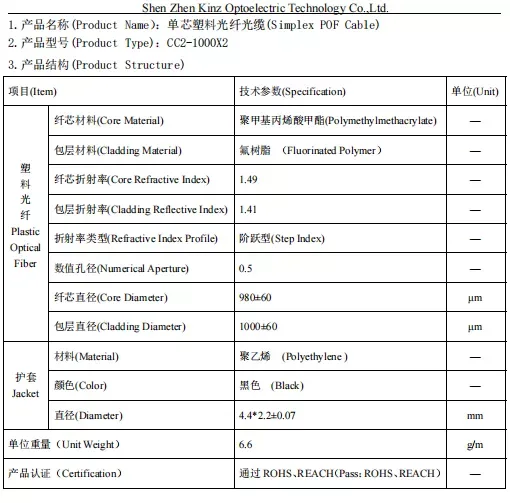

| Core material | PMMA | – | Family / CC2-1000X2 structure sheet. |
| Cladding material | Fluorinated polymer | – | Structure sheet. |
| Core refractive index | 1.49 | – | CC2-1000X2 spec sheet. |
| Cladding refractive index | 1.41 | – | CC2-1000X2 spec sheet. |
| Numerical aperture (NA) | 0.5 | – | CC2-1000X2 spec sheet. |
| Operating temperature | -55 ~ +80 | C | Supplier listing. |
Applications
Lighting signal lines, optically isolated sensor and control links, industrial monitoring, and short POF communication runs. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Confirm length and any POF termination. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Why H07 and not H05?
The docx says KINZ-H05, but H05 in the family table is 2.2 mm jacket / 0.75 mm core. The stated 1.5 mm core matches H07. Confirm the supplier part number before production.
Is attenuation 0.2 dB/km realistic?
The <=0.20 dB/km figure is the supplier H-family table value; treat it as a supplier-stated family rating rather than an independently measured value.
What connectors fit?
Cut lengths can be terminated with common POF connectors on request; specify on enquiry.
Why Choose Us
We resolve the cable to the family row that matches its actual 1.5 mm core / 2.2 mm jacket and disclose the H05/H07 mismatch. See the POF category, the FAQ page or the home page.
