0.75mm Core 2.2mm Black PE POF Cable, Sensing
Black PE-jacketed PMMA POF cable with 0.75 mm core in a 2.2 mm outer jacket, <=0.25 dB/km attenuation, 1000 m roll, for sensing and short signal links.
This black PE-jacketed PMMA plastic optical cable carries a 0.75 mm step-index POF core inside a 2.2 mm outer jacket, supplied on 1000 m rolls for sensing, communication and short signal-transmission runs. It is our own JS TECH cable in the single-core black-PO family (supplier SKU KINZ-H05).
Product Overview

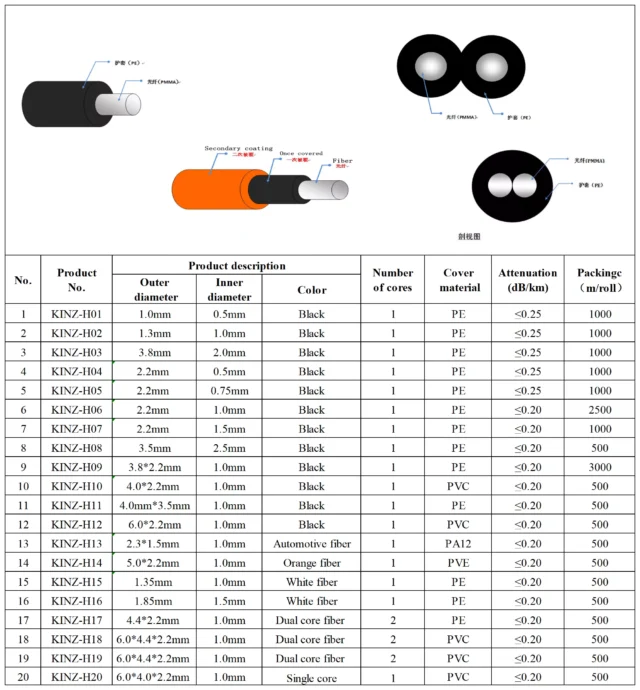

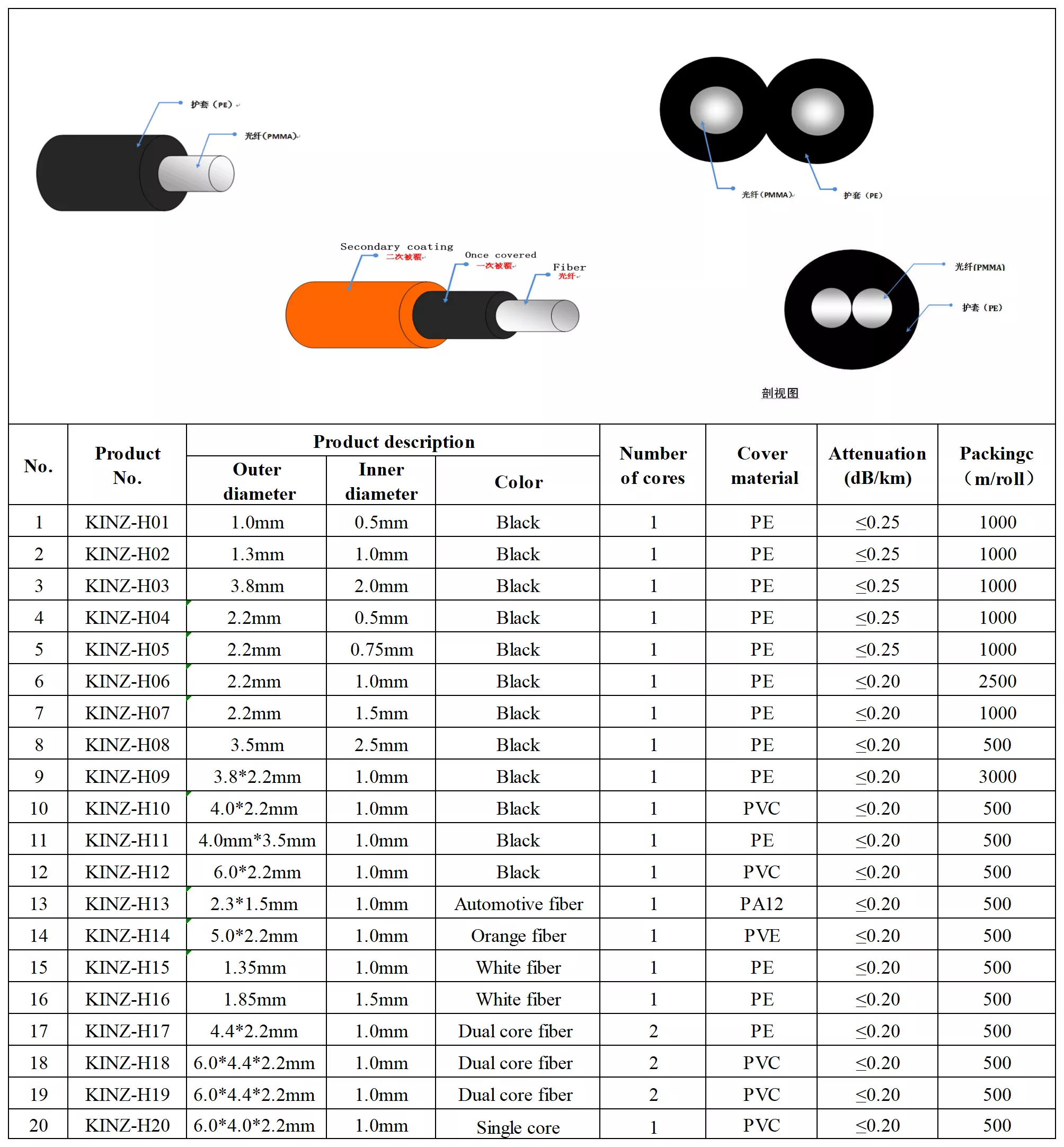

The family specification sheet lists this product as 0.75 mm inner fiber x 2.2 mm outer diameter, black PE jacket, single core, ≤0.25 dB/km attenuation, 1000 m per roll. The fiber is PMMA with a fluorinated-polymer cladding; the outer jacket is black polyethylene (PE) for general-purpose sensing and signal wiring. Note: the supplier document quick-details box labels this cable KINZ-H03, but the product table maps the 0.75 mm / 2.2 mm row to KINZ-H05; we follow the table. See the full range on our POF fiber optical cable category page.
Key Features
- 0.75 mm PMMA core in a 2.2 mm black PE outer jacket.
- Attenuation ≤0.25 dB/km per the family specification table.
- Supplied on 1000 m rolls; light weight, EMI-immune, easy to cut and terminate.
- Suited to sensing, short communication links and signal-transmission runs.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-H05 | – | family table row 5; docx quick-details box says KINZ-H03 (mismatch, follow table) |
| Inner fiber diameter | 0.75 | mm | PMMA step-index core |
| Outer cable diameter | 2.2 | mm | black PE jacket |
| Number of cores | 1 | – | single-core |
| Jacket material | PE (polyethylene) | – | black |
| Attenuation | ≤0.25 | dB/km | per family table |
| Packing length | 1000 | m/roll | per family table |
| Core material | PMMA | – | supplier docx |
| Cladding material | Fluorinated polymer | – | typical POF construction |
| Application | Sensing, communication, signal transmission | – | supplier docx |
Applications
- Sensor connections and detection-target signal links.
- Short-distance communication and control-signal wiring.
- EMI-sensitive plant-floor and substation signal runs where copper is problematic.
Browse the rest of the POF cable range for other core diameters and jacket materials in the same family.
Ordering & Customization
Please confirm the 0.75 mm / 2.2 mm black PE cable, required length and connector interface. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Is this the same as the arc-flash protection POF listing?
The physical cable (0.75 mm core, 2.2 mm black PE jacket) is the same family. This page is the general sensing/signal-data framing; the arc-flash listing is a separate use-case page on the same cable. Confirm the required termination before ordering.
What does the attenuation number mean?
≤0.25 dB/km is the family table value. For short sensing runs this is well within budget; always design the link budget with the chosen transmitter and receiver.
What about IP68 and the temperature range?
IP68 is an enclosure/connector rating, not a property of the passive cable; the supplier docx lists -55 to +80 °C operating range, confirm against the datasheet for continuous use.
Why Choose Us
We supply this black PE POF cable by its real dimensions (0.75 mm core / 2.2 mm OD), keep the family table traceable, and flag the KINZ-H03 vs KINZ-H05 SKU mismatch rather than guessing. Start from the home page or the POF category to explore related products.
