Black PE Simplex POF 0.5 mm Core, 2.2 mm Jacket Sensor Cable
Black PE jacketed simplex PMMA POF, 0.5mm core in a 2.2mm jacket, <=0.25 dB/km per supplier family, for sensor and signal transmission links.
This is a black polyethylene-jacketed simplex PMMA POF with a 0.5 mm core in a 2.2 mm round jacket, used for sensor and signal-transmission links. Per the supplier H-family table, the 2.2 mm / 0.5 mm combination corresponds to row H04 (the source docx labels the part H02, but H02 is a 1.3 mm / 1.0 mm entry — a labeling conflict flagged below).
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features

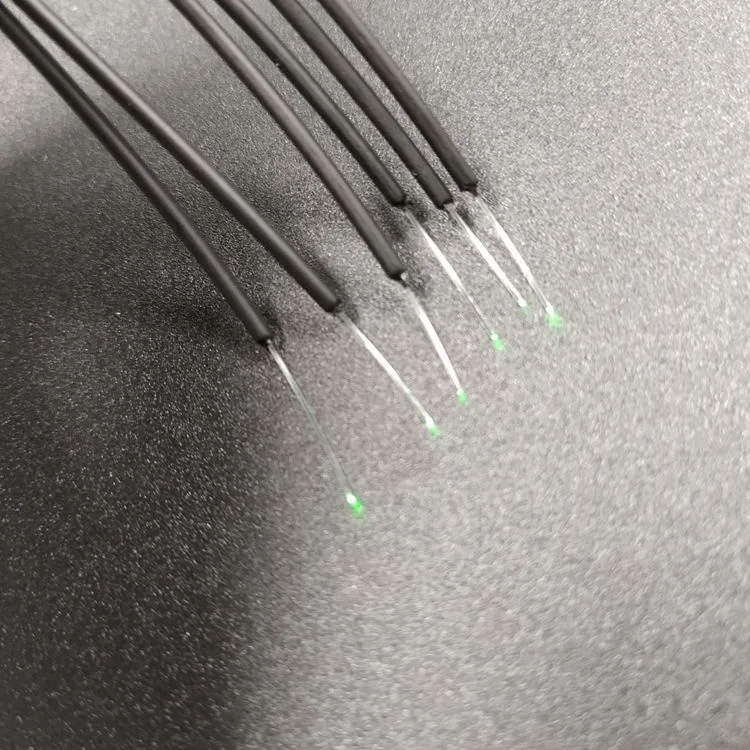

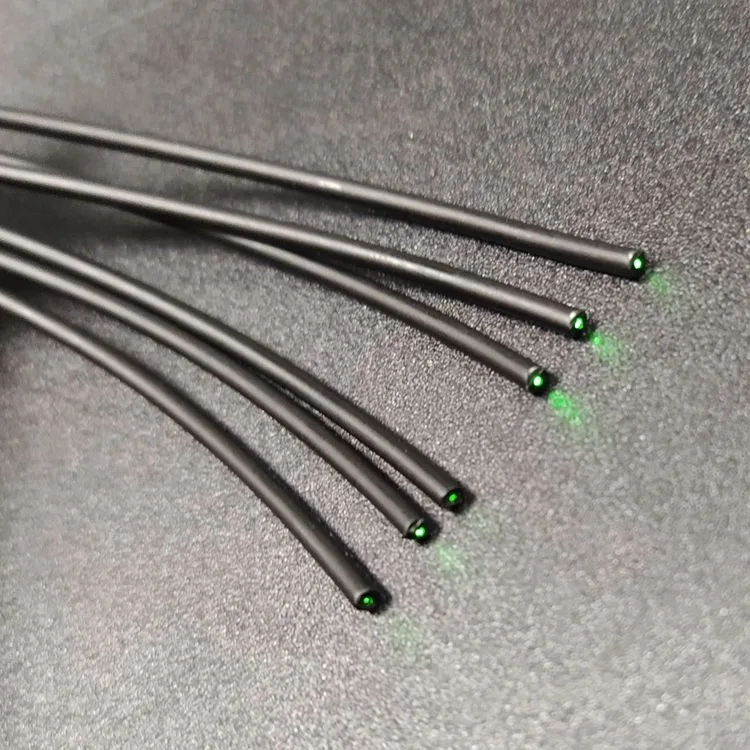

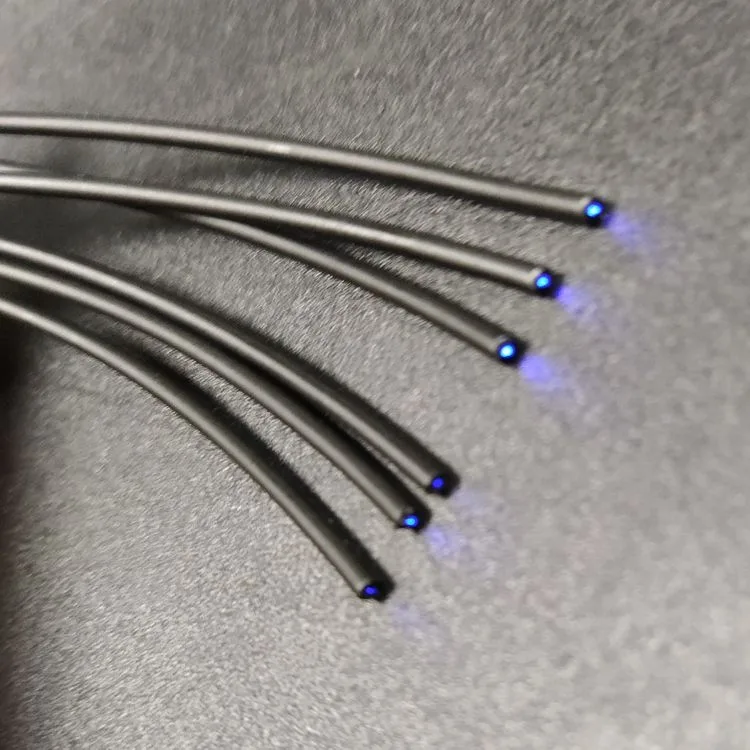

- Fine 0.5 mm PMMA core inside a 2.2 mm black PE jacket.

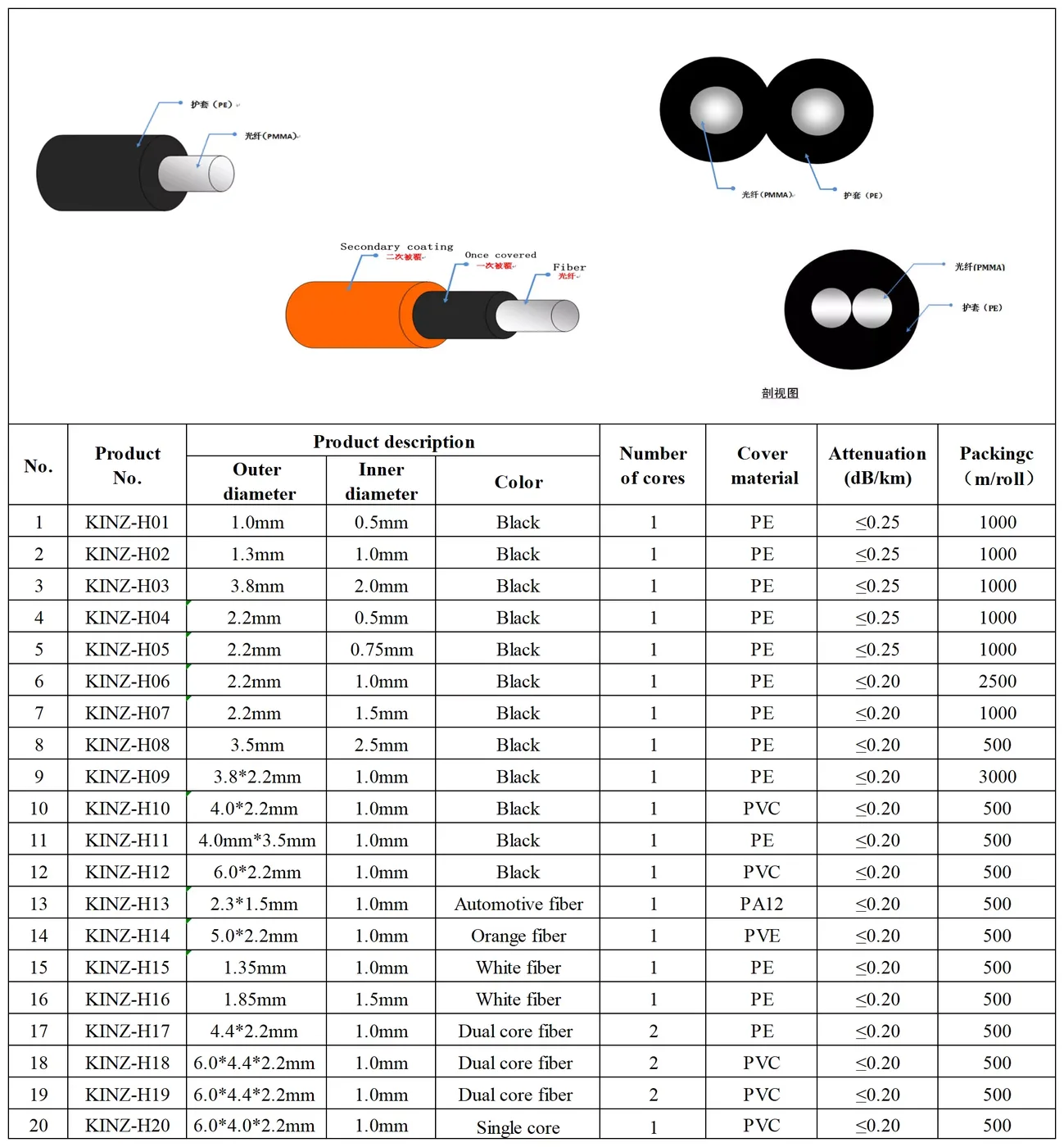

- Supplier H-family table: <=0.25 dB/km, 1000 m/roll.
- Flexible, rugged black jacket for sensor runs.
- Galvanically isolated, EMI-immune light link.
- –55 ~ +80 °C per supplier.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Simplex step-index PMMA POF, black PE jacket | – | Supplier H family table. |
| Inner / core diameter | 0.5 | mm | Matches family row H04. |
| Outer jacket diameter | 2.2 | mm | Family row H04. |
| Number of cores | 1 | – | Simplex. |
| Jacket material | PE (polyethylene), black | – | Family table. |
| Attenuation | <= 0.25 | dB/km | Supplier H family table row H04. |

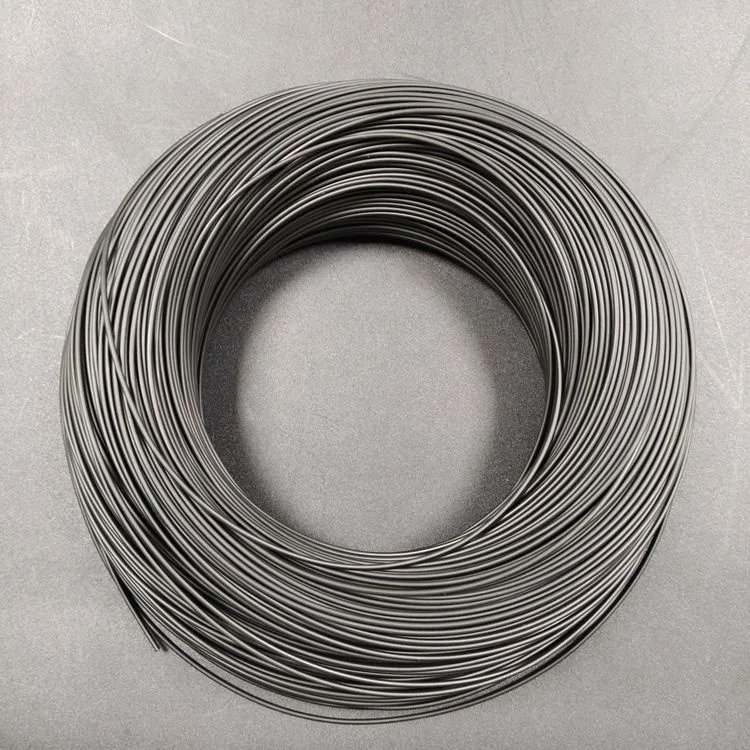

| Packing | 1000 | m/roll | Supplier H family table row H04. |

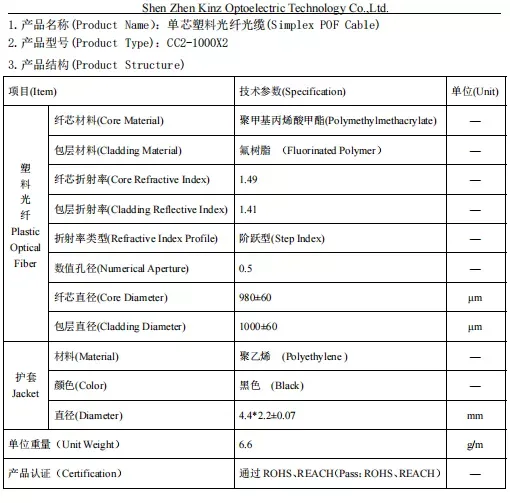

| Core material | PMMA | – | Family / CC2-1000X2 structure sheet. |
| Cladding material | Fluorinated polymer | – | Structure sheet. |
| Core refractive index | 1.49 | – | CC2-1000X2 spec sheet. |
| Cladding refractive index | 1.41 | – | CC2-1000X2 spec sheet. |
| Numerical aperture (NA) | 0.5 | – | CC2-1000X2 spec sheet. |
| Operating temperature | -55 ~ +80 | C | Supplier listing. |
Applications
Optical sensor and detector connections, industrial control signal links, and short POF communication runs in electrically noisy environments. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Confirm length and termination. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Why H04 and not H02?
The docx says KINZ-H02, but H02 in the family table is 1.3 mm jacket / 1.0 mm core. The stated 0.5 mm core / 2.2 mm jacket matches H04. Confirm the supplier part number before production.
What is this used for?
The fine 0.5 mm core suits sensor and signal links where a small, flexible jacketed fiber is routed near detection heads.
Can it be connectorized?
Yes, cut lengths can be terminated with common POF connectors on request.
Why Choose Us
We match the 0.5 mm core / 2.2 mm jacket to H04 and disclose the H02/H04 labeling conflict. Browse the POF category, the FAQ page or the home page.
