Asahi Kasei DC-265 / DC-500 General-Purpose Jacket POF Cable
Asahi Kasei DC series general-purpose PMMA POF cables: DC-265-10 (0.265mm), DC-500 (0.5mm), DC-500W-10 dual, DC-1000 (1.0mm/2.2mm), NA 0.50, -55 to +70 C.

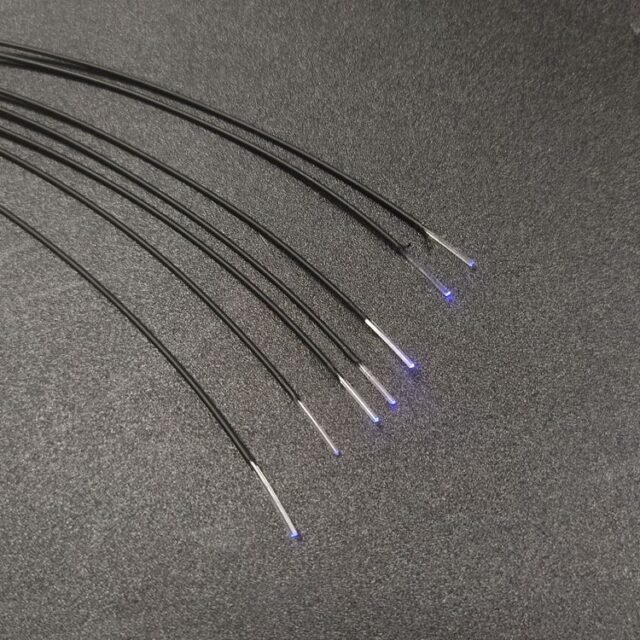

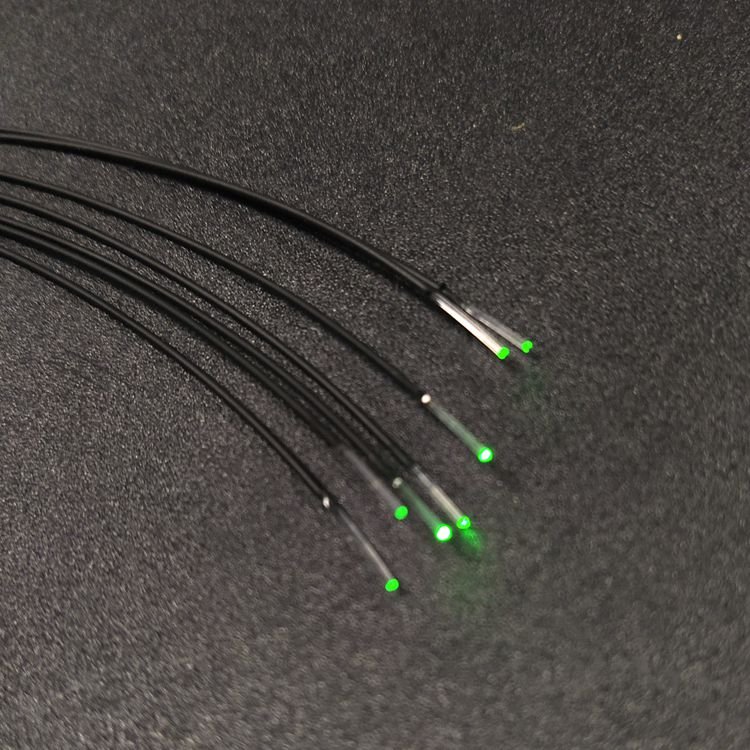

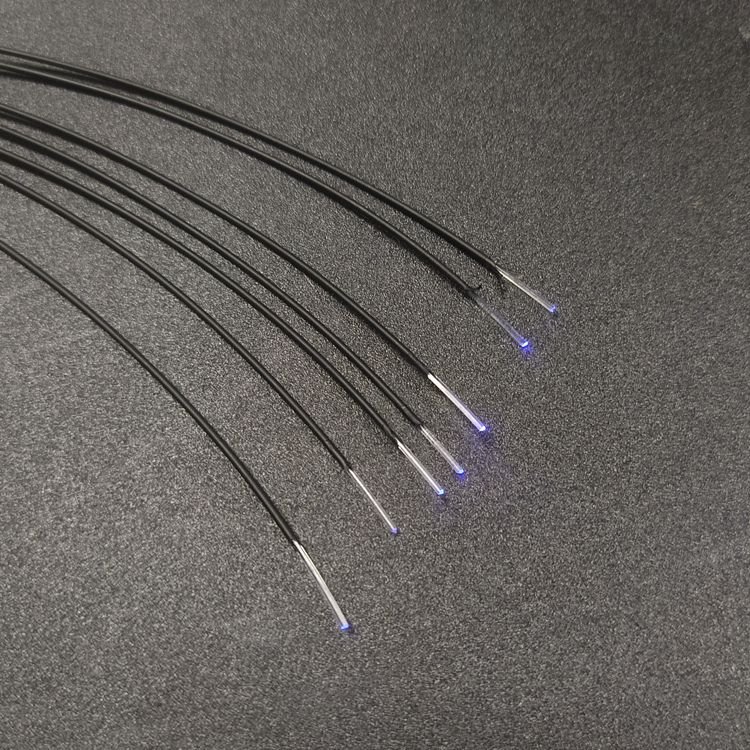

The Asahi Kasei DC series is a range of general-purpose jacketed PMMA POF cables covering 0.265 mm (DC-265-10), 0.5 mm (DC-500, dual DC-500W-10) and 1.0 mm (DC-1000) fibers. They are the standard Asahi Kasei POF for industrial control and sensor links.
Product Overview
DC series cables use a PE jacket around a step-index PMMA core. The structure sheet lists core RI 1.49, cladding RI 1.4, NA 0.50, core diameter 920–1040 µm (typical 980) and cladding 940–1060 µm.

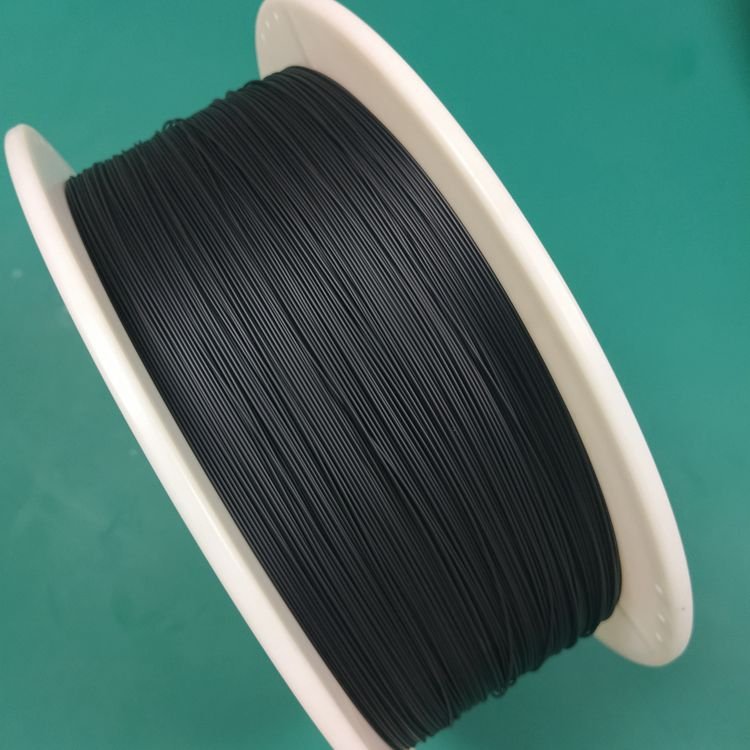

DC-265-10 and DC-500 are rated −55 to +70 °C; DC-1000 is rated −40 to +70 °C. Standard drum lengths are 500–1000 m depending on grade.
Key Features
- Named Asahi Kasei DC series: DC-265-10, DC-500, DC-500W-10, DC-1000.
- Step-index PMMA, NA 0.50, PE jacket.
- Temperature range −55 to +70 °C (DC-1000 −40 to +70).
- Cut-to-length and POF connector termination on request.

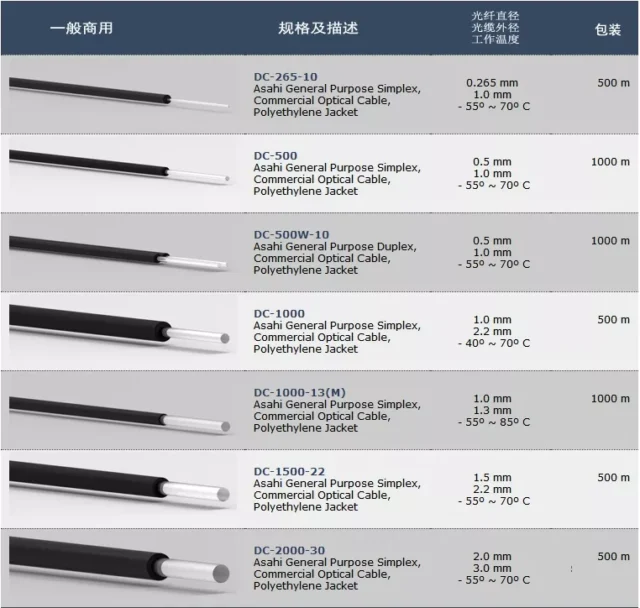

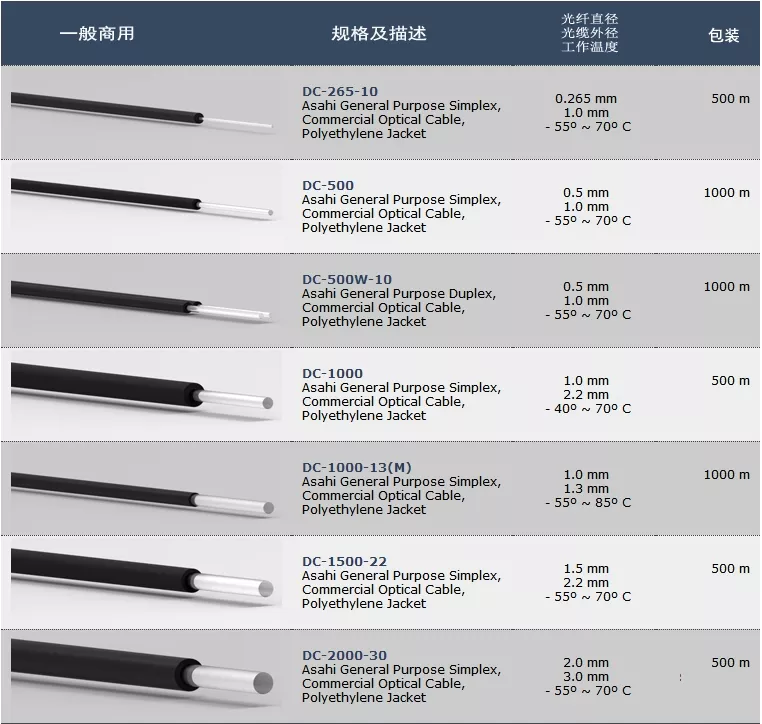

Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Jacketed PMMA POF, general-purpose | – | Asahi Kasei DC series; PE jacket. |
| DC-265-10 fiber / OD | 0.265 / 1.0 | mm | Fine 0.265mm fiber in 1.0mm jacket. |
| DC-500 fiber / OD | 0.5 / 1.0 | mm | 0.5mm fiber in 1.0mm jacket. |
| DC-500W-10 fiber / OD | 0.5 dual / 1.0 | mm | Two 0.5mm fibers. |
| DC-1000 fiber / OD | 1.0 / 2.2 | mm | 1.0mm fiber in 2.2mm jacket. |
| Core material | PMMA | – | Asahi Kasei DC. |
| Core refractive index | 1.49 | – | Asahi Kasei structure sheet. |
| Cladding refractive index | 1.4 | – | Asahi Kasei structure sheet. |
| Numerical aperture (NA) | 0.50 | – | Asahi Kasei. |
| Core diameter (family) | 920-1040 (typ 980) | µm | Structure sheet. |
| Cladding diameter (family) | 940-1060 | µm | Structure sheet. |
| Operating temperature | DC-265/DC-500 -55~+70; DC-1000 -40~+70 | °C | Asahi Kasei catalogue. |
| Length per drum | DC-265/DC-500 500-1000 m; DC-1000 500 m | – | Asahi Kasei catalogue. |
Applications
- Industrial sensor and control networks.
- Servo drive and robot signal links.
- Building automation and lighting control.
- Point-to-point short-range data links.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply Asahi Kasei DC series cables and cut them to length with POF connectors. Tell us exact DC grade, length and quantity. Contact sales.
FAQ
Which DC grade should I choose? DC-1000 (1.0mm fiber, 2.2mm jacket) is the most common for industrial POF links. Choose DC-500 where space is tight, and DC-265-10 for very fine 0.265mm light-point or sensing use. We can recommend a grade from your transceiver and distance.
