Asahi Kasei DB-400 0.4 mm PMMA Bare POF, 10000 m Roll
Asahi Kasei DB-400 PMMA bare POF: 0.4 mm, NA 0.5, 0.25 dB/m, 10000 m reel, for end-glow lighting and short signal links. Request a quote.

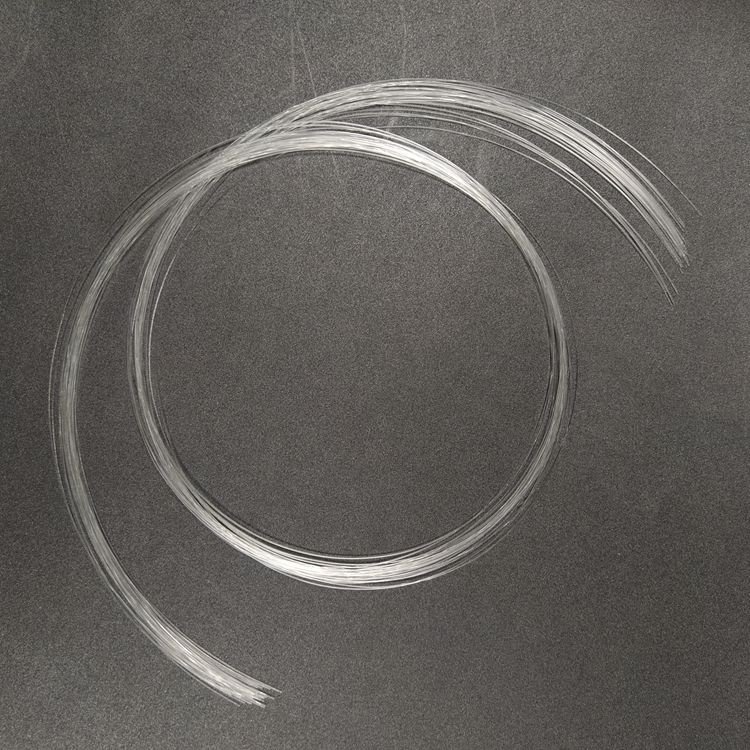

The Asahi Kasei DB-400 is a 0.4 mm step-index PMMA bare plastic optical fiber supplied on a 10,000 m reel. It is a fine, flexible end-glow POF grade used for decorative light points and short visible-light signal links. Luminous, color-temperature and mains figures found in supplier listings (6000 K, AC 165–265 V, IP68, LED) belong to the fiber illuminator, not to this fiber.
Product Overview
DB-400 is part of the Asahi Kasei PMMA (polymethyl methacrylate) bare-fiber family. Light travels by total internal reflection through a transparent PMMA core surrounded by a lower-index fluorinated-polymer cladding — the standard step-index POF structure. At 0.4 mm this is one of the thinnest Asahi grades, chosen where a very fine, flexible light point is needed. It is wound at 10,000 m per reel and can be cut to the lengths required by your lighting or sensing design. See the full range on our POF fiber optical cable category page.
Key Features
- Recognized Asahi Kasei grade: DB-400 = 0.4 mm bare PMMA POF.
- NA 0.5 and 0.25 dB/m attenuation per the Asahi bare-fiber grade table.
- Minimum bend radius 8 mm; supplied on 10,000 m reels, cut to length on request.
- Unpowered at the glowing end — the fiber carries light only, no electricity or heat.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|

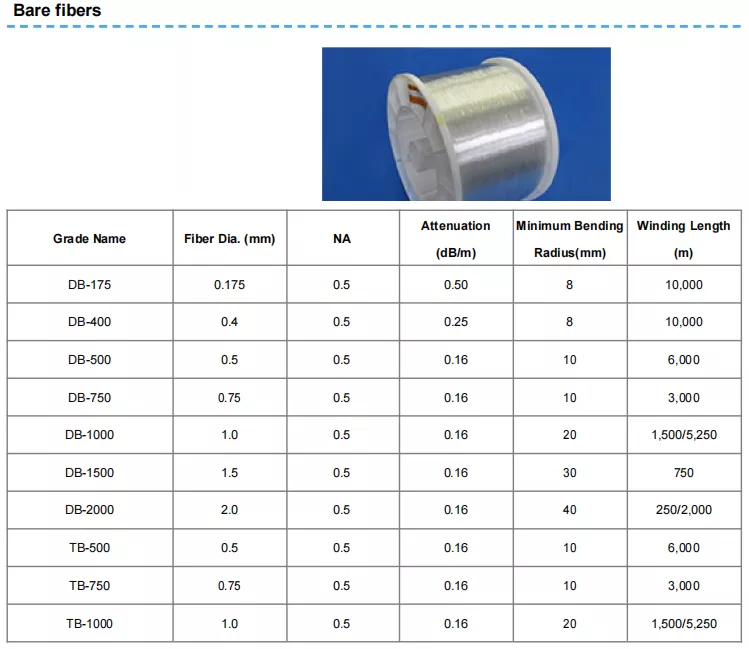

| Fiber grade | DB-400 | – | Asahi Kasei PMMA bare POF grade table |
| Fiber diameter | 0.4 | mm | per Asahi bare-fiber grade table |
| Numerical aperture (NA) | 0.5 | – | per grade table |
| Attenuation (typical) | 0.25 | dB/m | per grade table, visible wavelength |
| Minimum bend radius | 8 | mm | per grade table; docx features section also lists 10 mm (see needs_verification) |

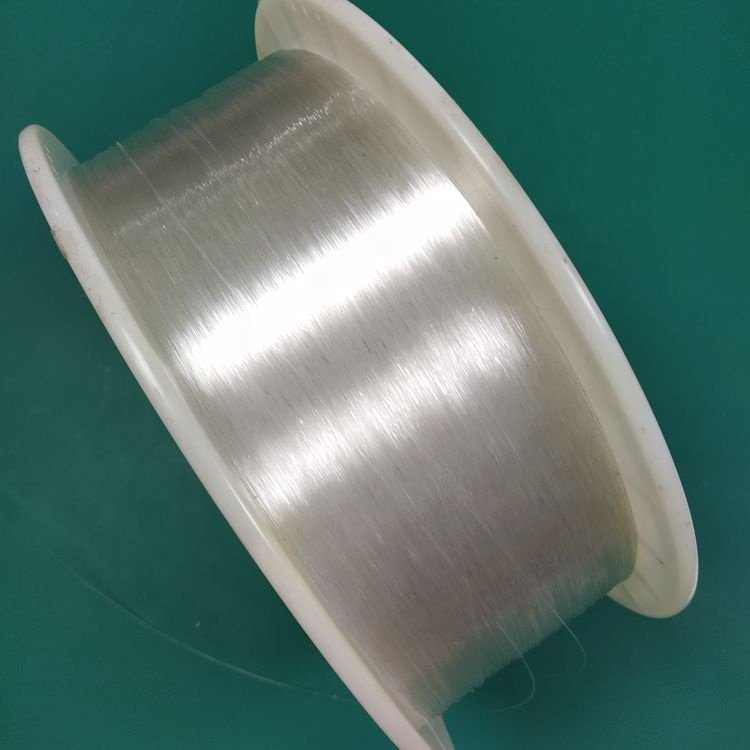

| Winding length | 10,000 | m/reel | per grade table and folder name |

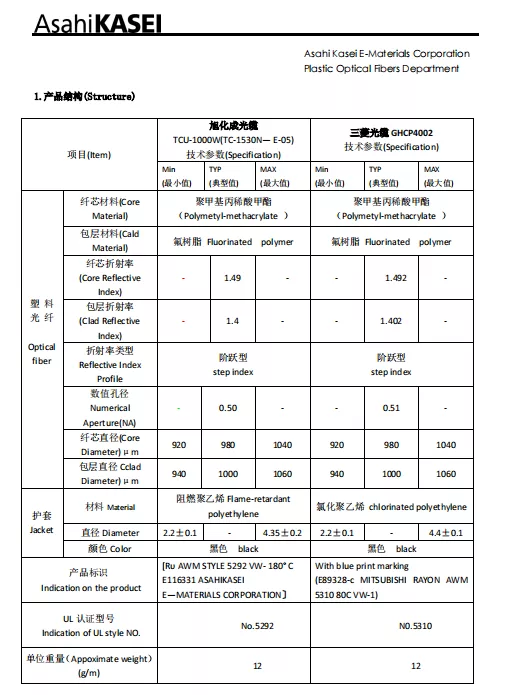

| Core material | PMMA (polymethyl methacrylate) | – | Asahi POF structure sheet |
| Cladding material | Fluorinated polymer | – | Asahi POF structure sheet |
| Index profile | Step index | – | Asahi POF structure sheet |
| Core refractive index (typ.) | 1.49 | – | family-typical from TCU-1000W reference grade; docx quick features list 1.491 |
| Clad refractive index (typ.) | 1.40 | – | family-typical reference; docx quick features list 1.363 (see needs_verification) |
Applications

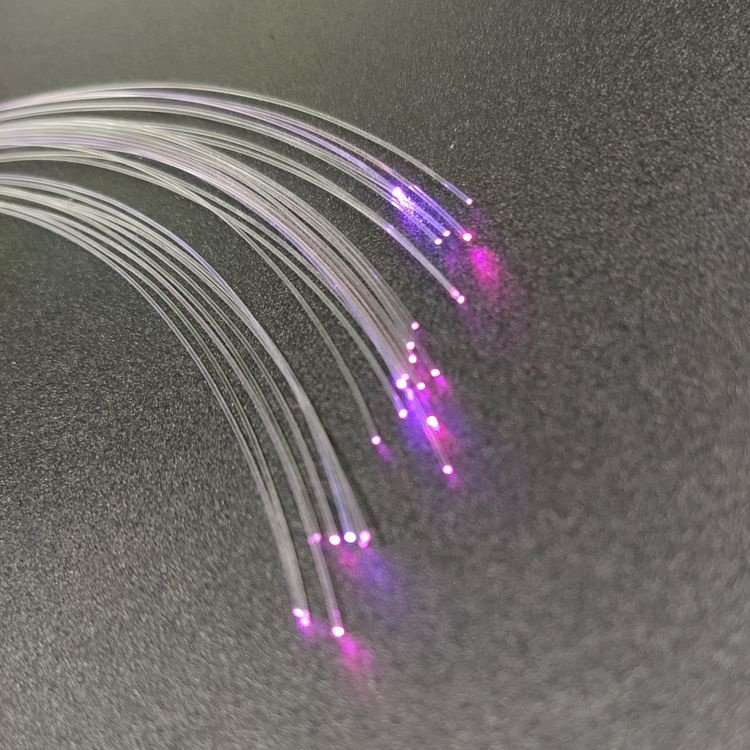

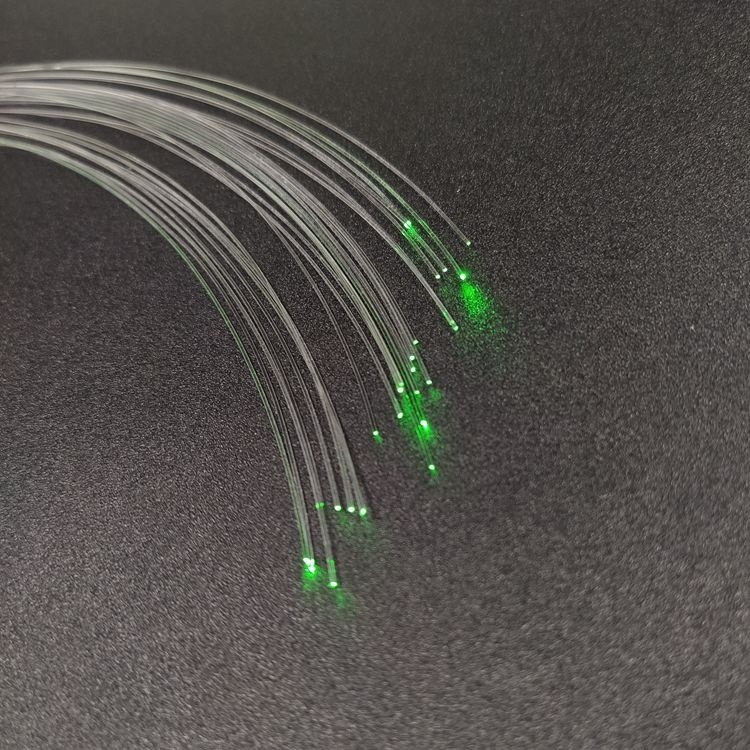

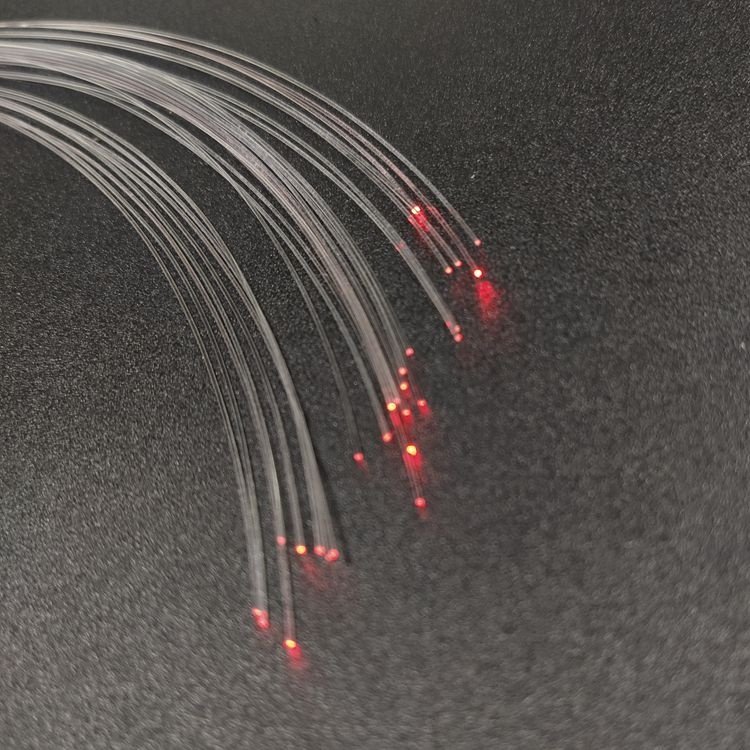

- End-glow decorative lighting, star ceilings, optical fiber curtains and falling-water effects.
- Fine light points in hotel, KTV, bar, car and home-textile feature lighting.
- Short visible-light signal and sensor links where galvanic isolation is useful.
Pair the fiber with a compatible LED fiber illuminator on the source end. Browse the rest of the POF cable range for other diameters and jacketed options.
Ordering & Customization
Please confirm the grade (DB-400, 0.4 mm), required total length, whether you need bare or black-jacketed fiber, and the illuminator / connector interface you intend to use. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
What is the difference between DB-400 and thicker Asahi grades?
They are the same PMMA step-index POF family in different diameters. DB-400 is 0.4 mm — very fine and flexible for delicate light points, with a small 8 mm minimum bend radius. Thicker grades such as DB-750 (0.75 mm) and DB-1000 (1.0 mm) pass more light and are easier to handle on reel.
Is the 6000 K color temperature or AC input part of the fiber?
No. Those describe the LED illuminator / light source, not the PMMA fiber. The fiber only transmits light; its own relevant values are diameter, NA, attenuation and bend radius.
Can you cut the 10,000 m reel to a custom length?
Yes. We supply by the reel and can cut to order. Tell us the total length and end treatment you need.
Why Choose Us
We supply industrial and lighting-grade POF identified by the recognized Asahi Kasei grade number, keep the grade-table and structure-sheet data traceable, and do not mix light-engine specifications into the fiber product page. Start from the home page or the POF category to explore related products.
