Asahi Kasei DB-175 0.175 mm PMMA Bare POF for Textile
Asahi Kasei DB-175 0.175mm step-index PMMA bare end-glow POF, NA 0.5, 0.50 dB/m, 8mm min bend, 10000m roll, for luminous textile and clothing.

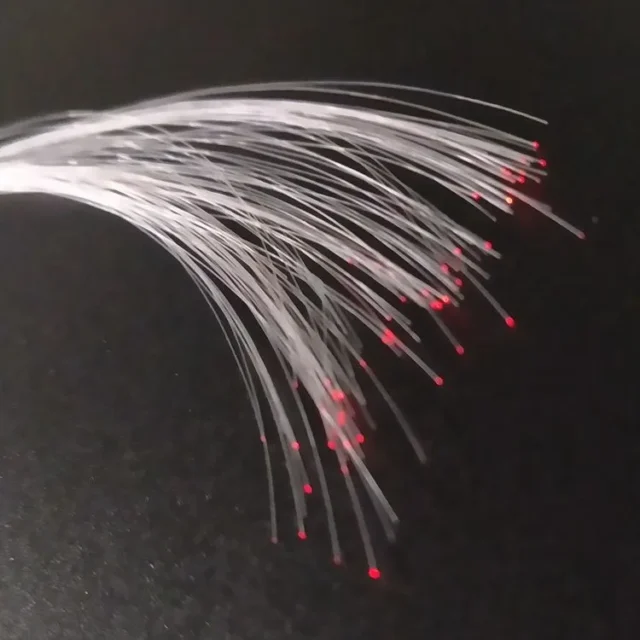

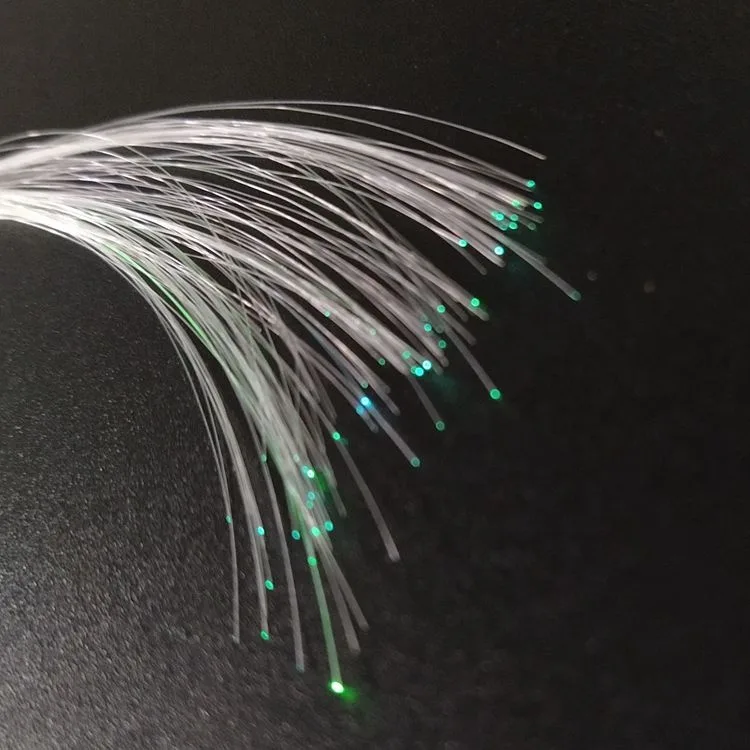

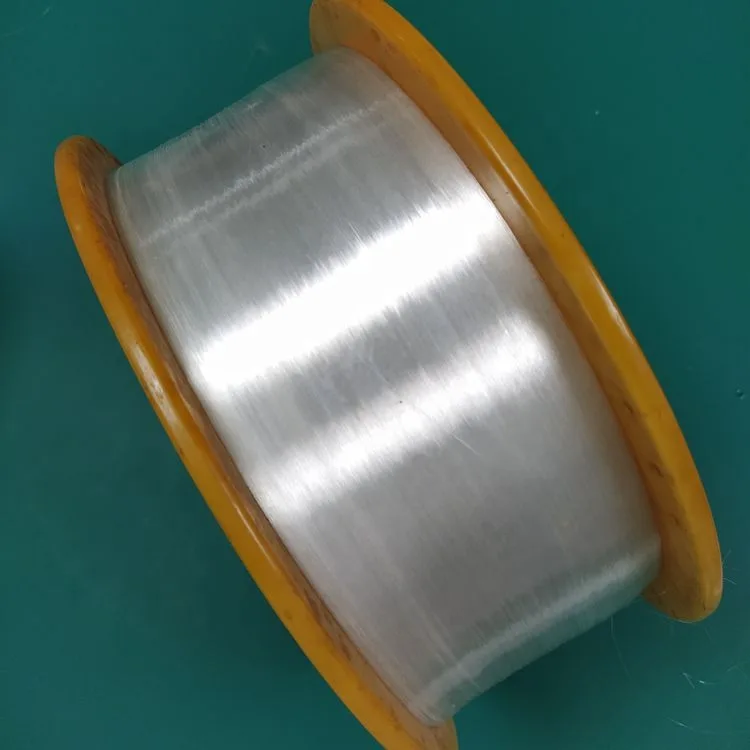

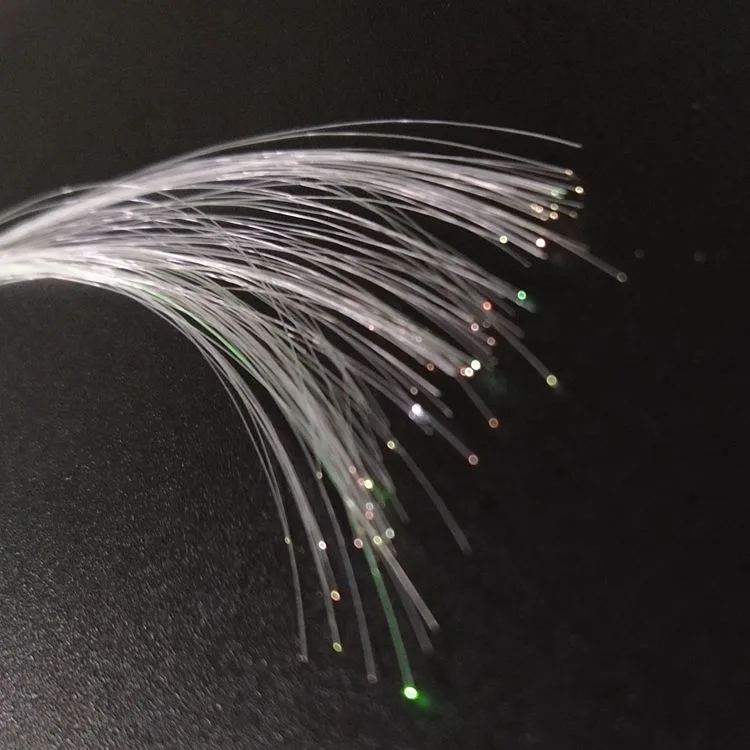

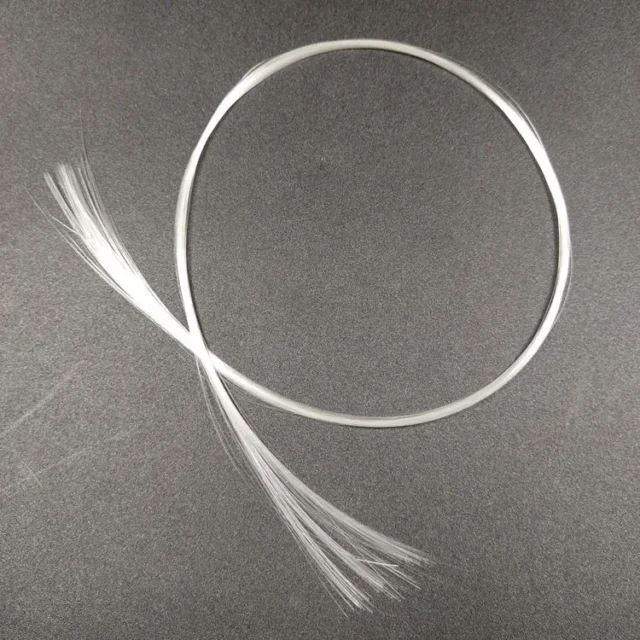

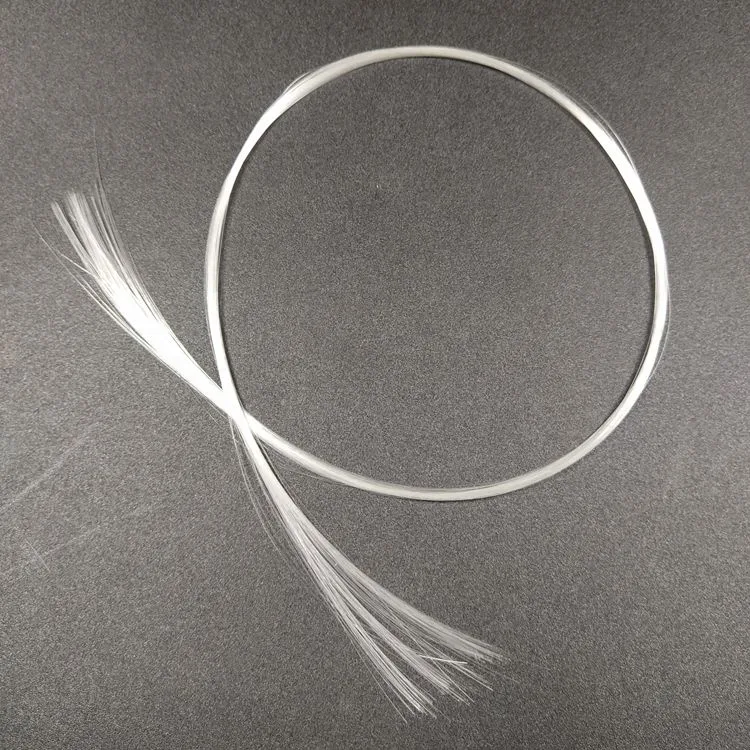

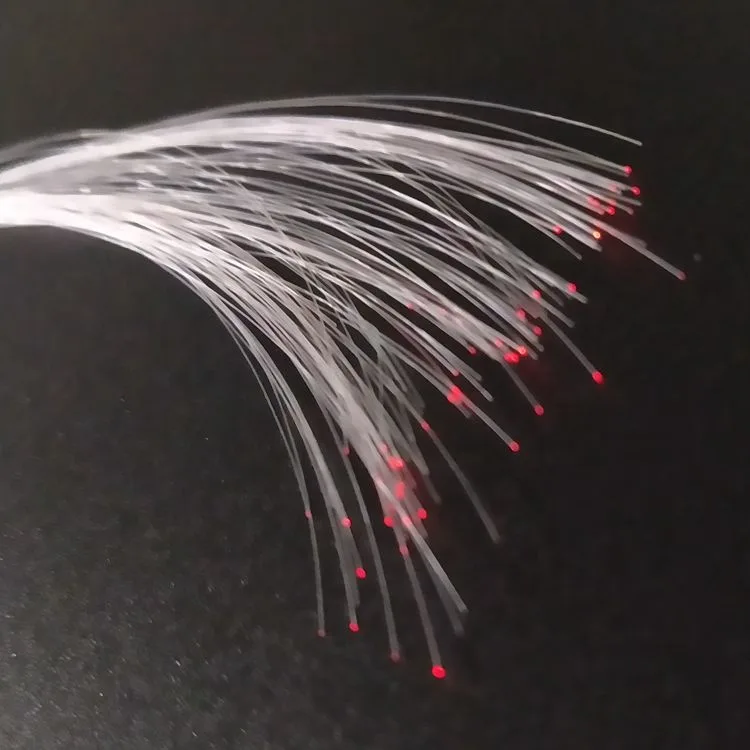

Asahi Kasei DB-175 is a 0.175 mm ultra-fine step-index PMMA bare end-glow fiber, the thinnest grade in the Asahi Kasei bare-fiber range, wound on a 10,000 m spool. Its fine diameter and small bending radius make it suited to flexible luminous textiles, costumes and clothing where many tiny light points are sewn or woven into fabric.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- Ultra-fine 0.175 mm grade for dense, flexible luminous points.
- NA 0.5, 0.50 dB/m typical attenuation at visible wavelength.
- 8 mm minimum bend radius and a long 10,000 m winding length.
- PMMA core / fluorinated cladding, step-index, unpowered at the tip.
- Ideal for clothes, textile and wearable decoration.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

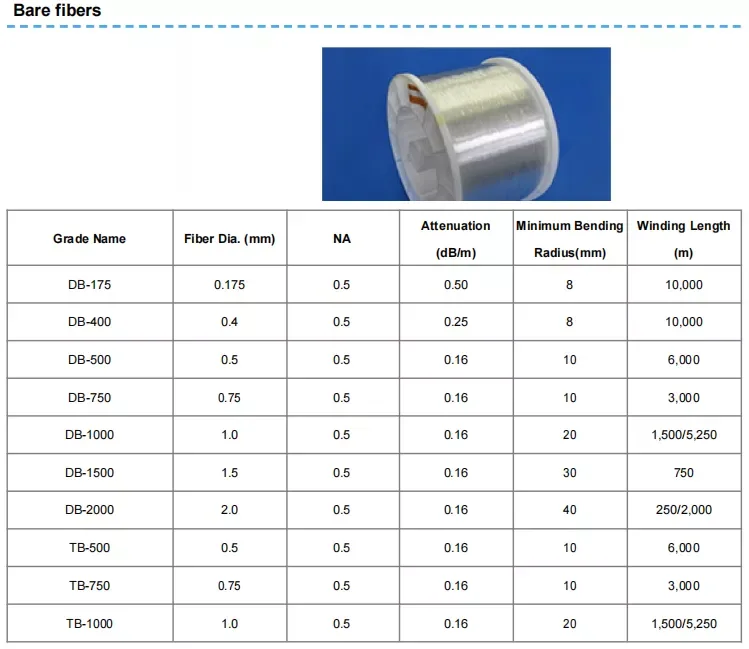

| Fiber grade | DB-175 | – | Asahi Kasei bare-fiber grade table. |
| Fiber diameter | 0.175 | mm | Grade table. |
| Numerical aperture (NA) | 0.5 | – | Grade table. |
| Attenuation | 0.50 | dB/m | Typical, visible wavelength, grade table. |
| Minimum bend radius | 8 | mm | Grade table. |
| Winding length | 10,000 | m | Grade table. |

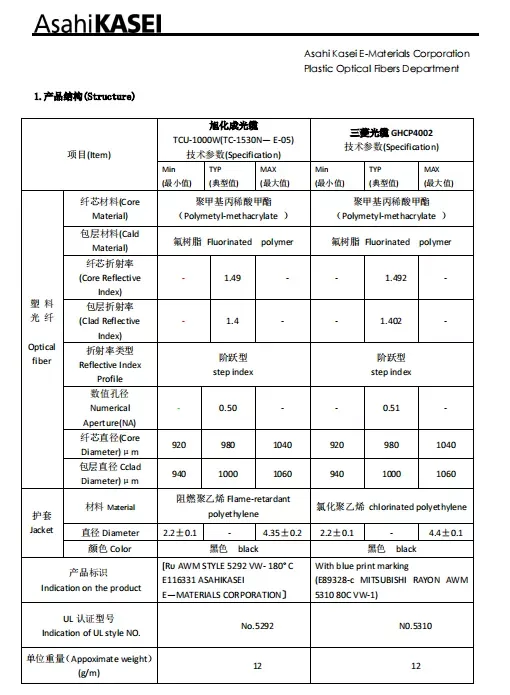

| Core material | PMMA (polymethyl methacrylate) | – | Asahi structure sheet. |
| Cladding material | Fluorinated polymer | – | Asahi structure sheet. |
| Index profile | Step index | – | Asahi structure sheet. |
| Core refractive index (typ.) | 1.49 | – | TCU-1000W reference grade. |
| Clad refractive index (typ.) | 1.40 | – | TCU-1000W reference grade. |
Applications

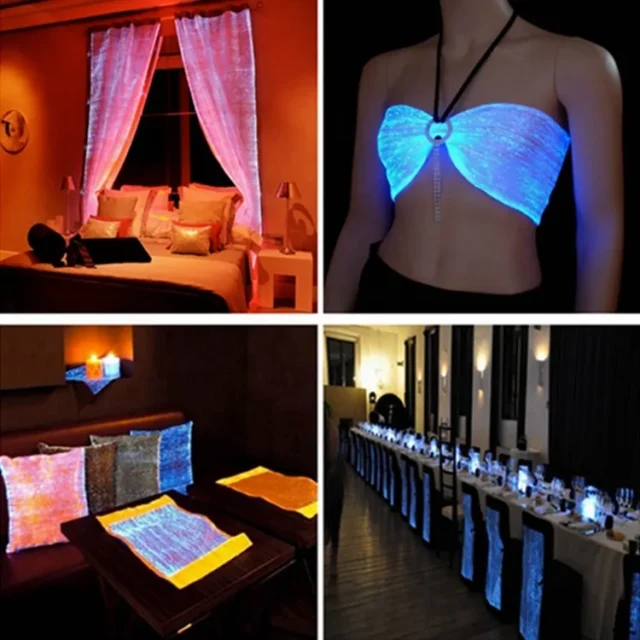

Luminous clothing and stage costumes, home textile and fabric light, fiber curtains, decorative end-point lighting and short visible-light sensor links. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the required length and the illuminator you will couple to. We supply by the spool or cut to order. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
How is DB-175 different from DB-750?
DB-175 is 0.175 mm ultra-fine (0.50 dB/m, 8 mm bend, 10,000 m roll) for textile weaving; DB-750 is 0.75 mm (0.16 dB/m, 10 mm bend, 3,000 m) for general decoration.
Can it be sewn into fabric?
The 0.175 mm fine fiber is used in luminous textile and costume builds; confirm your sewing/weaving process and bend radius before ordering.
Is it jacketed?
This listing is bare PMMA fiber. A black flame-retardant PE jacket is available on request for side-light suppression.
Why Choose Us
We supply Asahi Kasei POF by the grade number on the official grade table, keep the textile-grade DB-175 values traceable, and quote the bare fiber honestly. Start from the POF category, the FAQ page or the home page.
