Asahi Kasei DB-1500 1.5 mm PMMA Bare End-Glow POF
Asahi Kasei DB-1500 1.5mm step-index PMMA bare end-glow POF, NA 0.5, 0.16 dB/m, 30mm min bend, 750m roll, for lighting and short signal links.

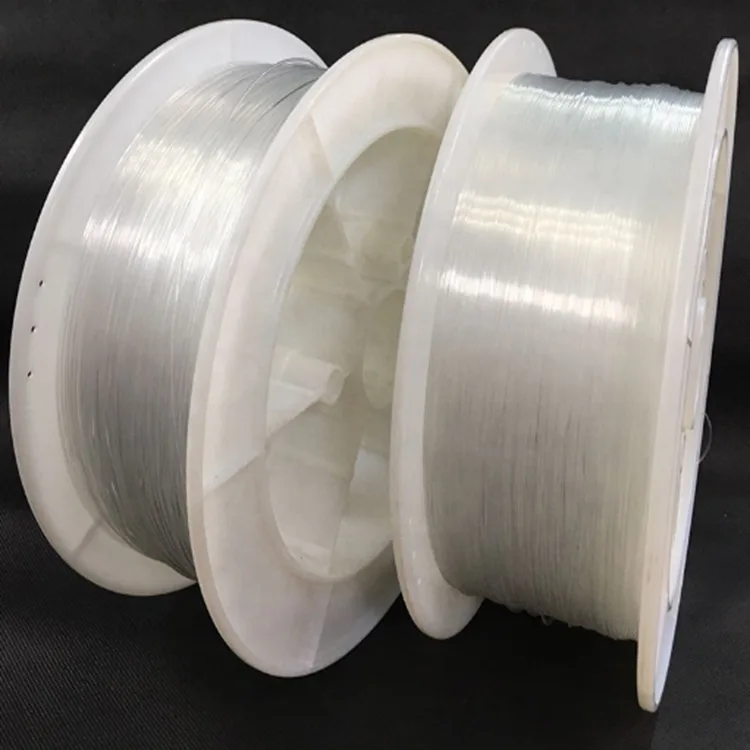

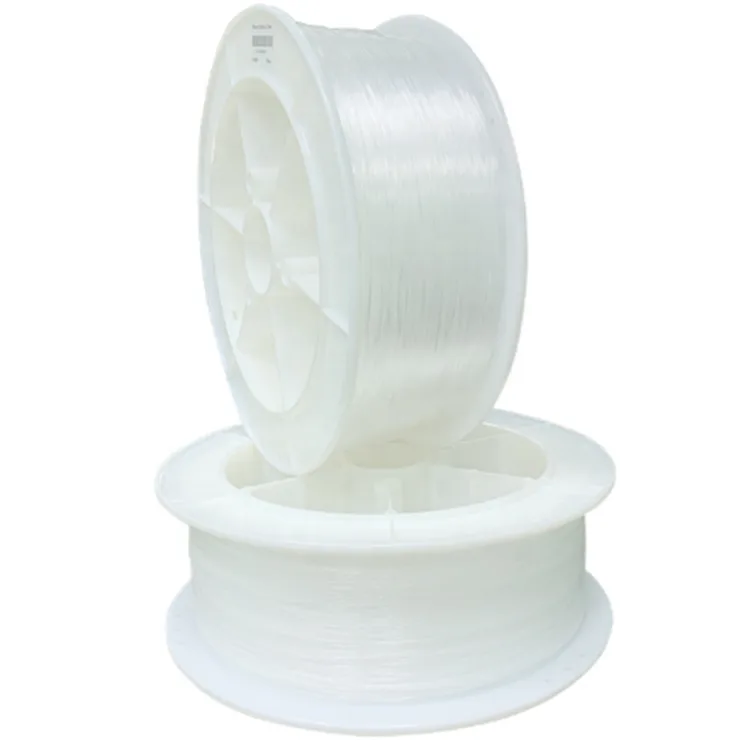

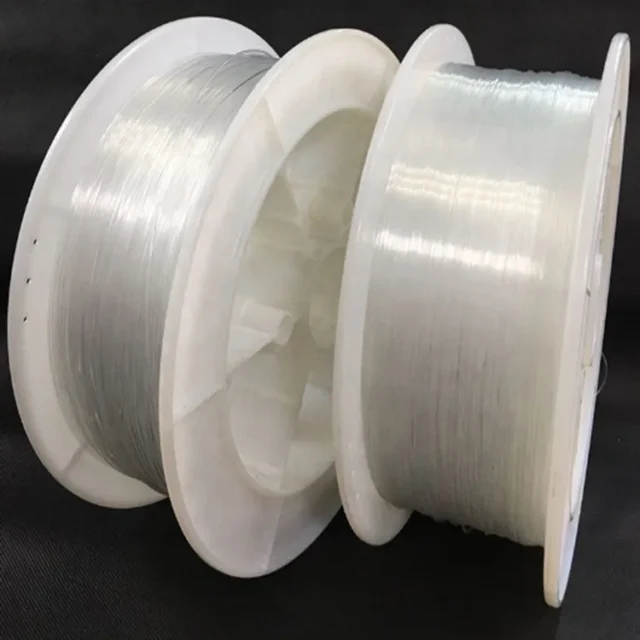

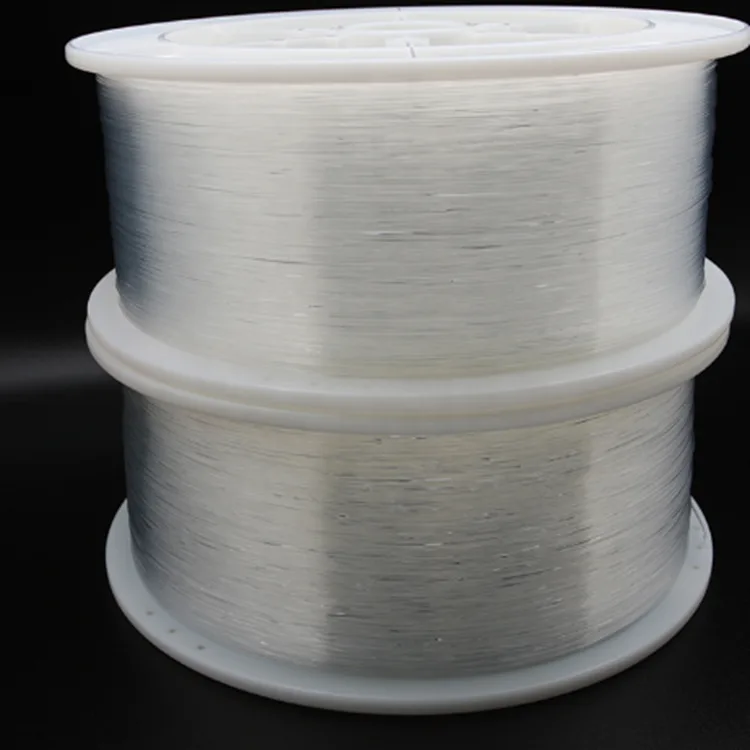

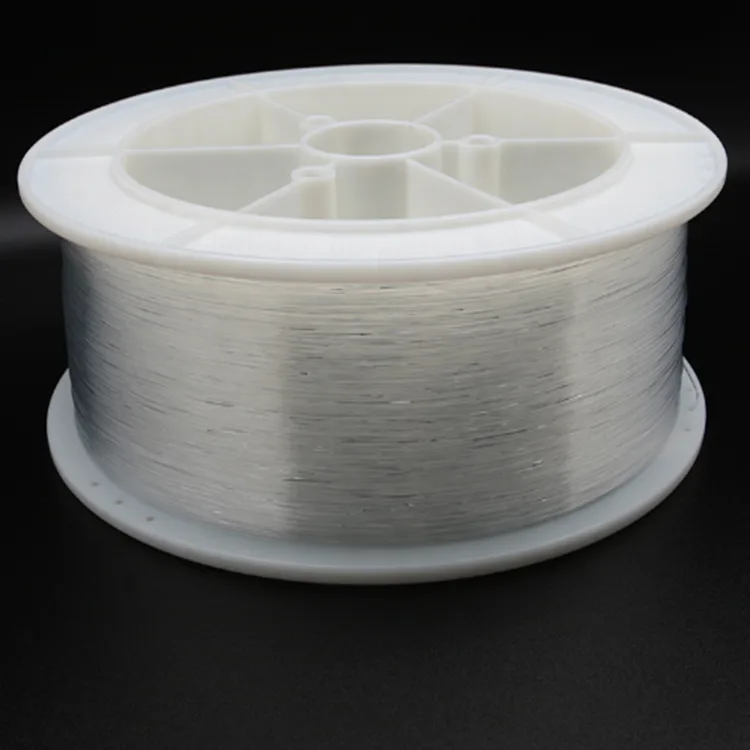

Asahi Kasei DB-1500 is a 1.5 mm step-index PMMA bare end-glow fiber from the Asahi Kasei bare-fiber range, wound on a 750 m spool. The thicker 1.5 mm core carries more light per strand than the 1.0 mm grades and is used for brighter decorative end points and short visible-light signal links. Note: the source listing’s quick-detail fields mistakenly quote a DB-500/0.5 mm row; the grade table and product identity confirm DB-1500 at 1.5 mm.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- 1.5 mm thick PMMA core for bright end-glow points.
- NA 0.5, 0.16 dB/m typical attenuation.
- 30 mm minimum bend radius, 750 m winding length.
- PMMA core / fluorinated cladding, step-index.
- Suited to both decorative lighting and short signal transmission.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

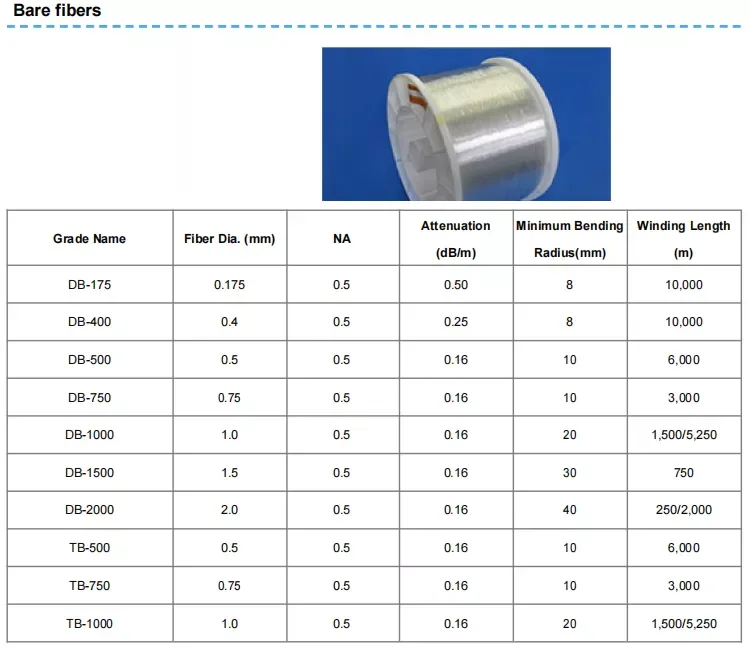

| Fiber grade | DB-1500 | – | Asahi Kasei bare-fiber grade table. |
| Fiber diameter | 1.5 | mm | Grade table. |
| Numerical aperture (NA) | 0.5 | – | Grade table. |
| Attenuation | 0.16 | dB/m | Typical, visible wavelength, grade table. |
| Minimum bend radius | 30 | mm | Grade table. |
| Winding length | 750 | m | Grade table. |

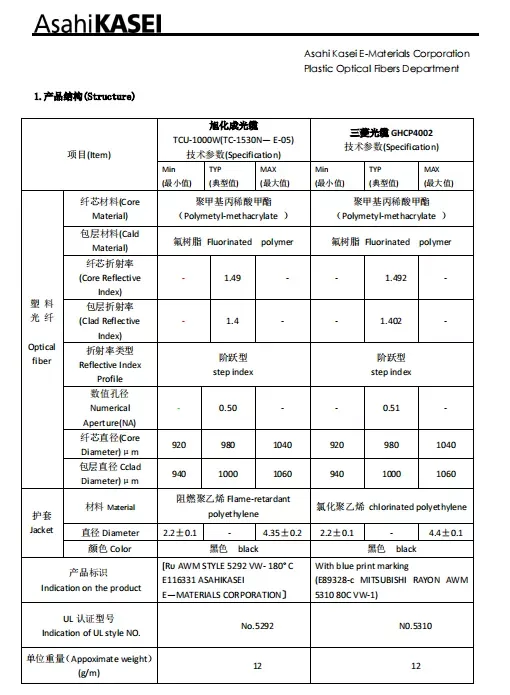

| Core material | PMMA (polymethyl methacrylate) | – | Asahi structure sheet. |
| Cladding material | Fluorinated polymer | – | Asahi structure sheet. |
| Index profile | Step index | – | Asahi structure sheet. |
| Core refractive index (typ.) | 1.49 | – | TCU-1000W reference grade. |
| Clad refractive index (typ.) | 1.40 | – | TCU-1000W reference grade. |
Applications

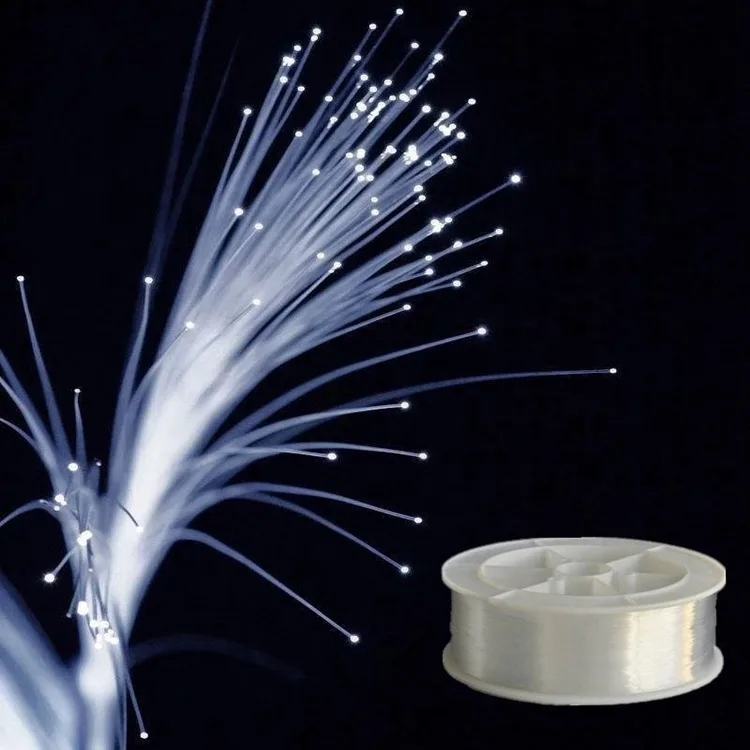

End-glow decorative lighting, star ceilings, feature light points, and short visible-light signal or sensor links. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the required length and illuminator/ detector interface. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
Why does the listing say 0.5mm?
The source quick-detail field is a template mismatch quoting the DB-500 row. The folder identity and the Asahi grade table both confirm DB-1500 = 1.5 mm, 30 mm bend, 750 m roll.
How does it compare with DB-1000?
DB-1500 is 1.5 mm (30 mm bend, 750 m roll); DB-1000 is 1.0 mm (20 mm bend, 1,500/5,250 m). The thicker DB-1500 passes more light per strand.
Is this a signal fiber or a lighting fiber?
Both: the grade is used for end-glow decoration and short visible-light signal/sensor links; match the fiber to your optical budget.
Why Choose Us
We keep the Asahi grade-table values as the source of truth rather than the listing’s mislabeled quick details. Browse the POF category, the FAQ page or the home page.
