AOC Armored Waterproof Hybrid Fiber Optic HDMI Cable for outdoor rental and staging
AOC Armored Waterproof Hybrid Fiber Optic HDMI Cable for outdoor rental and staging, Amoured AOC HDMI Cable waterproof hybrid active fiber 8K 4K 48Gbps for outdoor rental and staging
General Details
Amoured AOC HDMI Cable waterproof hybrid active fiber 8K 4K 48Gbps for outdoor rental and staging
Waterproof AOC HDMI Cable Active Optical 8K 4K Anti EMI RFI EMC cable, Waterproof Armored AOC HDMI 2.1 Cable 8K 4K Active optic fiber
AOC Armored Waterproof Hybrid Fiber Optic HDMI Cable for outdoor rental and staging
Waterproof AOC HDMI Cable Active Optical 8K 4K Anti EMI RFI EMC cable, Waterproof Armored AOC HDMI 2.1 Cable 8K 4K Active optic fiber
Deploy reliable 4K/8K video in harsh environments with our Tactical Waterproof Active Optical HDMI Cable. Features IP67 screw-locking connectors and a crush-resistant jacket for outdoor LED walls and live events.
SPECIFICATION OF THE CABLE:
|
Item
|
SPECS
|
DATA
|
REMARK
|
|
4 Cores Optic
|
OM3
|
850nm
|
|
|
Spiral steel belt armor
|
SUS 304
|
0.3mm thickness
|
|
|
7 cores copper wire
|
30AWG
|
Pure Copper
|
|
|
Aramid fiber
|
decitex
|
2000 D
|
Retardant
|
|
Jacket
|
TPU
|
OD:6.0mm
|
Retardant
|
APPLICATIONS:
- For outdoor security monitoring, high-definition digital bulletin board, remote information release system.
- Used for information delivery in subways, airports, ferries, shopping centers, etc.
- High-definition long-distance video conferencing, high-quality image transmission.
- Medical image display and HD projection system.
ADVANTAGES:
- Using OM3 850nm fiber, long-distance transmission of HDMI 2.0 signal without attenuation (up to 150 meters);
- The use of imported aramid fiber to enhance the tensile properties of the cable is more suitable for use as a long-distance cable;
- The spiral steel belt armored protective layer has excellent lateral pressure resistance and excellent flexibility and bending performance.
- It is made of polyurethane (TPU) outer sheath, which can protect against sunlight and ultraviolet radiation. It is resistant to acid, alkali, oil and fire. Make cables meet harsh environmental applications.
ADVANTAGES OF THE WATERPROOF CASE:
- It has a good waterproof function to prevent outdoor rainwater from entering the inside of the joint and causing electrical failure.
- It has a good pull function, the optic fiber and copper wires won’t be broken when pull the cable.
- Before installing the cable, twist the front and rear covers to distinguish the Source and Display terminals of the internal connector. The source end is connected to the signal source, and the Display end is connected to the display end;
Waterproof and Flame Retardant Active Optical Fiber HDMI Cable 2.1V 2.0V upto 150M
This armored HDMI 2.1 Hybrid Active Optical Cable is optimal for 8K AV transmission in event and staging applications. The armored HDMI 2.1 cable supports 48Gbps bandwidth and it’s the most competitive Rental & Staging 8K60 long range HDMI connectivity solution on the market. This professional 8K HDMI cable with hybrid optical fiber technology and armored steel reinforcement under the outer jacket is designed to transmit data rates up to 48Gbps. As such, this staging-ready cable supports high-resolution 8K formats at 60Hz, 4:4:4 color subsampling, and HDR, and it’s the solution for connecting devices with HDMI 2.1 interfaces in harsh environments.
The armored 8K Ultra Speed HDMI 2.1 AOC Cable supports a combined HDMI bandwidth up to 48Gbps, yet is lightweight and flexible. The cable offers a tight bend radius with durable mechanics and features an ultra-rugged steel spiral under the TPU cable jacket. Thanks to the advanced optical system, this resilient HDMI 2.1 hybrid cable provides full 8K HDMI signal integrity in harsh environments despite the 100m cable length.
Plug&Play Armored HDMI 2.1 Hybrid Fiber Active Optical Cable.
This hybrid HDMI 2.1 active optical cable supports plug-n-play and works without external power supply.
8K60 Amored HDMI2.1 AOC for outdoor use
This rugged active optical HDMI 2.1 hybrid cable is the perfect solution for transmitting video and audio signals with full bandwidth over long distances and under very harsh and demanding conditions such as those found on construction sites, in industrial environments or at open air concerts. The resilient 8K HDMI 2.1 AOC hybrid cable is made of copper and fiber optic inner conductors, enabling full and uncompressed transmission of 8K@60Hz at 48Gbps.
Underneath the TPU outer jacket, this Armored HDMI 2.1 AOC hybrid cable is reinforced with a steel spiral that protects it from outdoor elements over the entire cable length!
The double-sided waterproof connector protection completes the overall package of this rugged 8K60 HDMI AOC hybrid cable for professional applications and installations.
8K with 60Hz HDMI 2.1 AOC Fiber/ Copper Hybrid Cable with HDR and eARC support.
With our “integrated” AOC Fiber HDMI 2.1 cable, lossless and uncompressed transmission at up to 48Gbps is possible, allowing A/V content to be transmitted in UltraHD2 (UHD-II) / 8K / 4320p at 60Hz.
8K 60Hz HDMI 2.1 signal transmission in harsh environments – up to 100m.
The maximum lossless transmission distance of the hybrid fiber and copper stranded cables of our “UTE ARMORED HDMI 2.1 Hybrid Active Optical Fiber Cable Series” is – depending on the selected cable length – up to 100 meters. This 10m long HDMI 2.1 cable with armored jacket features a steel spiral that protects the inner conductors and is also the first available technical 8K60 solution with full EDID, HDR, eARC and HDCP support for staging and rental applications. Thanks to the latest chipset, this “integrated” variant also transmits digital audio.
State-of-the-art technology for 8K60 HDMI signal transmission in harsh environments.
Using hybrid technology, all HDMI 2.1 data (e.g. EDID, HDCP, eARC, etc.) can be transmitted from the transmitter to the receiver for the first time with this outdoor-ready HDMI2.1 hybrid connection cable. This also includes the 5V line of a conventional HDMI connection, which cannot be transmitted over pure fiber optic lines.
INTRODUCTION
Product Name: Optical Series Armor Optical Fiber HDMI 2.1
Features: 8K@60Hz, 4K@120Hz, HDR , eARC, etc.
Length: 0-100m/330ft
Application: TV, Computer, Monitor, Projector, VR devices, Cameras, etc.
CONNECTOR
Interface Type: HDMI Type A Male to Male
Interface Version: HDMI2.1
Interface Material: 24K Gold-plated Copper
CHIP：Photoelectric Conversion Engine: 4 channel 850 nm VCSEL array+4 CH GaAs PD array
Core Components: Laser + VCSEL + PD + Lens + Jumper
Laser/Drive Chip: II-VI(American)/Silicon-Line(German)
Operating Life: ≥ 60,000+ Hours
WIRE Structure: Armored Hybrid Optical Fiber (OM3) and Copper Cable
Filling: Kevlar bulletproof yarn (Aramid)
Jacket: TPU
Diameter: Φ6.0mm
HOUSING
Material: Zinc Alloy
Diameter: 4519.513mm
Processing Technology: Electroplate
Color: Gray
FUNCTIONS
Resolution: 8K@60Hz, 4K@120Hz,HDR
Bandwidth: 48Gbps(12 Gbps x 4Channel)
Chroma Subsampling: 4:4:4/4:2:2/4:2:0
Color Depth: 12bit
HDCP: HDCP2.3, HDCP2.2
eARC/ARC: Yes
Audio: Dolby® Atmos,DTS:X, LPCM 7.1 audio, Dolby® Digital Plus,Dolby®, TrueHD, and DTS-HD® Master Audio™
Other: Dynamic HDR/VRR/G-SYNC/FREESYNC/ALLM/QFT/CEC etc.
CHARACTERISTIC
Bit Error Rate: ≤0.0035dB/m
Operating Temperature: -20℃~＋70℃
Stored Temperature: -20℃~＋60℃
Working Humidity: ＜90％，No condensation
Power Supply: TX:0.5W RX:0.5W, 5VDC
Power Consumption: 250mw
Additional Power Supply: No
Minimum Bending Radius (Dynamic/Static): 20mm
Allowable Stretching Force (Long-term/Short-term): 100N/200N
Allowed Crushing Force (Long-term/Short-term): 200N/400N
Installation Precautions: Source→Display
Certification
Certification Standards: ROHS/REACH etc.
More images of amored AOC HDMI Cable

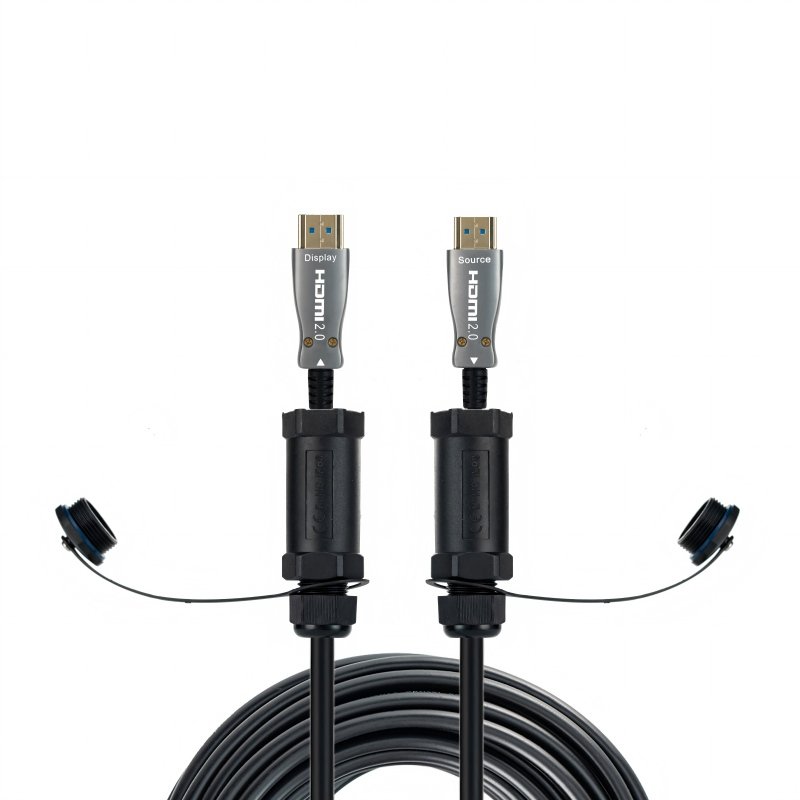

Amoured AOC HDMI Cable waterproof hybrid active fiber 8K 4K 48Gbps for outdoor rental and staging
Amoured AOC HDMI Cable waterproof hybrid active fiber 8K 4K 48Gbps for outdoor rental and staging

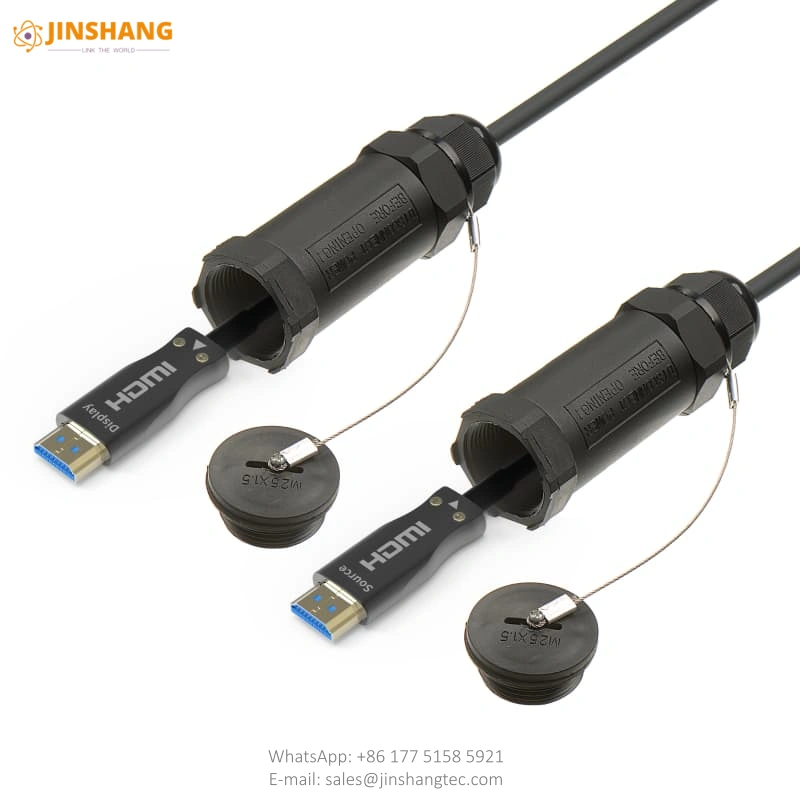

AOC Armored Waterproof Hybrid Fiber Optic HDMI Cable for outdoor rental and staging

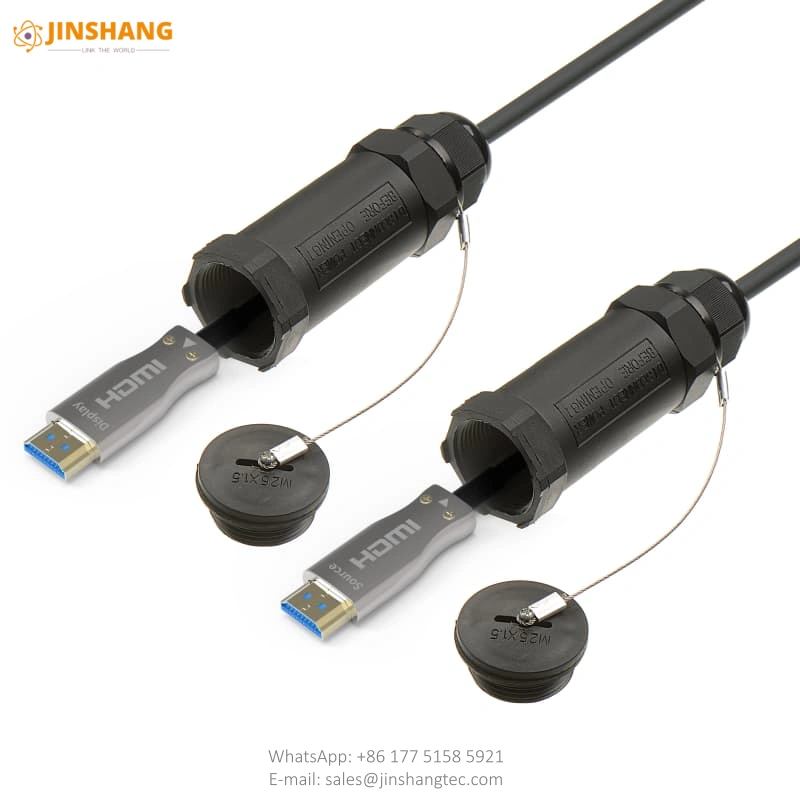

Waterproof Armored AOC HDMI 2.1 Cable 8K 4K Active optic fiber

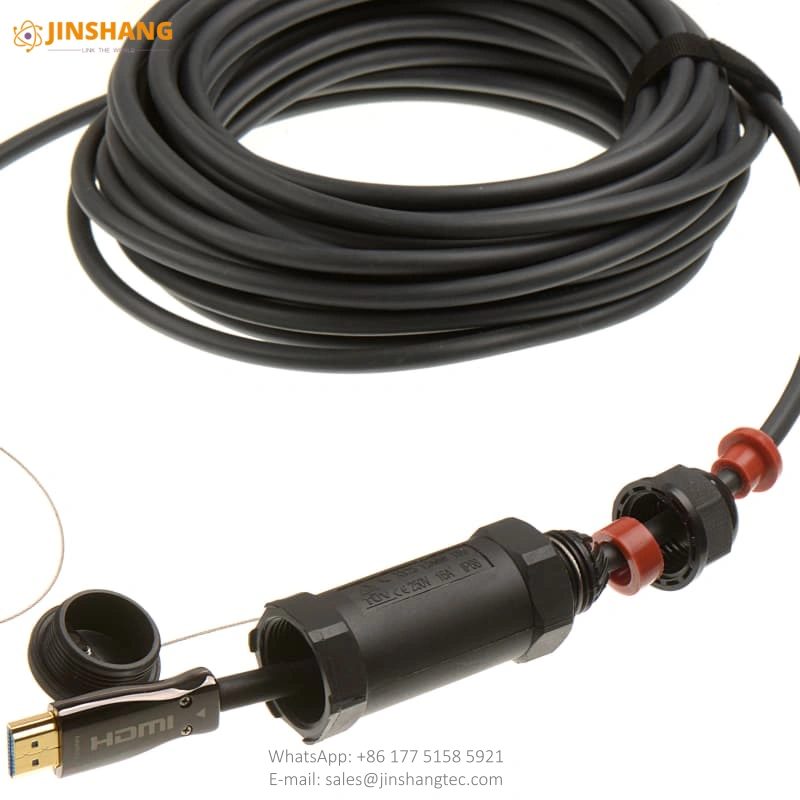

Waterproof AOC HDMI Cable Active Optical 8K 4K Anti EMI RFI EMC cable

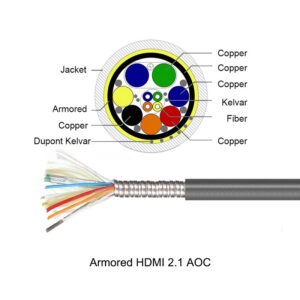

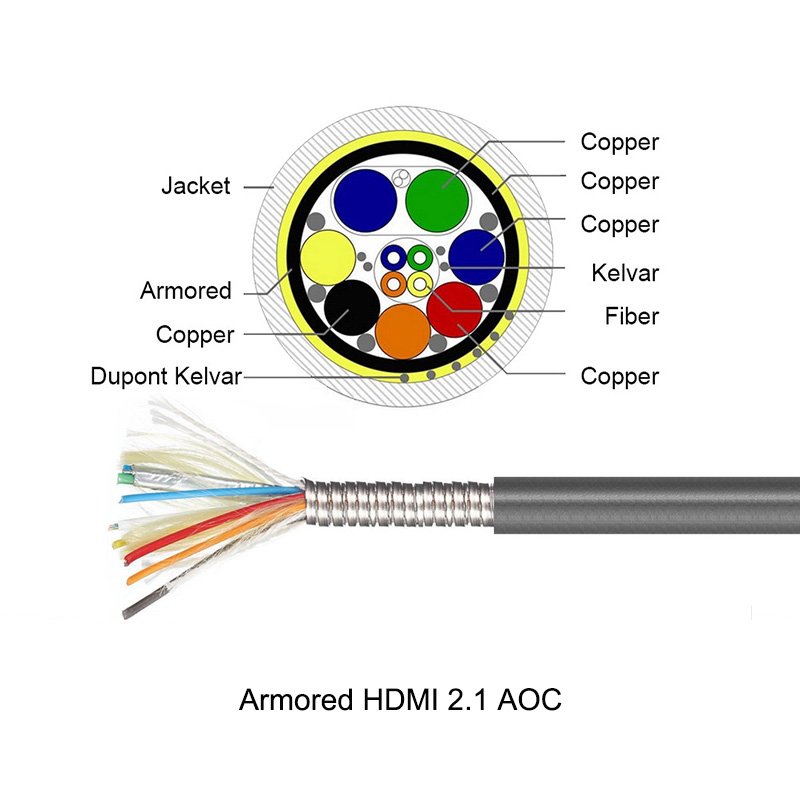

Structure of AOC HDMI Cable Waterproof Amored cable
