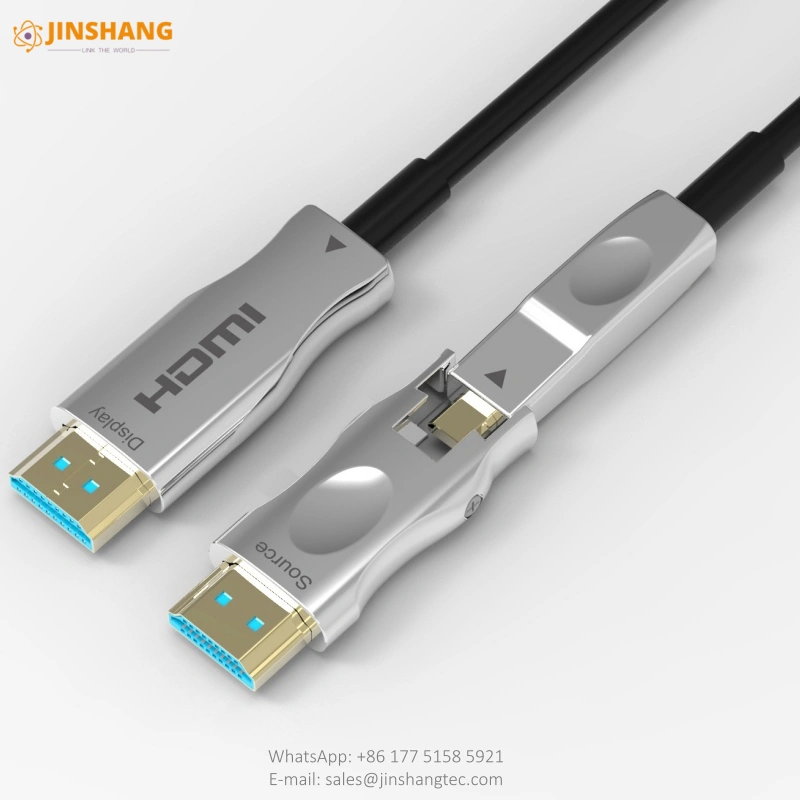

AOC Active Fiber HDMI V2.1 8K 4K HDMI A to A/D Micro Detachable Cable
Detachable AOC HDMI 2.1 cable, 48Gbps, 8K@60Hz 4K@120Hz, HDMI Type A + Micro Type D detachable connectors, easy conduit installation, up to 100m. OEM/ODM from Changzhou Jinshang.
AOC Active Fiber HDMI V2.1 8K 4K HDMI A to A/D Micro Detachable Cable
Changzhou Jinshang Electronic Technology’s Detachable AOC HDMI cable features a unique 2-in-1 connector design with HDMI Type A (standard) and HDMI Type D (micro) interchangeable connectors. With HDMI 2.1 specification and 48Gbps bandwidth, this cable supports 8K@60Hz and 4K@120Hz. The detachable connector design makes it easy to pass through conduit, pipes, and tight spaces during installation, then attach the desired connector type.
Key Features
- HDMI 2.1 Certified – Full HDMI 2.1 specification with 48Gbps bandwidth
- Detachable Connectors – HDMI Type A and Type D (Micro) interchangeable
- Easy Installation – Detach connectors to pull through conduit and tight spaces
- 8K & 4K Support – 8K@60Hz, 4K@120Hz, 10K resolution support
- Hybrid AOC Design – Fiber for video data + copper for power/HDCP/EDID
- Long Distance – Up to 100 meters without signal loss or repeaters
- HDR & eARC – High Dynamic Range with enhanced Audio Return Channel
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Bandwidth | 48Gbps |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Connector Types | HDMI Type A (Standard) + Type D (Micro) detachable |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Cable Diameter | 4.5mm (slim design for conduit) |
| Max Length | Up to 100 meters |
| Detachable Design | Yes – connectors detach for cable pulling |
| HDR Support | HDR10, Dolby Vision, 10-bit/12-bit color |
| HDCP | HDCP 2.3 compliant |
| Audio Support | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| Operating Temperature | 0°C to 70°C |
| Jacket Material | PVC / LSZH (optional) |
| Customization | Length, connector combo, jacket color, logo |
Applications
- Custom Installation – In-wall, in-conduit, pre-wiring for homes and businesses
- Home Theater – 8K TVs, projectors, soundbars, AV receivers
- Commercial AV – Conference rooms, classrooms, auditoriums
- Digital Signage – Video walls, retail displays, commercial installations
- Gaming & Esports – High-refresh gaming monitors and consoles
- Portable Devices – Micro HDMI connection for cameras, tablets, laptops
- Broadcast & Studio – Studio monitors, video production, live events
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality detachable AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!
STRUCTURE of AOC HDMI CABLE
Structure of AOC Active FIber HDMI Connector optical conversion engine Module
AOC HDMI 2.1V 8K HDR
RELATED PRODUCTS OF AOC 2IN1 DETACHABLE HDMI CABLES

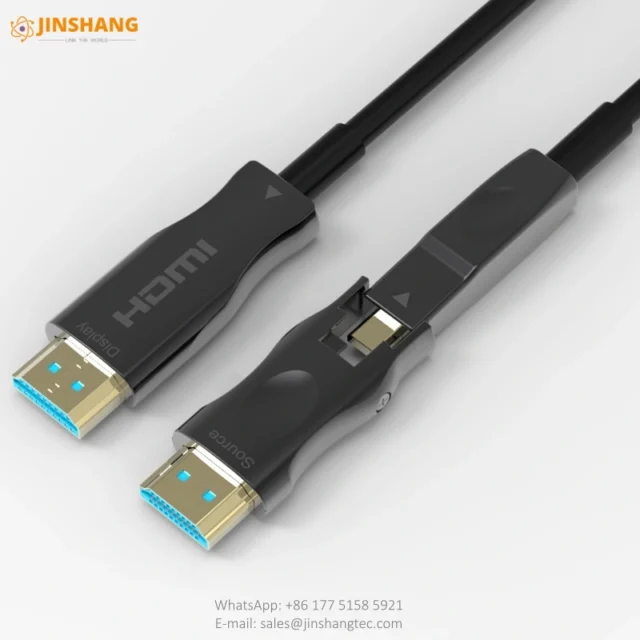

Detachable AOC 2-in-1 HDMI Cable Active Fiber Optics 48G 8K 4K EMI Free for conduit
AOC 2.1 Active optical cable 48Gbps eARC Plenum reated EMI EMC

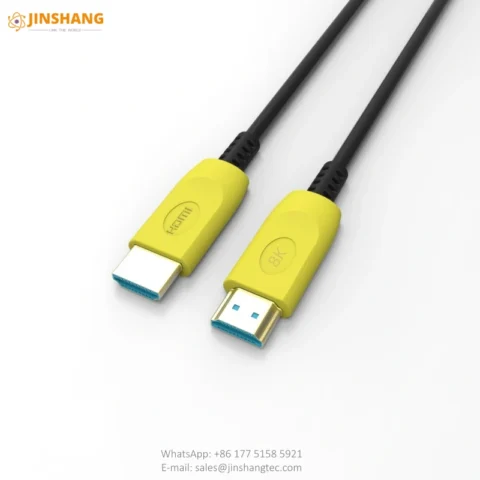

Active optical HDMI Cable 2.1V 8K 48G UHD AOC Hybrid Copper+Fiber Optics Conductors
