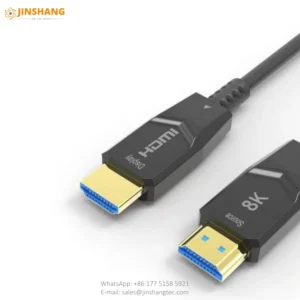

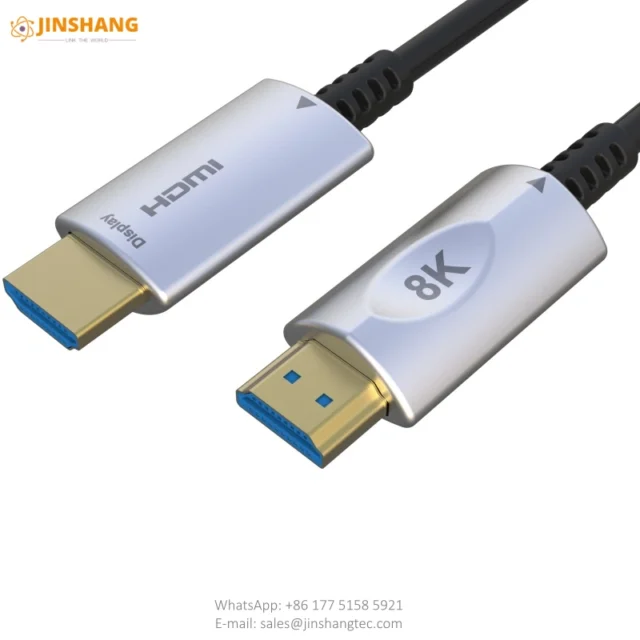

Active optical HDMI Cable 2.1V 8K 48G UHD AOC Hybrid Copper+Fiber Optics Conductors
Active Optical HDMI 2.1 Cable supporting 8K@60Hz, 4K@120Hz, 48Gbps bandwidth. Hybrid copper+fiber design, up to 100m, eARC, HDR, HDCP 2.3. OEM/ODM custom cables from Changzhou Jinshang.
Active Optical HDMI Cable 2.1V 8K 48Gbps AOC Hybrid Copper+Fiber Optics
Changzhou Jinshang Electronic Technology’s Active Optical HDMI 2.1 Cable delivers unparalleled performance for high-resolution audio/video transmission. Combining fiber optics for video data with copper conductors for power and control signals, this AOC HDMI cable supports 8K@60Hz and 4K@120Hz resolutions with 48Gbps bandwidth.
Key Features
- 8K Ultra HD Support – 8K@60Hz, 4K@120Hz, 10K resolution capability
- 48Gbps Bandwidth – Full HDMI 2.1 specification compliance
- Hybrid Design – Fiber optics for video + copper for power/EDID/CEC
- Long Distance Transmission – Up to 100 meters without signal loss
- eARC Support – Enhanced Audio Return Channel for immersive sound
- HDR & HDCP 2.3 – High Dynamic Range and latest content protection
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference
- Lightweight & Flexible – Easy installation in conduit and tight spaces
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Bandwidth | 48Gbps |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Max Length | Up to 100 meters |
| Connector Type | HDMI Type A (Standard) male to male |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| Audio | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| HDCP | HDCP 2.3 compliant |
| Operating Temperature | 0°C to 70°C |
| Customization | Length, connector type, jacket color, logo printing |
Applications
- Home Theater & AV Systems – Connect 8K TVs, projectors, and AV receivers
- Professional AV & Broadcast – Studio, live event, and broadcast equipment connections
- Digital Signage – Long-distance video wall and commercial display installations
- Education & Corporate – Conference rooms, classrooms, and presentation systems
- Medical Imaging – High-resolution medical display and imaging equipment
- Gaming & Esports – 4K@120Hz gaming with low latency and high refresh rate
- Industrial Control – Factory automation and industrial monitoring systems
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!
