Mitsubishi AS-2P-40M-D MELSECNET Optical Fiber Cable, 40 m
Mitsubishi AS-2P-40M-D MELSECNET black optical fiber cable, 40 m, with DL-72ME JIS F07 duplex connectors, made in Japan, for MELSECNET/H optical rings.

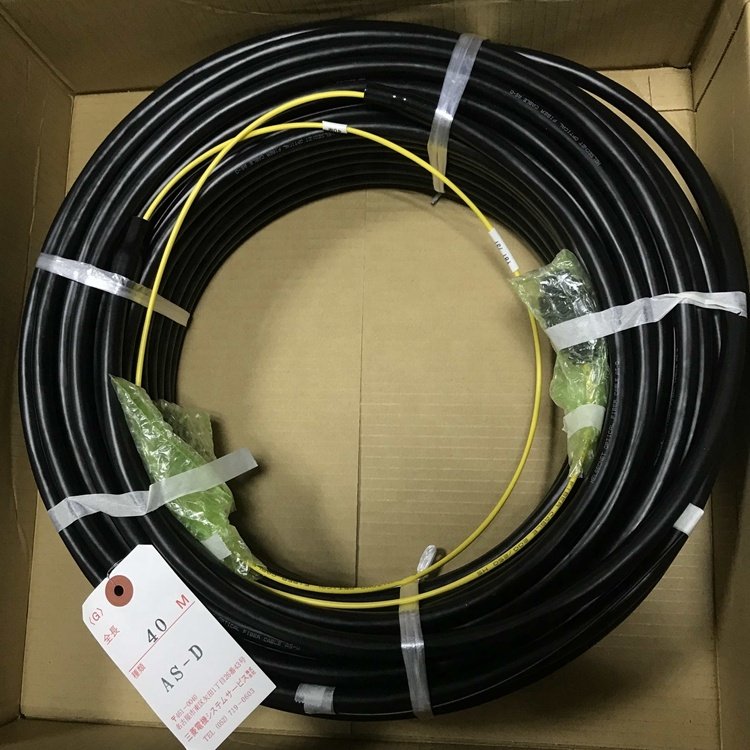

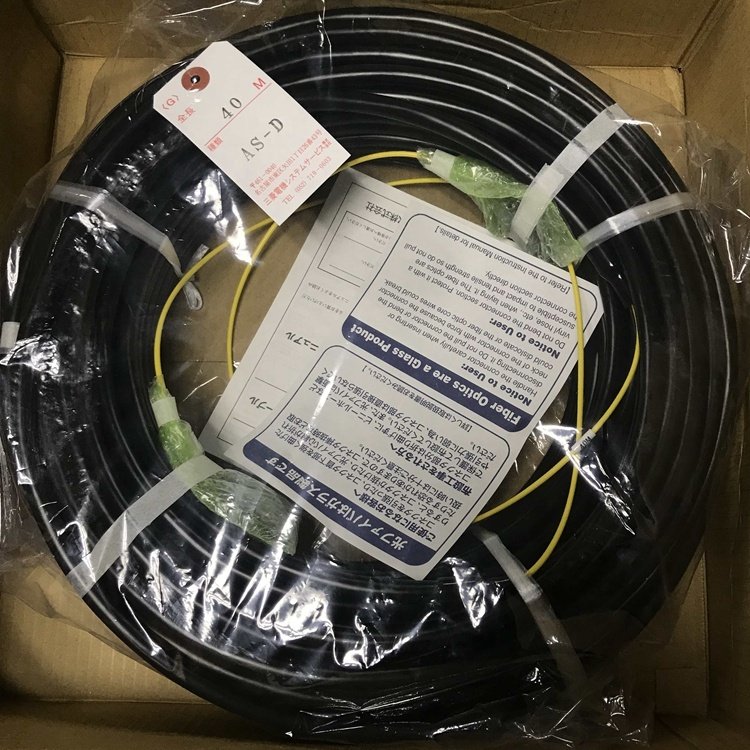

A Mitsubishi AS-2P-40M-D MELSECNET black optical fiber cable, 40 m long, terminated with DL-72ME JIS F07 duplex connectors, sourced as a Sumitomo / Mitsubishi factory assembly.
Overview

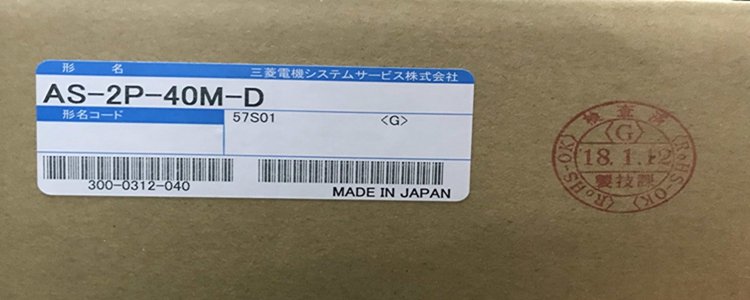

The factory label reads AS-2P-40M-D, form name code 57S01, by Mitsubishi Electric System Service, MADE IN JAPAN. The jacket is marked MELSECNET OPTICAL FIBER CABLE AS-D and the connector is the DL-72ME MITSUBISHI JIS F07 duplex type. Although the folder is titled Sumitomo AS-2P-40M-P, the physical product is the Mitsubishi AS-2P-40M-D 40 m cable.
Features
- Mitsubishi AS-2P-40M-D factory part, form code 57S01

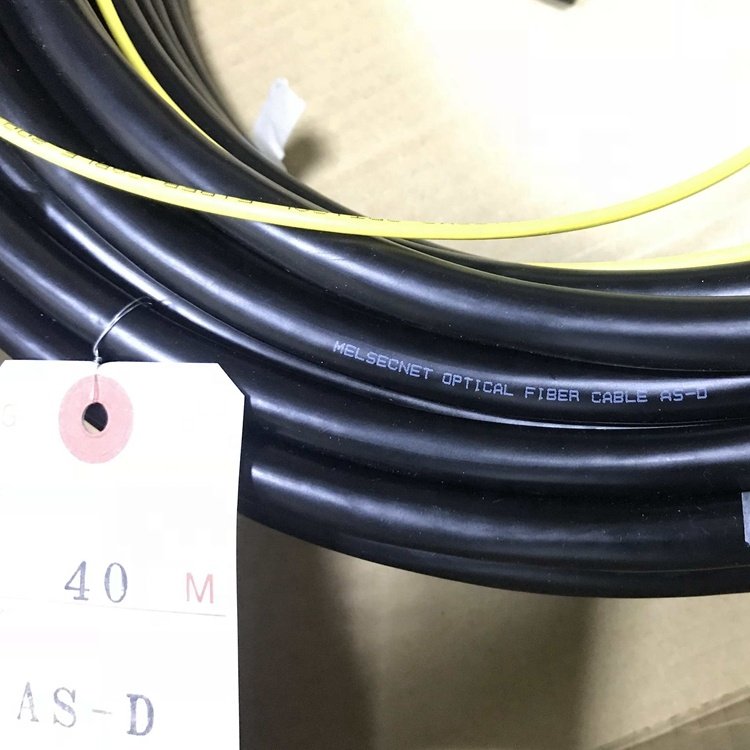

- MELSECNET OPTICAL FIBER CABLE AS-D black jacket
- DL-72ME MITSUBISHI JIS F07 duplex connectors
- 40 m length, MADE IN JAPAN
- For MELSECNET / MELSEC optical Ethernet rings
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Part name | AS-2P-40M-D | – | Factory label; folder title AS-2P-40M-P |
| Form name code | 57S01 | – | Per factory label |
| Cable series | MELSECNET OPTICAL FIBER CABLE AS-D | – | Jacket marking |
| Length | 40 | m | Per label AS-D 40M |

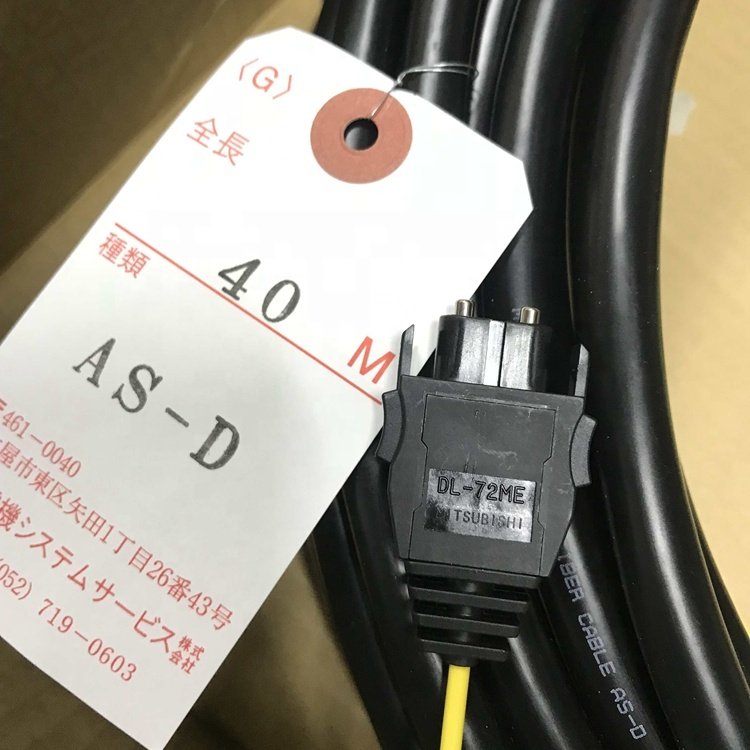

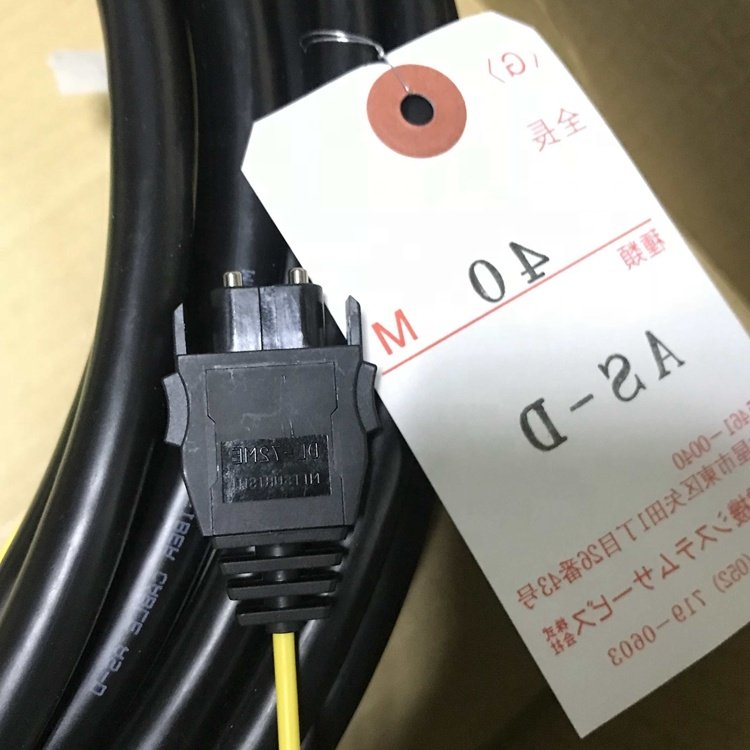

| Connector | DL-72ME MITSUBISHI JIS F07 duplex | – | Per product photos |
| Manufacturer | Mitsubishi Electric System Service | – | Per label; MADE IN JAPAN |
Applications
Mitsubishi MELSECNET/H and MELSEC PLC optical Ethernet rings, production line networks and replacement of broken AS-series optical trunks.
How to Order
Provide the PLC / network model and the required AS-2P-40M length. We supply the Mitsubishi AS-2P-40M-D cable with DL-72ME JIS F07 connectors as shown.
FAQ
How do I choose the right H-PCF / POF industrial jumper?
Match the connector family on your equipment (JIS F05/F07, Avago Versatile Link, F07-AMP or Toshiba TOCP), the fiber core (200/230 um H-PCF or 1.0 mm PMMA POF) and the required length. Send us the OEM cable part number and we will confirm compatibility.
Are these original OEM or replacement assemblies?
These are replacement industrial fiber assemblies built to match the OEM connector and fiber type shown. Original OEM markings visible on sample connectors are retained for identification; we do not claim OEM manufacturing or authorization.
