PMMA End-Glow POF for Car Ceiling Starry Sky, 0.25-3.0 mm Plastic Fibre
Clear PMMA end-glow plastic optical fibre for car headliner star-roof installations, 0.25-3.0mm diameters, NA 0.5, by the roll for starry sky effects.
We supply a range of clear PMMA end-glow plastic optical fibre from 0.25 mm up to 3.0 mm, sold by the roll for LED star ceilings, light curtains and decoration.
Product Overview
This is the standard wholesale PMMA lighting fibre range: a step-index PMMA core with a fluorinated cladding, drawn in nine diameters from 0.25 mm to 3.0 mm. Fine fibres give many small, flexible star points; larger fibres give brighter single points. The fibre itself carries light only — no voltage reaches the glowing end. Choose the diameter to suit your illuminator and star density. Browse the POF fibre optical cable category page.
Key Features
- Nine diameters: 0.25 / 0.5 / 0.75 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 mm.
- Step-index PMMA core / fluorinated cladding, NA 0.5.
- End-glow and side-glow effects depending on fibre type.

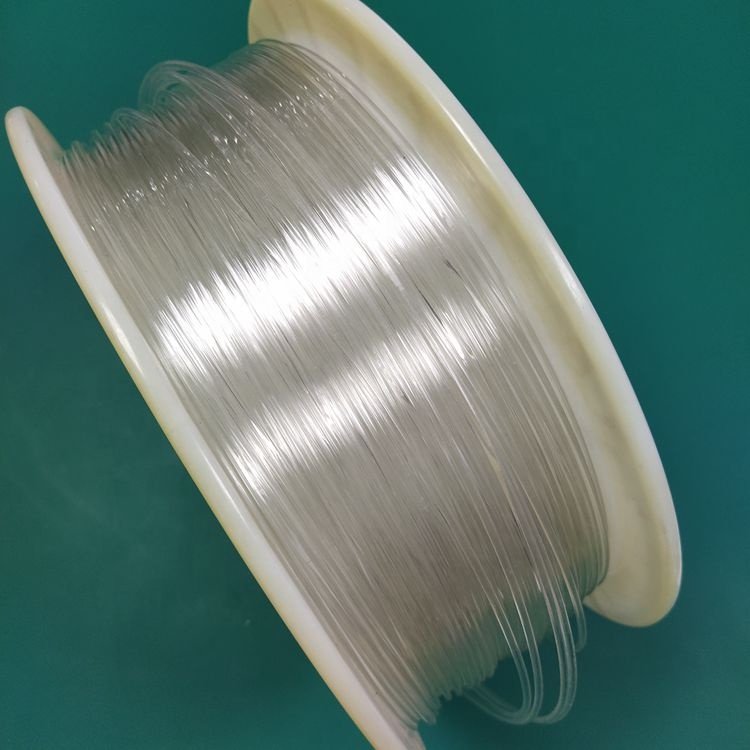

- Supplied by the roll, cut to length on request.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Fibre type | End-glow / side-glow PMMA plastic optical fibre | – | Supplier lighting fibre family table |
| Available diameters | 0.25 / 0.5 / 0.75 / 1.0 / 1.2 / 1.5 / 2.0 / 2.5 / 3.0 | mm | Family table L01-L09 |
| Core material | PMMA (polymethyl methacrylate) | – | Family material evidence |
| Cladding material | Fluorinated polymer | – | Family material evidence |
| Core / cladding refractive index | 1.49 / 1.363 | – | Family typical values |
| Numerical aperture (NA) | 0.5 | – | Family typical |
| Index profile | Step index | – | Family structure |
| Transmission loss | 150 – 350 | dB/km | by diameter; marketing listing quotes <=350 @650nm |
| Minimum bend radius | >= 10 x fibre diameter | – | Supplier listing |
| Operating temperature | -55 to +70 | deg C | Family table |
| Typical winding length | 150 – 12000 | m/roll | by diameter (larger fibre = shorter roll) |

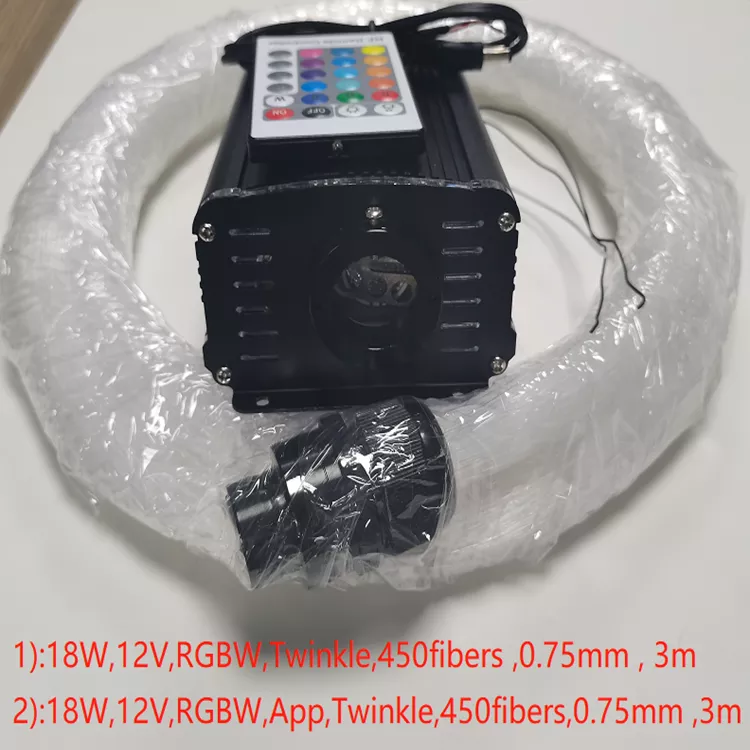

The 6000 K colour temperature, AC165-265 V input, IP rating and CRI in supplier listings describe the LED illuminator, not the PMMA fibre.
Applications

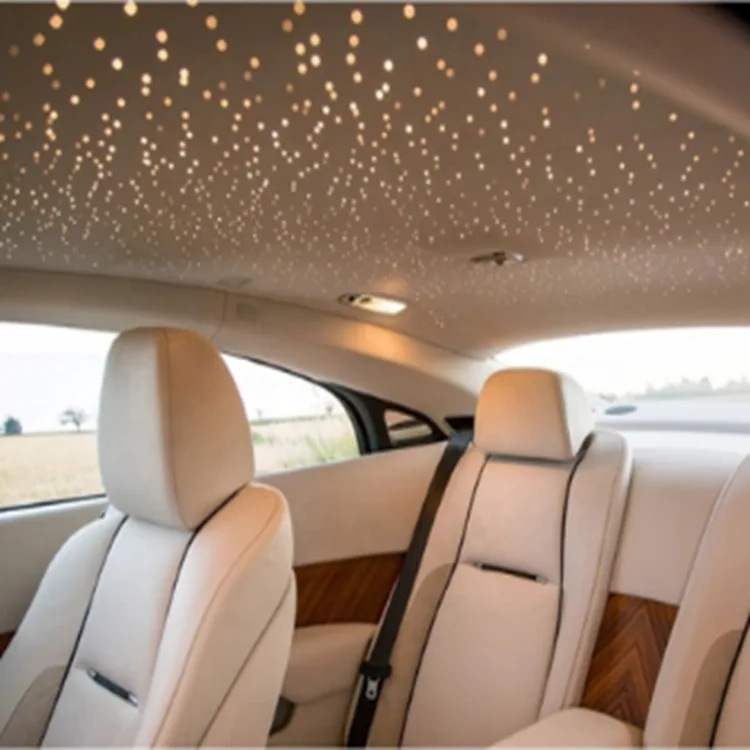

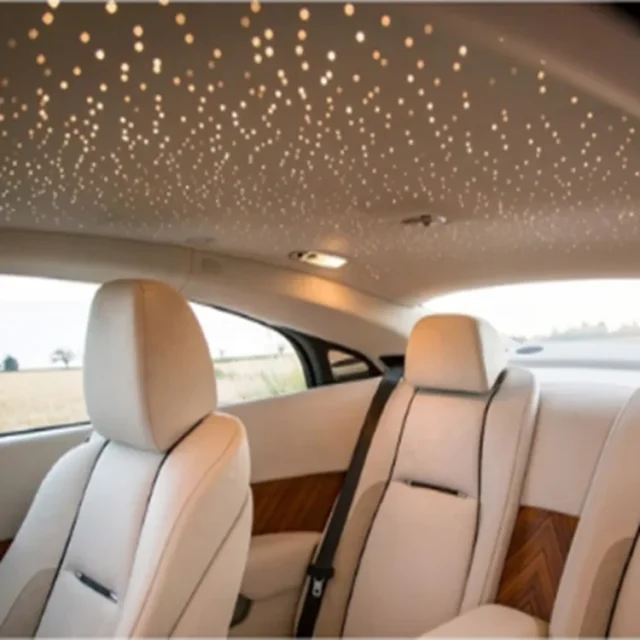

Car ceiling / headliner star-roof installations, home and commercial star ceilings, fibre optic curtains and falling-water effects, casino / KTV / bar / stage feature lighting, home theatre, car star-roof liners, and short visible-light sensor links. Pair with a compatible LED fibre illuminator.
Ordering and Customization
Tell us the required diameter(s), total length and whether you need end-glow or side-glow fibre. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
Which diameter should I choose for a star ceiling?
Smaller fibres (0.25-0.75 mm) give dense, subtle stars; larger fibres (1.5-3.0 mm) give brighter, fewer points. Many designs mix diameters.
Is the 6000K / IP68 part of the fibre?
No — those belong to the LED illuminator or enclosure. The fibre’s own specs are diameter, NA, loss and bend radius.
Can you cut to length?
Yes — we supply by the roll and cut to your total length.
Why Choose Us
We supply wholesale PMMA lighting fibre across the full diameter range with family-table parameters traceable, and keep illuminator specs out of the fibre page. Start from the POF category or the home page.
