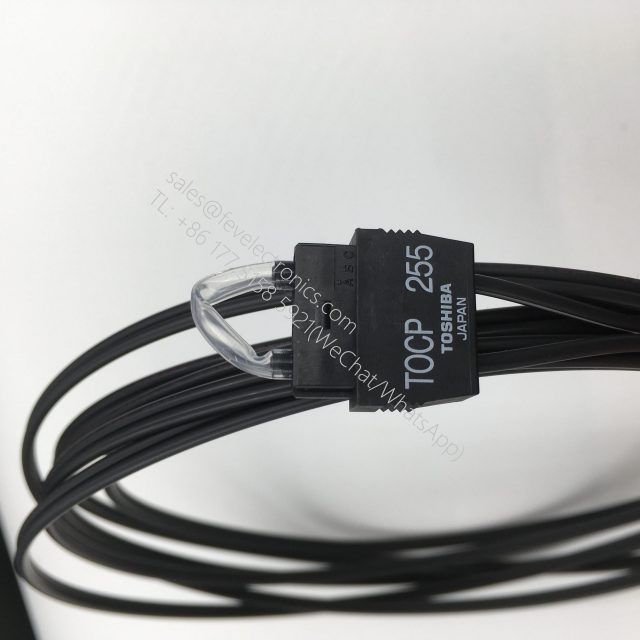

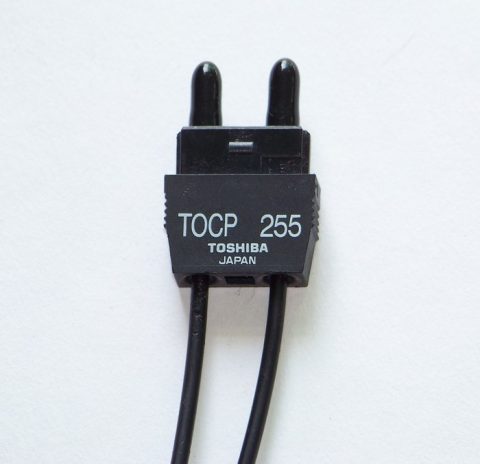

Toshiba TOCP 255 plastic fiber optic connector TOCP255 Toshiba Connector

Toshiba TOCP 255 plastic fiber optic connector TOCP255 Toshiba Connector

SKU: Toshiba TOCP 255 Categories: ,
General Details

Toshiba TOCP 255 plastic fiber optic connector TOCP255 Toshiba Connector

Toshiba TOCP 255 plastic fiber optic connector TOCP255 Toshiba Connector

Toshiba TOCP 255 plastic fiber optic connector TOCP255 Toshiba Connector

Product name:Toshiba TOCP 255 plastic fiber optic connector
Item:Toshiba TOCP 255
Details:
TOCP 255 Connector Product descritpion:

Toshiba POF Products include Connector,Transmitter, Receiver for 1.0mm POF cable and HCS 200/230 Cable, F05 F07 connector as well as cable.

Toshiba products can be formed to be a completely optical system which is suitable for low-cost and certain system as optical fiber system is withstands voltage of insulation, EMI/RFI and safety.



TOCP 255 Connector Features:

–Anti-electromagnetic interference and electromagnetic radiation

–Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission

–High temperature and low temperature(-40 to 70)

–Easy to install, needless of maintenance

–Plastic optical fiber is not conductive, can share the power transmission pipeline

–Long-range power supply

–Accord with the Agilent universal

–RoHS Compliance



TOCP 255 Connector Application:

–Data transmission and industrial automation and bus systems

–Industrial robots, intelligent system and servo system

–Communication exchange systems

–Digital multimedia systems

–Medical sensing system

–Power system, etc.



TOCP 255 Connector Technical parameter :

Parameter Unit Numerical value
Connector type TOCP 255/F07
Fiber optic core diameter mm Φ1.0
Fiber optic core material PMMA
Finished product diameter mm Φ2.2*2
Outer material PE
Outer color Black
Application wavelength nm 650 or 530
Attenuation(650nm) dB/km 180~200
Inter-convertibility dB Max:1.0dB( randomizing)
Bend radius mm 25
Insertion loss dB Max:1.0dB
Tensile strength N ≤1.0dB(0~80N)
Vibration ≤1.0dB(5~50HZ,1.5mm amplitude)
Working temperature °C -55°C~+85°C
Storage temperature °C -55°C~+85°C
Standard Europe ROHS,

USA Standard(SONET.OC-48),

Japan standard(G.653),

China industry standard(YD/T1447-2006)



1. Module

Transmitter Receiver Connector Type Max Transmission Loss (dB)
TOCA100 TOCA100 TOCP100/ TOCP150 Simplex 2.0
TOCA150 TOCA15 TOCP100/ TOCP150 Simplex 3.5
TOCA200 TOCA200 TOCP200 /TOCP200Q Duplex 2.0
TOCP250 TOCP250 TOCP200/ TOCP255 Duplex 3.5

2. Connector

Part No. Wave length Transmission Loss Transmission Length Type Interface
TOCP100 650nm <0.22dB/m 50m Simplex 1.0/2.2 POF
TOCP155 650nm <0.22dB/m 50m Simplex 1.0/2.2 POF
TOCP200 650nm <0.22dB/m 50m Duplex 1.0/2.2 POF
TOCP200X 800nm <7Db/km 1km Duplex 200/230 HCS
TOCP255 650nm <0.22dB/m 50m Duplex 1.0/2.2 POF
TOCP255P 650nm <0.22dB/m 50m Duplex 1.0/2.2 POF

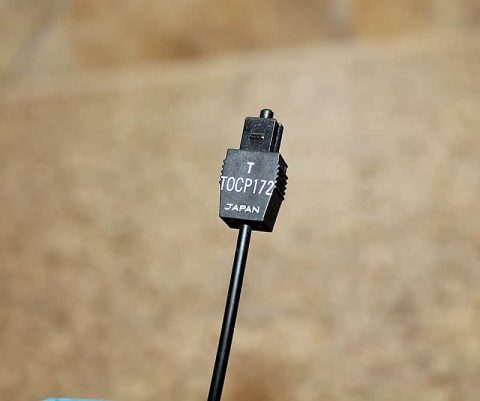

Changzhou FEV Electronics produces TOCP100, TOCP100X, TOCP150, TOCP151, TOCP 200, TOCP200Q, TOCP201Q, TOCP255, TOCP255P, TOCP255K, TOCP255PK, TOCP 200K, C08I 5, TOCP 172, JIS F05 JIS F07 Connector. Toshiba original optical fiber cable for replacement. We can produce the TOCP Optical Fiber cable from 0 to 100 Meters. TOCP Optical Fiber Cable for CNC controller. TOCP155 Toshiba, TOCP 200 Toshiba, TOCP 255 Toshiba, Toshiba Cable, Toshiba CNC, Toshiba CNC Controller, Elevator fiber optical cable, Server, Printer machine etc. Toshiba Optical Cable. Toshiba Wiring Devices.

Besides TODX 283, we also have TODX294, TODX295, TODX296, TODX297, TODX298, TODX2402, TODX270A, TODX280A.
