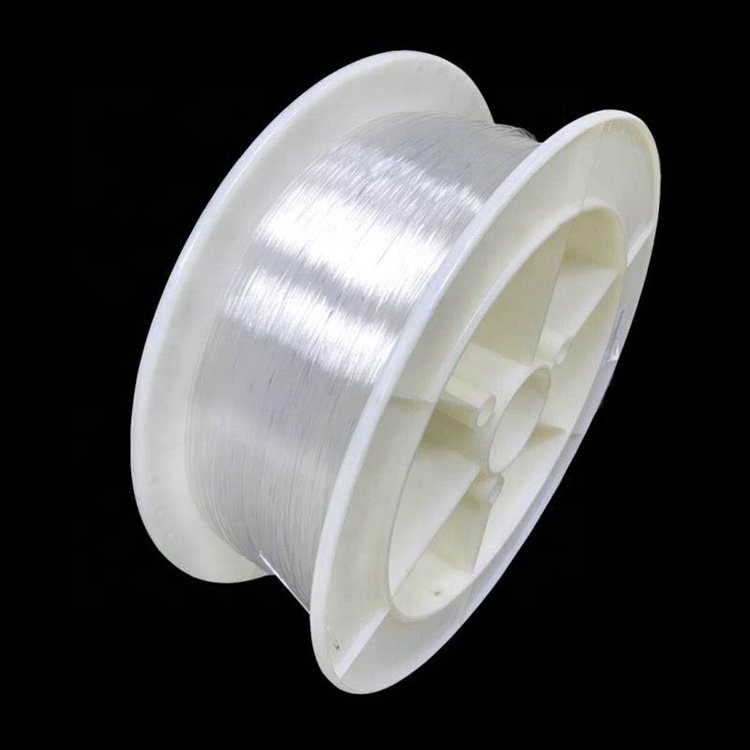

Toray PGR-FB 1500 / 2000 / 3000 PMMA POF, 1.5-3.0 mm for Lighting and Sensing
Toray R-Grade PGR-FB 1500/2000/3000 large-core step-index PMMA POF, 1.5-3.0mm, ~0.20 dB/m @650nm, for lighting and sensing.
Toray PGR-FB 1500 / 2000 / 3000 are large-core step-index PMMA POF in the PG lighting-and-sensing series, at 1.5, 2.0 and 3.0 mm diameters for high visible-light throughput.
Product Overview

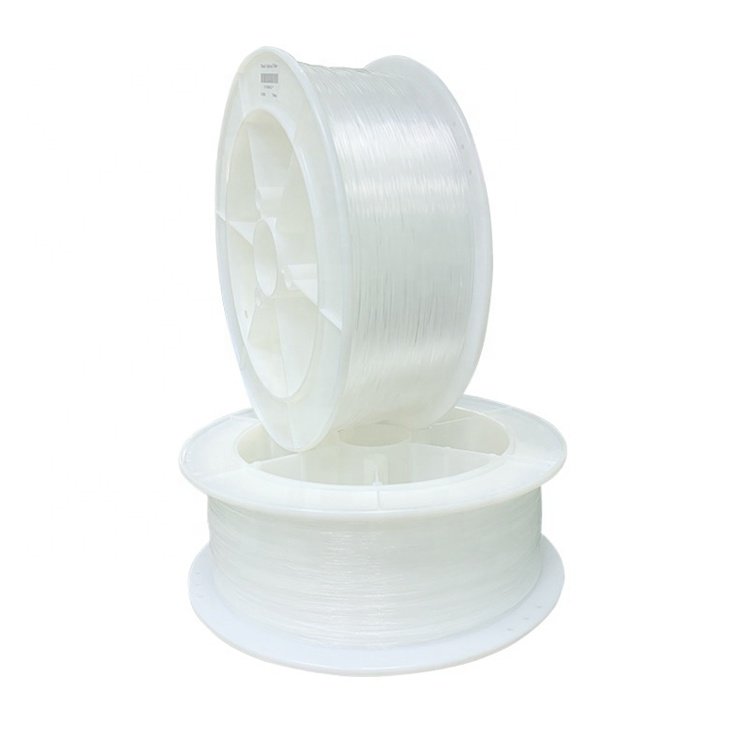

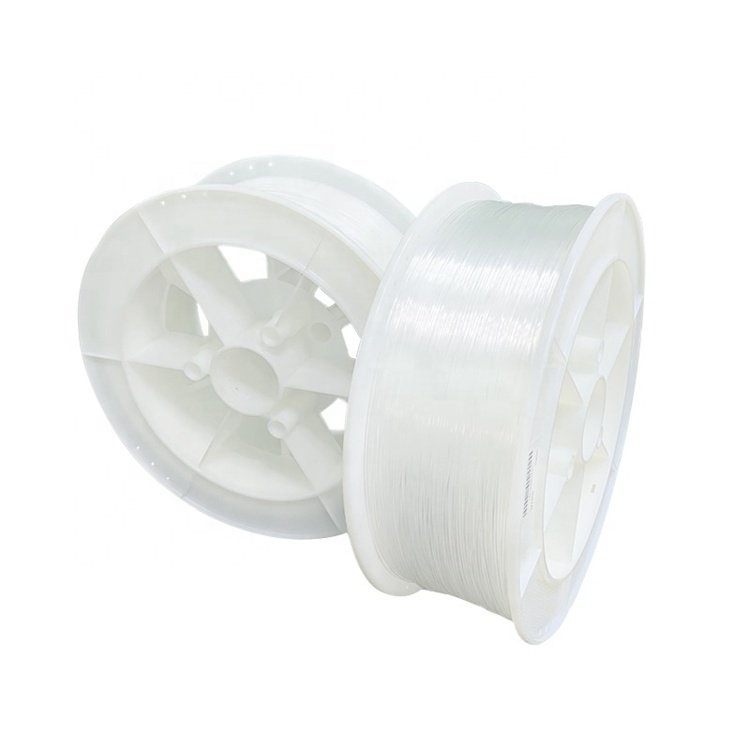

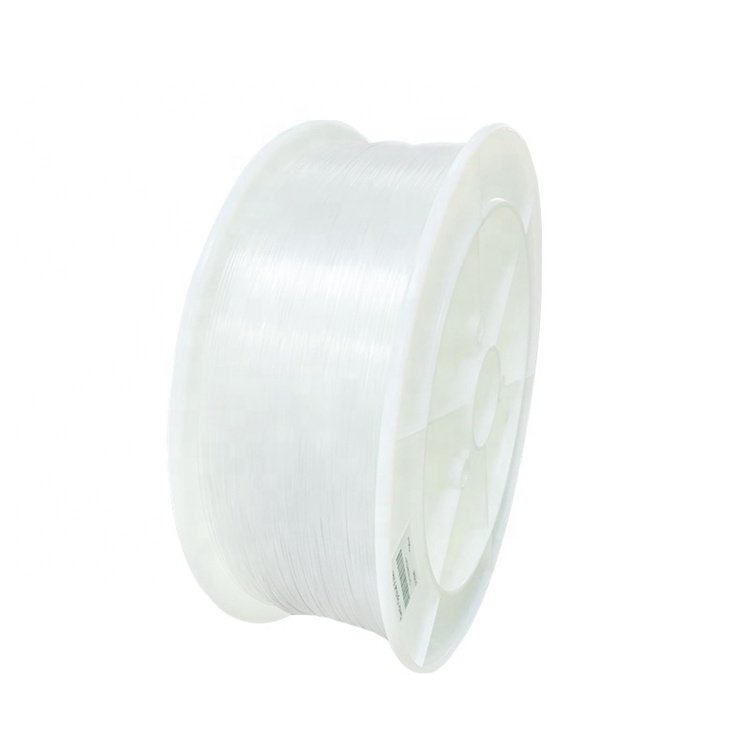

These large Toray PG-series fibres carry more light than smaller grades and are chosen for illumination, end-glow decoration and sensor light guides where brightness matters. The 1.5 mm, 2.0 mm and 3.0 mm grades are wound on shorter spools (700, 350 and 150 m respectively) because of their large cross-section. They belong to our POF fibre optical cable range.
Key Features
- Large-core Toray PG series: 1.5 / 2.0 / 3.0 mm.
- High visible-light throughput for end-glow and light-guide use.
- Step-index PMMA core / fluorinated cladding.
- Attenuation ~0.20 dB/m at 650 nm.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

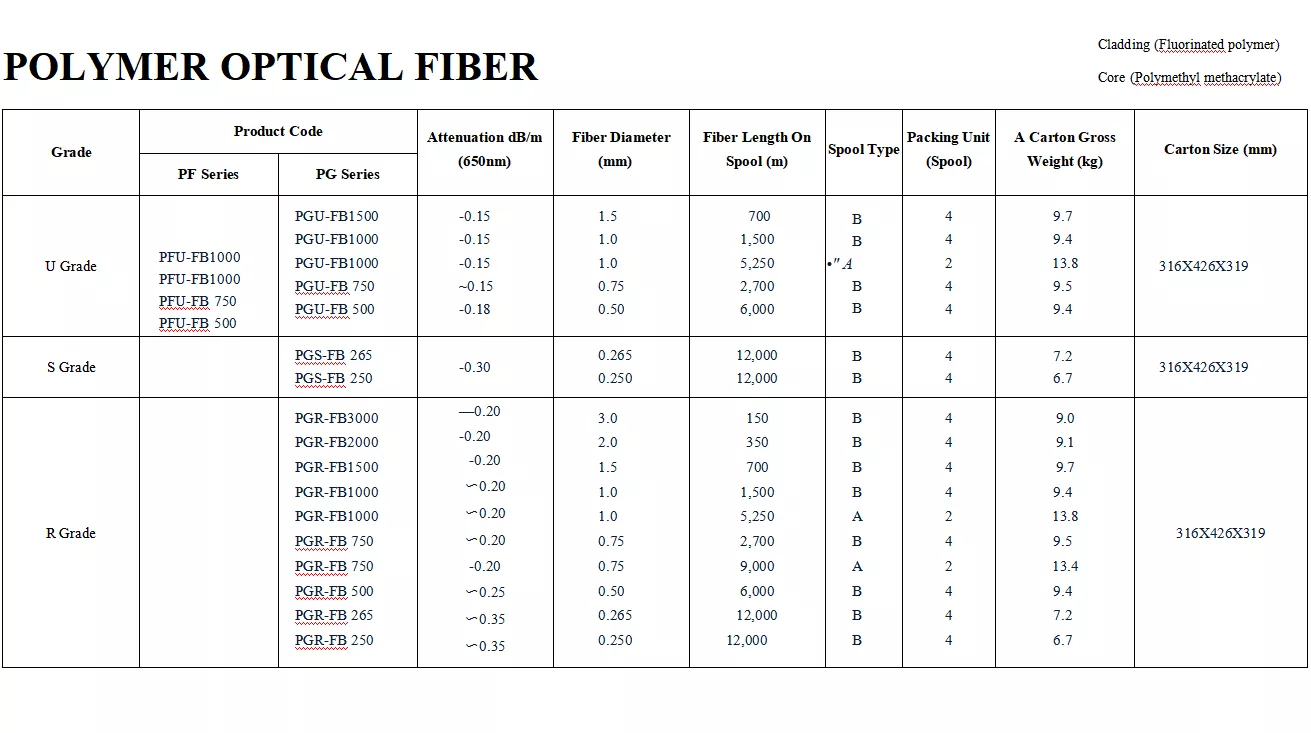

| Fibre family | Toray PG series (lighting / sensing), R Grade | – | Toray Polymer Optical Fibre grade table |
| Grades | PGR-FB 1500 / 2000 / 3000 | – | R Grade PG series |
| Fibre diameter PGR-FB1500 | 1.5 | mm | Grade table |
| Fibre diameter PGR-FB2000 | 2.0 | mm | Grade table |
| Fibre diameter PGR-FB3000 | 3.0 | mm | Grade table |
| Attenuation (650 nm) | ~0.20 | dB/m | Grade table R Grade |
| Spool length 1500 / 2000 / 3000 | 700 / 350 / 150 | m | Grade table |
| Core material | PMMA | – | Toray |
| Cladding material | Fluorinated polymer | – | Toray |
| Index profile | Step index | – | Toray |
| Carton size | 316 x 426 x 319 | mm | Grade table |
Applications
Decorative and architectural end-glow lighting, star ceilings, light curtains, sensor light guides and industrial illumination where a single large fibre must deliver visible light to the end point.
Ordering and Customization
Tell us the grade (1.5/2.0/3.0 mm) and required length. Request a quote at sales@fevelectronics.com. Answers are in the FAQ; browse from the home page.
FAQ
Why are the spool lengths so short?
Large-diameter fibres occupy more space per metre; the grade table lists 700/350/150 m for the 1.5/2.0/3.0 mm grades.
Are these for data communication?
No — PG series is for lighting and sensing; the PF series is the data-communication Toray family.
Why Choose Us
We supply Toray PG-series large-core POF to the listed diameters and keep the grade-table values traceable. Start from the POF category or the home page.
