Toshiba TOCP100 Optical Fiber Cable Assembly TOCP 100 JIS F05 Type
Toshiba TOCP100 compatible fiber cable assembly, JIS F05 type connector, for Toshiba CNC industrial automation, up to 50m. OEM/ODM from Changzhou Jinshang.
Toshiba TOCP100 Optical Fiber Cable Assembly TOCP 100 JIS F05 Type
Changzhou Jinshang Electronic Technology’s Toshiba TOCP100 compatible optical fiber cable assembly features JIS F05 type connector. This POF fiber cable provides reliable optical communication with excellent noise immunity for Toshiba CNC controllers and industrial automation systems. Direct replacement for original Toshiba TOCP100 cable assemblies.
Key Features
- Toshiba Compatible – Direct replacement for Toshiba TOCP100 fiber cables
- POF/H-PCF Fiber – 1.0mm POF or 200/230µm H-PCF for stable transmission
- JIS F05 Connector – Standard connector for reliable connection
- High Noise Immunity – Immune to electromagnetic and radio frequency interference
- Vibration Resistant – Designed for industrial CNC and automation environments
- Wide Temperature Range – Operating temperature: -40°C to +85°C
- Custom Lengths – Available from 0.5m to 50m with custom options
- OEM/ODM Available – Custom connectors, lengths, jacket colors, and branding
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Type | POF (1.0mm) / H-PCF (200/230µm) |
| Connector Type | JIS F05 |
| Compatible Models | Toshiba TOCP100 |
| Transmission Distance | Up to 50 meters |
| Data Rate | Up to 50 Mbps |
| Wavelength | 650nm (red visible light) |
| Operating Temperature | -40°C to +85°C |
| Bend Radius | Min. 15mm (dynamic), 25mm (static) |
| Jacket Material | PUR / PVC (optional) |
| Insertion Loss | ≤1.5dB (per connector) |
| Customization | Length, connector type, jacket color, logo |
Applications
- CNC Machines – Toshiba CNC controllers, machining centers, lathes
- Servo Systems – Toshiba servo drives, motion control, position feedback
- Industrial Automation – PLC communication, sensor networks, control systems
- Robotics – Robot controllers, automated production lines
- Injection Molding – Toshiba injection molding machines, process control
- Elevator Systems – Elevator control, communication, monitoring
- Medical Equipment – Medical devices, diagnostic equipment
Why Choose Changzhou Jinshang?
With over 15 years of experience in POF/HPCF fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality Toshiba-compatible fiber cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!

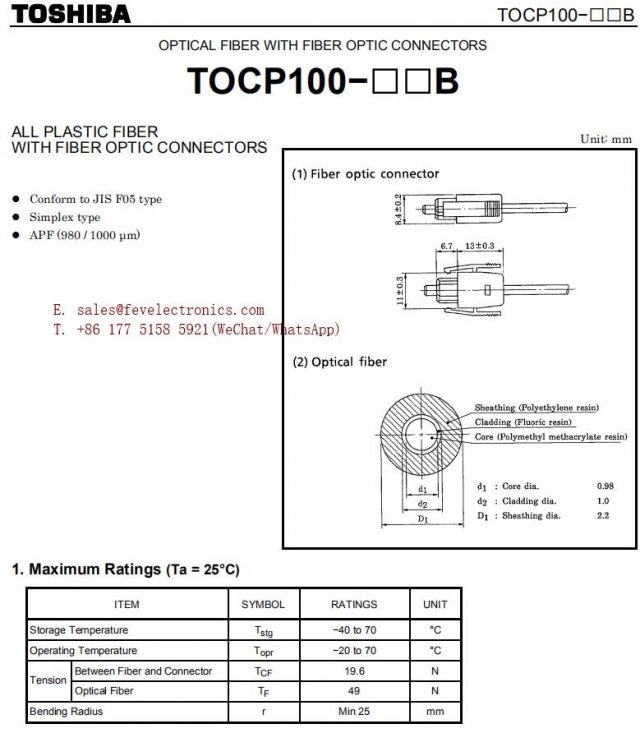

Datasheet and Technical Information of TOCP100 / TOCP 100 Optical Fiber Cable:
DataSheet of Toshiba TOCP100 Optical Fiber Cable Assembly TOCP 100 JIS F05 Type
