SMA905 to FC 1000/500 um Large-Core Optical Fiber Patch Cord
SMA905-to-FC large-core optical fiber patch cord, 1000/500um core, 2.2mm black PE jacket, 650nm, customizable length.
SMA905-to-FC large-core optical fiber patch cord, 1000 µm / 500 µm options in a 2.2 mm black PE jacket for sensing and light delivery.
Product Overview

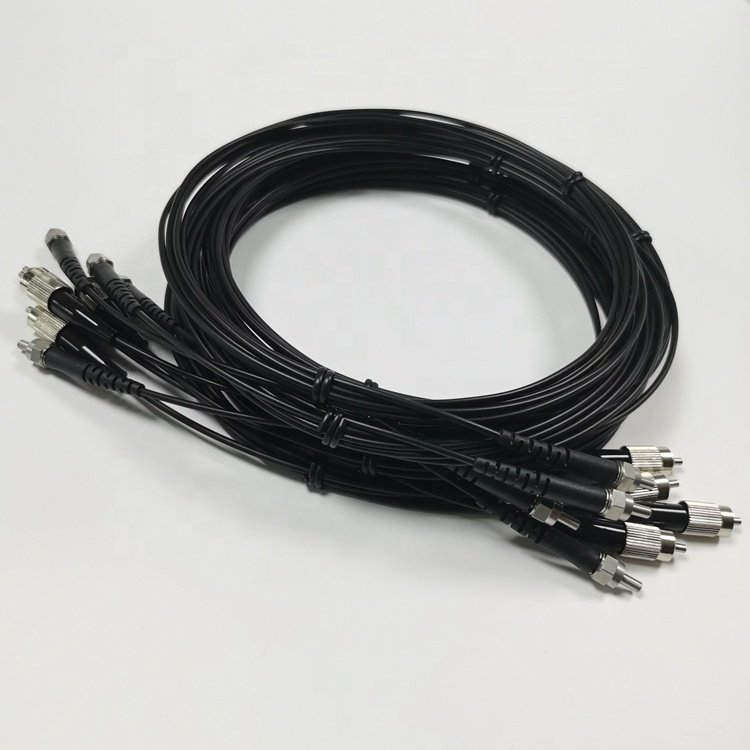

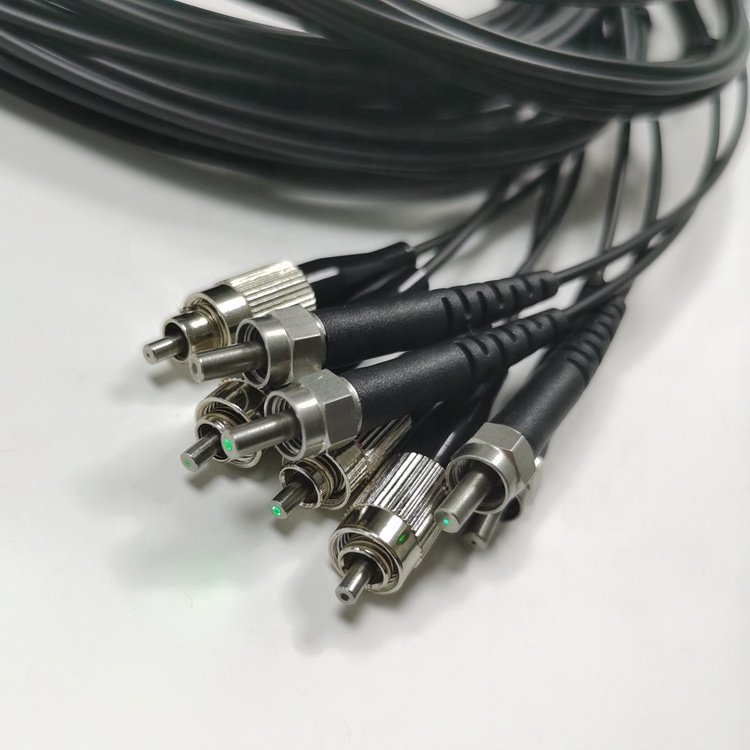

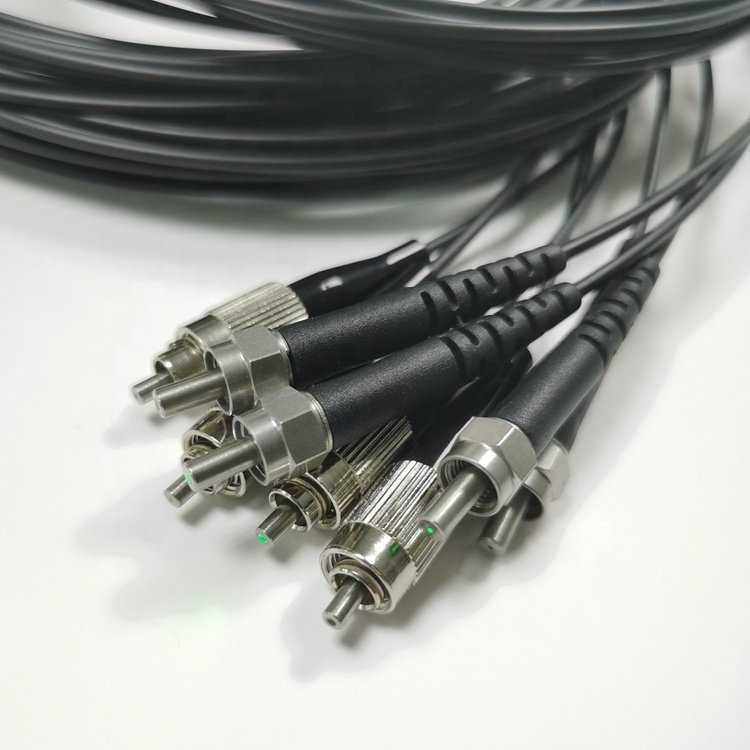

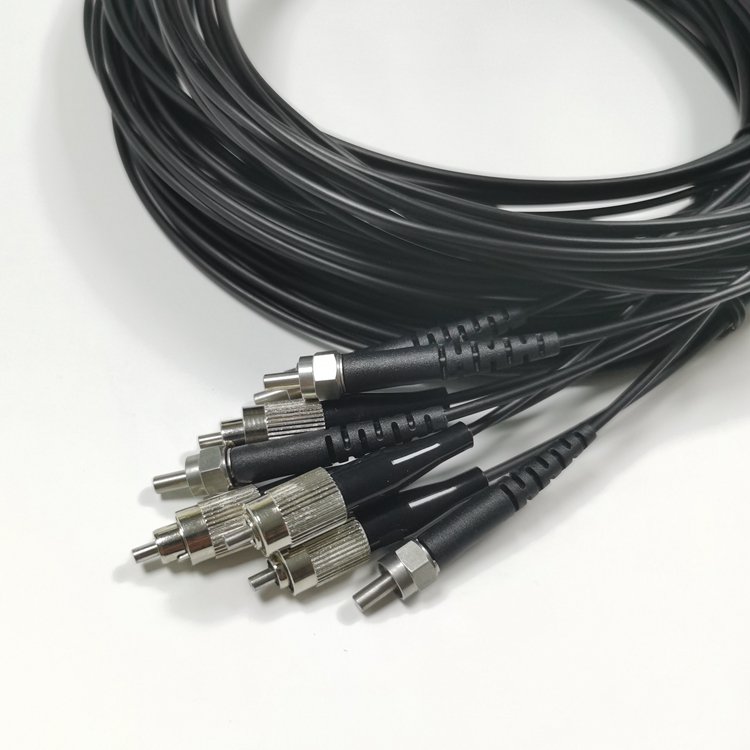

This hybrid cord runs SMA905 on one end and FC on the other, built around a 1.0 mm large-core optical fiber in a 2.2 mm black PE jacket. It couples large-core light delivery equipment to FC-based instruments. It is part of our patch cord range.
Key Features
- SMA905 to FC hybrid.
- 1000 µm / 500 µm large-core options.
- 2.2 mm black PE jacket.
- 0.1-40 m length.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Connector types | SMA905 to FC | – | Hybrid patch cord |
| Core options | 1000 / 500 | um | Large-core |
| Jacket outer diameter | 2.2 | mm | Black PE |
| Transmission medium | POF (1 mm) | – | Special optical fiber |
| Wavelength | 650 | nm | 650 +/- 15 nm |
| Attenuation | 0.3 | dB/m | At 650 nm |
| Length | 0.1-40 | m | Common 1,2,3,5,10,20,40 m |
| Operating temperature | -55 to +85 | deg C | Source |
Applications
Industrial sensing, light delivery, and instrument connections between SMA905 and FC ports.
Ordering and Customization
Tell us the core size and length. Request a quote at sales@fevelectronics.com. More in the FAQ; return to the home page.
FAQ
Why call it single mode in the folder name?
The folder title says single-mode, but the construction listed in the source is a 1 mm large-core POF; confirm the exact fiber on order.
