QG-G50 Fiber Structure and Mitsubishi Network Diagram
QG-G50 PMMA POF fiber structure and Mitsubishi CC-LINK IE / SSCNET III network topology reference for optical jumper planning.
Reference diagrams for the QG-G50 PMMA POF family: fiber structure and the Mitsubishi CC-LINK IE / SSCNET III network topology they support.
Overview
This page provides two reference diagrams for the QG-G50 PMMA POF family: the fiber cross-section structure and the Mitsubishi CC-LINK IE / SSCNET III network topology. It is a planning aid for system integrators specifying optical servo-bus wiring.
Features

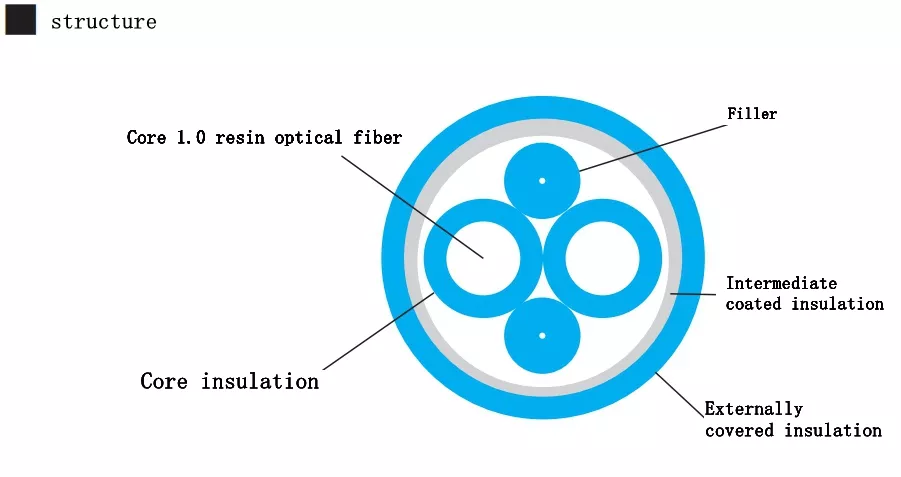

- Structure diagram of the 2-core PMMA POF construction
- Network topology for CC-LINK IE / SSCNET III
- Helps plan jumper lengths and connector drops
- Pairs with the QG-G50-2C jumper listing
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Diagram type | QG-G50 fiber structure / network topology | – | Reference diagram |
| Fiber | PMMA POF 1.0 mm, 2-core | – | Same as QG-G50 family |
| Network | Mitsubishi CC-LINK IE / SSCNET III | – | Optical servo bus |
| Use | Installation and wiring reference | – | Not a physical cable product |
Applications

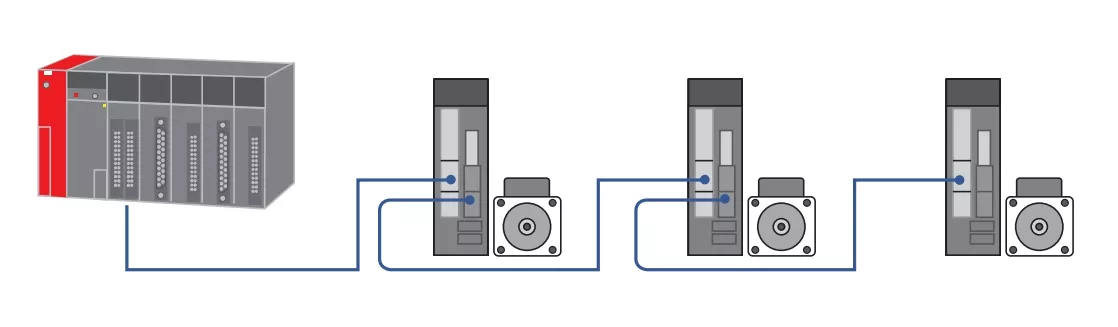

This reference page shows the QG-G50 fiber structure and the Mitsubishi CC-LINK IE / SSCNET III network topology. Use it to plan how the optical jumpers run between master modules, servo amplifiers and remote I/O stations on the machine line.
How to Order
Use these diagrams to select the correct QG-G50 jumper length and connector for your cabinet wiring, then order the assembled cable from the QG-G50-2C product page.
FAQ
Is this diagram a physical cable I can order?
No. This is a structure and network reference. Order the assembled QG-G50-2C jumper separately with your required length and connectors.
