Orange POF Cable, 1.0mm Core with 5mm Protection Jacket
Orange PVC-protected PMMA POF cable, 1.0 mm core in a 5.0 x 2.2 mm figure-8 jacket, <=0.20 dB/km, 500 m roll, for sensor, lighting and signal links.
This orange PVC-protected PMMA plastic optical cable carries a 1.0 mm POF core inside a 5.0 x 2.2 mm figure-8 outer jacket, supplied on 500 m rolls for sensor, lighting, communication and signal-transmission runs. It is our JS TECH cable in the single-core orange-POF family (supplier SKU KINZ-H14).
Product Overview

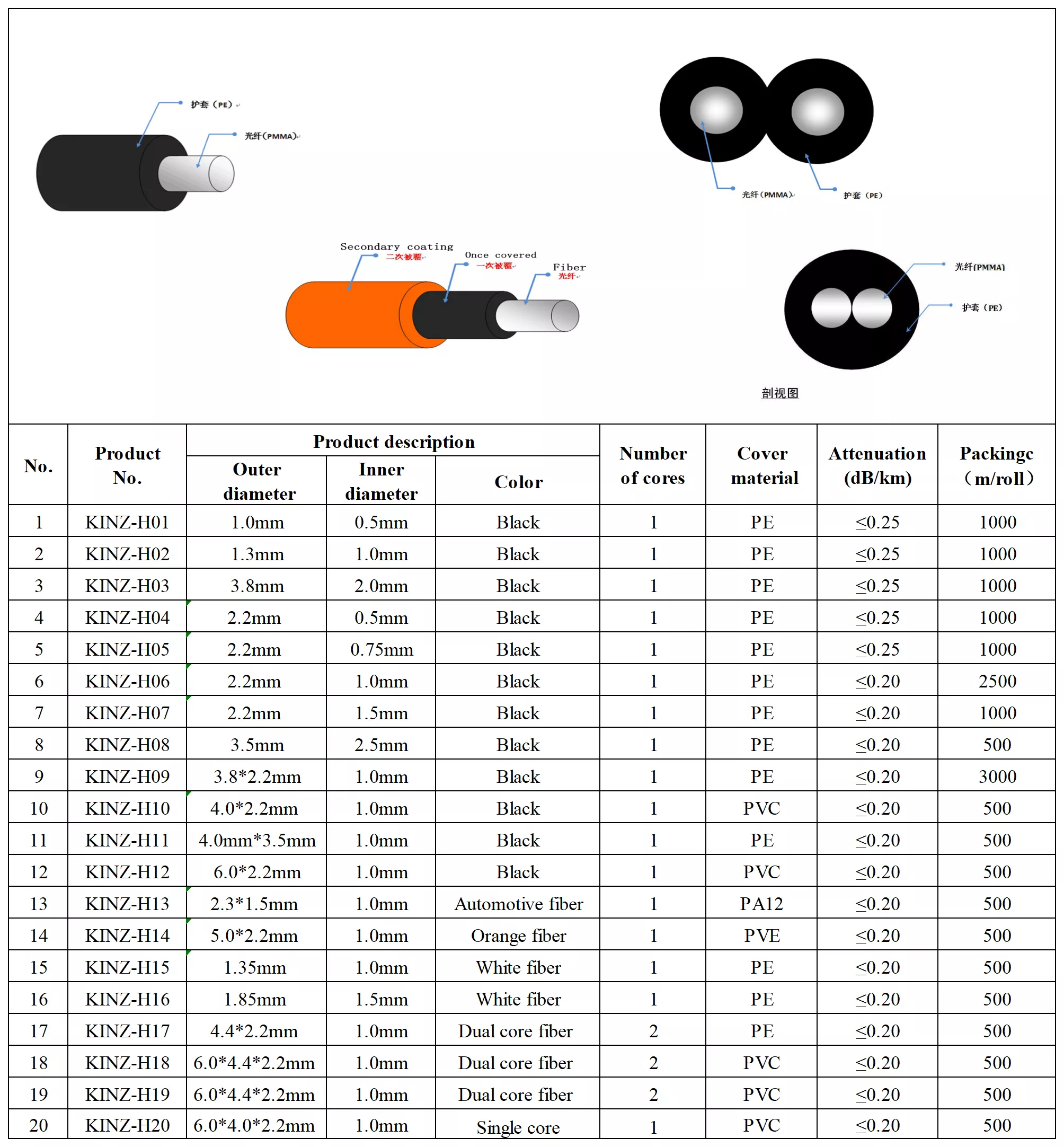

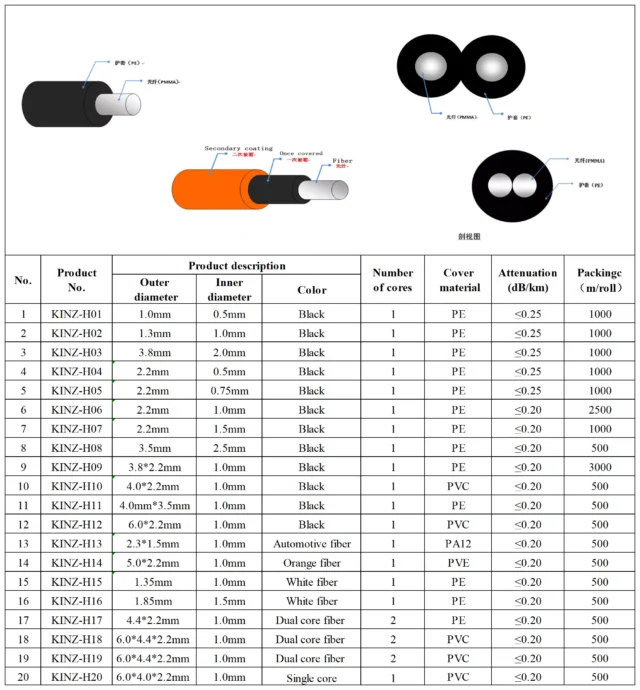

The family specification table lists this product as orange fiber, outer diameter 5.0 x 2.2 mm, inner 1.0 mm core, PVC (PVE) jacket, ≤0.20 dB/km attenuation, 500 m per roll. The bright orange jacket is a protective outer coat over the POF, making the cable easier to identify and route in sensor and lighting installations. The core is PMMA with a fluorinated-polymer cladding. Note: the supplier docx quick-details box labels this cable KINZ-H08, but the family table maps the orange 1.0 mm / 5.0 x 2.2 mm row to KINZ-H14; we follow the table. See the full range on our POF fiber optical cable category page.
Key Features

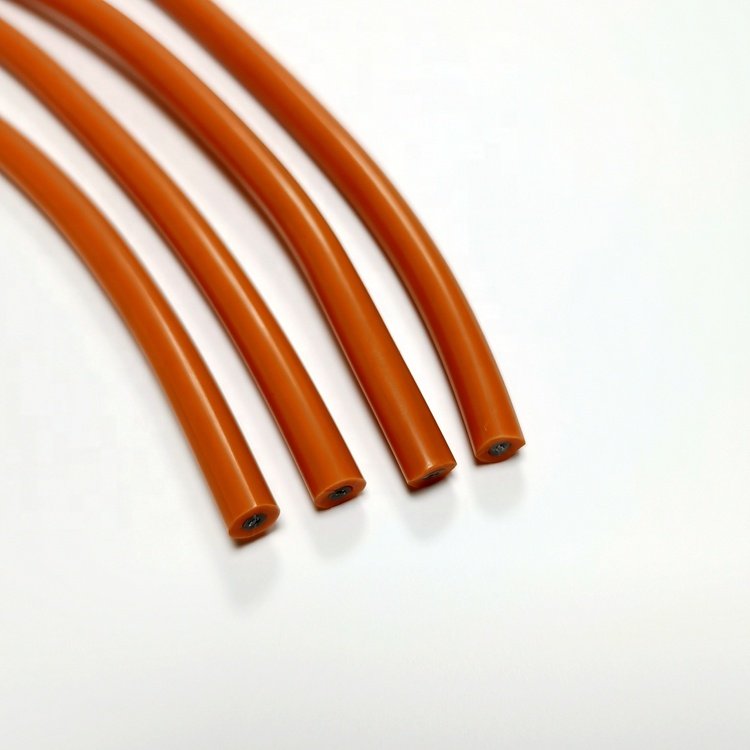

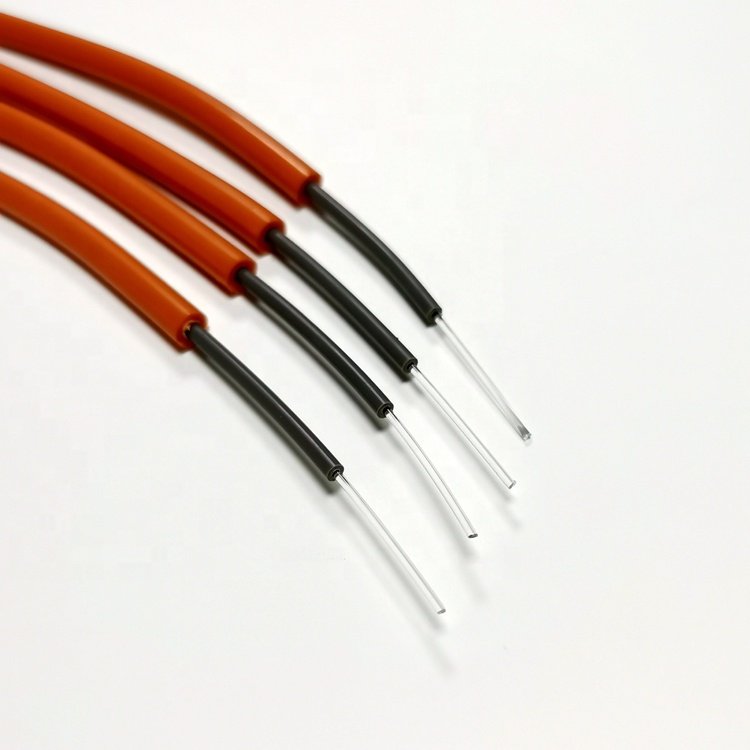

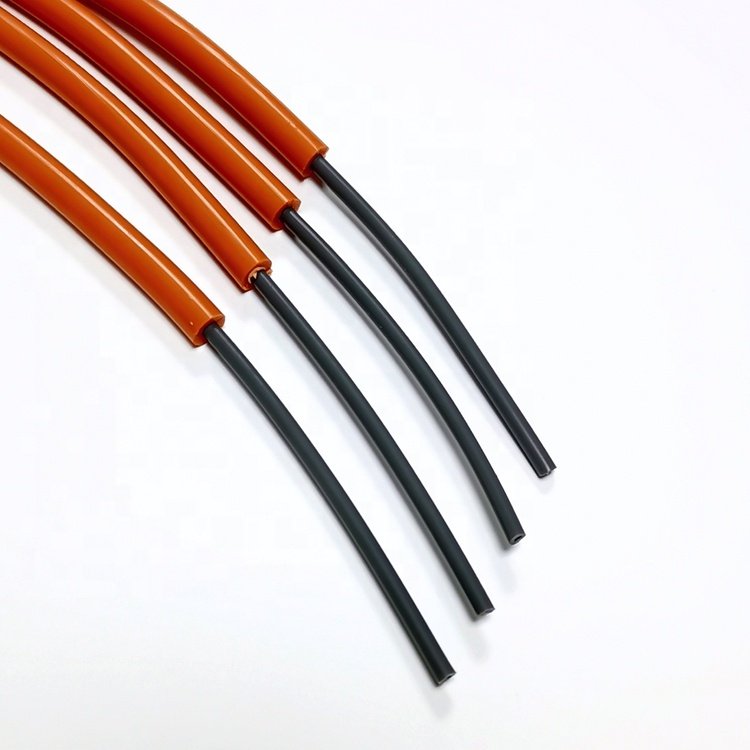

- 1.0 mm PMMA core in a 5.0 x 2.2 mm orange PVC protective jacket.
- Attenuation ≤0.20 dB/km per the family specification table.
- Supplied on 500 m rolls; orange color aids identification and routing.
- Suited to sensor, lighting, communication and short signal-transmission runs.
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Supplier SKU | KINZ-H14 | – | family table row 14; docx quick-details box says KINZ-H08 (mismatch, follow table) |
| Inner fiber diameter | 1.0 | mm | PMMA step-index core |
| Outer cable diameter | 5.0 x 2.2 | mm | figure-8 orange PVC protective jacket |
| Number of cores | 1 | – | single-core |
| Jacket material | PVC (PVE) | – | orange |
| Attenuation | ≤0.20 | dB/km | per family table |

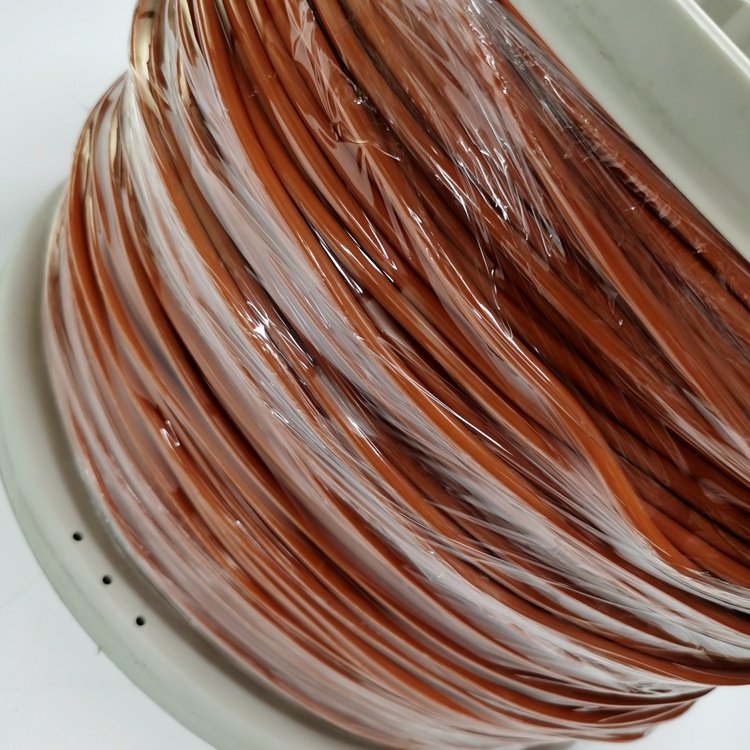

| Packing length | 500 | m/roll | per family table |
| Core material | PMMA | – | supplier docx |
| Cladding material | Fluorinated polymer | – | typical POF construction |
| Application | Sensor, lighting, communication, signal transmission | – | supplier docx |
Applications
- Sensor connections and detection-target signal links.
- Lighting and decorative light-guide runs where the orange jacket is required.
- Short-distance communication and control-signal wiring.
Browse the rest of the POF cable range for other core diameters and jacket colors in the same family.
Ordering & Customization
Please confirm the 1.0 mm / 5.0 x 2.2 mm orange PVC cable, required length and connector interface. We do not list fixed pricing online; contact our sales team for a quote. More answers are on our FAQ for H-PCF and POF fiber assemblies, and you can return to the home page any time.
FAQ
Why is the outer jacket 5.0 x 2.2 mm?
That is a figure-8 / dual-profile protective jacket: the 2.2 mm portion holds the 1.0 mm POF and the 5.0 mm portion adds mechanical protection. The family table lists it as outer 5.0*2.2 mm.
What does PVE mean in the docx?
The supplier docx writes PVE; the family table lists this row as PVC. Treat it as a PVC outer jacket.
What about IP68 and the temperature range?
IP68 is an enclosure/connector rating, not a property of the passive cable; the supplier docx lists -55 to +80 °C operating range, confirm against the datasheet for continuous use.
Why Choose Us
We supply this orange POF cable by its real dimensions (1.0 mm core / 5.0 x 2.2 mm orange jacket), keep the family table traceable, and flag the KINZ-H08 vs KINZ-H14 SKU mismatch rather than guessing. Start from the home page or the POF category to explore related products.
