4-Channel OM2 Breakout Riser Fiber Cable
OCC 4-Core OM2 B-Series Breakout Fiber Cable, Riser Rated. Four 50/125 µm OM2 multimode fibers for vertical building installations. OEM/ODM from Changzhou Jinshang.
The 4-channel OM2 breakout riser fiber cable bundles four individually protected 50/125 µm OM2 fibers under a common riser-oriented outer jacket for vertical and equipment-room backbones.
Product Overview
The breakout format makes each channel easier to handle and terminate than a compact bare-fiber design. It is part of our industrial fiber range for building and campus pathways.

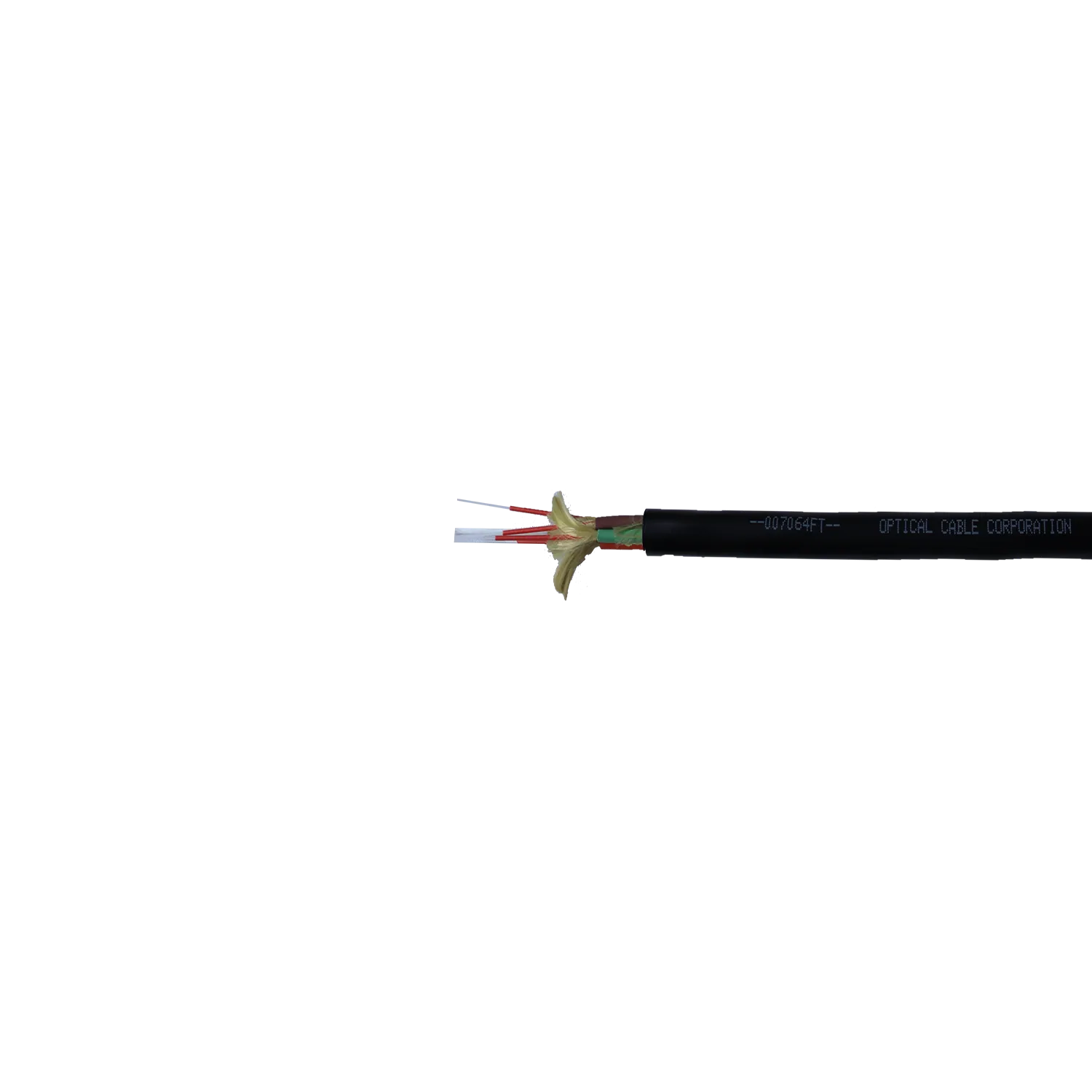

The image shows the configuration; the applicable riser fire-performance rating must be verified for the supplied production lot.
Key Features
- Four OM2 50/125 µm channels
- Breakout construction with protected subunits
- Riser-oriented cable design
- Suitable for direct connector termination
- Custom lengths and markings available
- Grouped routing with channel separation
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Fiber count / type | 4 x OM2 50/125 µm | multimode |
| Construction | Breakout | protected subunits |
| Rating | Riser-oriented | verify on lot |
| Bandwidth | OM2 | graded-index |
| Jacket | Per selection | riser jacket |
| Length / connectors | Custom | per RFQ |
Applications
- Building risers and vertical shafts
- Equipment rooms
- Campus networks
- Industrial facilities
- Four-channel backbone links
Performance & Reliability
OM2 graded-index fibers support compatible multimode transmission. Individual subunits improve termination handling and serviceability, while the outer construction provides grouped routing. Certification and flame rating must be verified for the supplied production lot.
Customization & Ordering
Confirm the required riser flame rating, length and connectors. We supply certification documentation for the ordered construction. All assemblies are terminated, end-face inspected and individually tested before dispatch. Send your drawing, connector pair, fiber type and target volume, and our engineers will return a configuration, sample plan and lead time. Contact our sales team for OEM/ODM support.
FAQ
Q: What does riser-rated mean?
A: A riser-rated cable meets defined fire-performance limits for vertical shafts between floors, reducing flame spread.
Q: Is the certification guaranteed?
A: We verify the rating against the production lot record; confirm the exact required class on your RFQ.
Q: Can channels be connectorized?
A: Yes, the protected subunits break out cleanly for direct termination.
