Mitsubishi ESKA SK80 2.0 mm High-Brightness End-Glow POF
Mitsubishi ESKA SK80 2.0mm high-brightness end-glow PMMA POF, 150 dB/km at 650nm, 350m roll, for star ceiling and feature lighting.

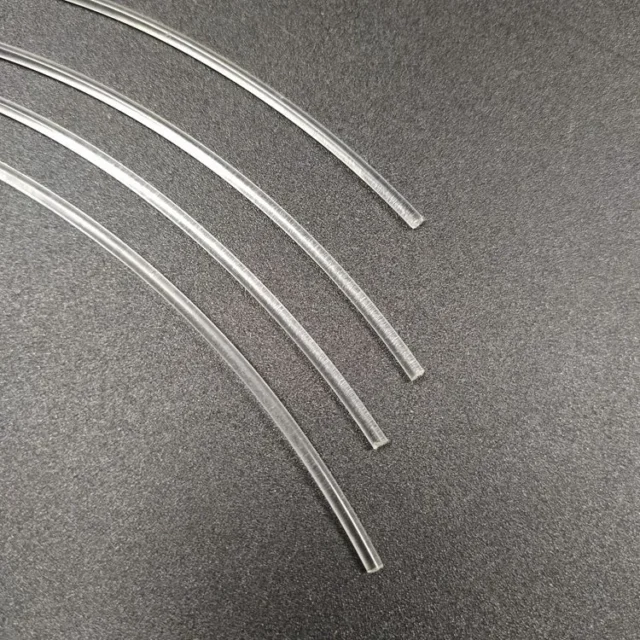

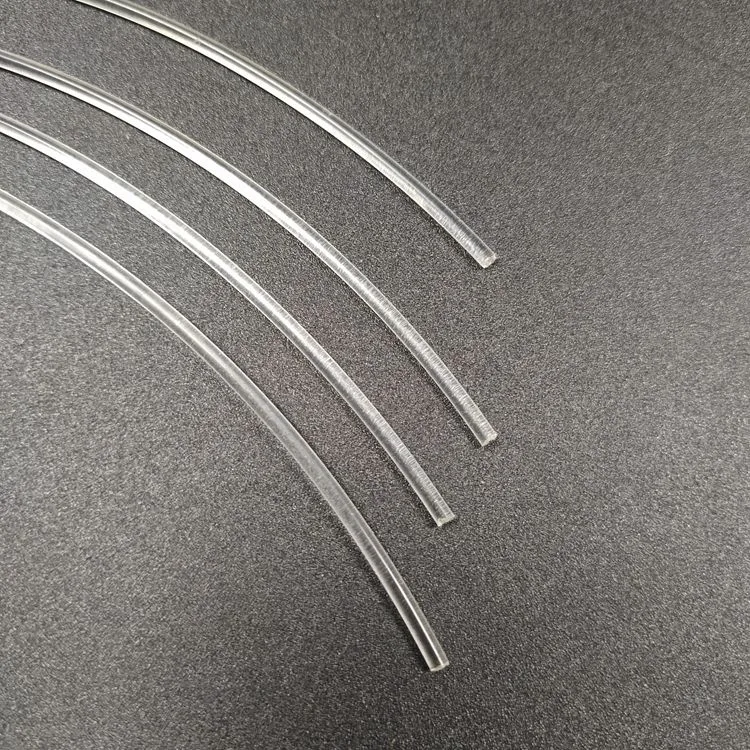

The Mitsubishi ESKA SK80 is a 2.0 mm high-brightness step-index PMMA end-glow fiber from the SK decorative series, wound on a 350 m spool. The thick 2.0 mm SK80 grade produces large, bright end points for star ceilings and feature lighting. The listing’s 6000 K, AC 165–265 V and IP68 figures describe the LED illuminator, not the fiber.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- 2.0 mm high-brightness SK80 end-glow grade.
- Supplier SK table: 150 dB/km at 650 nm, –55 ~ +70 °C.
- 350 m roll, 0.95 kg net fiber weight.
- PMMA core / fluorinated cladding, NA 0.5.
- Large bright points for star ceiling and feature lighting.
Specifications

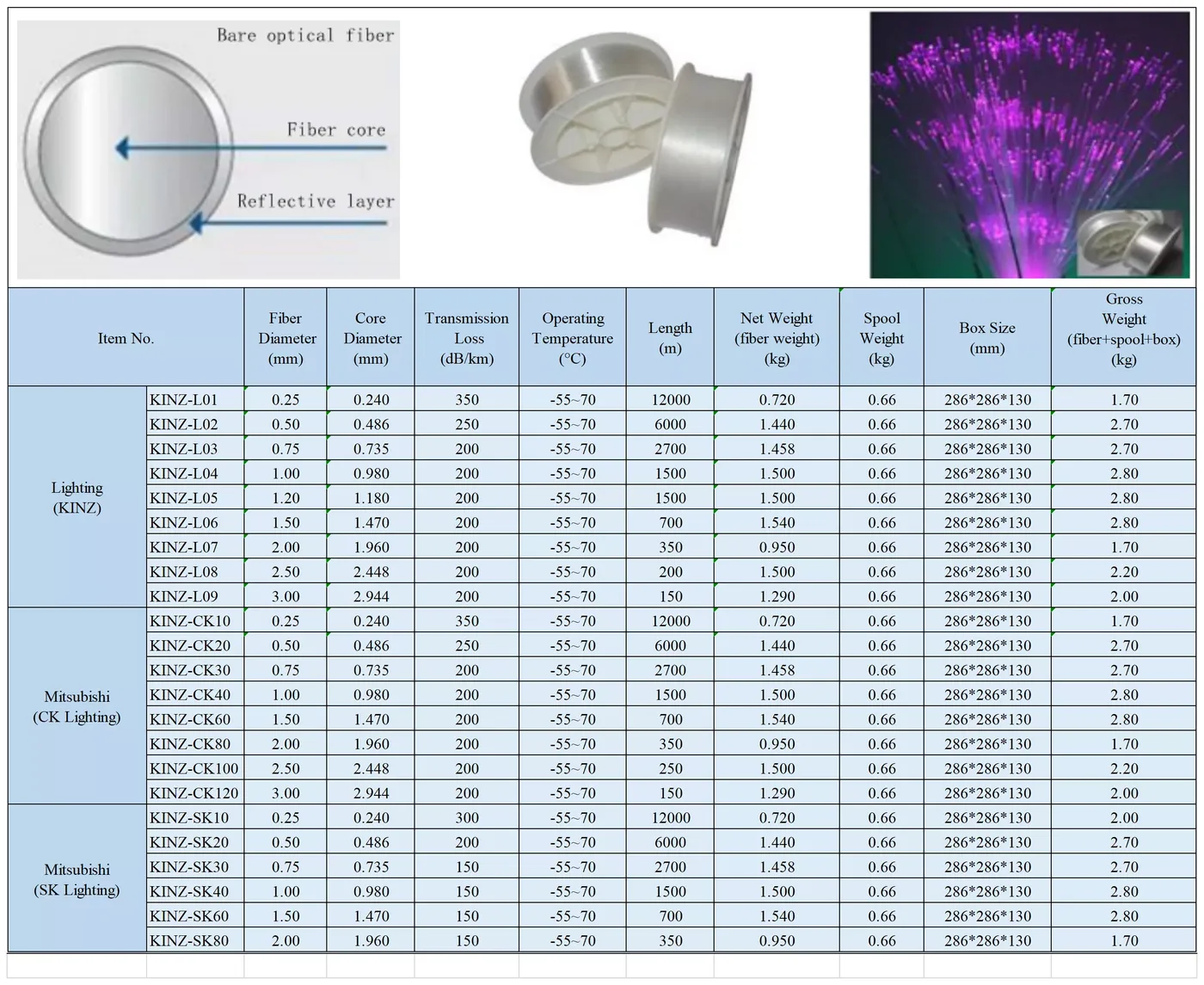

| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Fiber grade | SK80 (Mitsubishi ESKA SK lighting series) | – | Supplier SK family table. |
| Fiber diameter | 2.00 | mm | SK family table row SK80. |
| Core diameter | 1.960 | mm | SK family table. |
| Transmission loss | 150 | dB/km | At 650 nm, SK family table. |
| Numerical aperture (NA) | 0.5 | – | Family typical. |
| Core material | PMMA | – | Family structure data. |
| Core refractive index | 1.49 | – | Supplier sheet. |
| Cladding material | Fluorinated polymer | – | Family structure data. |
| Cladding refractive index | 1.363 | – | Supplier product-feature sheet. |
| Operating temperature | -55 ~ +70 | C | SK family table. |

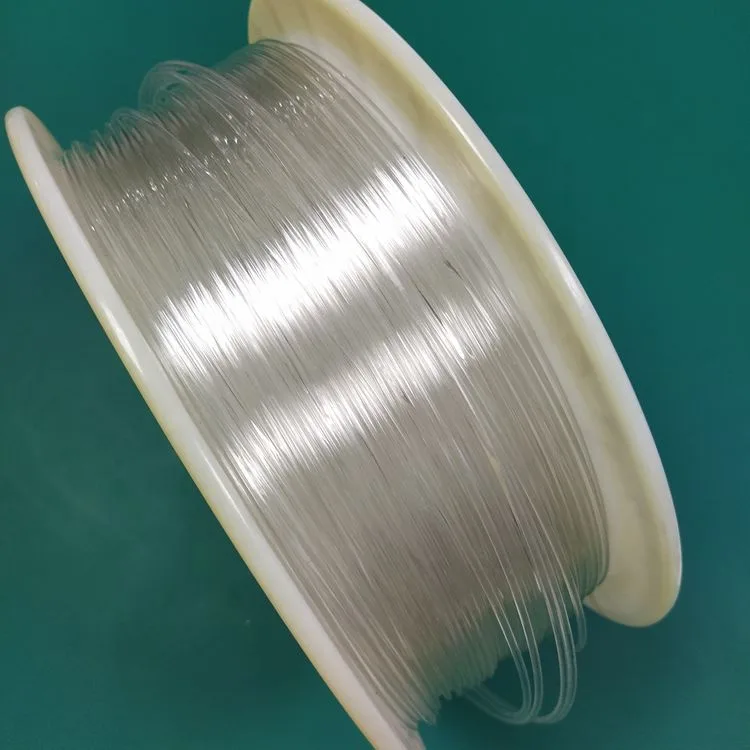

| Winding length | 350 | m/roll | SK family table row SK80. |
| Net fiber weight | 0.950 | kg | SK family table. |

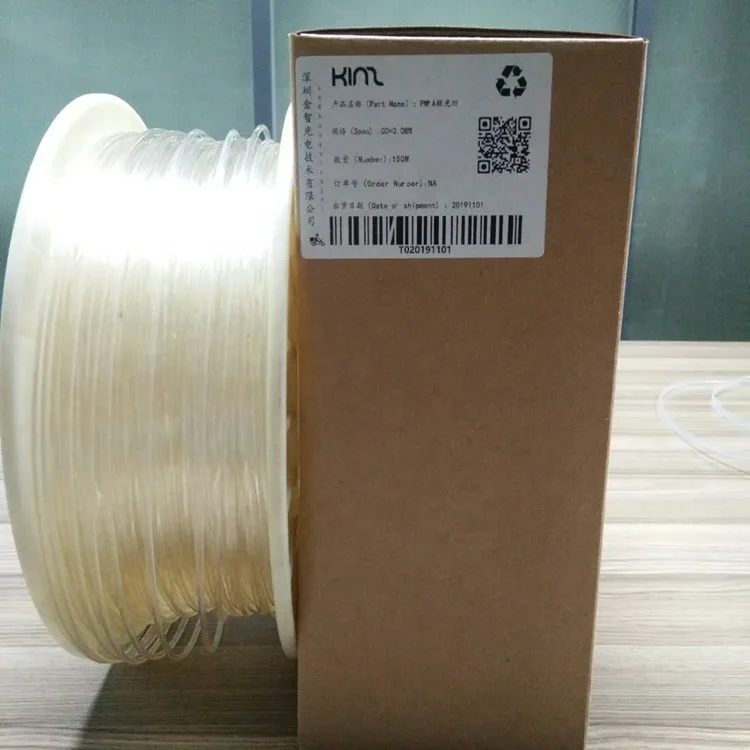

| Gross weight (fiber+spool+box) | 1.70 | kg | SK family table. |

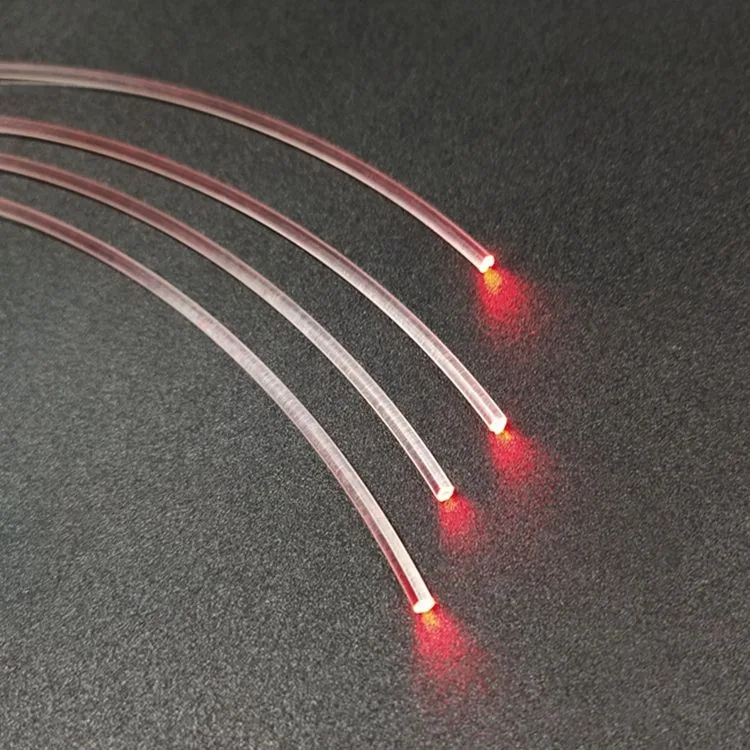

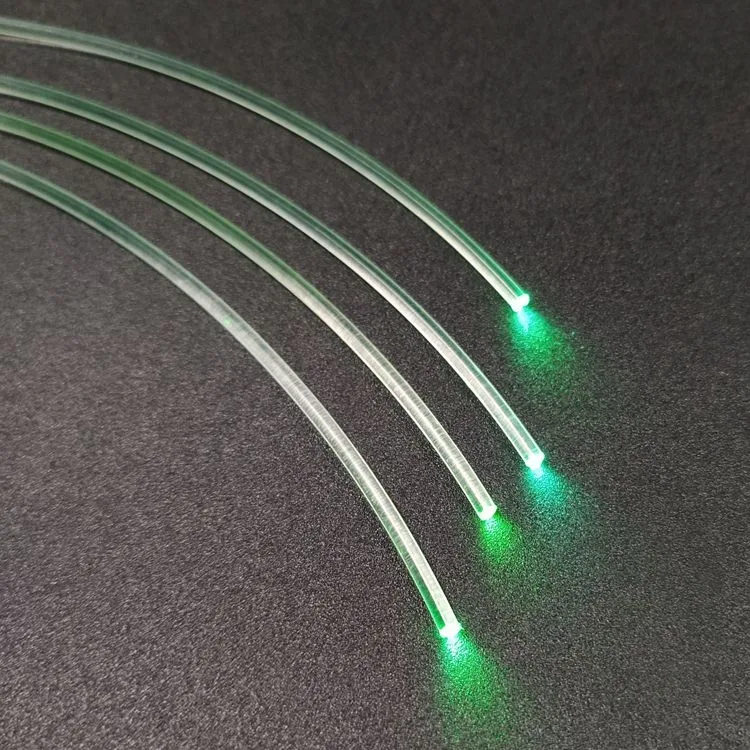

| Effect | End glow / side glow / sparkle | – | High-brightness decorative POF. |
Applications
Star ceilings, feature and ambient lighting, fiber curtains, and decorative end-point effects where a bright 2 mm point is wanted. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the length and illuminator interface. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
What does SK80 mean?
SK80 is the Mitsubishi ESKA SK decorative grade for 2.0 mm fiber: 1.960 mm core, 150 dB/km at 650 nm, 350 m roll per the supplier family table.
Why is the roll shorter?
The 2.0 mm fiber is thicker, so the spool holds 350 m vs 1,500 m for the 1.0 mm SK40.
Is it end or side glow?
The SK series is end-glow; side-glow/sparkle effects are options on the illuminator and tip finish, not a fiber rating.
Why Choose Us
We supply the SK decorative range by diameter and loss from the supplier family table and keep light-engine specs out of the fiber page. See the POF category, the FAQ page or the home page.
