Mitsubishi ESKA Premier GH2001/GH4001/GH4002 Data POF Cable
Mitsubishi Eska Premier GH data POF: GH2001 0.5mm, GH4001 1.0mm simplex, GH4002 1.0mm duplex, black PE jacket, -55 to 85 C, industrial and auto networks.
The Mitsubishi Eska Premier GH family is a heat-resistant step-index PMMA data-grade POF cable range for point-to-point and network links, rated to –55 ~ +85 °C. The range in this listing covers GH2001 (0.5 mm simplex, 1.0 mm jacket), GH4001 (1.0 mm simplex, 2.2 mm jacket) and GH4002 (1.0 mm duplex, 2.2 × 4.4 mm jacket). GH grade sits above the consumer SH grade and is aimed at automotive-network and industrial-control use where the higher 85 °C rating matters.
Product Overview
This product is part of our POF fiber optical cable range of step-index PMMA plastic optical fibers and jacketed cables. The values below are taken from the supplier grade table, structure sheet and listing; LED-illuminator parameters (color temperature, input voltage, IP rating) are deliberately excluded because they belong to the light source, not the fiber.
Key Features
- Mitsubishi Eska Premier GH data-grade step-index PMMA POF.
- GH2001 / GH4001 simplex and GH4002 duplex forms in black PE jacket.
- –55 ~ +85 °C heat-resistant rating for industrial and automotive use.
- 1.0 mm core (GH4001/GH4002) matches common POF data transceivers.
- Point-to-point and network links in noise-prone environments.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|

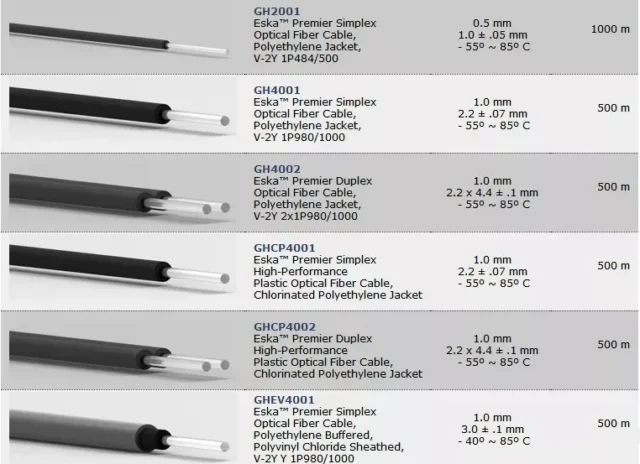

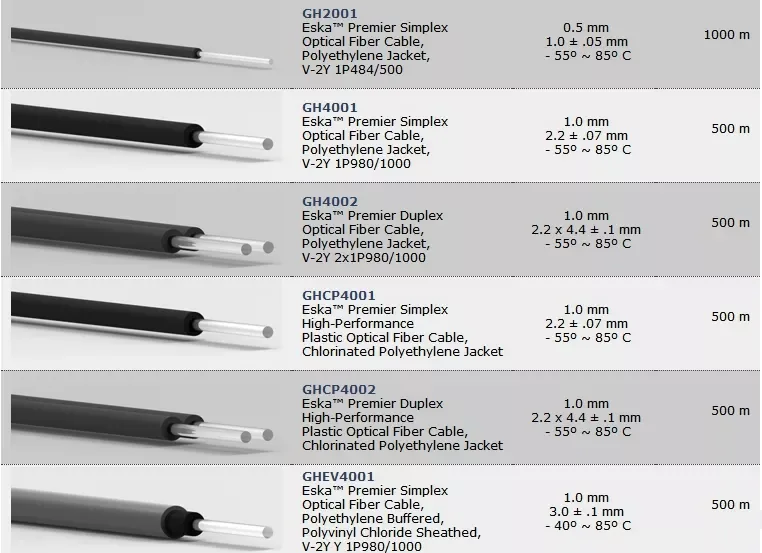

| Cable family | Mitsubishi Eska Premier (GH grade) data POF | – | GH cable list; heat-resistant grade. |
| GH2001 | 0.5 mm fiber, 1.0 +/-0.05 mm PE simplex jacket | – | V-2Y 1P484/500, 1000 m, -55~85 C. |
| GH4001 | 1.0 mm fiber, 2.2 +/-0.07 mm PE simplex jacket | – | V-2Y 1P980/1000, 500 m, -55~85 C. |
| GH4002 | 1.0 mm fiber, 2.2 x 4.4 +/-1 mm PE duplex jacket | – | V-2Y 2x1P980/1000, 500 m, -55~85 C. |
| Core material | PMMA (polymethyl methacrylate) | – | Mitsubishi ESKA structure. |
| Cladding material | Fluorinated polymer | – | Mitsubishi ESKA structure. |
| Refractive index profile | Step index | – | Mitsubishi ESKA structure. |
| Jacket material | Black polyethylene (PE) | – | GH list. |
| Operating temperature | -55 ~ +85 | C | GH grade (heat-resistant; SH grade is -55~70 C). |
| Typical reel length | 500 ~ 1000 | m | Per grade on GH list. |
Applications
Automotive network links, industrial control and monitoring, point-to-point data connections, and equipment interconnection where galvanic isolation matters. Browse the full POF fiber optical cable category for other diameters and jacket options.
Ordering and Customization
Tell us the exact GH grade (GH2001/GH4001/GH4002), length and any connector. Quote at sales@fevelectronics.com. More answers are on the FAQ page, and you can return to the home page.
FAQ
How is GH different from SH?
GH (Eska Premier) is the higher-temperature industrial/automotive grade rated to +85 °C; SH (Super ESKA) is the consumer-data grade rated to +70 °C. Cable forms parallel each other (e.g. SH4001/GH4001).
Which one is the duplex cable?

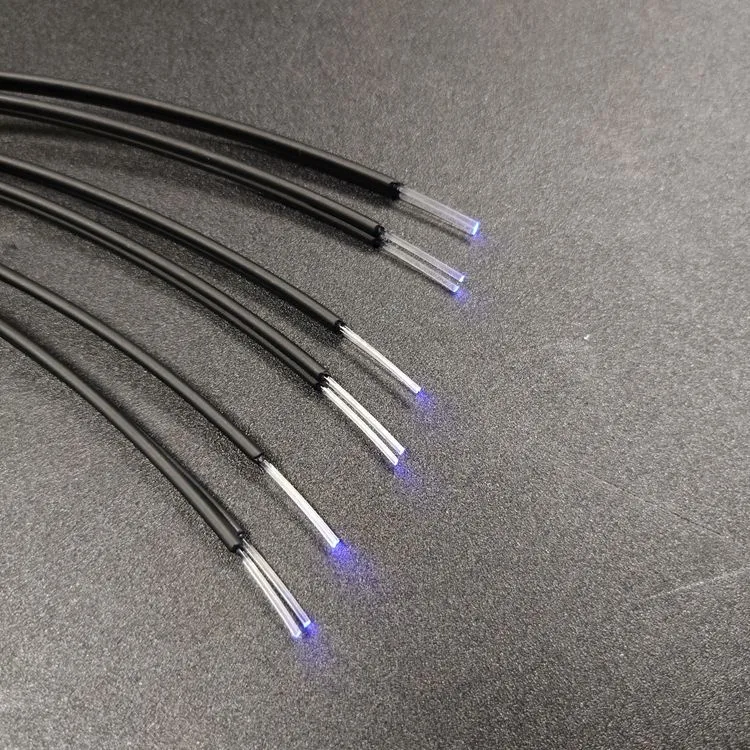

GH4002 is the duplex 1.0 mm cable in a 2.2×4.4 mm jacket; GH4001 is the simplex 1.0 mm / 2.2 mm version.
Is certification listed?
Supplier listings mention ISO9001/RoHS/CE manufacturing; no certificate copies are on file and we do not claim system-level compliance.
