Mitsubishi ESKA BH2001 / BH4001 Heat-Resistant POF Cable
Mitsubishi ESKA BH2001 (0.5mm) and BH4001 (1.0mm) heat-resistant PMMA POF with cross-linked PE jacket, -55 to +105 C, 250/200 dB/km.
The ESKA BH2001 and BH4001 are Mitsubishi’s heat-resistant jacketed PMMA POF cables, rated to −55…+105 °C with a cross-linked PE jacket. BH2001 uses a 0.5 mm fiber (0.95 mm OD) and BH4001 a 1.0 mm fiber (2.18 mm OD).
Product Overview
Standard PMMA POF jackets begin to soften at lower temperatures; the BH series uses a cross-linked polyethylene jacket specifically so the cable can survive the elevated ambient temperatures found near motors, lighting, industrial drives and automotive engine compartments.

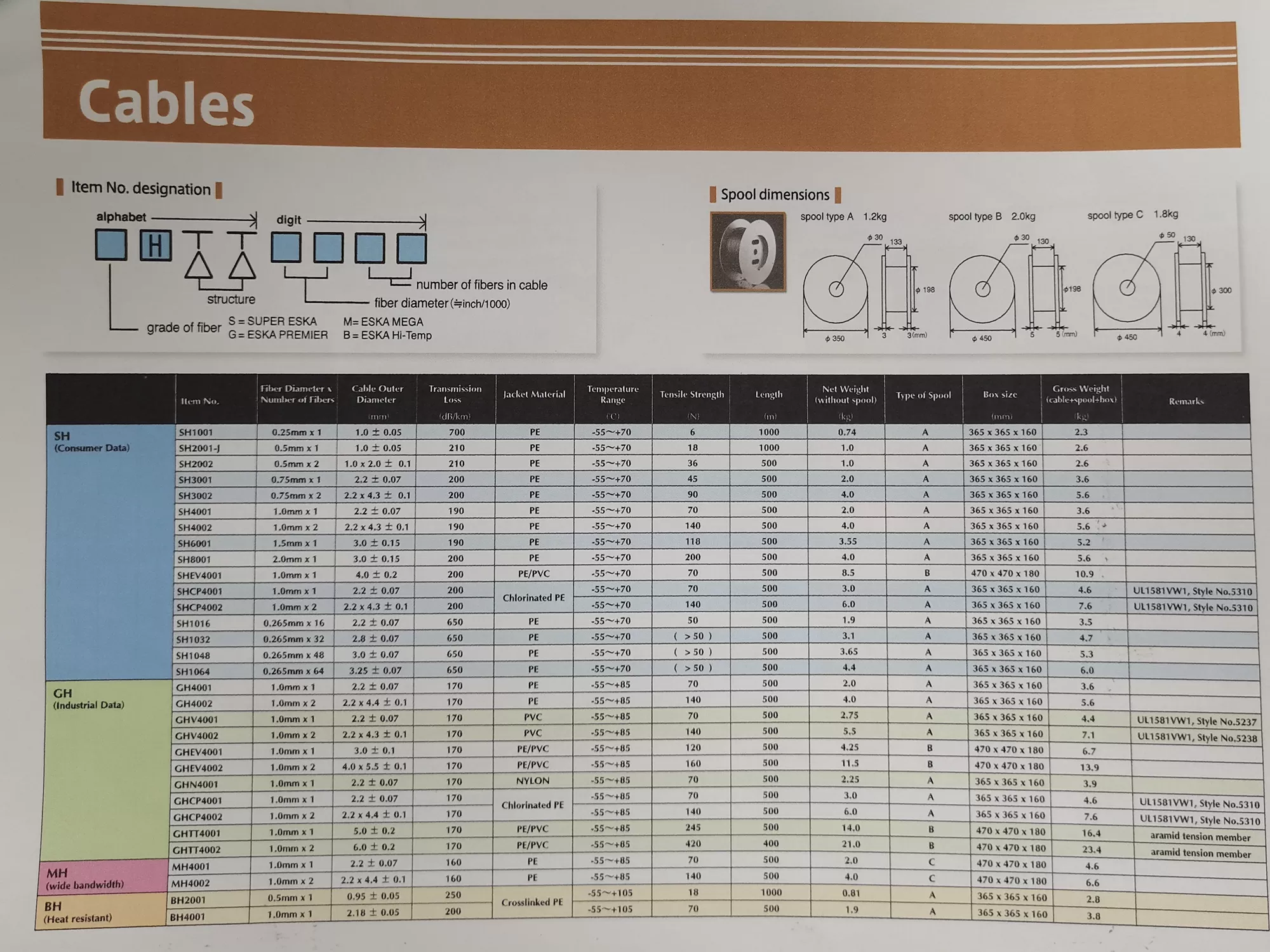

The catalogue lists BH2001 at 250 dB/km attenuation with an 18 N tensile rating on 1000 m drums, and BH4001 at 200 dB/km with a 70 N rating on 500 m drums. Both share the −55 to +105 °C operating range.
Key Features
- Cross-linked PE jacket rated to +105 °C.
- 0.5 mm (BH2001, 0.95 mm OD) or 1.0 mm (BH4001, 2.18 mm OD) PMMA core.
- 250 / 200 dB/km attenuation; 18 N / 70 N tensile.

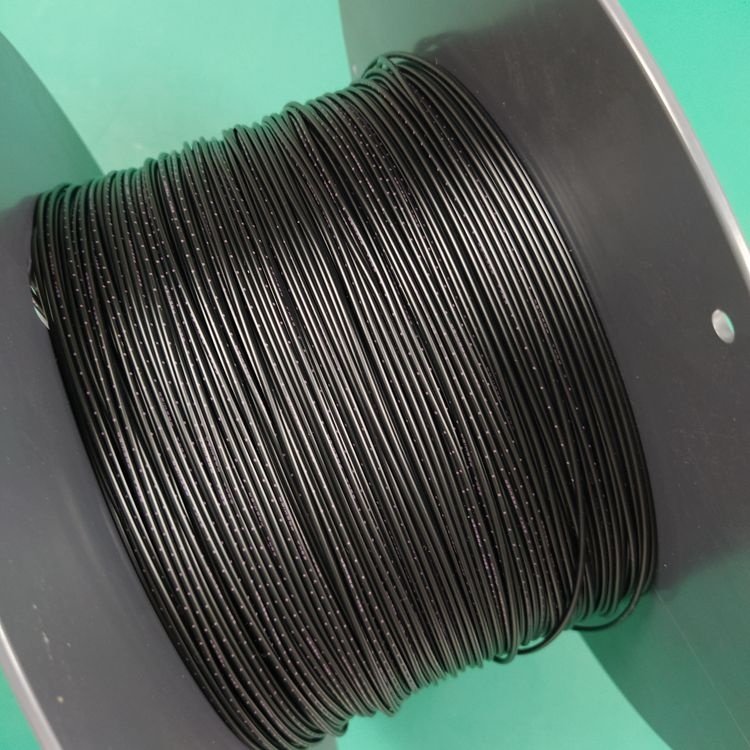

- 1000 m (BH2001) / 500 m (BH4001) drums.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Jacketed PMMA POF, heat-resistant grade | – | Cross-linked PE jacket; Mitsubishi ESKA BH series. |
| BH2001 fiber size | 0.50 | mm x1 | Single 0.5mm fiber. |
| BH2001 outer diameter | 0.95 ± 0.05 | mm | Jacket OD. |
| BH2001 attenuation | 250 | dB/km | Mitsubishi catalogue. |
| BH4001 fiber size | 1.00 | mm x1 | Single 1.0mm fiber. |
| BH4001 outer diameter | 2.18 ± 0.05 | mm | Jacket OD. |
| BH4001 attenuation | 200 | dB/km | Mitsubishi catalogue. |
| Jacket material | Cross-linked PE | – | Heat-resistant grade. |
| Core material | PMMA | – | ESKA family. |
| Operating temperature | -55 to +105 | °C | BH series heat-resistant range. |
| Tensile load | BH2001 18 N / BH4001 70 N | – | Mitsubishi catalogue. |
| Length per drum | BH2001 1000 m / BH4001 500 m | – | Mitsubishi catalogue. |
Applications
- Industrial drive and sensor links near heat sources.
- Automotive and under-hood / engine-area signal links.
- High-temperature factory automation and oven-adjacent runs.
- Lighting and stage where standard jacket POF would soften.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply BH2001 and BH4001 from stock and cut to length with POF connectors on request. Tell us grade, length and termination. Contact sales.
FAQ
Why use cross-linked PE instead of PVC jacket? Cross-linked PE keeps its strength at temperatures up to about 105 C, where a PVC jacket would soften. If your cable runs near motors, ovens or engine heat, the BH series is the right choice over a standard PVC-jacketed POF.
Why Choose Us
TOCP Fibercable supplies named Mitsubishi ESKA grades (BH/GH/LH) alongside generic jacketed PMMA POF. See the POF cable category, the home page, or the FAQ.
