Sumitomo DL-72 JIS F07 H-PCF Duplex Connector Kit, F07-DL72
Sumitomo DL-72 (F07-DL72) JIS F07 H-PCF duplex connector kit with housing, gold crimp, ferrule and boot, for Hitachi drilling and Omron SYSMAC.
A Sumitomo DL-72 (F07-DL72) JIS F07 H-PCF duplex connector kit, shown both as loose components and assembled, for Hitachi drilling machines and Omron SYSMAC systems.
Overview

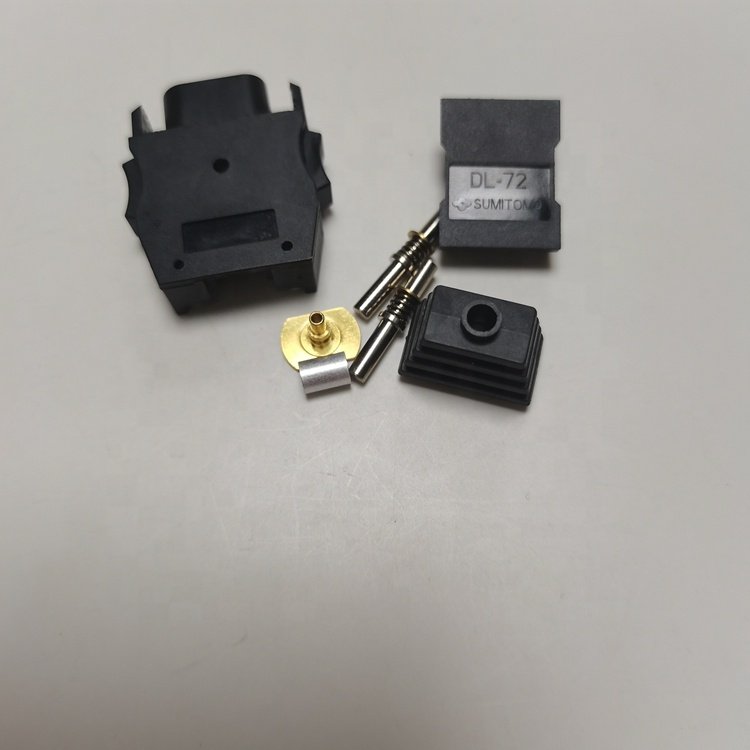

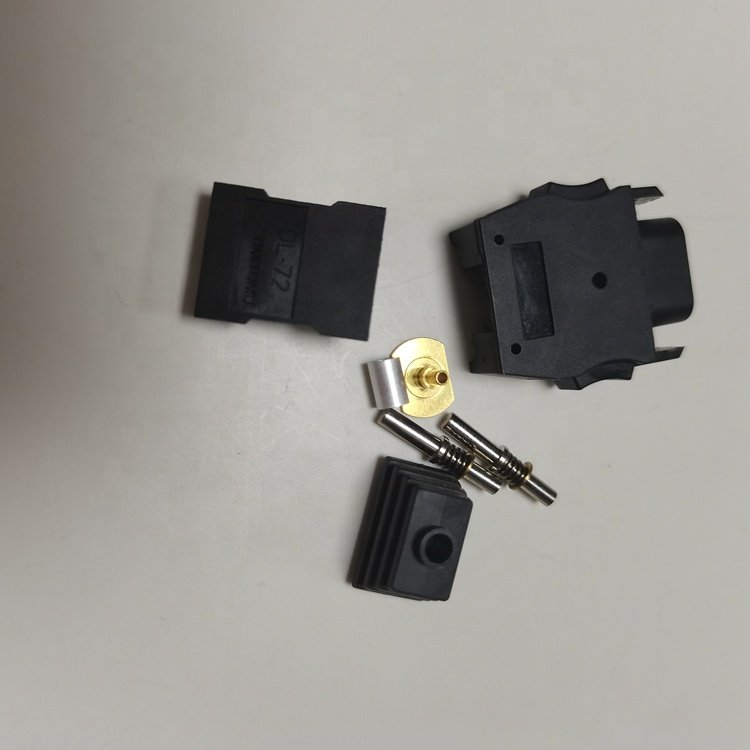

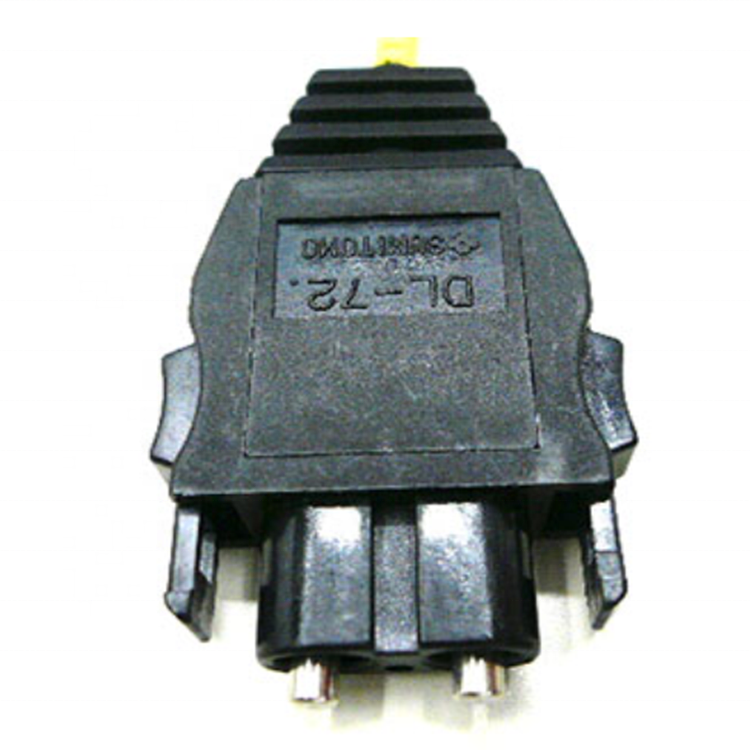

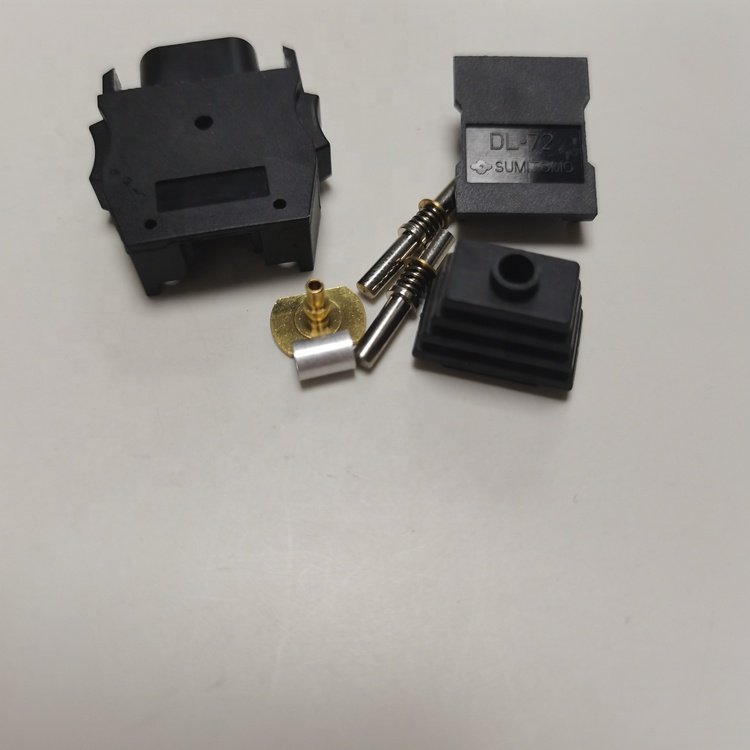

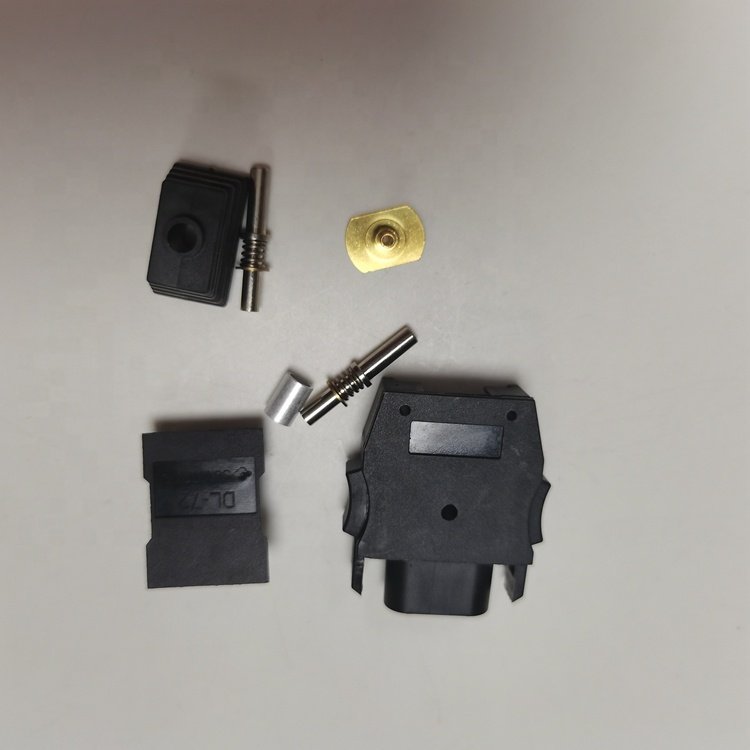

The DL-72 / F07-DL72 is the Sumitomo JIS F07 duplex H-PCF connector used in Hitachi drilling machine and Omron SYSMAC optical networks. The kit includes the outer housing, gold-plated crimp, ferrule pin and rear boot, shown exploded and assembled.
Features
- Sumitomo DL-72 / F07-DL72 JIS F07 duplex connector
- Complete kit: housing, gold crimp, ferrule, boot
- Shown exploded and fully assembled
- For Hitachi drilling and Omron SYSMAC H-PCF links
Specifications
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Connector | Sumitomo DL-72 (F07-DL72) | – | Per folder identity |
| Standard | JIS F07 | – | H-PCF duplex connector |
| Kit contents | Housing, gold-plated crimp, ferrule, boot | – | Per component photos |
| Target systems | Hitachi drilling machine; Omron SYSMAC | – | Per folder description |
Applications

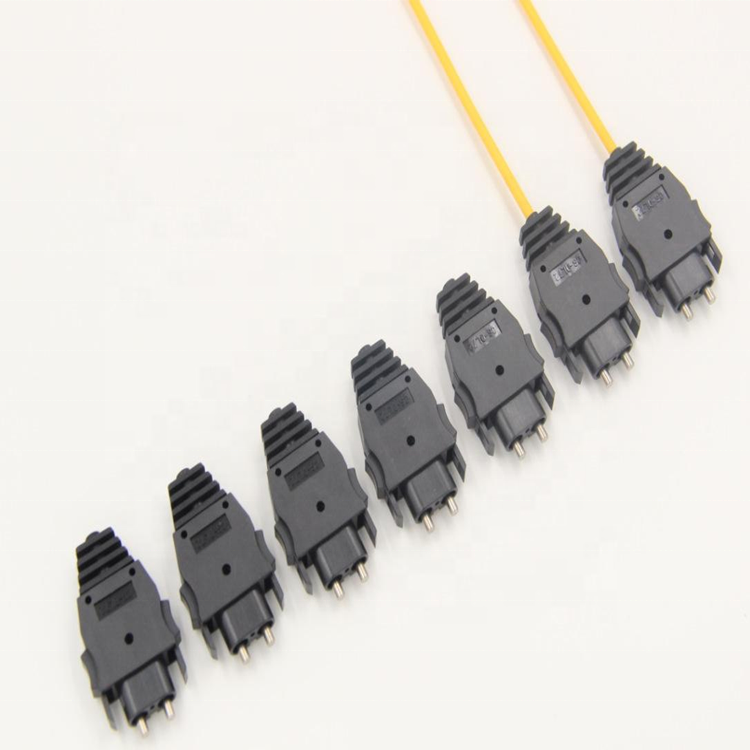

Hitachi drilling machine optical I/O and Omron SYSMAC controller H-PCF networks; field termination of Sumitomo H-PCF jumpers.
How to Order
Send us the required quantity and the fiber / cable to terminate. We supply the DL-72 F07-DL72 JIS F07 duplex connector kit as shown.
FAQ
How do I choose the right H-PCF / POF industrial jumper?
Match the connector family on your equipment (JIS F05/F07, Avago Versatile Link, F07-AMP or Toshiba TOCP), the fiber core (200/230 um H-PCF or 1.0 mm PMMA POF) and the required length. Send us the OEM cable part number and we will confirm compatibility.
Are these original OEM or replacement assemblies?
These are replacement industrial fiber assemblies built to match the OEM connector and fiber type shown. Original OEM markings visible on sample connectors are retained for identification; we do not claim OEM manufacturing or authorization.
