Black PE Simplex PMMA POF Communication Cable (1.0 mm Core)
Simplex black PE jacketed PMMA POF cable with 1.0mm step-index core, NA 0.5, for industrial communication links and sensor networks.

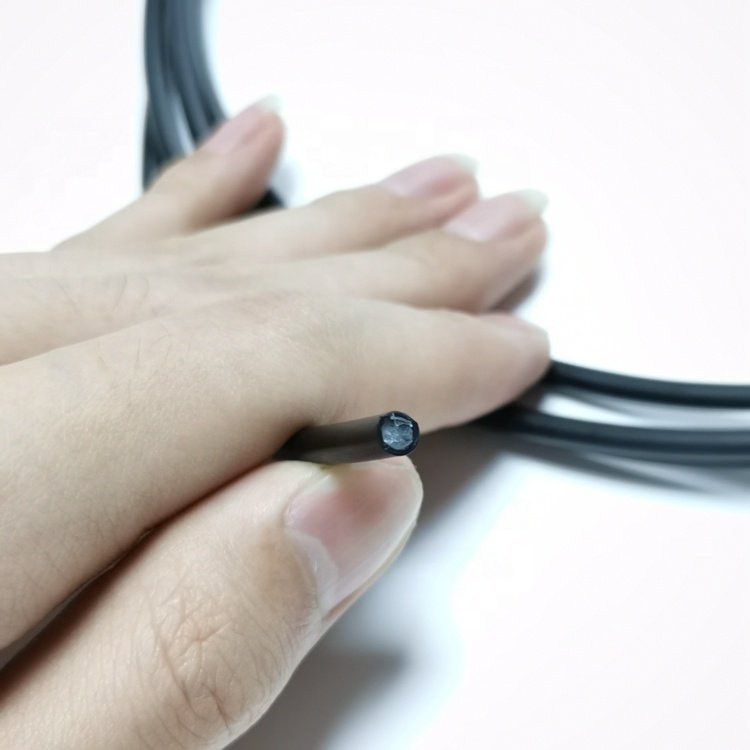

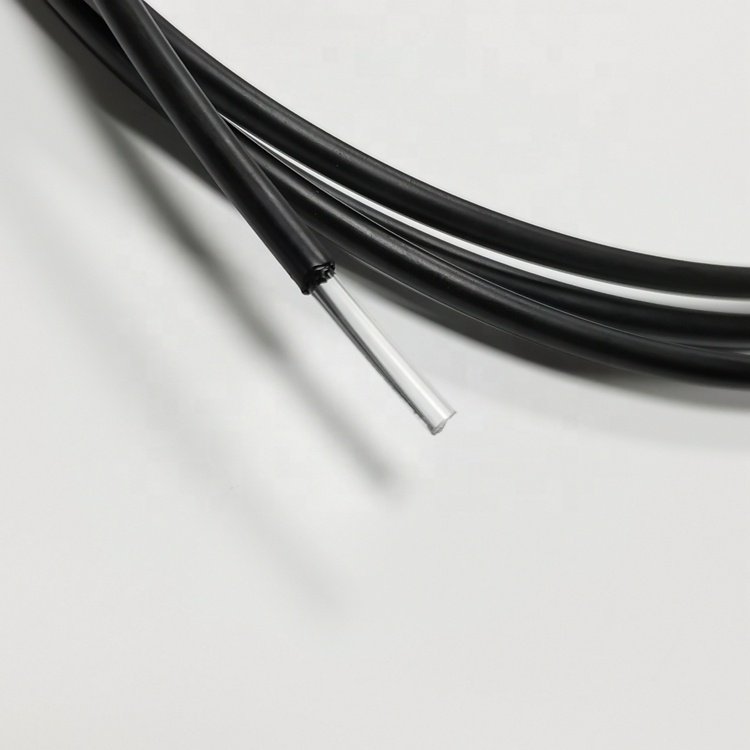

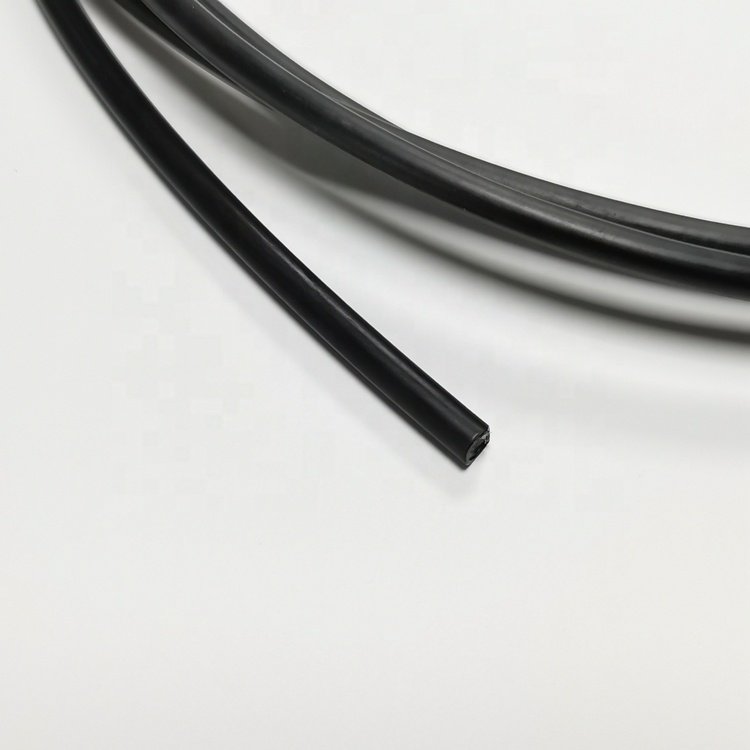

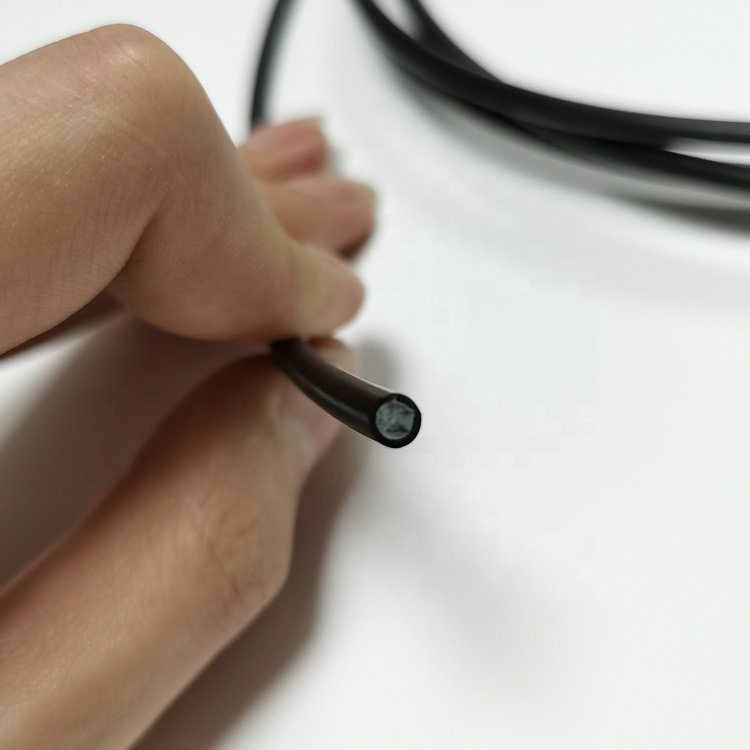

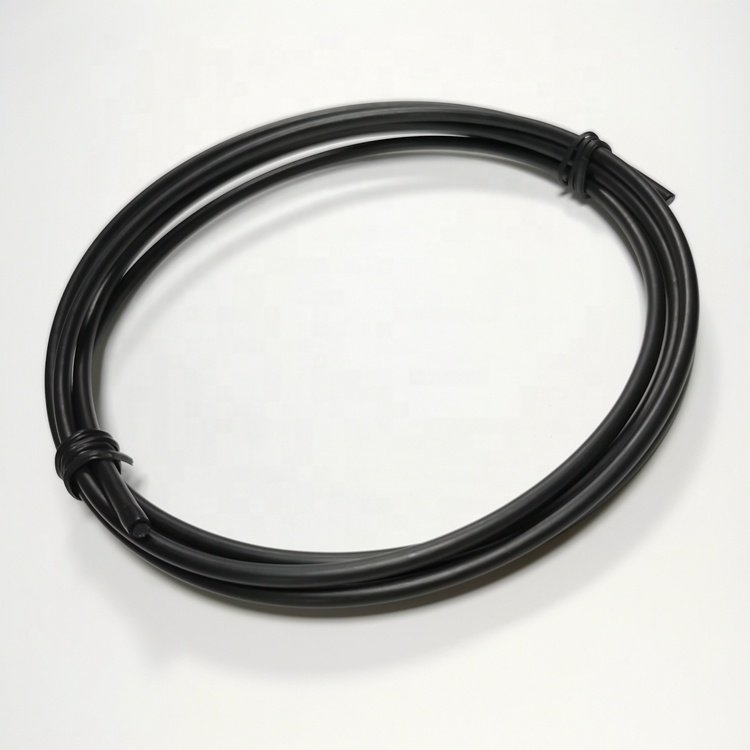

This is a simplex (single-fiber) black PE-jacketed PMMA POF communication cable built around the 1.0 mm CC2-1000X2 fiber. It is the standard single-fiber cable used for point-to-point industrial communication, sensor and control links.
Product Overview
A simplex cable carries one fiber, which is enough for many sensor and control applications where data travels one way or is paired with a second simplex cable for bidirectional traffic. The black polyethylene jacket is flexible, resistant to moisture and commonly used for indoor and outdoor light-industrial runs.

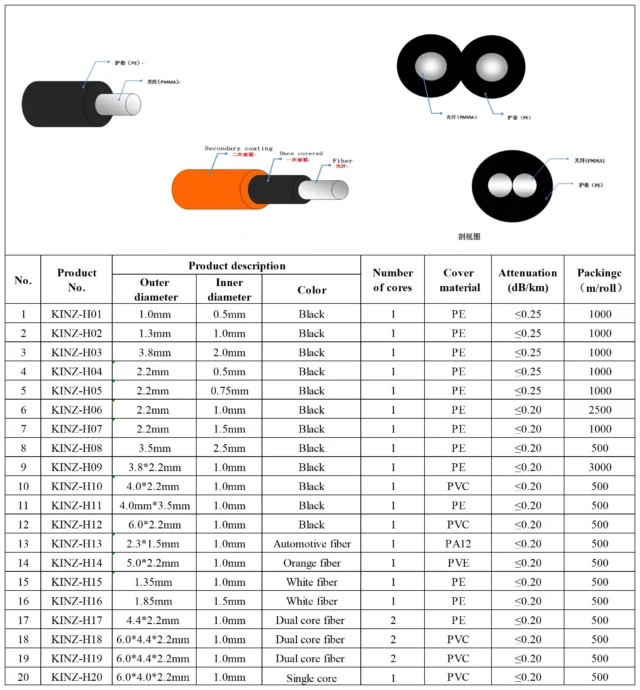

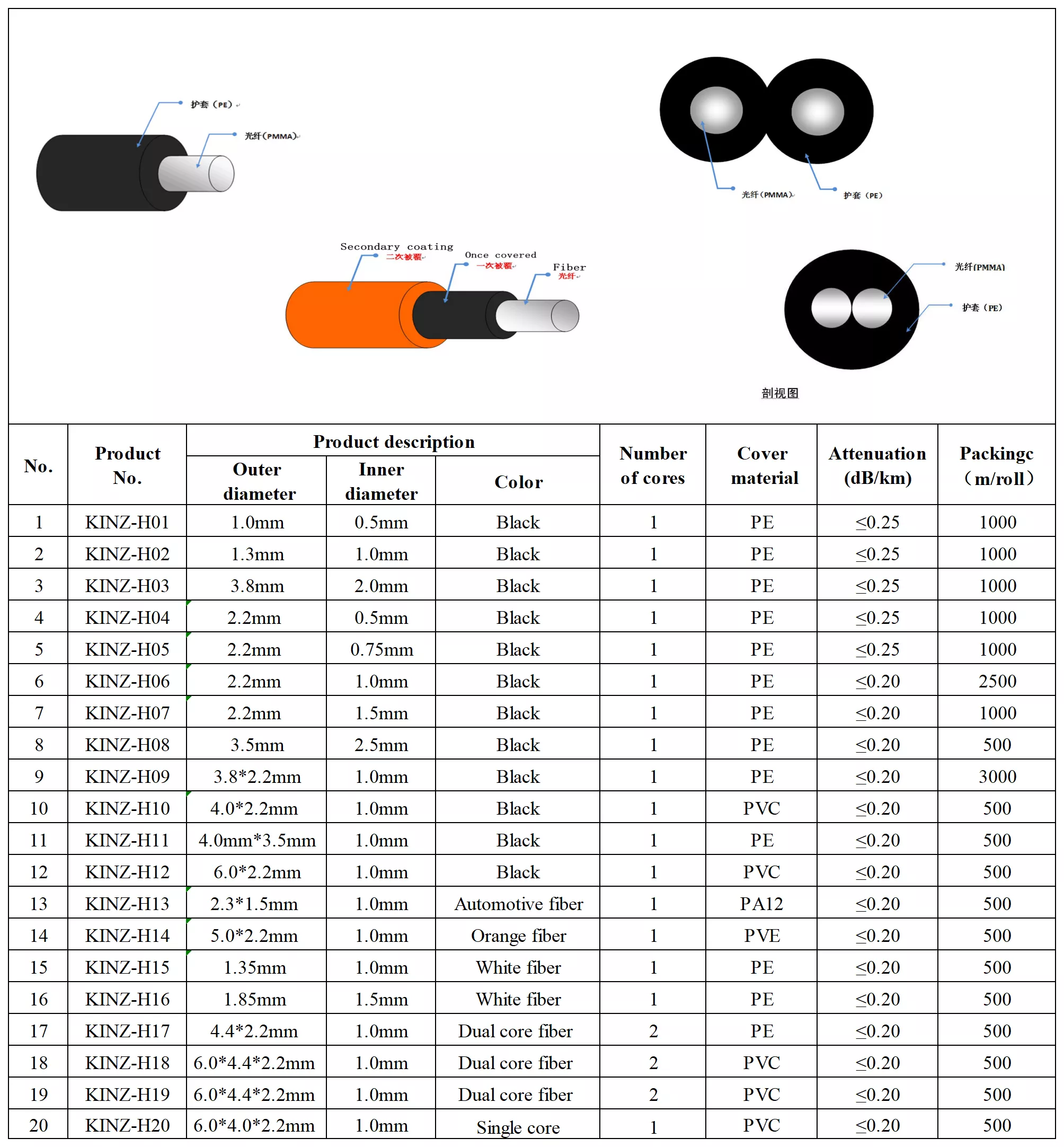

The optical parameters follow the CC2-1000X2 family: 980 ±60 µm PMMA core, 1000 ±60 µm fluoropolymer cladding, core RI 1.49 / cladding RI 1.41, NA 0.5, step-index. The supplier docx also mentions a 3.5 mm core / 4.5 mm outer description that does not match any family row and is flagged below.
Key Features
- Single 1.0 mm step-index PMMA fiber in a black PE jacket.
- NA 0.5, core RI 1.49 / cladding RI 1.41.
- Moisture-resistant PE jacket for indoor / light-outdoor use.
- Cut-to-length and POF connector termination on request.

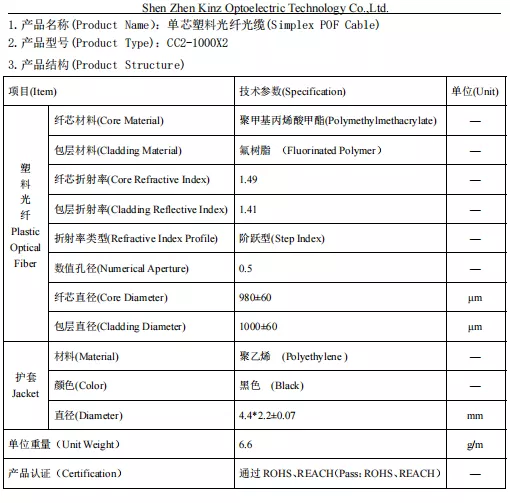

Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Simplex jacketed PMMA POF cable | – | Single 1.0mm fiber in black PE jacket; communication grade. |
| Core diameter | 1.0 (nominal) | mm | CC2-1000X2 family; 980 ±60 µm. |
| Cladding diameter | 1.0 (nominal) | mm | 1000 ±60 µm. |
| Core material | PMMA | – | CC2-1000X2 family. |
| Cladding material | Fluorinated polymer | – | CC2-1000X2 family. |
| Jacket material | Black PE | – | Polyethylene jacket. |
| Core refractive index | 1.49 | – | CC2-1000X2. |
| Cladding refractive index | 1.41 | – | CC2-1000X2. |
| Numerical aperture (NA) | 0.5 | – | CC2-1000X2. |
| Refractive index profile | Step index | – | CC2-1000X2. |
| Jacket color | Black | – | Supplier listing. |
| Compliance | RoHS / REACH | – | Supplier-stated. |
Applications
- Industrial point-to-point sensor and control links.
- Half-duplex links paired with a second simplex cable.
- Noise-immune data runs near motors and VFDs.
- Building automation and lighting control.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply this cable by the drum and cut to length with standard POF connectors on request. Tell us length and connector type. Contact sales.
FAQ
How is simplex different from the dual-core version? Simplex contains one fiber. If you need bidirectional traffic between two nodes, you can either run two simplex cables or use the dual-core figure-8 version. Simplex is cheaper and simpler for one-way links.
