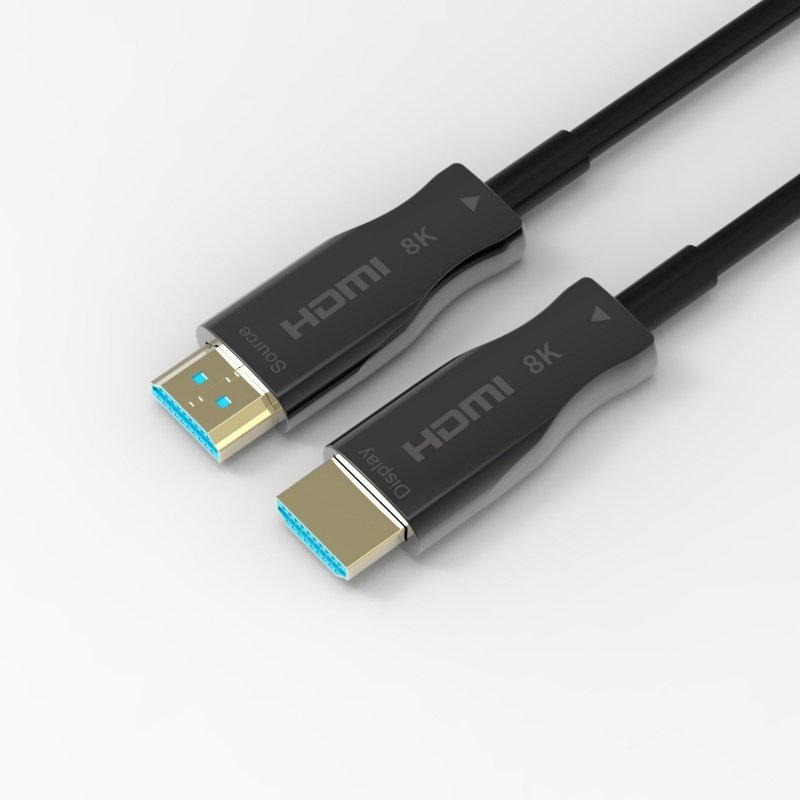

Black Close-Up 8K HDMI 2.1 Active Optical Cable
The Black Close-Up 8K HDMI 2.1 Active Optical Cable is a directional HDMI 2.1 active optical cable engineered to push 8K and high-refresh video far beyond the reach of passive copper HDMI. Its visual identity comes from black close-up connector housings that clearly separate source and display ends, while active optical modules at both ends move the video stream over a slender fiber core. It is aimed at integrators, AV rental houses and OEM buyers who need a low-bulk, EMI-resistant 8K link from rack to display.
This long-run fiber HDMI link is part of our HDMI active optical cable family from TOCP Fiber. Looking for a related shell? See the Black Curved HDMI Active Optical Cable or the Black Molded 4K HDMI Active Optical Cable for comparison.
Product Overview
Built as a hybrid optical assembly, this cable keeps the sensitive high-speed video pairs on fiber while a small copper line carries power and auxiliary signals to the active modules. The connector shell follows black close-up connector housings that clearly separate source and display ends, and the two ends are clearly marked so installers can seat the source plug in the source device and the display plug in the screen. Because the jacket is based on fiber rather than thick copper, the cable stays flexible, thin and easy to dress along trusses, in ceilings and through conduit. Product artwork positions the series as 8K HDMI 2.1, with validated SKUs reaching 48Gbps, 8K at 60Hz and 4K at high refresh; the exact rating always depends on the ordered version.
Key Features
- Black close-up connector housings that clearly separate source and display ends
- Directional HDMI Type-A source connector to HDMI Type-A display connector, with ends clearly labeled
- Hybrid optical signal path: fiber for the high-speed data pairs, copper for power and auxiliary lines
- Active optical modules at both ends for low-loss, long-distance transmission
- High immunity to electromagnetic and RF interference along the fiber section
- Light, thin jacket that is far easier to pull and dress than long copper HDMI
- Multiple connector-shell profiles and colors available for catalogue separation
- Validated HDMI 2.1 SKUs support 48Gbps, 8K@60Hz and 4K high-refresh output
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Cable type | Active Optical HDMI (hybrid fiber + copper) | Fiber core for TMDS, copper for power/DDC |
| Connectors | Directional HDMI Type-A source to HDMI Type-A display | Source and display ends are marked |
| Video support | 8K@60Hz / 4K high-refresh (validated HDMI 2.1 SKU) | Depends on validated SKU and devices |
| Bandwidth | Up to 48Gbps on qualified versions | Confirm version before publishing numbers |
| Transmission | Optical fiber high-speed pairs | Immune to EMI/RFI on the fiber section |
| Directionality | One-way source to display | Install orientation must be observed |
| Jacket | Flexible black outer jacket (braided on select shells) | Thinner and lighter than long copper |
| Length | Custom OEM lengths available | Quote required project distance |
Applications
- Gaming rooms
- Home theater
- Commercial av
- Digital signage
- Control and visualization rooms
Performance & Reliability
The active modules reshape the HDMI signal optically, so image quality stays consistent over long runs without the bandwidth roll-off seen on long copper cables. 8K, 48Gbps and high-refresh results are only guaranteed when the source, display and the ordered cable version all meet the same validated configuration.
Customization & Ordering
As a manufacturer-built assembly, this cable supports OEM and ODM programs: custom lengths, connector-shell colors and print branding can be specified for project and catalogue orders. Send your required distance, connector orientation and shell style to sales@fevelectronics.com for a quotation, and consult our range of active optical HDMI cables for related shell options.
FAQ
Q: Does this cable support true 8K@60Hz?
A: The 8K HDMI 2.1 versions are designed for 8K@60Hz and up to 48Gbps, but the result depends on using the validated SKU together with compatible source and display devices. Confirm the ordered version before quoting a job.
Q: Why is the cable directional?
A: Active optical cables carry the signal one way, with a source module and a display module. The ends are marked; plug the source side into your source device and the display side into the screen.
Q: How far can an HDMI AOC run?
A: Active optical HDMI is built for long runs well beyond copper limits. The exact maximum distance is set by the ordered active-module version and resolution, so send us your project distance for a matched SKU.
Why Choose Us
Choosing this Black Close-Up 8K HDMI 2.1 Active Optical Cable gives AV integrators and private-label buyers a differentiated, long-run HDMI link with a recognizable connector design and reliable optical delivery. For more options, browse the HDMI AOC product category, read our fiber optic cable FAQs, or return to the TOCP Fiber homepage. To start an OEM or volume order, email sales@fevelectronics.com.
