Automotive MOST Fiber Optic Connector Housing and Contacts
Automotive MOST Fiber Optic Connector Housing and Contacts. High-quality industrial fiber optic cable. OEM/ODM from Changzhou Jinshang.
The Automotive MOST Fiber Optic Connector Housing and Contacts is a keyed two-channel MOST automotive optical termination used to build, repair, or replace in-vehicle MOST network links. Supplied as housings, inserts, and metal optical contact components, it lets cable makers and service workshops source the exact mechanical parts needed to finish a MOST cable on their own line.
Product Overview
Designed for MOST harness assembly, vehicle optical network repair, and connector prototyping, this component set shows the housing, internal insert, and metal optical contact (ferrule/bore) arrangement buyers must discuss with their assembly supplier. Alternative shells, jackets, colors, ferrules, and protection shown in the photography represent selectable configurations rather than parts that ship together in one kit.
Key Features

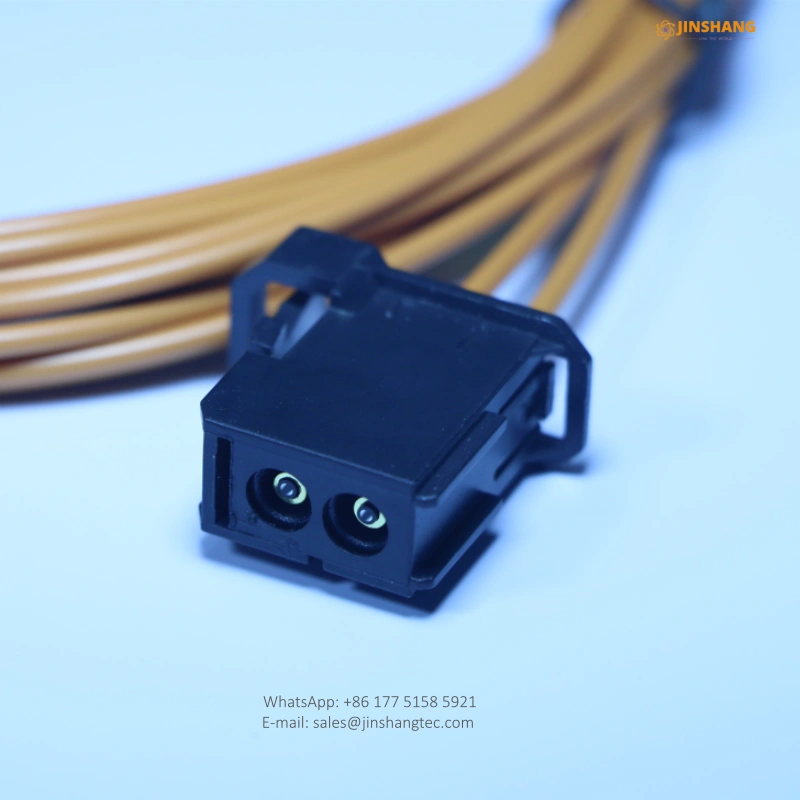

- Keyed two-channel MOST automotive optical connector geometry
- Visible connector housings, inserts, and metal optical contact components
- Component format suited to cable termination or assembly production
- Configuration-dependent strain relief and protective boot options
- Visual variants support part identification and project matching
- Passive mechanical termination for vehicle optical ports
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Connector type | Keyed MOST automotive optical plug / housing | Model-specific keying |
| Channels | 2 (dual-channel) | Rx/Tx pair per MOST ring node |
| Fiber | PMMA plastic optical fiber (POF) | Confirm diameter before termination |
| Termination process | Crimp or adhesive | Match to assembly tooling |
| Strain relief | Selectable boot / loom | Per approved drawing |
| Format | Bulk component / housing kit | Finished cable qualified as a whole |
Applications
- Automotive cable production and MOST harness assembly
- Infotainment system service and connector replacement
- Repair of damaged connector housings
- Connector prototyping and retrofit programs
Performance & Reliability
Coupling performance is governed by dimensional fit, fiber preparation, ferrule or bore alignment, end-face quality, retention, and strain relief. Contamination, poor polishing, an incorrect fiber size, or an unmatched mating receptacle can raise insertion loss or prevent a repeatable connection. Always qualify the housing as part of the complete finished cable rather than judging it in isolation.
Customization & Ordering
As a fiber optic cable manufacturer we supply OEM/ODM MOST termination components and finished assemblies with configurable length, jacket, labeling, and protective routing. Confirm fiber diameter, polishing or cleaving method, crimp or adhesive process, mating receptacle, and required tools in your RFQ. Send drawings and target equipment to sales@fevelectronics.com for a quote.
FAQ
Q: Is this housing compatible with every MOST port?
A: No. MOST connectors are model-keyed. Verify the vehicle/equipment port geometry, fiber diameter, and mating receptacle against an approved drawing before ordering; color alone does not determine fitment.
Q: Do I buy just the housing or a finished cable?
A: Both are available. The component set is for your own termination line; we also supply the complete MOST fiber optic cable assembly ready to install.
Q: What raises optical loss at this connector?
A: Contaminated or poorly prepared end faces, wrong fiber size, misaligned ferrule, and unmatched housings. Clean and seat the optical face and confirm retention before commissioning.
Why Choose Us
Changzhou Jinshang Electronic Technology Co., Ltd. builds automotive MOST optical cable and termination components for OEMs and service networks worldwide. Browse the full MOST fiber jumper cable range, review common questions on our fiber optic cable FAQs page, or contact sales@fevelectronics.com with your drawing. You may also compare the inline variant, the OM003 inline MOST connector housing.
