AOC Active Optic Fiber HDMI Cable2.1 8K4K Hybrid Optic Cable anti-EMI RFI eARC HDR
AOC HDMI 2.1 active optical cable, 48Gbps, 8K@60Hz 4K@120Hz, anti-EMI/RFI, hybrid fiber-copper, up to 100m, HDR eARC HDCP 2.3. OEM/ODM from Changzhou Jinshang.
AOC Active Optic Fiber HDMI Cable 2.1 8K 4K Hybrid Optic Cable anti-EMI RFI eARC HDR
Changzhou Jinshang Electronic Technology’s AOC Active Optical HDMI 2.1 cable delivers high-performance audio/video transmission with superior anti-EMI/RFI immunity. With 48Gbps bandwidth, this cable supports 8K@60Hz and 4K@120Hz resolutions with HDR and eARC. The hybrid fiber-copper design combines fiber optics for high-speed video data with copper for power and control signals, ensuring stable transmission over long distances up to 100 meters.
Key Features
- HDMI 2.1 Certified – Full HDMI 2.1 specification with 48Gbps bandwidth
- 8K & 4K Support – 8K@60Hz, 4K@120Hz, 10K resolution support
- 48Gbps Bandwidth – Uncompressed high-definition audio and video transmission
- Hybrid AOC Design – Fiber for video data + copper for power/HDCP/EDID
- Long Distance – Up to 100 meters without signal loss or repeaters
- HDR & eARC – High Dynamic Range with enhanced Audio Return Channel
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference
- Durable Construction – High-quality connectors and cable for long service life
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Bandwidth | 48Gbps |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Refresh Rate | Up to 120Hz @4K, 60Hz @8K |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Connector Type | HDMI Type A (Standard) male to male |
| Max Length | Up to 100 meters |
| HDR Support | HDR10, Dolby Vision, 10-bit/12-bit color |
| HDCP | HDCP 2.3 compliant |
| Audio Support | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| Operating Temperature | 0°C to 70°C |
| Jacket Material | PVC / LSZH (optional) |
| Customization | Length, connector type, jacket color, logo |
Applications
- Home Theater & AV – 8K TVs, projectors, soundbars, AV receivers
- Professional AV – Conference rooms, classrooms, auditoriums, control rooms
- Digital Signage – Video walls, retail displays, commercial installations
- Gaming & Esports – High-refresh gaming monitors and consoles
- Broadcast & Studio – Studio monitors, video production, live events
- Education & Corporate – Boardrooms, training centers, presentation systems
- Medical Imaging – High-resolution medical displays and imaging systems
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!
More Pictures and Images of AOC ACTIVE OPTIC FIBER HDMI CABLES

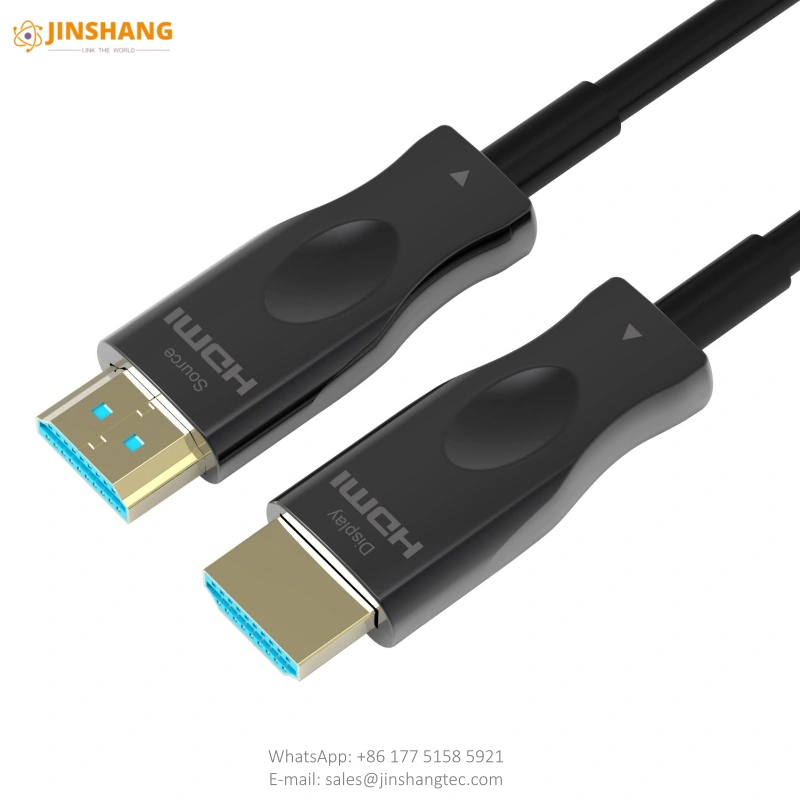

HDMI AOC Cable, 8K, 48G 2.1V Plenum EMI EMC qualified

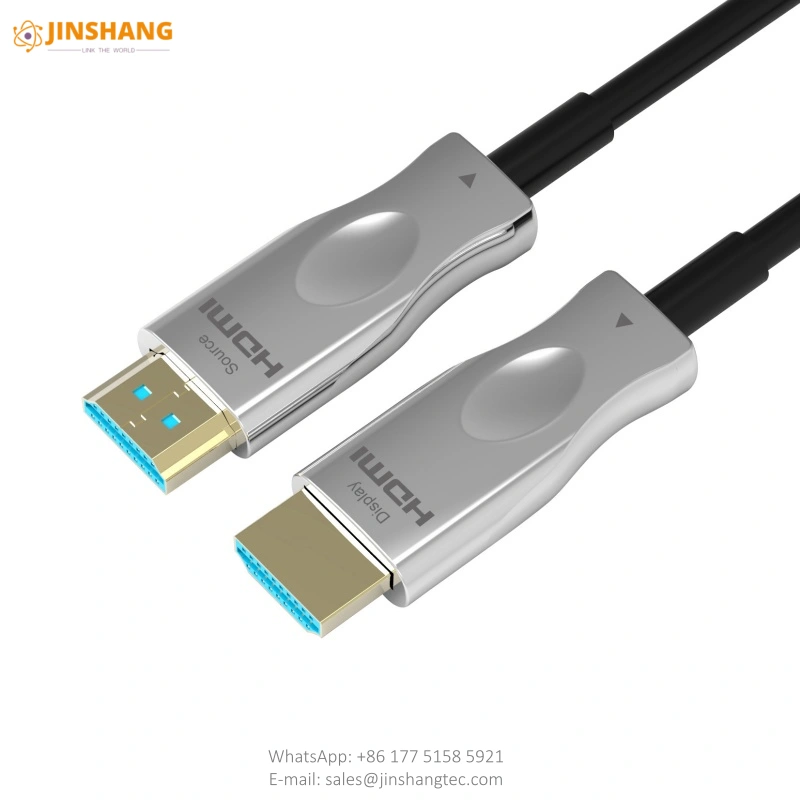

Armoured AOC HDMI Cable Active Fiber support eARC HDR 8K 2.1V

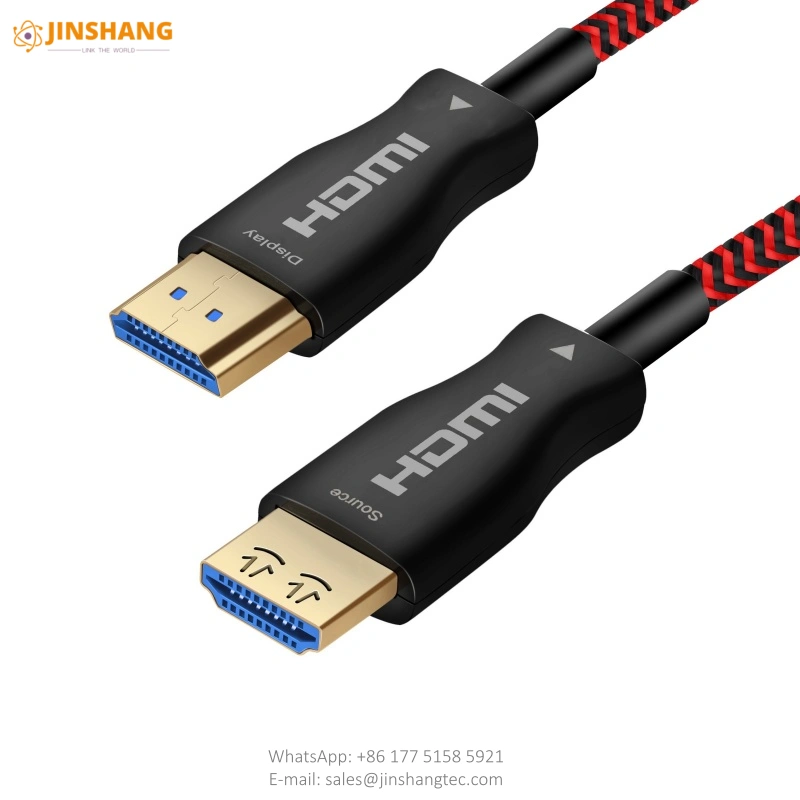

AOC Active Optical HDMI Cable 8K 2.1 48Gbps HDR eARC EMI EMC complianced

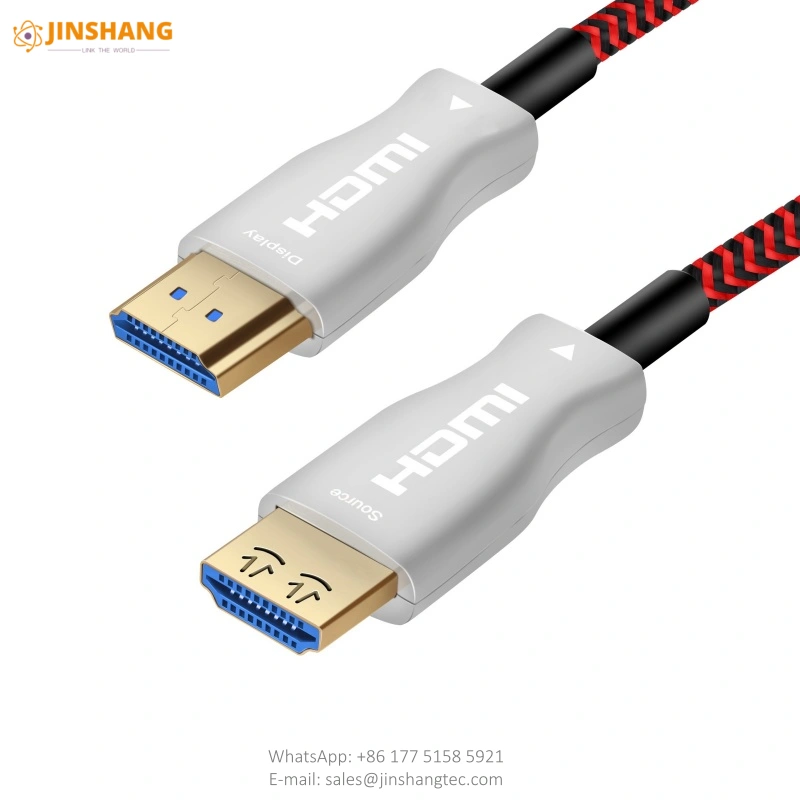

AOC Active Optic HDMI Cable 8K 4K 48G Ultra HD Metal Shell with nylon braided

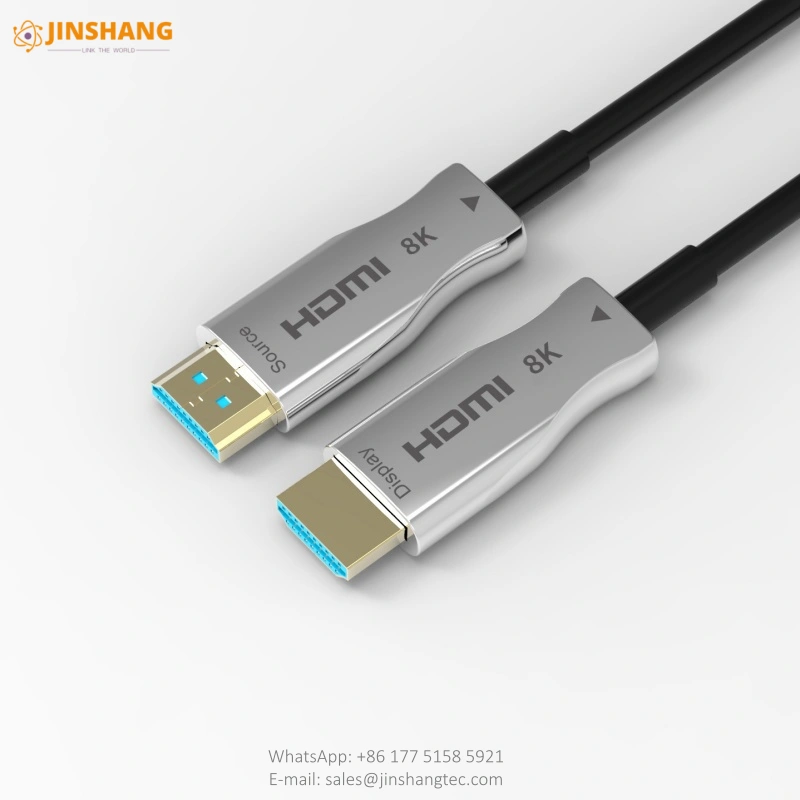

AOC Active Optic Fiber HDMI Cable2.1 8K4K Hybrid Optic Cable anti-EMI RFI eARC HDR

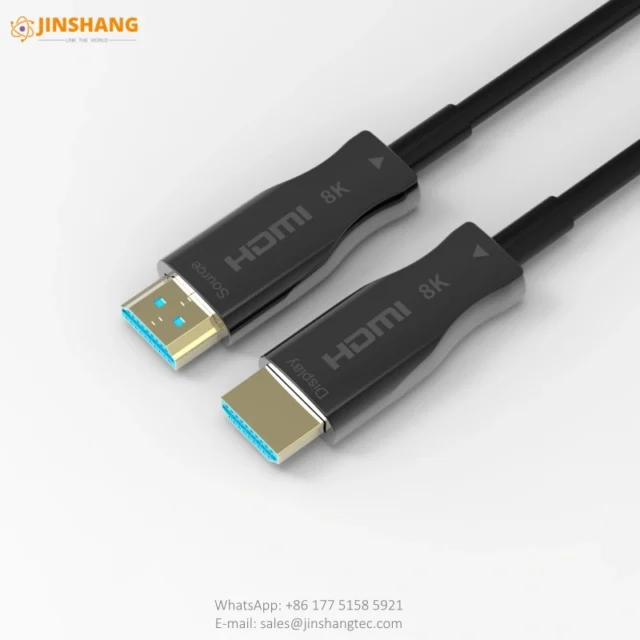

Active Optic HDMI Cable 2.1 8K 4K AOC Hybrid Cable

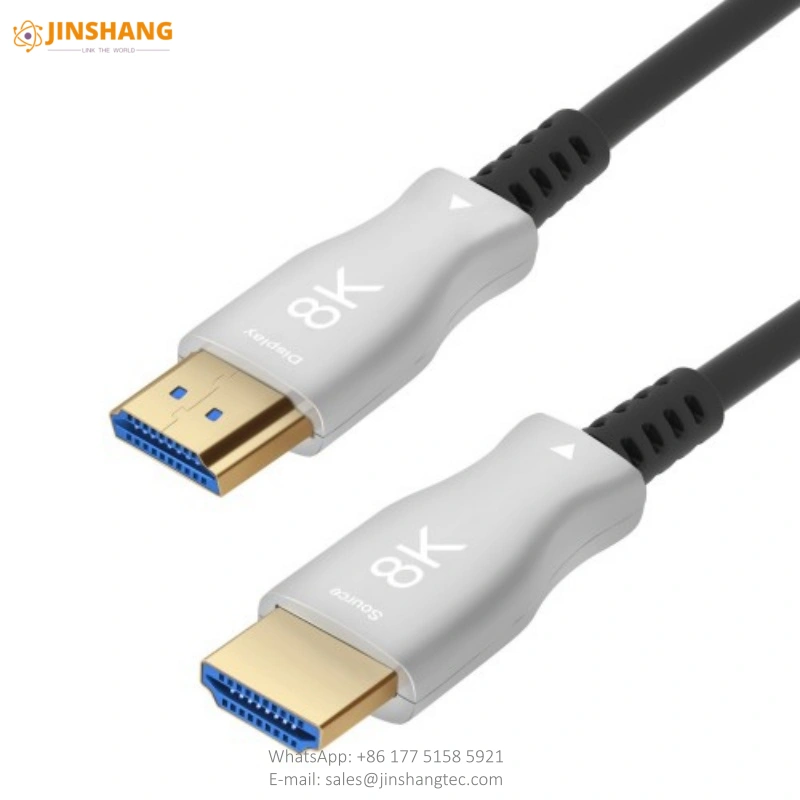

Active Optic Fiber Cable eARC HDR AOC HDMI Cable 8K 48Gbps
