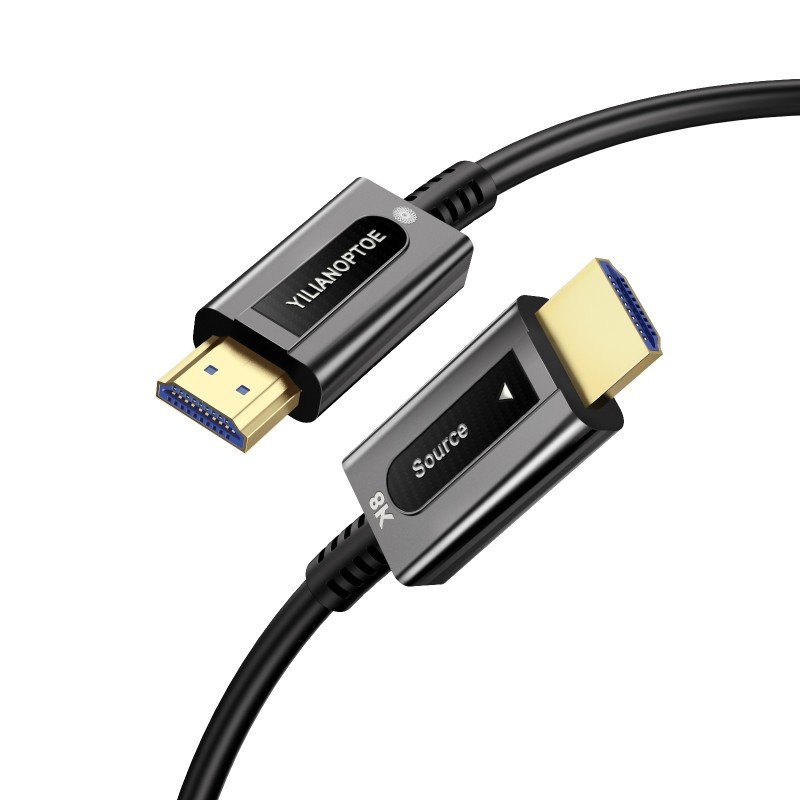

Hybrid Active Optical HDMI Cable (AOC) with Replaceable Connector Easy for Maintenance
Changzhou Jinshang Electronic Technology’s Replaceable Connector AOC HDMI cable features an innovative design with replaceable connector heads for easy maintenance and installation. With HDMI 2.1 specification and 48Gbps bandwidth, this cable supports 8K@60Hz and 4K@120Hz resolutions. The replaceable connector design allows damaged connectors to be easily replaced without replacing the entire cable, reducing maintenance costs and downtime.
Key Features
- HDMI 2.1 Certified – Full HDMI 2.1 specification with 48Gbps bandwidth

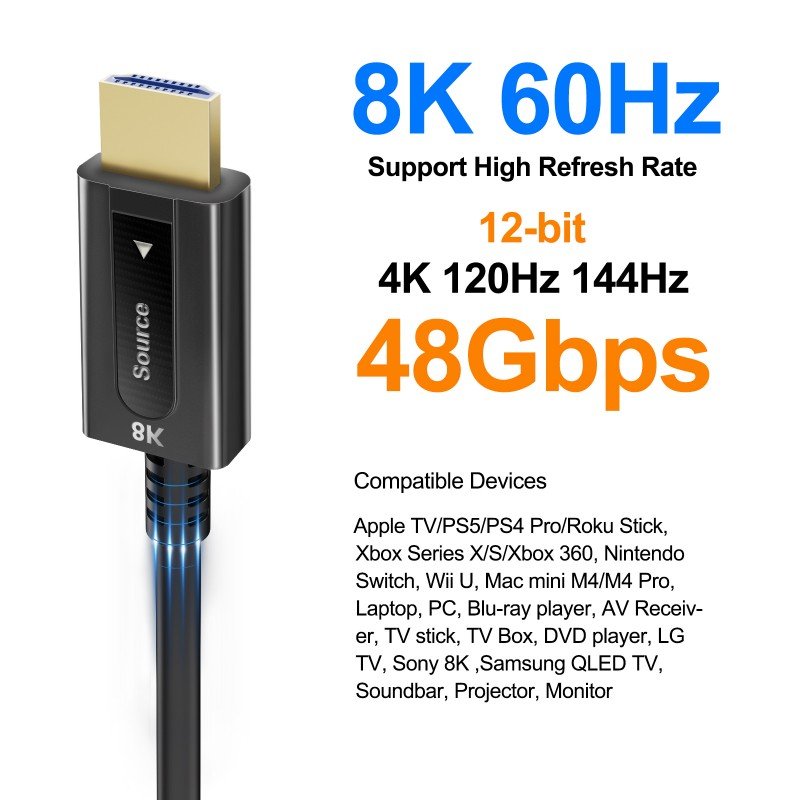

- 8K & 4K Support – 8K@60Hz, 4K@120Hz, 10K resolution support
- 48Gbps Bandwidth – Uncompressed high-definition audio and video transmission
- Hybrid AOC Design – Fiber for video data + copper for power/HDCP/EDID
- Long Distance – Up to 100 meters without signal loss or repeaters
- HDR & eARC – High Dynamic Range with enhanced Audio Return Channel
- EMI/RFI Immunity – Fiber optic technology eliminates electromagnetic interference

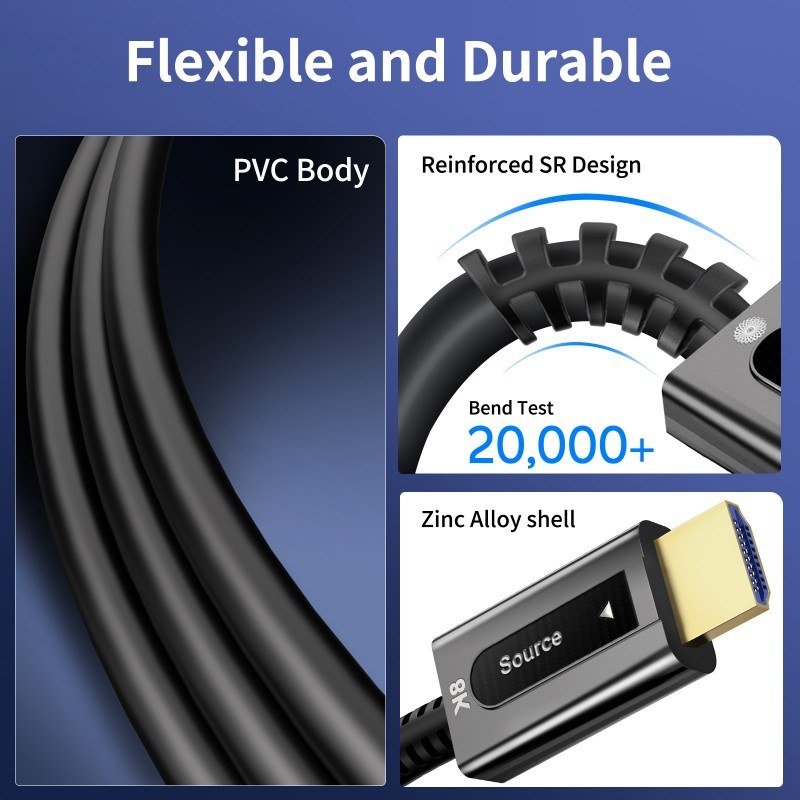

- Durable Construction – High-quality connectors and cable for long service life
Technical Specifications
| Parameter | Specification |
|---|---|
| HDMI Version | HDMI 2.1 |
| Max Bandwidth | 48Gbps |
| Max Resolution | 8K@60Hz, 4K@120Hz, 10K |
| Cable Type | Active Optical Cable (AOC) Hybrid |
| Fiber Type | OM3 Multimode Fiber (4 fibers) |
| Connector Type | HDMI Type A (Standard) male to male |
| Max Length | Up to 100 meters |
| HDR Support | HDR10, Dolby Vision, 10-bit/12-bit color |
| HDCP | HDCP 2.3 compliant |
| Audio Support | eARC, Dolby Atmos, DTS:X, up to 32 channels |
| Operating Temperature | 0°C to 70°C |
| Customization | Length, connector type, jacket color, logo |
Applications
- Home Theater & AV – 8K TVs, projectors, soundbars, AV receivers
- Professional AV – Conference rooms, classrooms, auditoriums, control rooms
- Digital Signage – Video walls, retail displays, commercial installations
- Gaming & Esports – High-refresh gaming monitors and consoles
- Broadcast & Studio – Studio monitors, video production, live events
- Education & Corporate – Boardrooms, training centers, presentation systems
- Medical Imaging – High-resolution medical displays and imaging systems
Why Choose Changzhou Jinshang?
With over 15 years of experience in fiber optic cable manufacturing, Changzhou Jinshang Electronic Technology provides high-quality AOC HDMI cables with strict quality control. We offer OEM/ODM services, custom lengths, connector configurations, and competitive factory-direct pricing. All products undergo 100% testing before shipment.
Contact us today for a free quote and sample!
