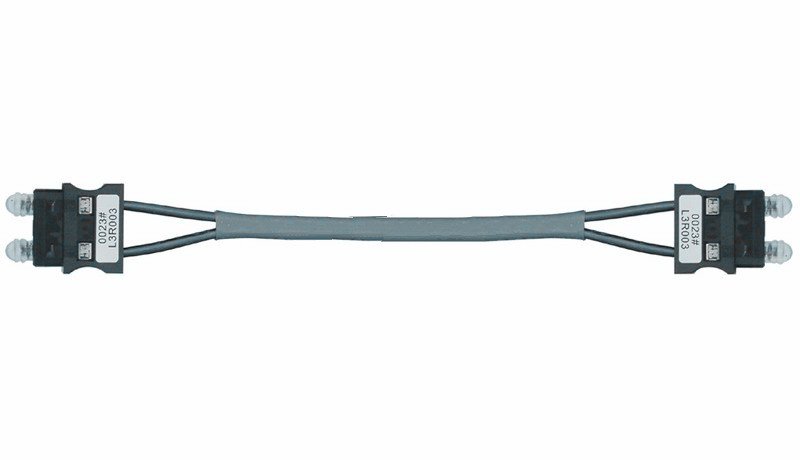

A66L-6001-0023 FANUC CNC Internal Fiber Optic Cable
A66L-6001-0023 FANUC CNC Internal Fiber Optic Cable. High-quality industrial fiber optic cable. OEM/ODM from Changzhou Jinshang.
The A66L-6001-0023 FANUC CNC Internal Fiber Optic Cable is a compatible replacement-style internal equipment optical harness for inside CNC cabinets, servo and controller maintenance, and machine-tool cable replacement.
Product Overview
Built around A66L-6001-0023-style CNC optical connectors, this short internal equipment fiber harness is intended for internal CNC cabinet optical connection and preventive-maintenance spares. It is presented as a compatible replacement assembly; the machine model, connector keying, and length must be verified. Alternative shells, jackets, colors, ferrules, or protection in the photos are selectable configurations.
Key Features
- A66L-6001-0023-style CNC optical connectors
- Short internal equipment fiber harness
- Passive optical path with no conductive connection
- Length, jacket, labeling, and routing protection configurable
- Connector-focused for installation and replacement work
- Suited to FANUC CNC repair and control-panel refurbishment
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Reference part | A66L-6001-0023 | Compatible replacement |
| Connectors | A66L-style CNC optical | Keyed |
| Use | Internal cabinet link | Short harness |
| Fiber | Industrial POF/PCF (confirm grade) | Per order |
| Length | Custom to order | Per routing |
| Path type | Passive optical | Tx/Rx pair defines link |
Applications
- FANUC CNC repair and internal optical links
- Servo and controller maintenance
- Control-panel refurbishment
- Preventive-maintenance spares
Performance & Reliability
Optical performance depends on fiber selection, termination quality, end-face cleanliness, bend control, finished length, and correct seating in the mating port. The passive path provides electrical isolation and EMI immunity, while the paired transmitter and receiver define the complete link. Avoid sharp bends, pulling on connector bodies, contaminated faces, and repeated stress at the strain relief.
Customization & Ordering
We supply compatible replacement internal harnesses with configurable length, jacket, labeling, and protection. Confirm the exact suffix, keying, and length. Pair with the external A66L-6001-0026 cable where needed. Quote: sales@fevelectronics.com.
FAQ
Q: Is this an original FANUC part?
A: It is a compatible replacement-style assembly, not an OEM FANUC part. Verify the machine model, connector keying, and length before ordering.
Q: Internal or external cable, which do I need?

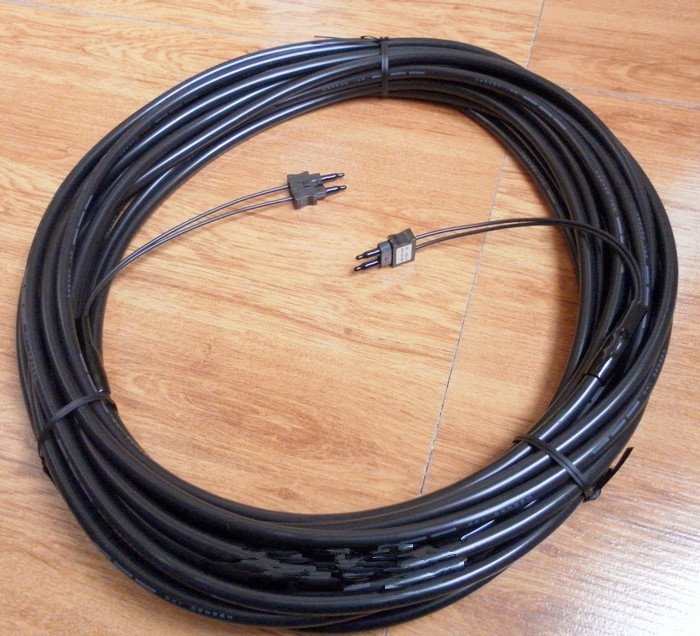

A: This is the short internal cabinet harness; for links between cabinet and servo drive use the external A66L-6001-0026.
Q: Can it be used with Mitsubishi servos?
A: Only if the connector is confirmed; see the related MR-J3BUS servo cable for Mitsubishi links.
Why Choose Us
We are a fiber optic cable manufacturer supplying compatible CNC optical cables. Browse the industrial fiber optic cable range and FAQs, or email sales@fevelectronics.com.
