6XV1873-5CH50 OM2 50/125 LC-LC Fiber Patch Cord, 5 m
6XV1873-5CH50 Type OM2 50/125 LC-LC Fiber Patch Cord, 5 m. Pre-terminated duplex multimode fiber assembly for industrial automation. OEM/ODM from Changzhou Jinshang.

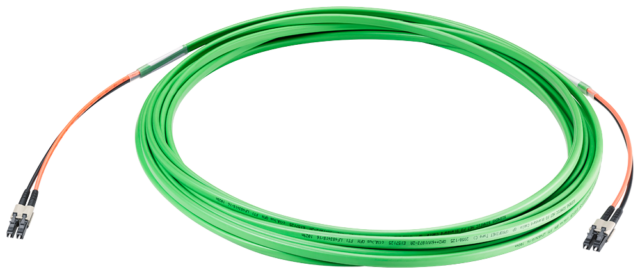

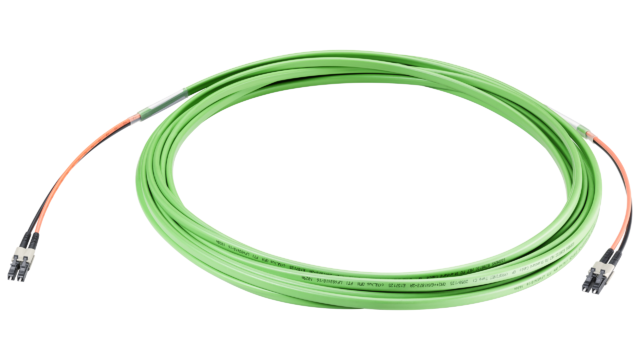

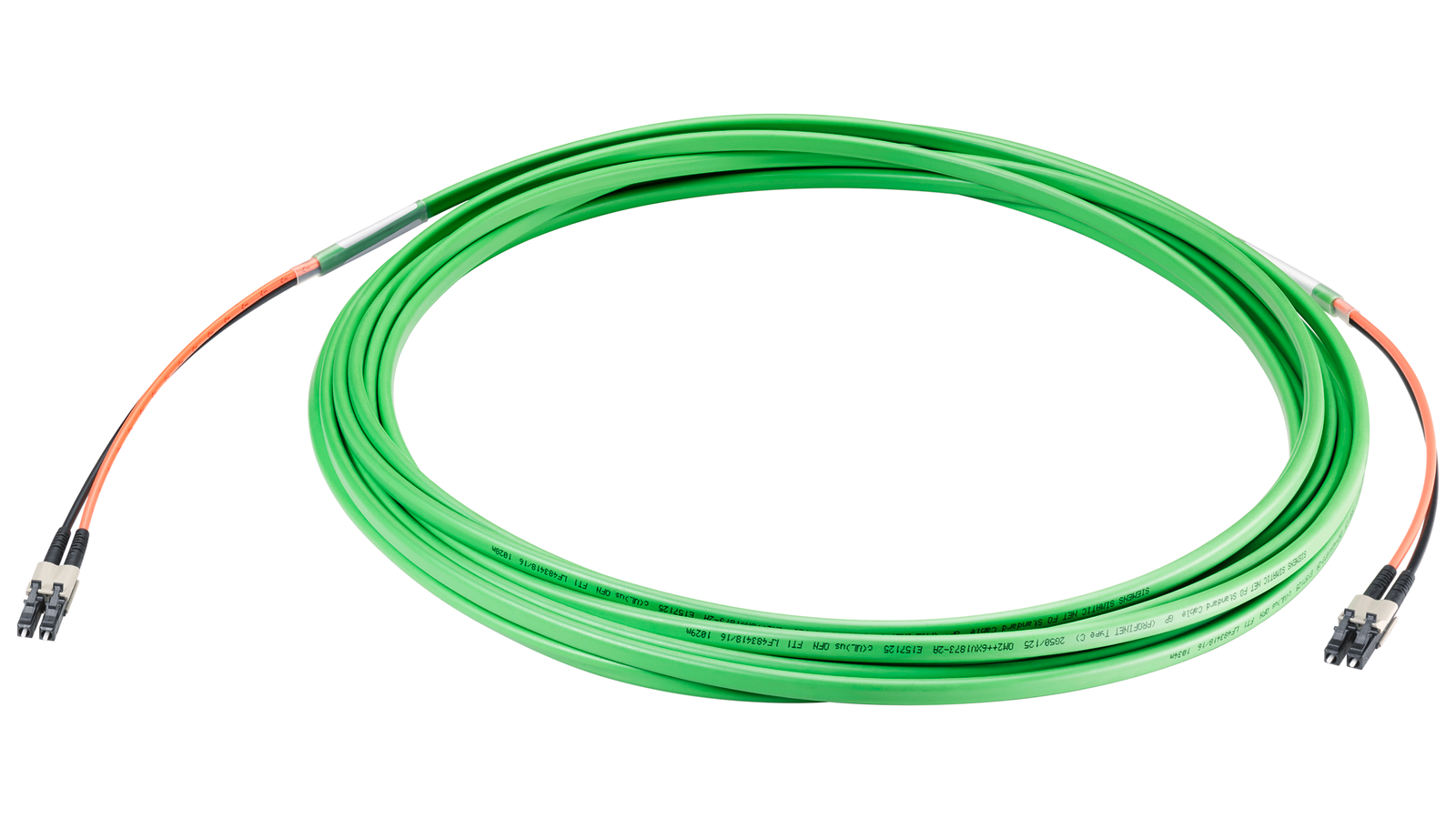

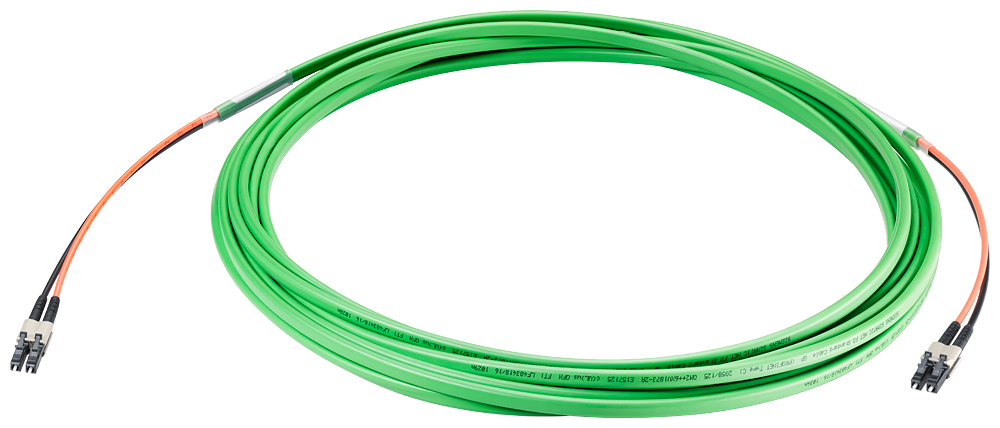

The 6XV1873-5CH50 is a factory-terminated OM2 50/125 µm multimode duplex patch cord with LC duplex connectors at both ends, supplied at 5 m. Built for Industrial Ethernet, PROFIBUS optical and factory-automation links, it is a connector-matched OEM-equivalent lead that removes on-site termination and shortens cabinet build time.
Product Overview
This 6XV1873-5CH50 assembly uses OM2 graded-index 50/125 µm glass in a duplex two-fiber construction, with PVC buffered fibers with a durable PUR outer jacket designed for repeated-motion and drag-chain routing. LC duplex connectors at each end keep transmit and receive fibers paired and ready to plug into switches, PLCs, communication processors and optical modules.
The part is presented as a type reference compatible with Siemens-style industrial cabling. Buyers comparing the complete connector and cable arrangement against an equipment bill of materials will find it a clear, repeatable configuration for both new builds and replacement programs.
Key Features
- Exact type reference 6XV1873-5CH50 for BOM matching
- OM2 50/125 µm graded-index multimode glass fiber
- Pre-terminated LC duplex connectors at both ends
- Specified assembly length of 5 m
- PUR outer jacket for flexible, motion-oriented routing
- Duplex construction for paired TX/RX channels
- EMI/RFI immune optical transmission
- Fast deployment with factory-terminated ends
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Type reference | 6XV1873-5CH50 | OEM-equivalent industrial type |
| Fiber type | OM2 50/125 µm multimode | Graded-index glass |
| Connectors | LC duplex to LC duplex | Both ends factory terminated |
| Assembly length | 5 m | Fixed as specified |
| Jacket | PVC buffered fibers / PUR outer jacket | Motion-rated routing |
| Construction | Duplex two-fiber | Paired TX/RX channels |
Applications
- Industrial Ethernet and 100Base-FX links
- PROFIBUS optical networks
- Factory automation cell connections
- PLC and switch interconnections
- Machine and process control networks
- Drag-chain and robot moving-axis cabling
Performance & Reliability
OM2 graded-index 50/125 µm glass provides dependable multimode transmission for compatible Industrial Ethernet and fieldbus equipment. The duplex pre-terminated design supports fast deployment and keeps both optical channels paired. Permitted distance and loss are determined by the protocol, transceivers, wavelength, connector condition and overall link design. The PUR outer jacket is intended to tolerate dynamic routing better than a standard fixed patch lead, when installed within its specified bend and motion limits.
Customization & Ordering
We supply the 6XV1873-5CH50 for OEM, integration and replacement programs, with alternative lengths and jacket options available on request. Send your BOM to sales@fevelectronics.com for batch pricing. See the full industrial fiber optic cable category and compare adjacent lengths such as 6XV1873-5CN10 PUR 10 m and 6XV1873-5AT10 100 m OM2.
FAQ
Q: What fiber grade is the 6XV1873-5CH50?
A: It is an OM2 50/125 µm graded-index multimode glass fiber, aimed at Industrial Ethernet, 100Base-FX and PROFIBUS optical links.
Q: What length is supplied?
A: This configuration is a fixed 5 m LC-LC duplex assembly; other lengths are quoted for volume orders.
Q: Is this lead suitable for moving or drag-chain use?
A: This PUR-jacketed version is designed for repeated-motion and drag-chain routing within its specified bend and motion limits.
Why Choose Us
As a dedicated fiber optic cable manufacturer, TOCP Fiber builds matched OM2 industrial assemblies for automation and fieldbus networks. Read more in our fiber optic cable FAQs, or contact sales@fevelectronics.com for your 6XV1873-5CH50 requirement.
