6XV1843-5FH10-0CA0 9/125 Single-Mode LC-SC Fiber Patch Cord, 1 m
6XV1843-5FH10-0CA0 Type OM4 50/125 LC-SC Fiber Patch Cord, 1 m. Pre-terminated duplex multimode fiber assembly for industrial automation. OEM/ODM from Changzhou Jinshang.

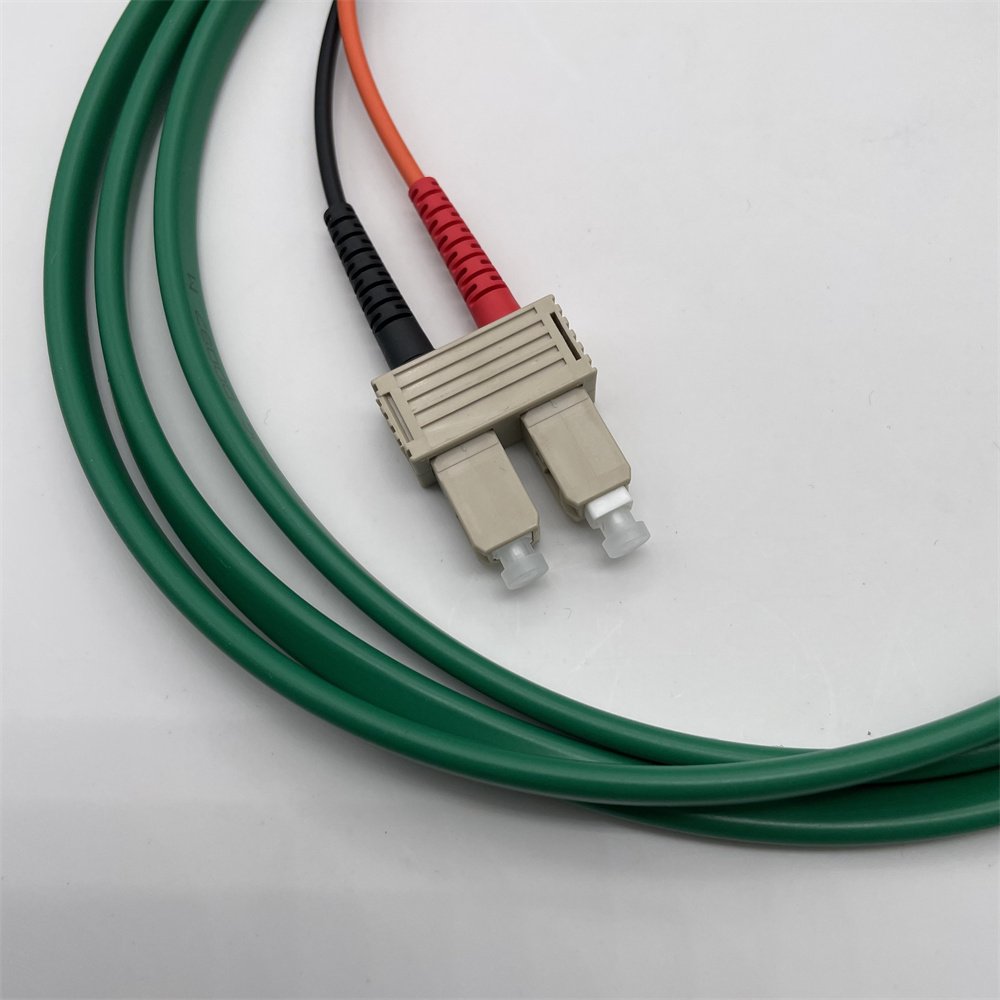

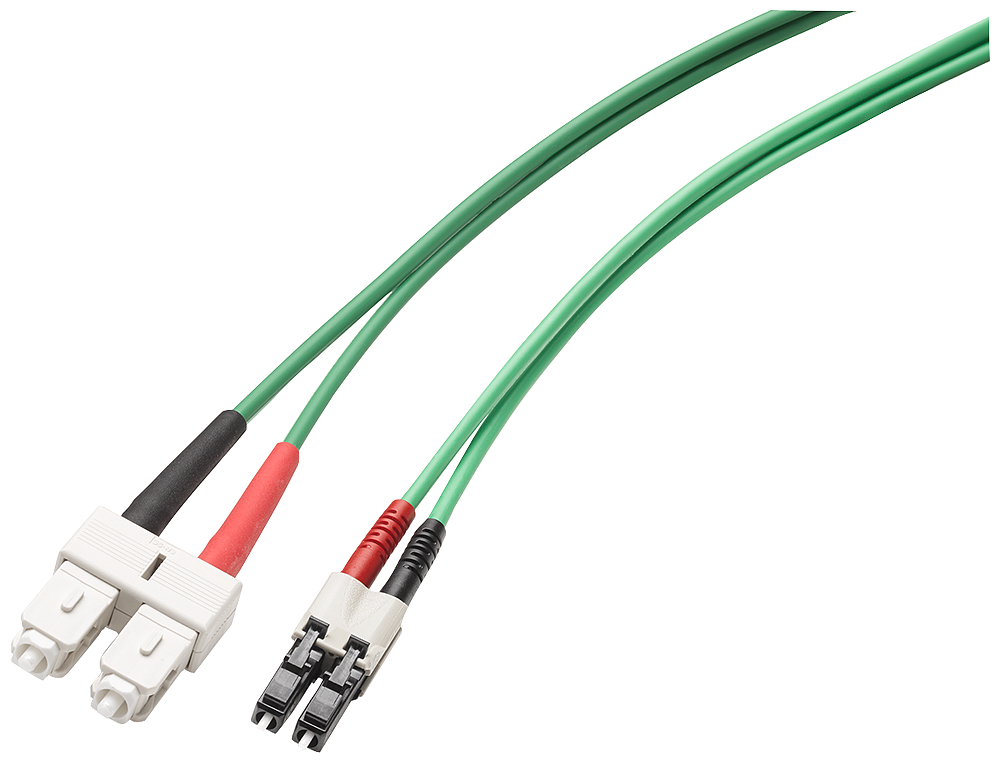

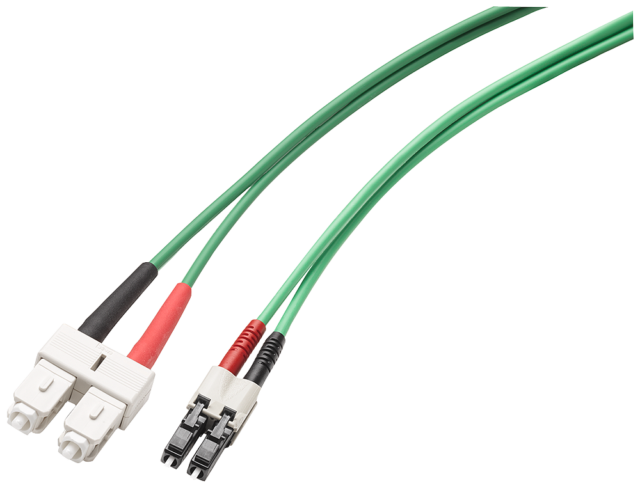

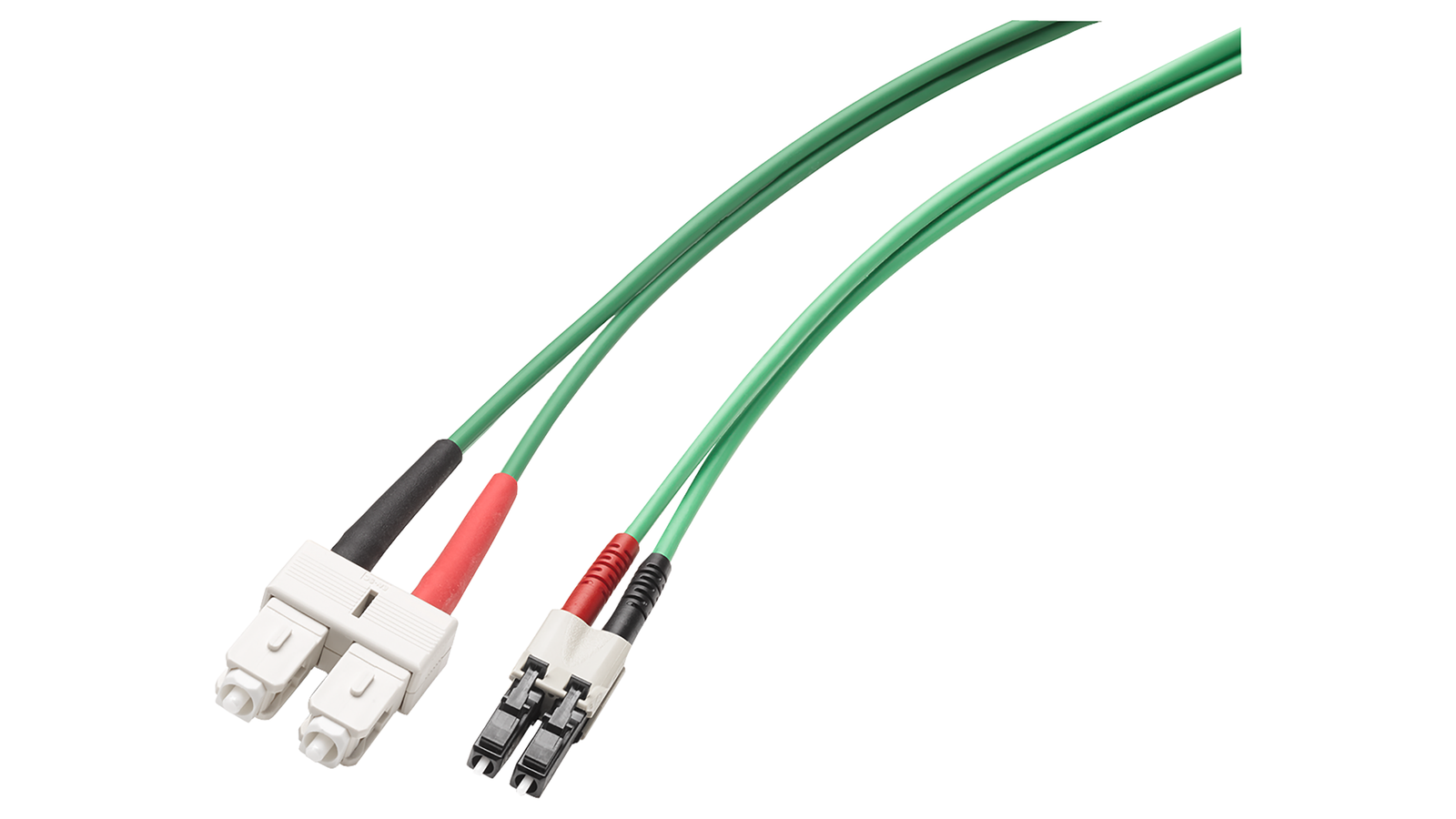

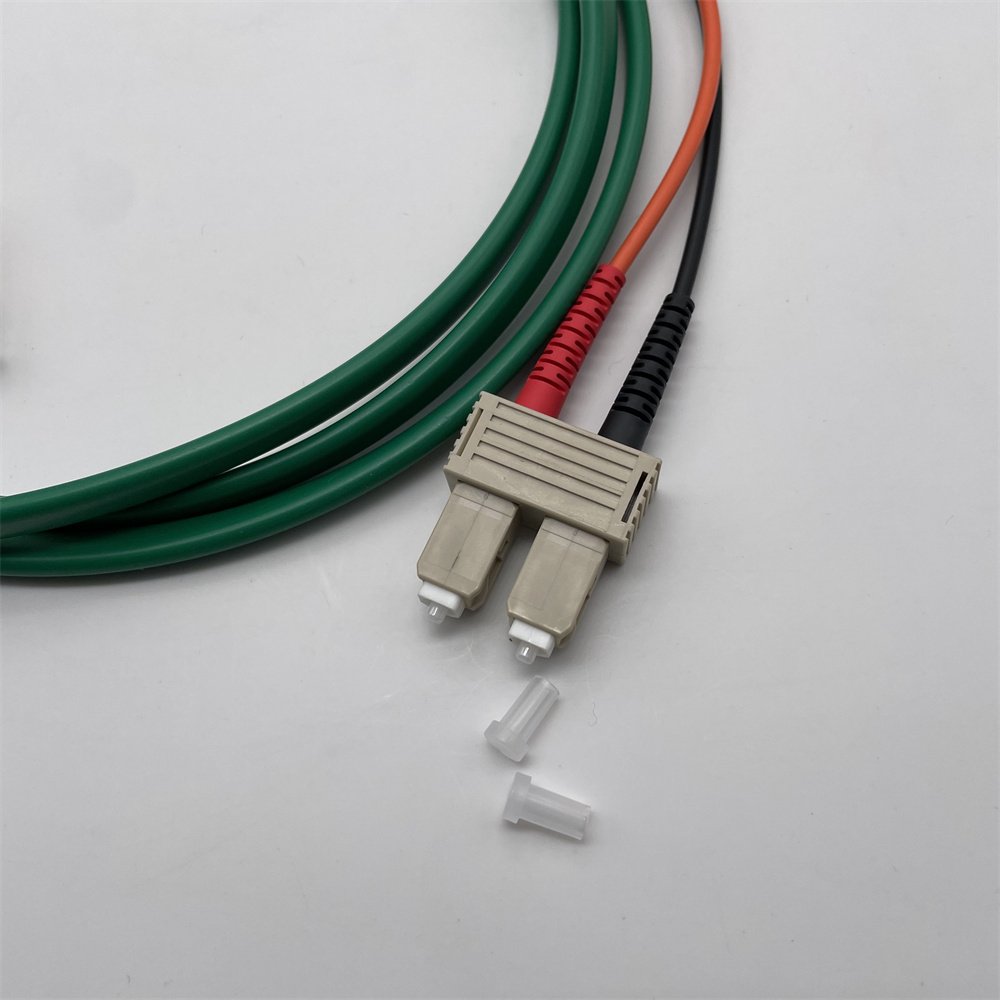

The 6XV1843-5FH10-0CA0 is a pre-terminated two-fiber single-mode patch cord using 9/125 µm glass, with one LC duplex connector and one SC duplex connector. It ships as a duplex 1 m assembly for protected indoor industrial links where low-dispersion single-mode reach is required, and serves as a connector-matched, OEM-equivalent drop-in for switch, controller and measurement-equipment patching.
Product Overview
This 6XV1843-5FH10-0CA0 assembly pairs two 9/125 µm single-mode fibers in a duplex jacket, factory-terminated to keep the transmit and receive channels organized. An LSZH outer jacket with FR-LSZH buffered fibers supports neat routing in control cabinets and racks. The neutral single-mode jacket is engineered for indoor fixed installations rather than outdoor or drag-chain use.
Marked as a type reference compatible with Siemens-style industrial fiber cabling, it is aimed at buyers comparing the complete connector and cable arrangement against their equipment bill of materials before requesting a quotation.
Key Features
- Exact type reference 6XV1843-5FH10-0CA0 for BOM matching
- 9/125 µm single-mode graded glass fiber
- one LC duplex connector and one SC duplex connector
- Pre-terminated assembly length of 1 m
- LSZH outer jacket with FR-LSZH buffered fibers
- Duplex TX/RX channel pairing
- EMI/RFI immunity and low dispersion
- Fast deployment with no field polishing
Technical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Type reference | 6XV1843-5FH10-0CA0 | OEM-equivalent industrial type |
| Fiber type | 9/125 µm single-mode | Low-dispersion glass |
| Connector arrangement | LC duplex to SC duplex | Factory terminated |
| Assembly length | 1 m | Fixed as specified |
| Construction | Duplex two-fiber | Paired TX/RX channels |
| Jacket | LSZH outer / FR-LSZH buffer | Protected indoor routing |
Applications
- Industrial single-mode Ethernet links
- Remote automation equipment interconnection
- Control-room fiber links
- Measurement and monitoring systems
- Protected indoor optical networks
- OEM-equivalent replacement cabling
Performance & Reliability
The 9/125 µm single-mode fiber supports precise, low-dispersion optical transmission for compatible single-mode equipment. Duplex organization and factory-terminated ends simplify installation and reduce field-polish variability, while the optical path remains immune to electromagnetic interference. Real performance depends on wavelength, connector polish compatibility, cleanliness and the engineered link budget.
Customization & Ordering
This 6XV1843-5FH10-0CA0 assembly is available for OEM, integration and replacement orders, with other lengths and connector combinations quoted on request. Contact sales@fevelectronics.com for batch pricing. Compare the full range in our industrial fiber optic cable category, and cross-reference related single-mode leads such as 6XV1843-5FH10-0CB0 SC-ST and 6XV1843-5EH10-0CA0 OM4 LC-SC.
FAQ
Q: Is this a single-mode or multimode cable?
A: The 6XV1843-5FH10-0CA0 uses 9/125 µm single-mode glass fiber, suited to longer industrial single-mode links rather than short-reach multimode OM4 use.
Q: What connector ends does it have?
A: It is terminated with LC duplex to SC duplex at the factory, ready to plug into compatible industrial equipment.
Q: How long is the lead?
A: This configuration is supplied at a fixed 1 m; alternative lengths are available for volume OEM orders.
Why Choose Us
TOCP Fiber is a specialized fiber optic cable manufacturer producing matched industrial single-mode and multimode assemblies. See our fiber optic cable FAQs or email sales@fevelectronics.com for the 6XV1843-5FH10-0CA0 and your adjacent project needs.
