6.0×4.4×2.2 mm Dual-Core Black PVC PMMA POF Cable
Dual-core black PVC jacketed PMMA POF cable, 6.0x4.4x2.2mm figure-8, two 1.0mm step-index fibers, NA 0.5, <=0.20 dB/m, 500m per drum.

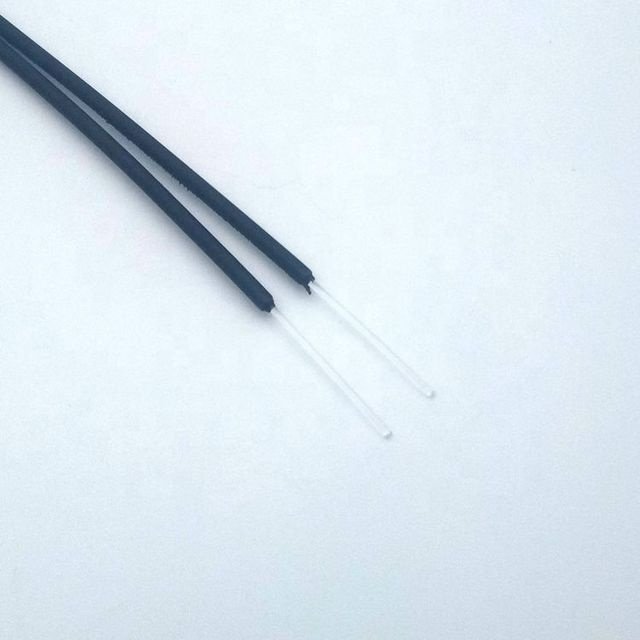

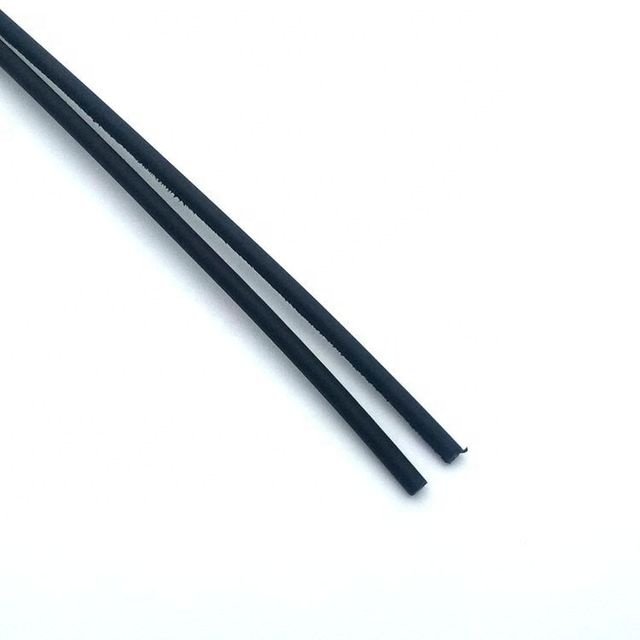

This is a dual-core (figure-8) jacketed PMMA POF cable with a black PVC outer jacket, overall 6.0 × 4.4 × 2.2 mm, built from two 1.0 mm step-index fibers. It is used for half-duplex and bidirectional data links where transmit and receive need to be kept in one flexible cable.
Product Overview
The flat figure-8 jacket holds two parallel PMMA fibers side by side, so a single cable can carry one fiber in each direction between a controller and a sensor, drive or industrial node. The black PVC jacket adds abrasion protection and UV resistance for indoor and light industrial use.

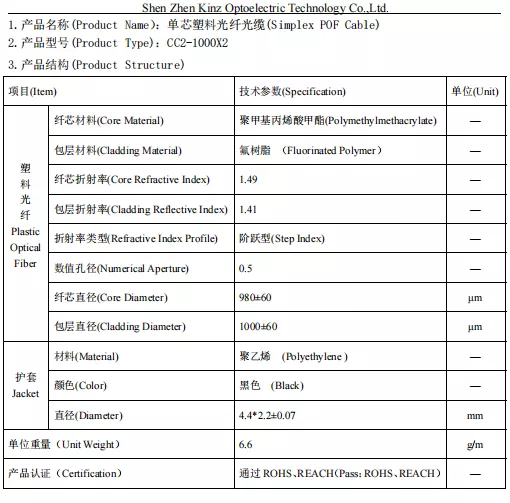

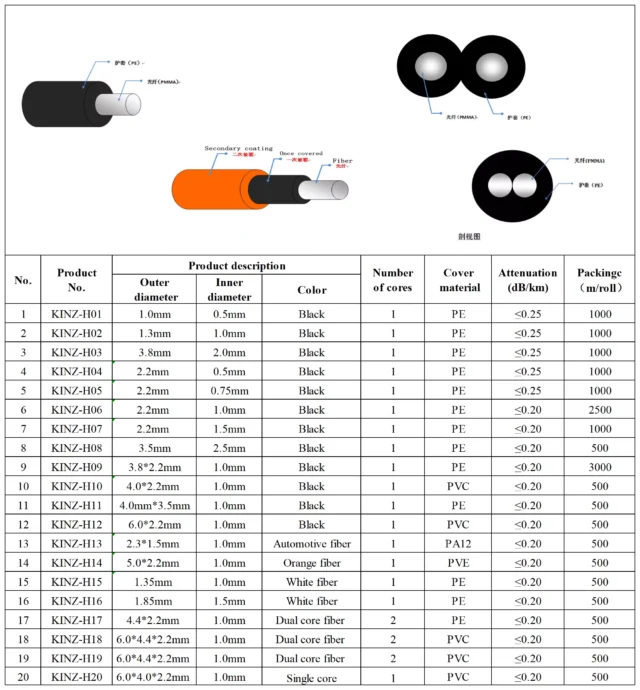

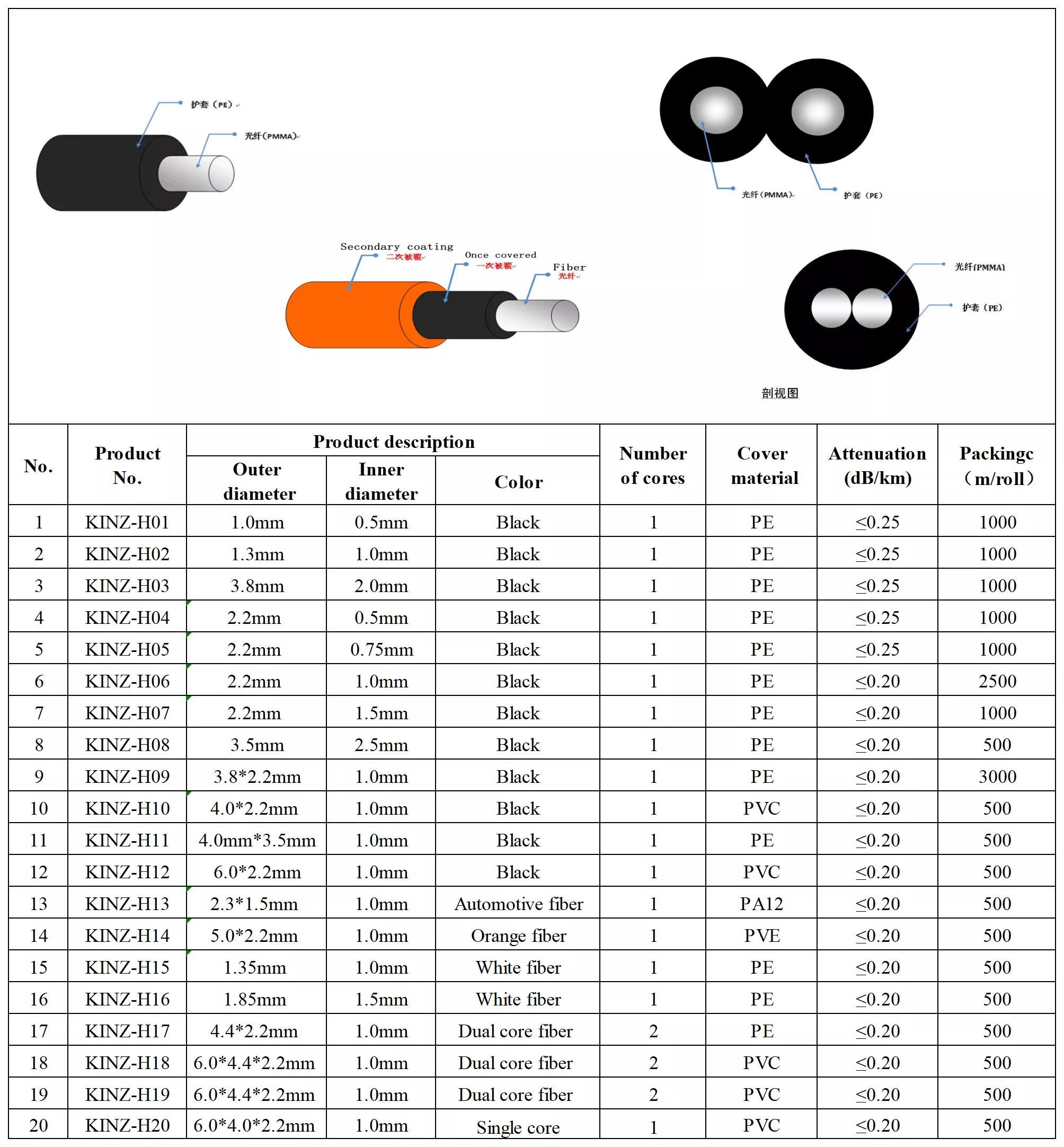

Core and cladding follow the CC2-1000X2 family: 980 ±60 µm PMMA core, 1000 ±60 µm fluoropolymer cladding, NA 0.5, step-index. The family table lists attenuation ≤0.20 dB/m, black PVC jacket, RoHS/REACH, and 500 m per drum.
Key Features
- Two 1.0 mm PMMA fibers in one flat 6.0×4.4×2.2 mm black PVC figure-8 jacket.
- Step-index PMMA, NA 0.5, core RI 1.49 / cladding RI 1.41.
- ≤0.20 dB/m attenuation; RoHS / REACH (supplier-stated).
- 500 m per drum; cut-to-length and termination on request.
Specifications
| Parameter | Value | Unit | Notes / Conditions |
|---|---|---|---|
| Cable type | Dual-core jacketed PMMA POF cable | – | Two 1.0mm fibers in a figure-8 / flat PVC jacket. |
| Cable cross-section | 6.0 × 4.4 × 2.2 | mm | Family rows H18/H19; flat figure-8. |
| Number of fibers | 2 | cores | Dual-core. |
| Fiber core diameter | 1.0 (nominal) | mm | CC2-1000X2 family. |
| Core material | PMMA | – | Family material. |
| Cladding material | Fluorinated polymer | – | Family material. |
| Jacket material | PVC | – | Family rows H18/H19. |
| Core refractive index | 1.49 | – | CC2-1000X2. |
| Cladding refractive index | 1.41 | – | CC2-1000X2. |
| Numerical aperture (NA) | 0.5 | – | CC2-1000X2. |
| Refractive index profile | Step index | – | Family material. |
| Core diameter (family) | 980 ± 60 | µm | 920-1040 µm. |
| Cladding diameter (family) | 1000 ± 60 | µm | 940-1060 µm. |
| Attenuation | ≤0.20 | dB/m | Family H18/H19. |
| Jacket color | Black | – | Family rows. |
| Compliance | RoHS / REACH | – | Supplier-stated; no certificate copies on file. |
| Length per drum | 500 | m | Family H18/H19. |
Applications
- Industrial control and sensor half-duplex links (TX/RX in one cable).
- Servo drives, robotics and machine-tool POF networks.
- Automotive and audio/digital interconnect where EMC immunity matters.
- Point-to-point duplex data links.
See our full POF fiber optical cable range for other diameters and jacket options.
Ordering & Customization
We supply this cable by the 500 m drum and can cut it to length with standard POF connectors (e.g. Versatile Link / JIS F05 style) on request. Tell us length, connector types and quantity. Contact sales.
FAQ
Can this cable be used for bidirectional full-duplex? Yes — because it contains two fibers, one can carry TX and the other RX between two nodes. It is commonly used with POF transceivers that expect a duplex link.
